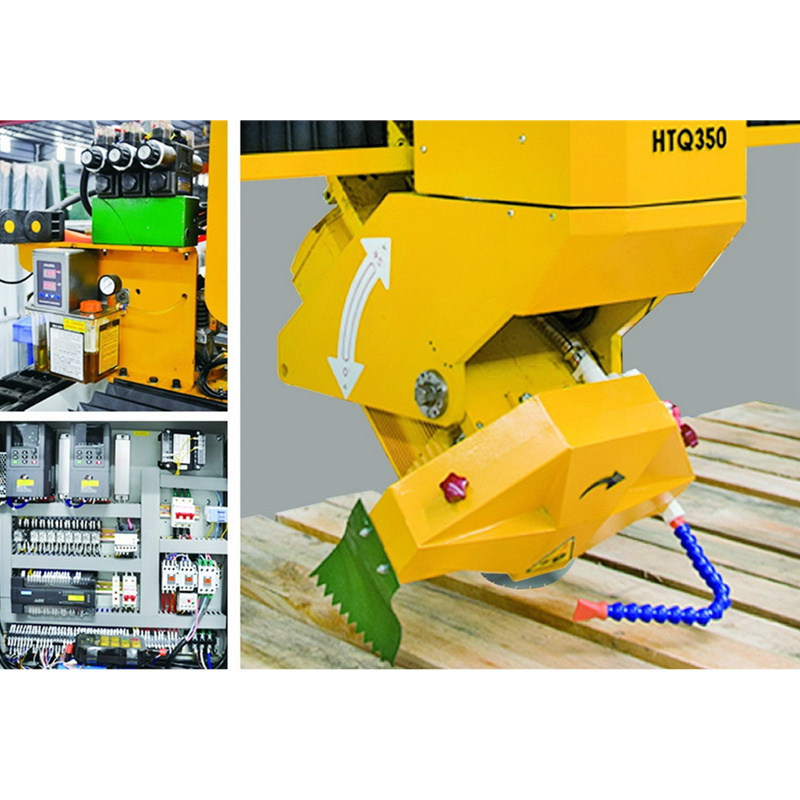

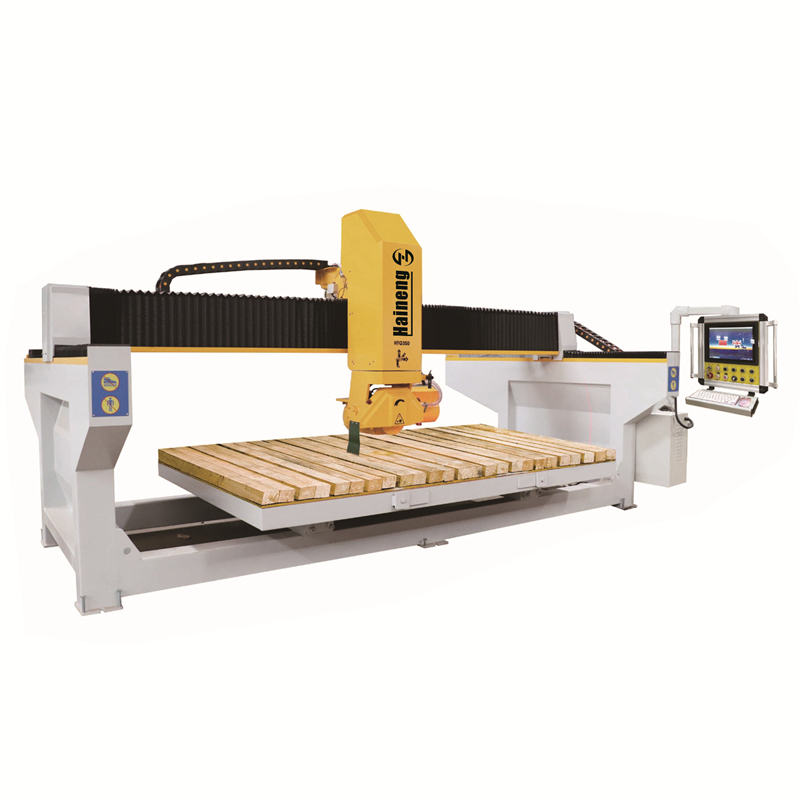

5 Axis Sintered Stone Slabs Bridge Saw
This series of models are suitable for slab, tile, marble, artificial stone, granite, cement products and other building materials of special-shaped edge or multi-function cutting, is the most suitable for special-shaped cutting factory deep processing equipment .
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This series of models are suitable for slab, tile, marble, artificial stone, granite, cement products and other building materials of special-shaped edge or multi-function cutting, is the most suitable for special-shaped cutting factory deep processing equipment .
1 Small floor area: only 15 square meters (length 5 meters x width 3 meters).
2 Simple operation: touch mode man-machine interface, module parameterized input, no programming,intuitive operation,handy.
3 High configuration: the main core control components using international line brand components,stable performance, long life.
4 High precision: all motion pairs adopt high precision linear guide rail, with high precision helical gear transmission, high precision.
5 Intelligent all motion pairs adopt automatic grease lubrication, escort tor motion pair.
6 Energy saving and consumption reduction: permanent magnet synchronous main motor is optional, which usually saves 30% electricity than three-phase asynchronous motor
7 Craftsmanship manufacturing: every detail of the design and manufacturing so that you can feel carefully crafted, excellence excellent quality!
Technical Parameters
Product type |
Unit |
HTQ350G Five-axis multi-function type |
Blade diameter |
mm |
250-350 |
Worktable size |
mm |
3200×2000 |
Max. cutting size |
mm |
3200×2000×50 |
Max. chamfer size |
mm |
3000×1800×50 |
Saw blade horizontal rotation angle |
° |
0-360° |
Chamfer orientation |
° |
0-90-180-270°/0-360° (Optional) |
Saw blade inclination angle |
° |
0-45°/0-90°(Optional) |
Turnover angle of worktable |
° |
0-85° |
Rotation angle of worktable |
° |
Default: None(Optional) |
Main motor power |
kw |
15 |
Host frequency conversion |
|
Optional |
Total power |
kw |
25.5 |
Water Consumption |
m³/h |
3.5 |
Gross weight |
kg |
4000 |
Overall dimensions |
mm |
5000×3000×2750 |
Processing

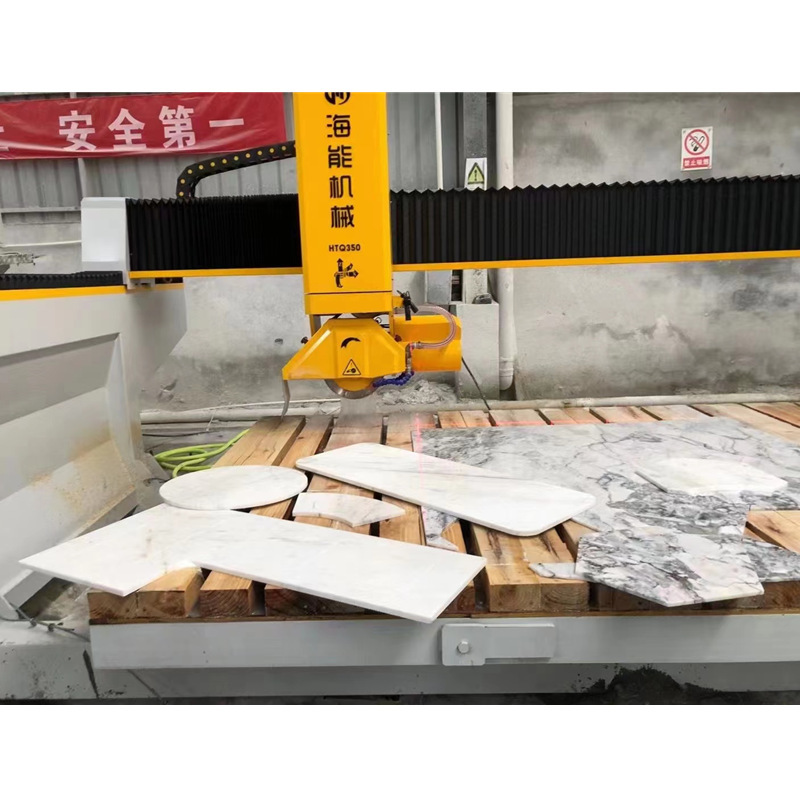

HTQ350G: Automatic cutting specification board + four sided chamfering + any side chamfering ( optional )+ Plane slotting ( drawing )+ drawing grid + stove top +( polygon ) Basin hole + polygon + trapezoid + diamond + sector + outer circle + Oval + horse belly edge + straight line imitation + Round hole ( optional )+ elliptical hole ( optional )+ Ellipse ( optional )+ Arc line copying ( optional )+ Drill hole ( optional ).....
