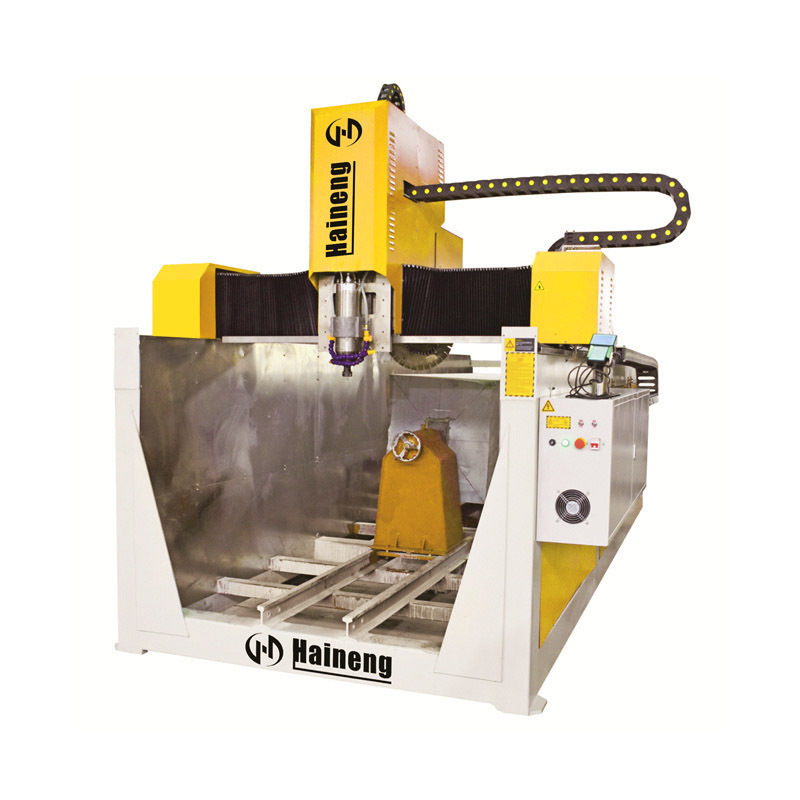

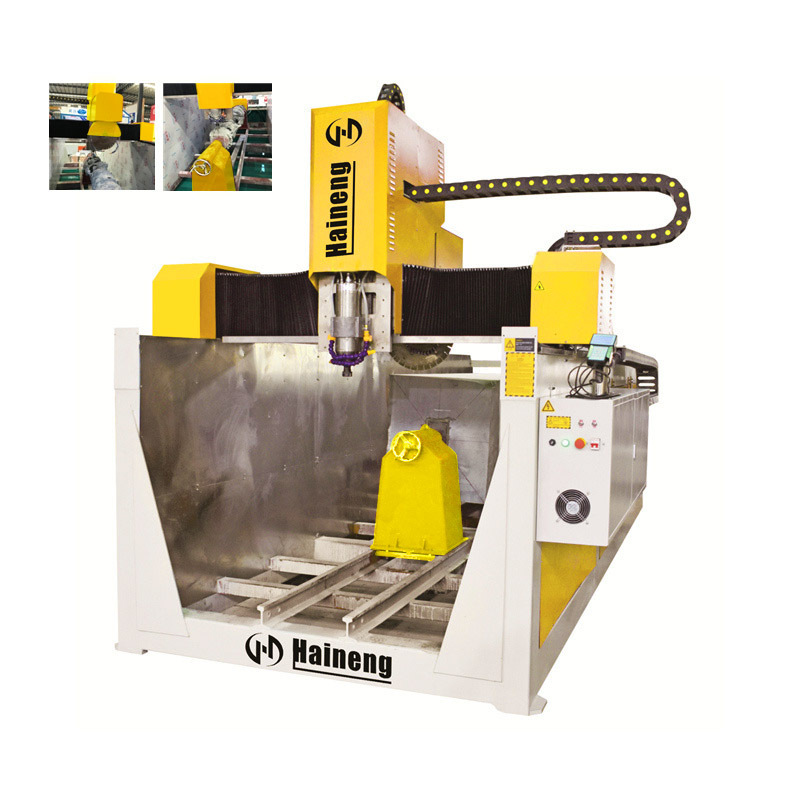

Dragon Column Single Head Stone Engraving Machine
Dragon Column Stone Engraving Machine suitable for large-scale pillar processing such as building materials, ancient building, gardens, etc.
Item No.:LZDK1230-1
- Haineng
- CHINA
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
Performance characteristics
1. The latest system, efficient and stable
2. X, Y axis 30 rails, Y axis double rails
3. XY reducer drive, Z-axis with brake function
4. Can process round carving, plane carving, flexible and changeable, round carvings can carry large workpieces of more than 5 tons
5. The saw blade is roughened first, and then the engraving process is carried out, which is efficient and energy-saving
6. Suitable for large-scale pillar processing such as building materials, ancient building, gardens, etc
Technical Parameters
Technical parameters | |
Equipment model | LZDK1230-1 |
Dimensions | 2200x5500x3000mm |
Processing size | φ1200x3000mm |
Saw power | 11KW |
Spindle power | 7.5KW |
Drive system | Servo |
Control system | NC studio / RichAuto (Customizable) |
