Electric Desktop Stone Chamfering Cutting Machine

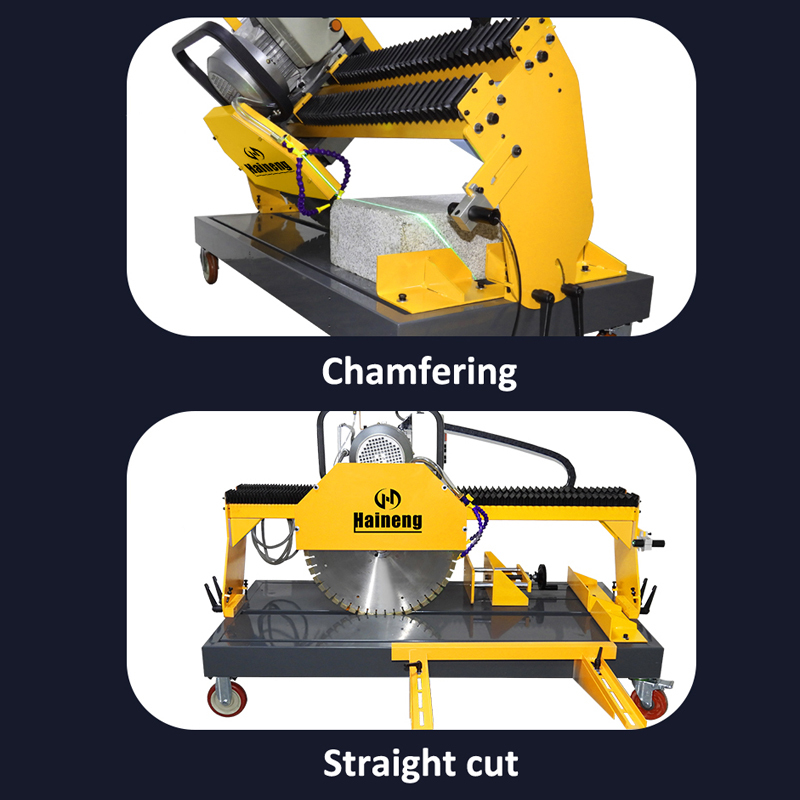

Desktop stone cutting machine can chamfer and cut straight. Cutting thick stone, such as curbstone, barstone, refractory bricks, etc.
Item No. :SQJ6180
- Haineng
- CHINA
- 25 days
- 15 PCS per month
- Information

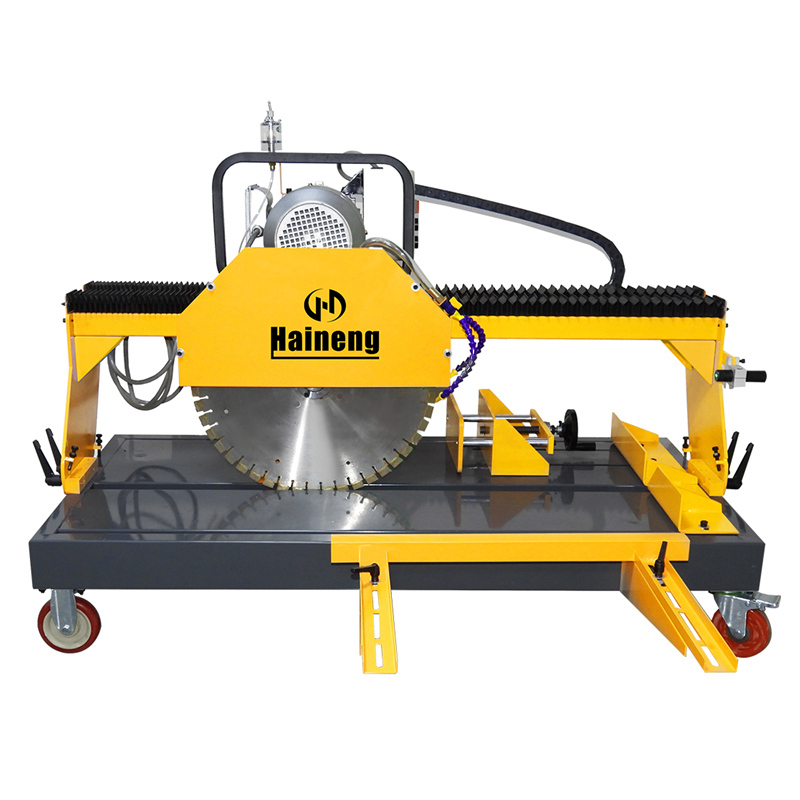

Electric Desktop Stone Chamfering Cutting Machine
Product Introduction

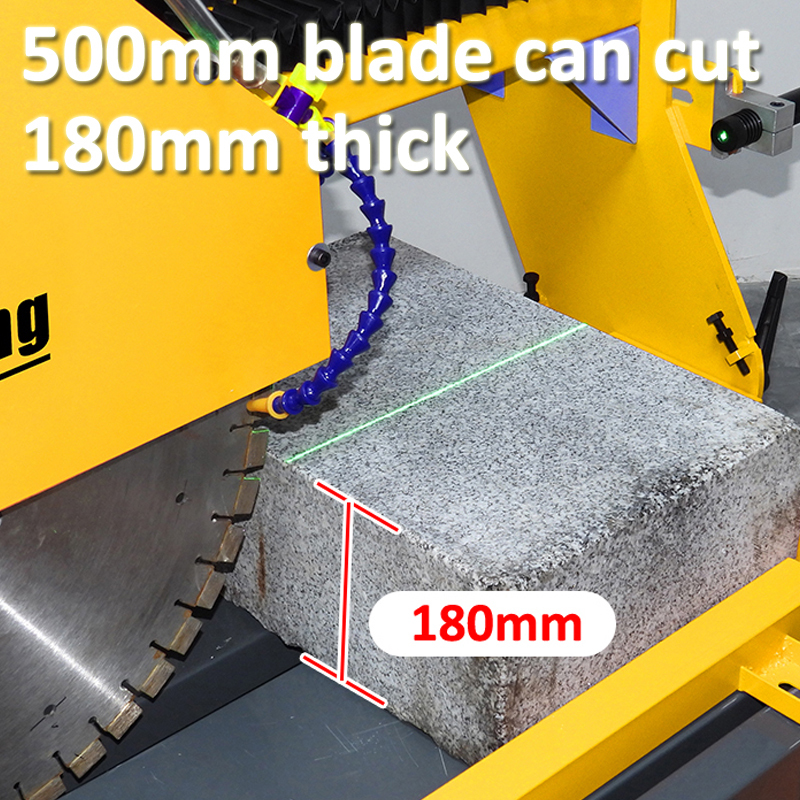

Multifunctional stone cutting machine can chamfer and cut straight. Cutting thick stone, such as curbstone, barstone, refractory bricks, etc. Quickly clamp the stone, 500mm blade can cut 180mm thick material.
Main Feature
1. High strength steel construction, dust cover square slider.

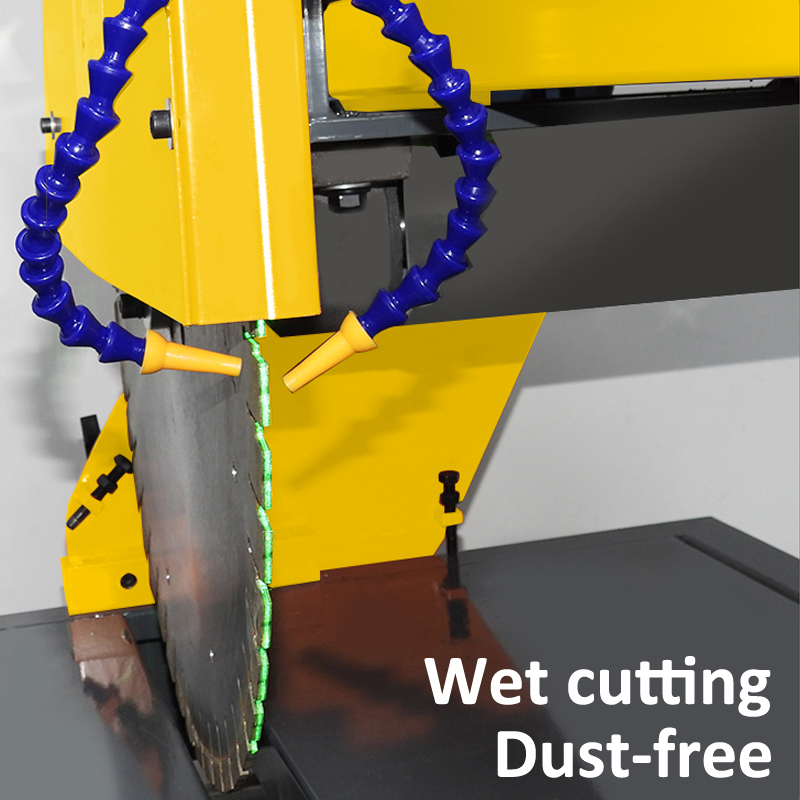

2. Double-head nozzle, wet cutting without dust.

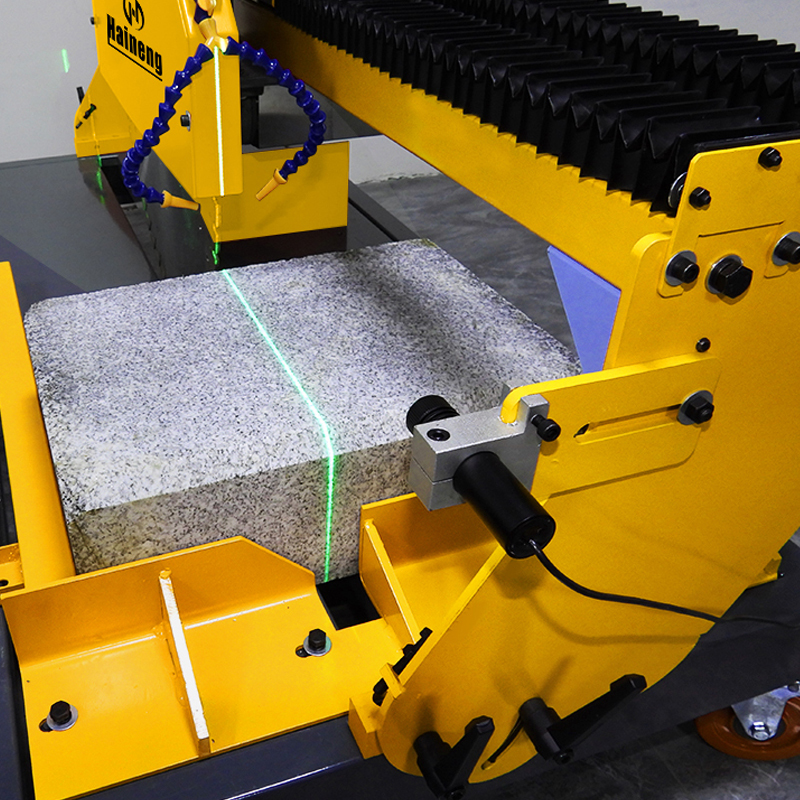

3. Infrared laser positioning, small cutting error.
4. High brightness laser, clearly visible outdoors.
5. High quality universal wheel, easy and fast to move.
Technical Parameters
Type | Motor Power | Blade diameter | Cutting length/thickness |
SQJ6180 | 4kw 50hz/220v/380v | 500mm | 600×180mm |
SQJ8180 | 4kw 50hz/220v/380v | 500mm | 800×180mm |
SQJ10180 | 4kw 50hz/220v/380v | 500mm | 1000×180mm |
SQJ12180 | 4kw 50hz/220v/380v | 500mm | 1200×180mm |
SQJ15180 | 4kw 50hz/220v/380v | 500mm | 1500×180mm |
SQJ6230 | 5.5kw 50hz/380v | 600mm | 600×230mm |
SQJ8230 | 5.5kw 50hz/380v | 600mm | 800×230mm |
SQJ10230 | 5.5kw 50hz/380v | 600mm | 1000×230mm |
SQJ12230 | 5.5kw 50hz/380v | 600mm | 1200×230mm |
SQJ15230 | 5.5kw 50hz/380v | 600mm | 1500×230mm |
SQJ6330 | 7.5kw 50hz/380v | 800mm | 600×330mm |
SQJ8330 | 7.5kw 50hz/380v | 800mm | 800×330mm |
SQJ10330 | 7.5kw 50hz/380v | 800mm | 1000×330mm |
SQJ12330 | 7.5kw 50hz/380v | 800mm | 1200×330mm |
SQJ15330 | 7.5kw 50hz/380v | 800mm | 1500×330mm |
