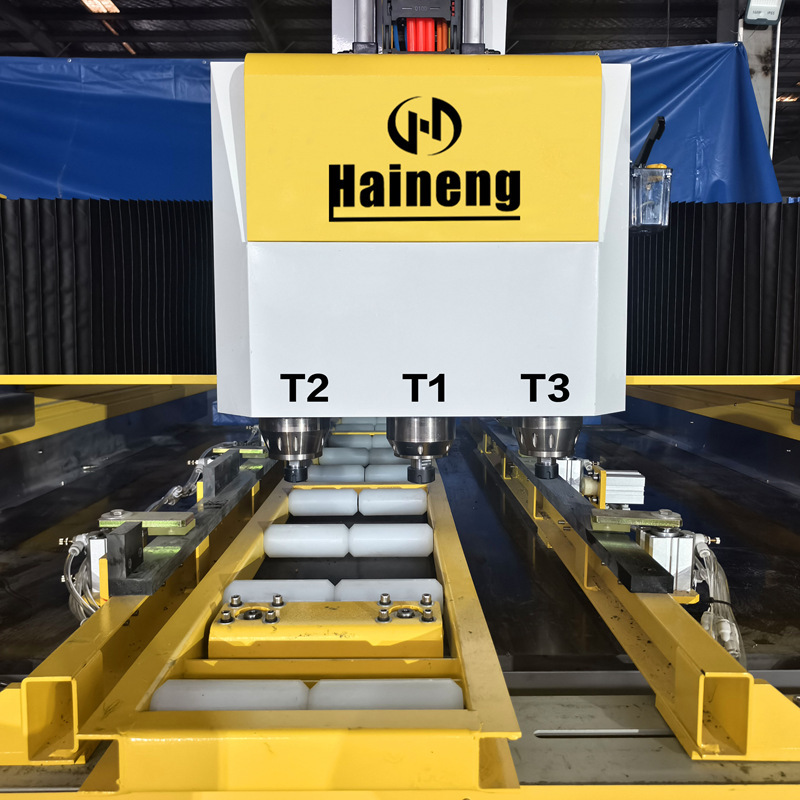

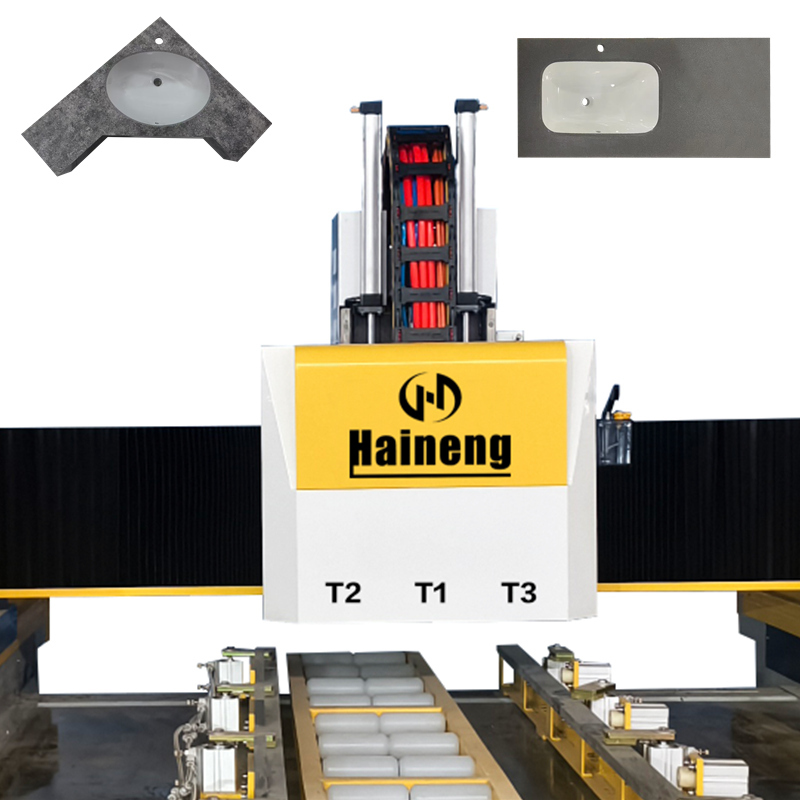

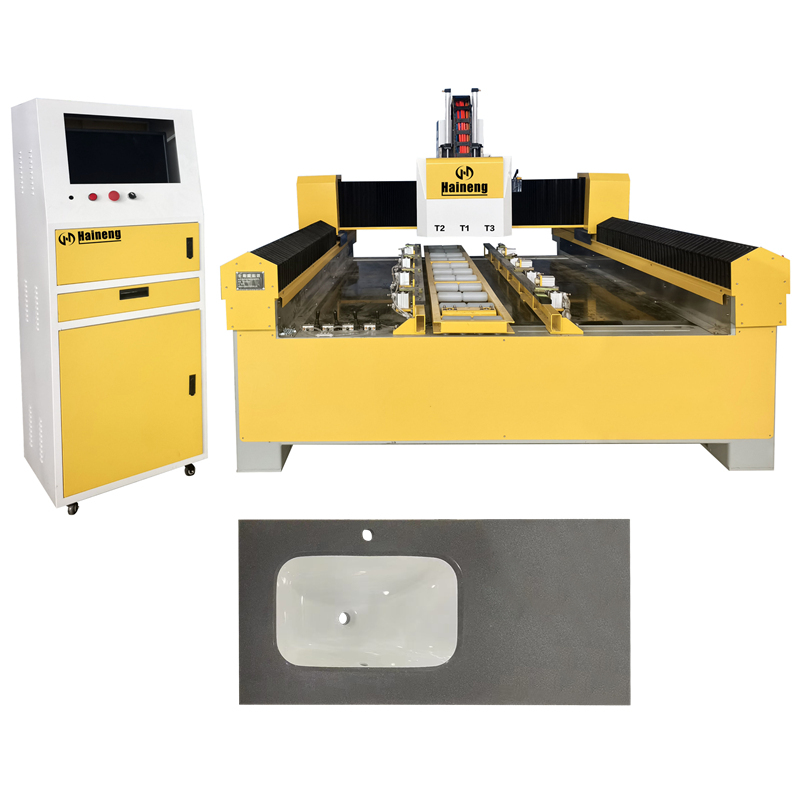

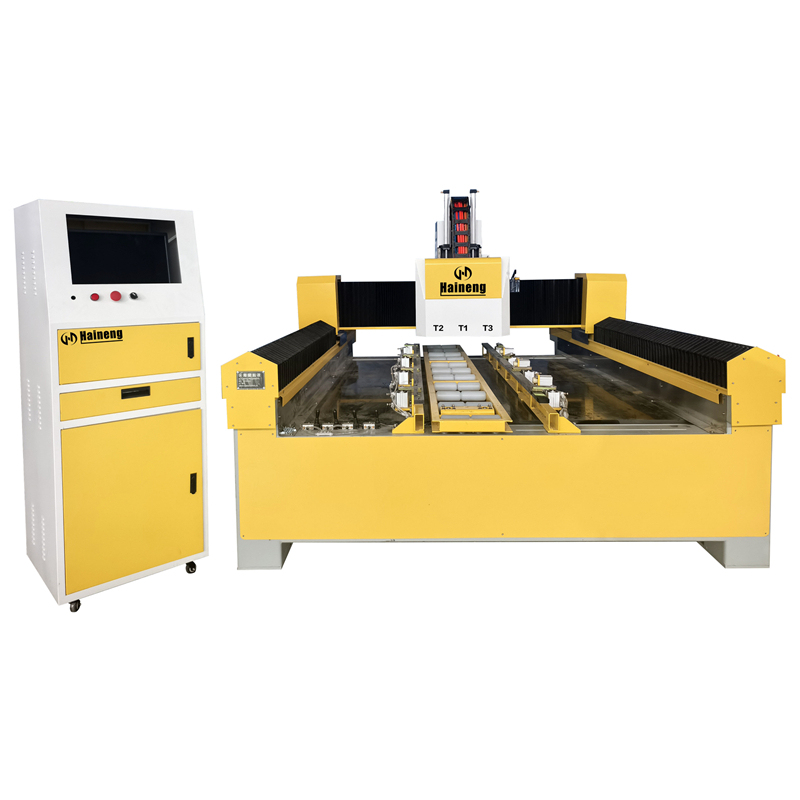

Granite Marble Basin Drilling Machine
Stone Drilling Machine mainly used for quartz stone, rock plate, marble, granite and other materials, such as countertop,washbasin, grinding and cutting processing.
Item No.: KJJ-3T
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
Stone Drilling Machine mainly used for quartz stone, rock plate, marble, granite and other materials, such as countertop,washbasin,special shaped lines, grinding and cutting processing.Drilling Machine supports laser dust-free measurement of height and edges.
Technical Parameters
Product number | Unit | KKJ-3T |
Max cutting size | mm | 1000x3000 |
Maximum running speed(XY) | m/min | 20 |
Maximum running speed (Z ) | m/min | 10 |
Control system |
| Independent development |
Workpiece fixed way |
| Cast aluminum profile work surface+pneumatic positioning system |
Spindle motor power | kw | 5.5-7.5 |
Spindle speed | r/min | 6000-24000 |
Cutter diameter | mm | 3.175/4/6/8/10/12.7 |
Cutting tool cooling |
| Circulating water |
Total power | kw | 15 |
Voltage | v | 380 |
Machine dimension | mm | 3400*2700 |
Gross weight | kg | 1000 |
Processing
