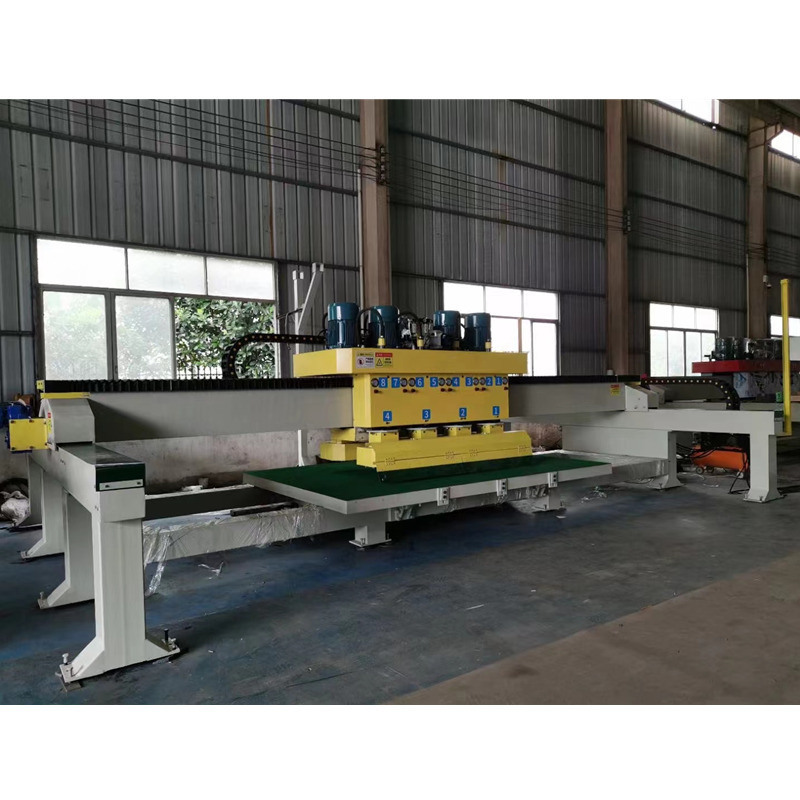

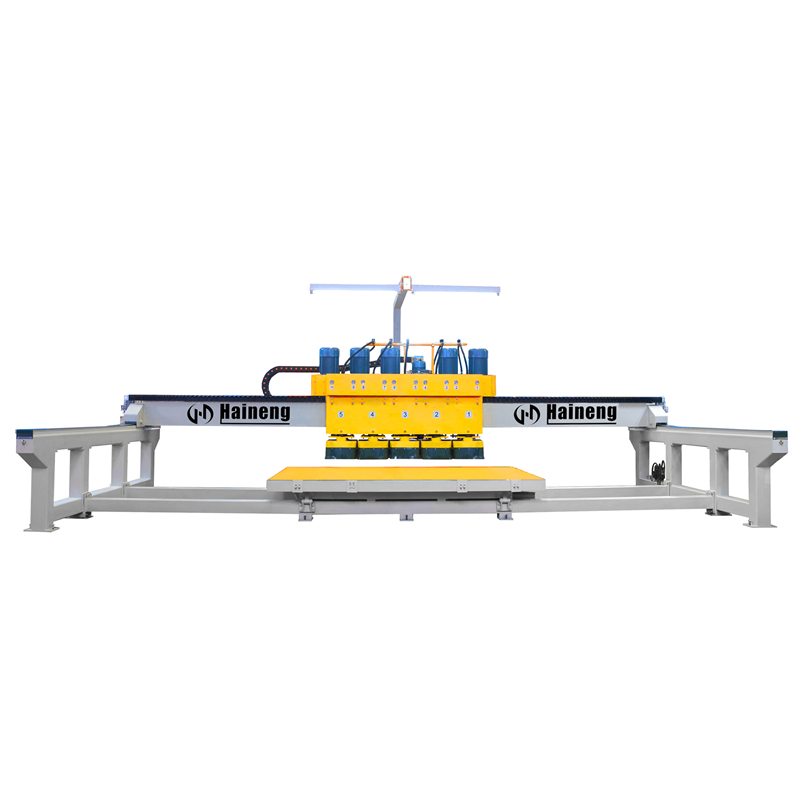

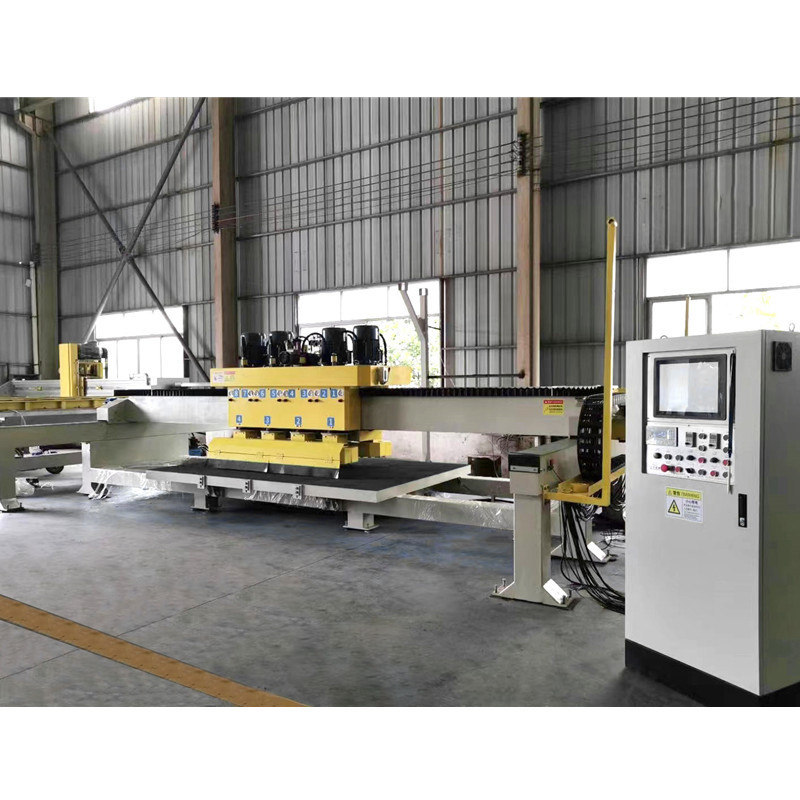

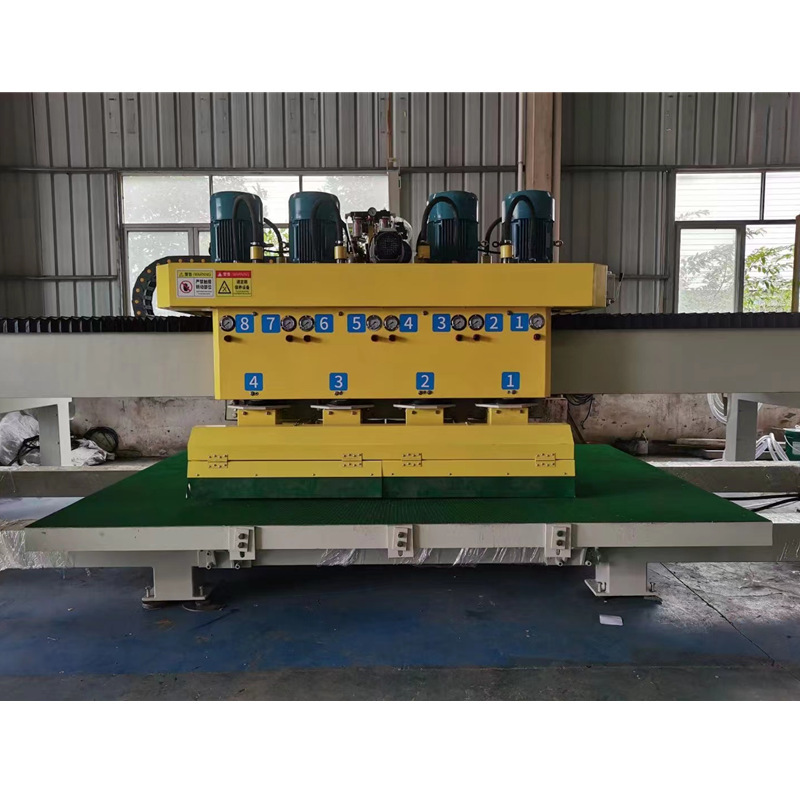

Automatic Multi Heads Marble Grinding Machine
Marble Grinding Machine is mainly used for the polishing of stone slabs, with large processing range and small area.
Item No.:
DTM-8
DTM-10
DTM-12
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Automatic Multi Heads Marble Grinding Machine
Product Introduction
Marble Grinding Machine is mainly used for the polishing of stone slabs, with large processing range and small area. Adopt advanced stone image detection technology and automatic pressure system, the entire processing process is automatically completed. Marble polishing machineis the preferred equipment for high -end slab polishing.
Technical Parameters
Heads | 8 | 10 | 12 |
Max. Processing size | 3300×2200mm | ||
Processing thickness | 13-50mm | ||
Polishing head Qty. | 8pcs | 10pcs | 12pcs |
Polishing head Dia. | Ø430mm | ||
Polishing plate pressure | 1~5Kg/cm2 | ||
Main motor power | 11kw | ||
Gross Power | 55.2kw | 66.2kw | 78.6kw |
Power supply | 380V 50HZ (A、B、C 、N 、PE ) | ||
Oversize | 8000×5300×3300mm | 9000×5300×3300mm | 10000×5300×3300mm |
Machine occupy area | 8500×5800mm | 10500×5800mm | 12500×5800mm |
Suggest use area | ≧80m² | ≧90m² | ≧100m² |
Water Consumption | 180L/min | 200L/min | 250L/min |
Gross weight | 9000kg | 9500kg | 10500kg |

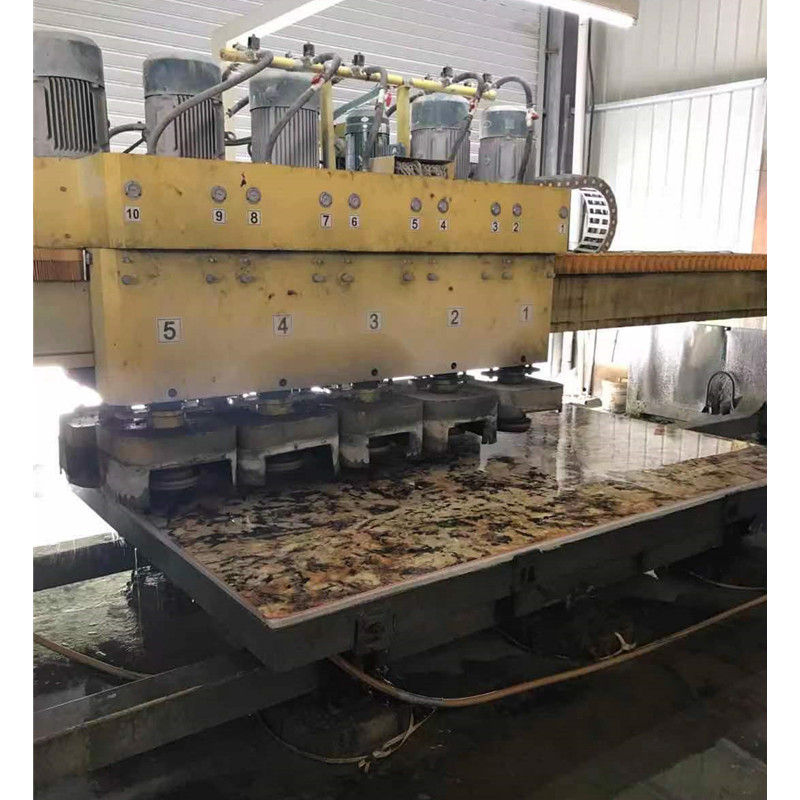

Processing

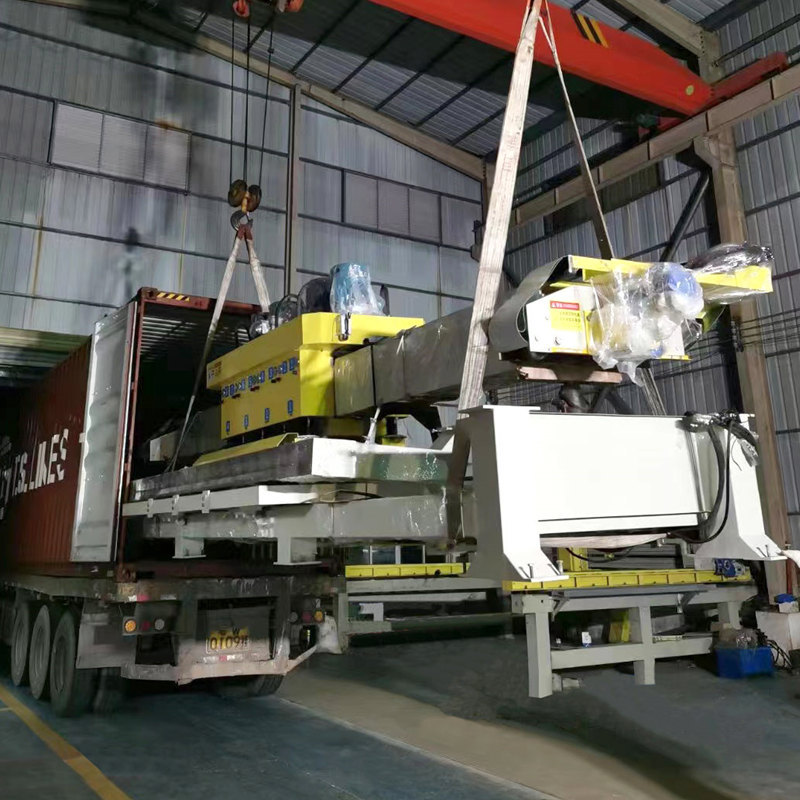

Loading
