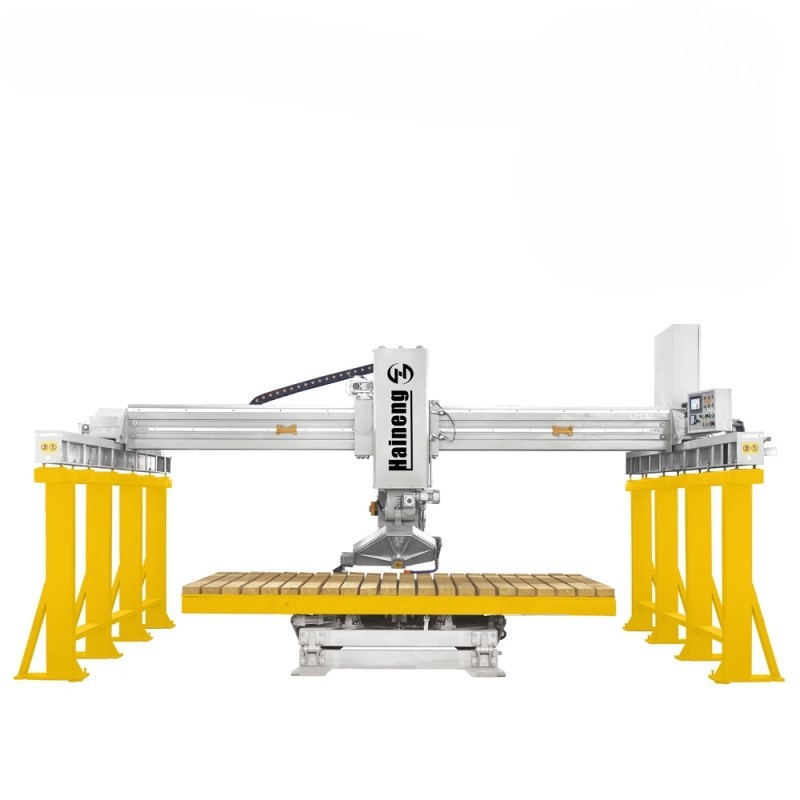

Multifunction Infrared Stone Bridge Saw Granite Marble Cutting Machine Stone machinery
This Infrared Bridge Saw Can choose profiling function.The saw blade is automatically tilted by 45 degrees, and the table is automatically rotated by 360 degrees .
- Haineng
- Fujian
- 25 days
- 15 PCS Per Month
- Information
Multifunction Infrared Stone Bridge Saw Granite Marble Cutting Machine Stone machinery
Product Introduction:
This Stone Bridge Saw machine adopts microcomputer control, touch operation interface and wireless remote control, and the man-machine dialogue is flexible.
The main control components are all international famous brand components, The beam adopts oil-immersed double V-shaped track, the transverse cutting adopts stepless speed regulation, and the longitudinal segmentation mechanism adopts high-precision magnetic mountain counting to ensure the machine working precision.
This Bridge cutting machine can be jumped and positioned with any angular position and brake. It can cut rectangular, octagonal, circular, round, and small and medium angles shape.
Technical Parameters
Blade diameter | mm | φ350-φ600 |
Max.working dimensions(LxWxH) | mm | 3200*2000*180 |
Workbench dimensions (LxW) | mm | 3200x2000 |
Workbench tilting degree | n° | 85°- 0° |
Head rotating degree | n° | 0°- 90° |
Main motor power | kw | 18.5 |
Water consumption | m3/h | 3.5 |
Machine weight | kg | 5500 |
Trolley dimension | mm | 6000x3500x2600 |
