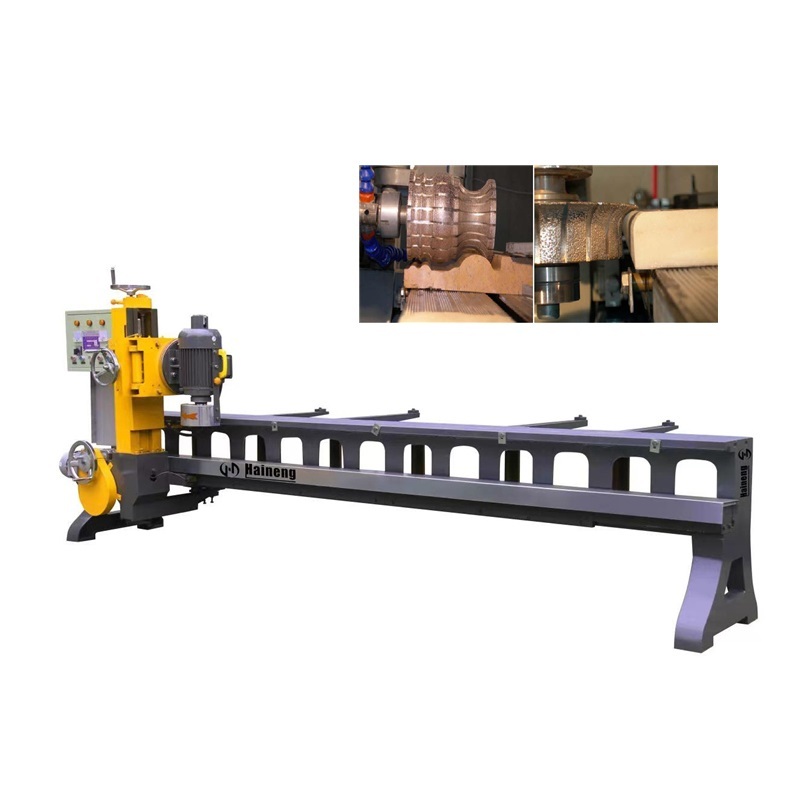

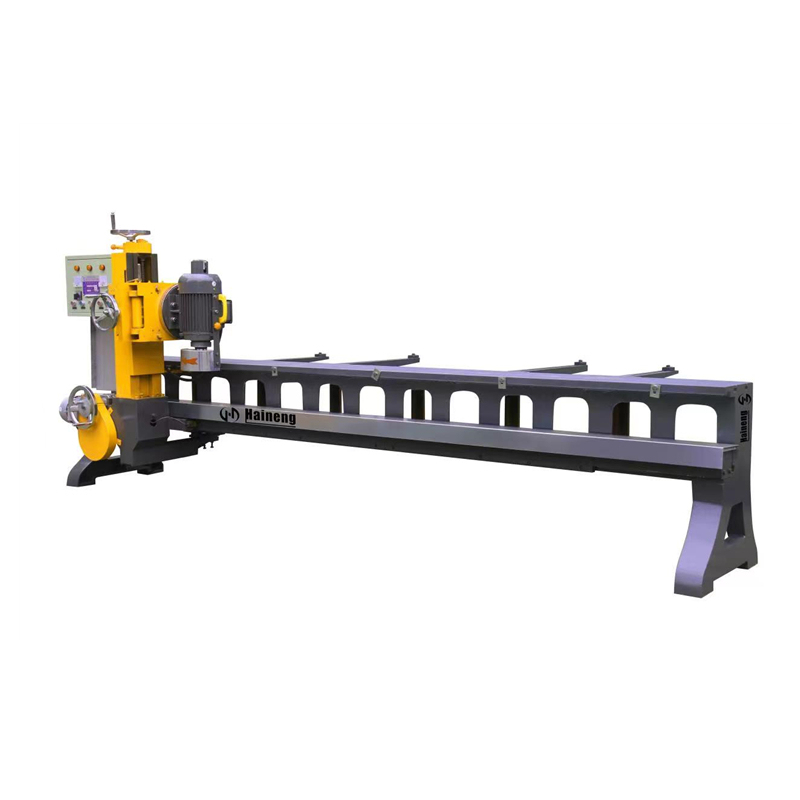

Stone Edge Profiling Machines For Granite
This machine with hermetically oil-sealed composite track. It is glued with the wheels of non-polishing material, which extend the service life greatly. It can process each kind of linear-shaped and outside curved-shaped and inner hole edge function.
Item No.:
QZM3000-1
QZM3500-1
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine with hermetically oil-sealed composite track. It is glued with the wheels of non-polishing material, which extend the service life greatly. It can process each kind of linear-shaped and outside curved-shaped and inner hole edge function. The head of grinder 360°free rotating, pack up saw blade can groove and cut. Moving automatically, semi-automatically and manually. It is high in machining precision, and greatly enhanced the working efficiency.
Technical Parameters
Max.cutting length | mm | 3000(3500) |
Max.cuting thickness | mm | 150 |
Grinding disk diameter | mm | 140-160 |
Blade diameter | mm | 160-180 |
Main motor power | kw | 5.5 |
Gross power | kw | 5.75 |
Exhausted water | m³/h | 1.5 |
Gross weight | kg | 1000 |
Overall dimension(L×W×H) | mm | 3860(4310)×2250×2300 |
