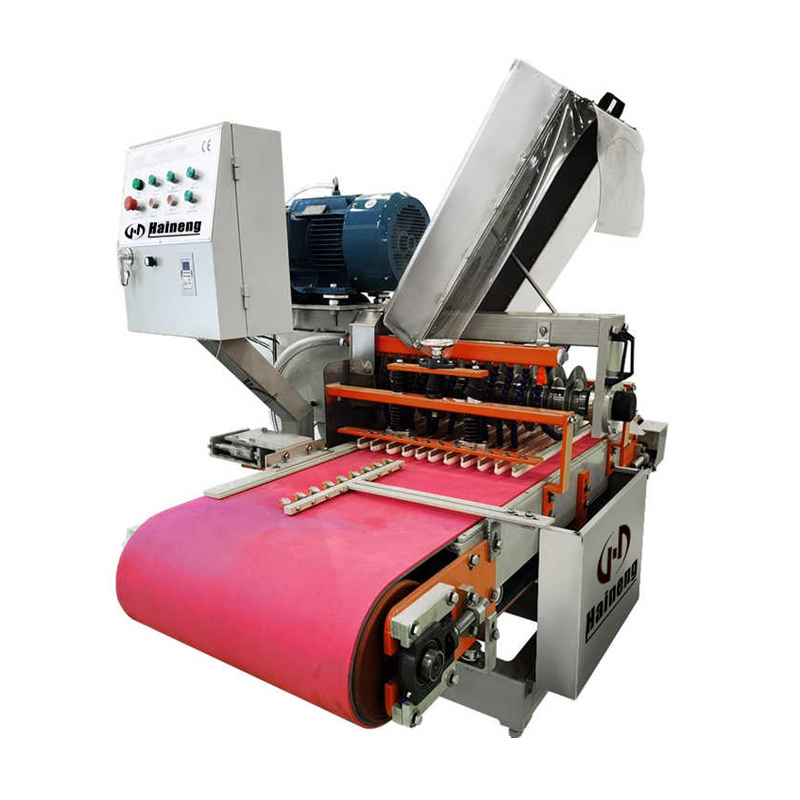

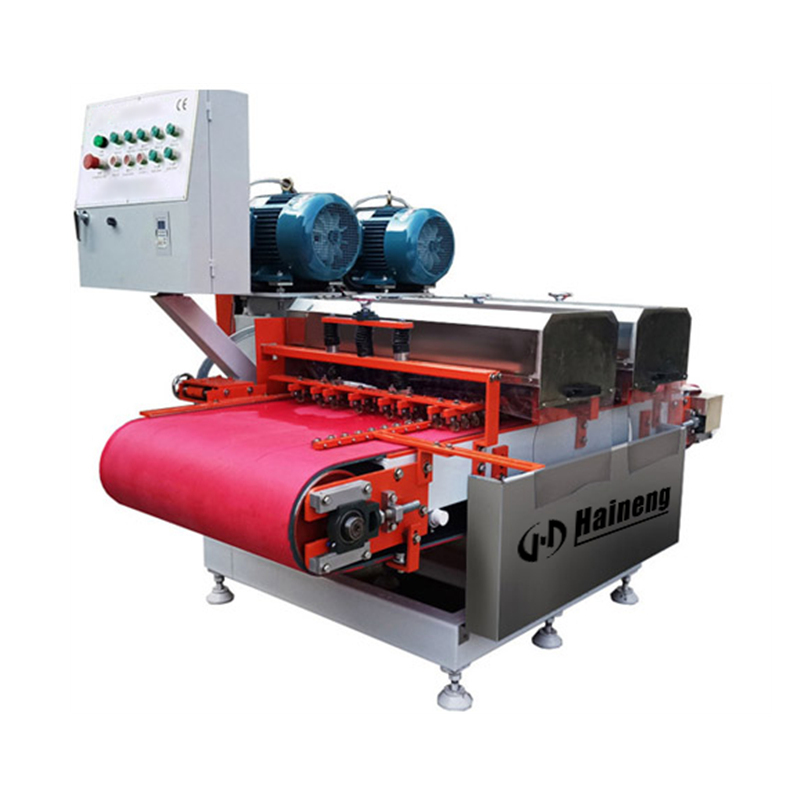

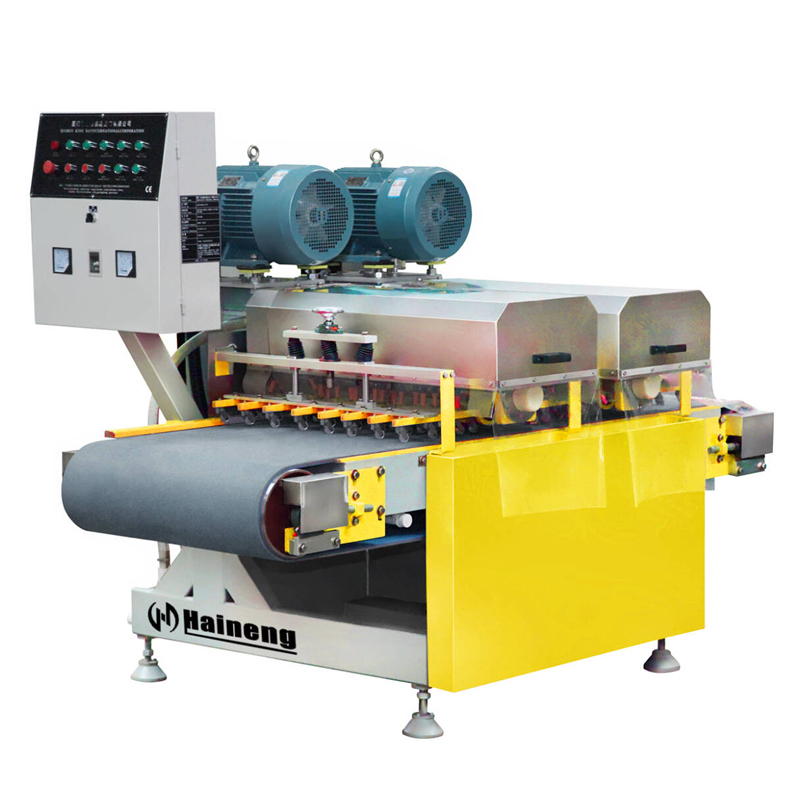

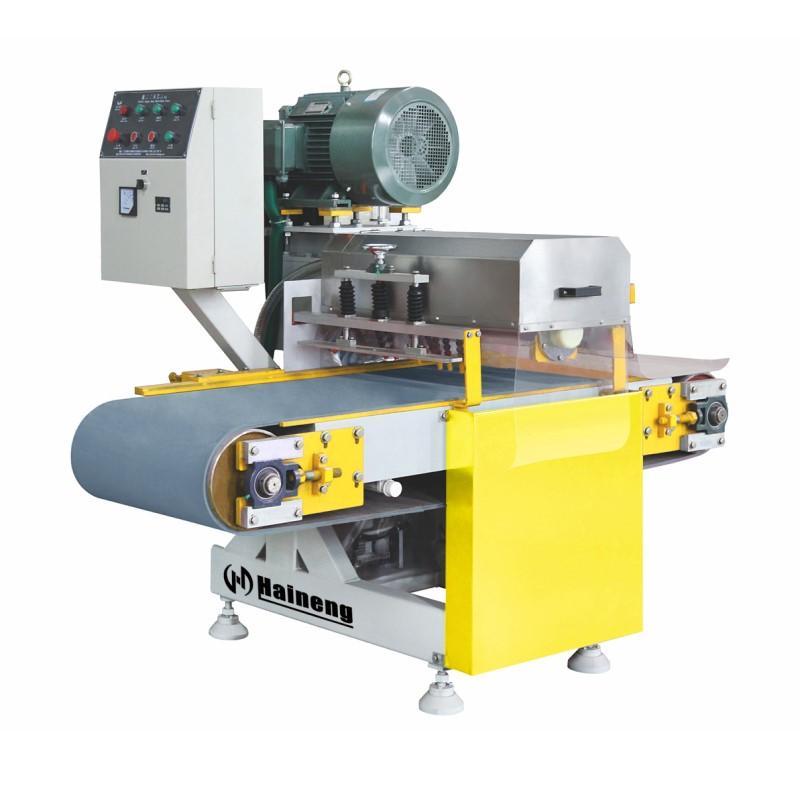

Automatic Continuous Multi Blades Cutting Machine
This machine is suitable for cutting polished tiles, ceramic tiles into high level mosaic with different size.
Item No.:
DDQ600S-1
DDQ800S-1
DDQ600D-2
DDQ800D-2
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine is suitable for cutting polished tiles, ceramic tiles into high level mosaic with different size.

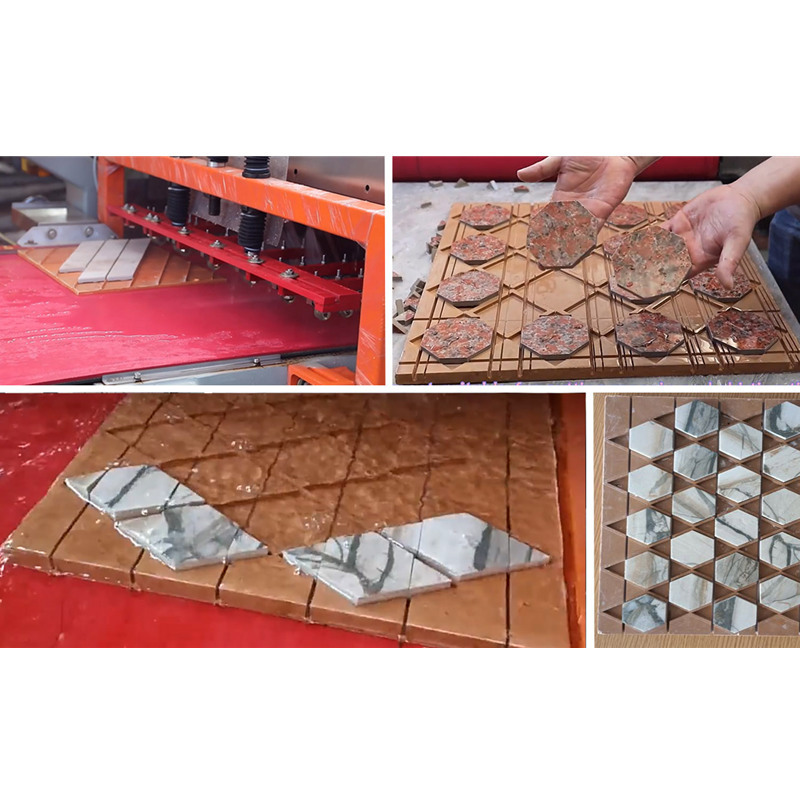

The Min cut size can be 10mmx10mm , and any shapes as strip tile, lozenge or hexagon etc.
And the face chamfer can be finished at the same time, without any extra processing manually.
With stable mechanical properties, it could press the cutting pieces well when cutting mosaic for small size, so that keep the small cutting pieces won’t fly out ,with high efficiency and good quality.
Technical Parameters
600 TYPE | ||
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-600mm | 10-600mm |
Width of Processing Table | 600mm | 600mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 621mm | 621mm |
Total power | 16kw | 33.5kw |
Outer size | 2.2x1.6x1.8m | 2.3x1.8x1.8m |
Total weight | 1500kg | 1957kg |
800 TYPE | ||
Qty of cutting head | 1 head | 2 head |
Diameter of cutting head | Φ150-300mm | Φ150-300mm |
Width of processing | 12-800mm | 10-800mm |
Width of Processing Table | 800mm | 800mm |
Speed of conveyer belt | 1-5m/min | 1-5m/min |
Width of conveyer belt | 821mm | 821mm |
Total power | 16kw | 33.5kw |
Outer size | 2.3x1.8x1.8m | 2.5x1.8x1.8m |
Total weight | 1700kg | 2000kg |
Processing
