Automatic Two-blade Stone Splitting Machine

Stone splitting machine is an efficient machine for producing cubic paving stone and stone veneer panels.
Item No.: DKJ-24Z

  • Haineng
  • Fujian
  • 25 days
  • Information

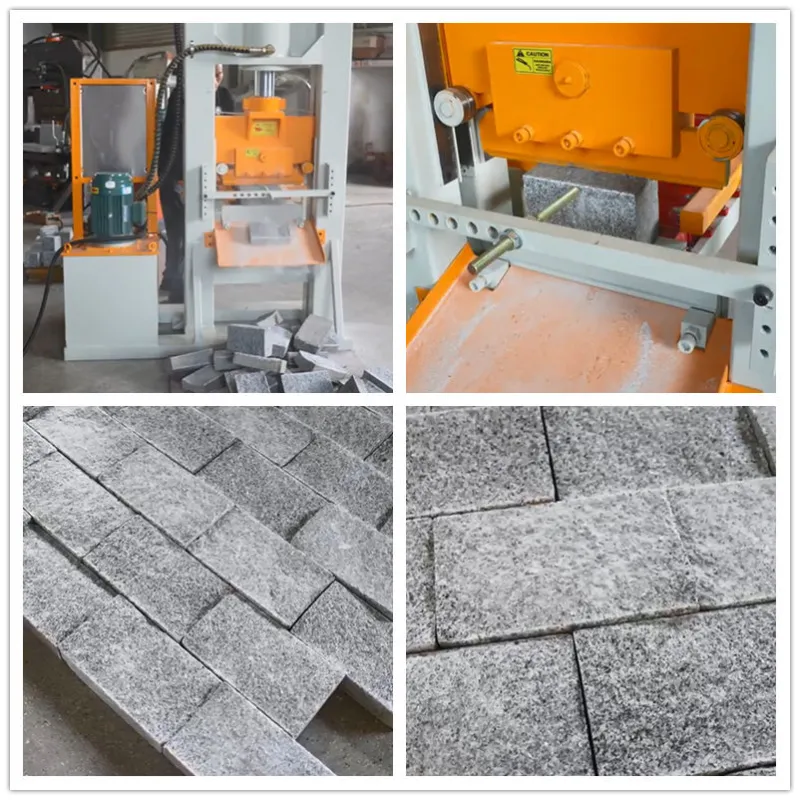

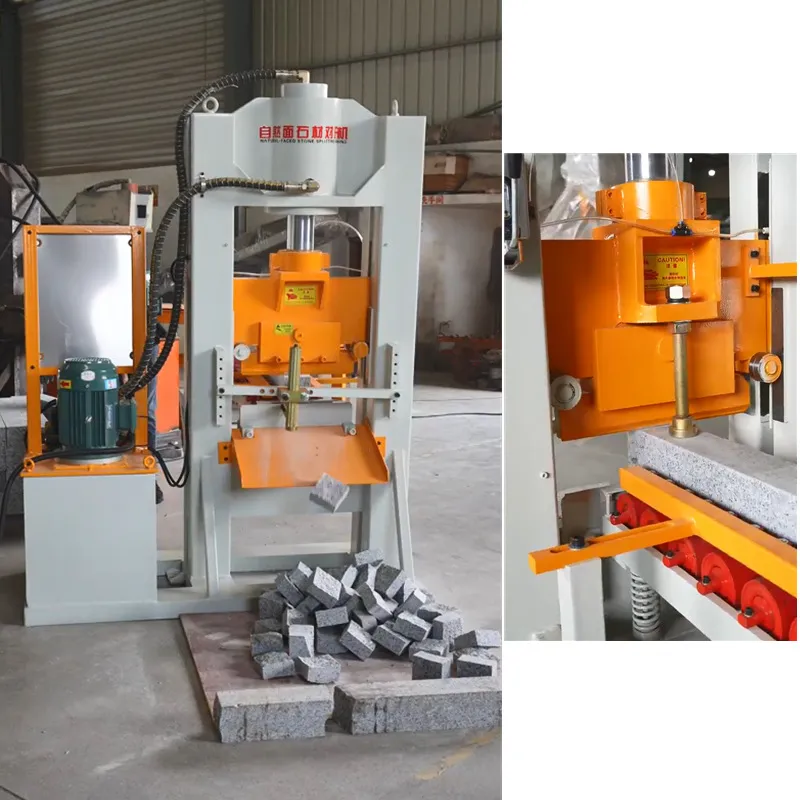

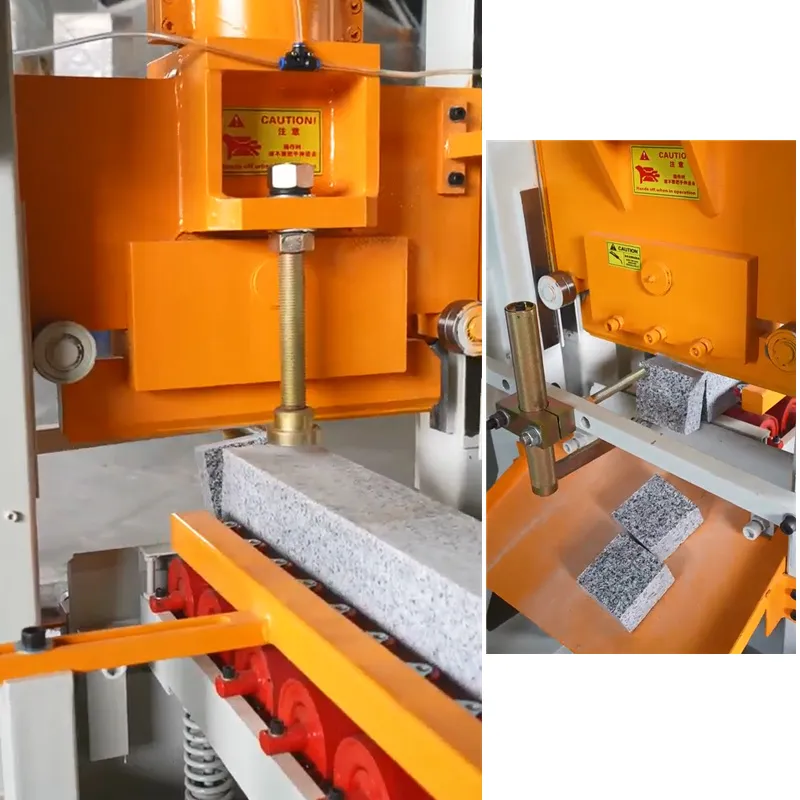

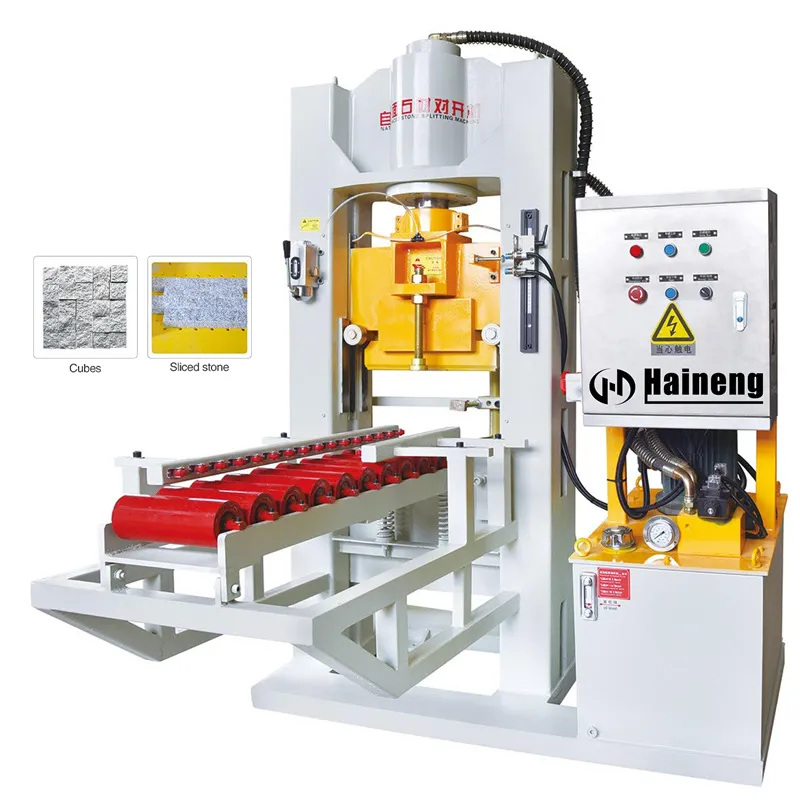

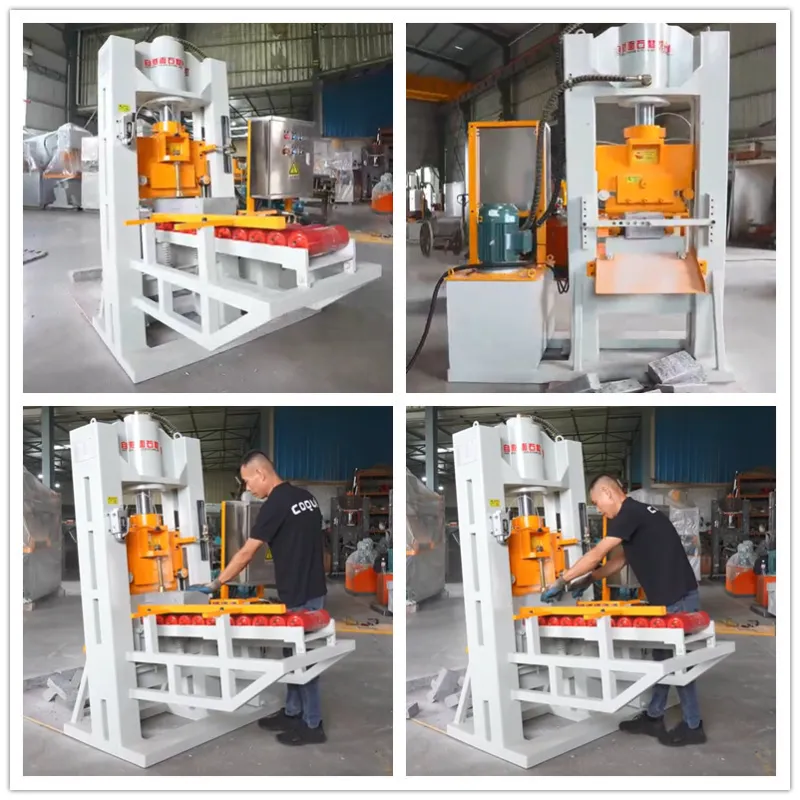

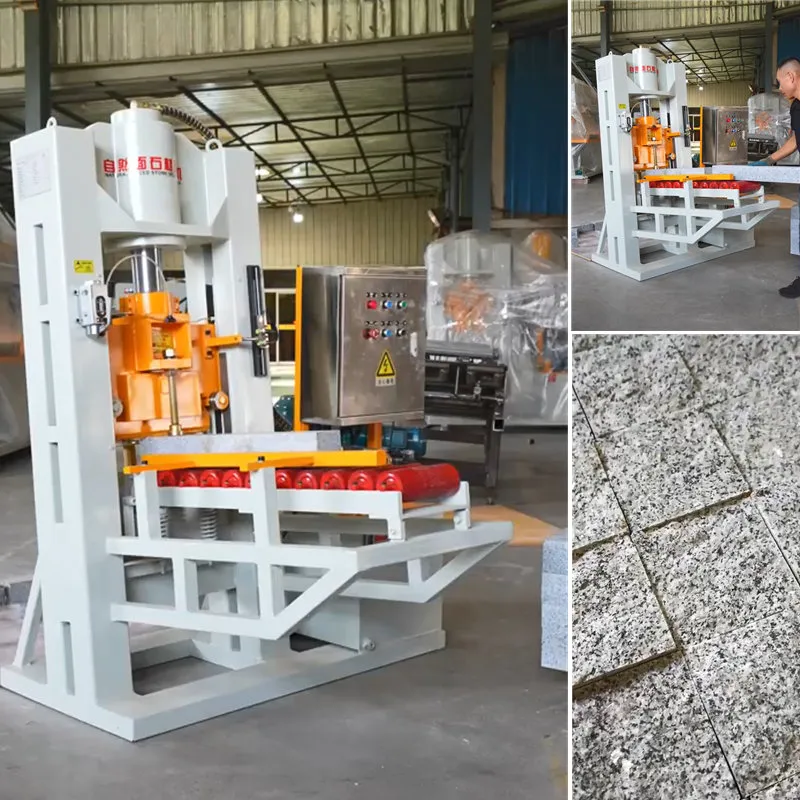

Automatic Two-blade Stone Splitting Machine

Product Introduction

Rock splitter machine has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone.Natural stone splitting machine designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Stone splitting machine is an efficient machine for producing cubic paving stone and stone veneer panels.

Stone Splitting Machine

Technical Parameters


Dimensions(L×W×H)

cm

150×150×195

Weight

T

0.98

Power

kw

4

Voltage

V

380

Frequency

HZ

50

Flow Rate

L

14

Pressure

T

40

Blade Feeding Speed

cm/S

3

Max Working Height

cm

20

Max Working Width

cm

40

Output/Hour

50

Hydraulic Oil Grade

#

46

Oil Tank Capacity

KG

78

Packing Size

cm

160×80×205

80×75×100

Gross Weight

T

1

Processing

Hydraulic Stone Splitter

Stone Cutting Guillotine

Loading

Stone Splitting Machine
