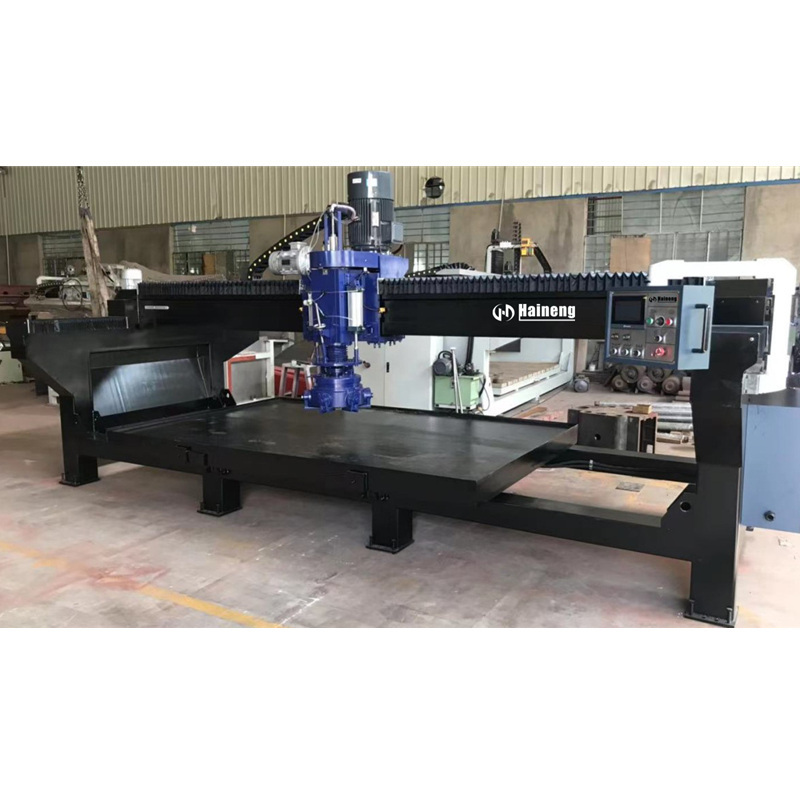

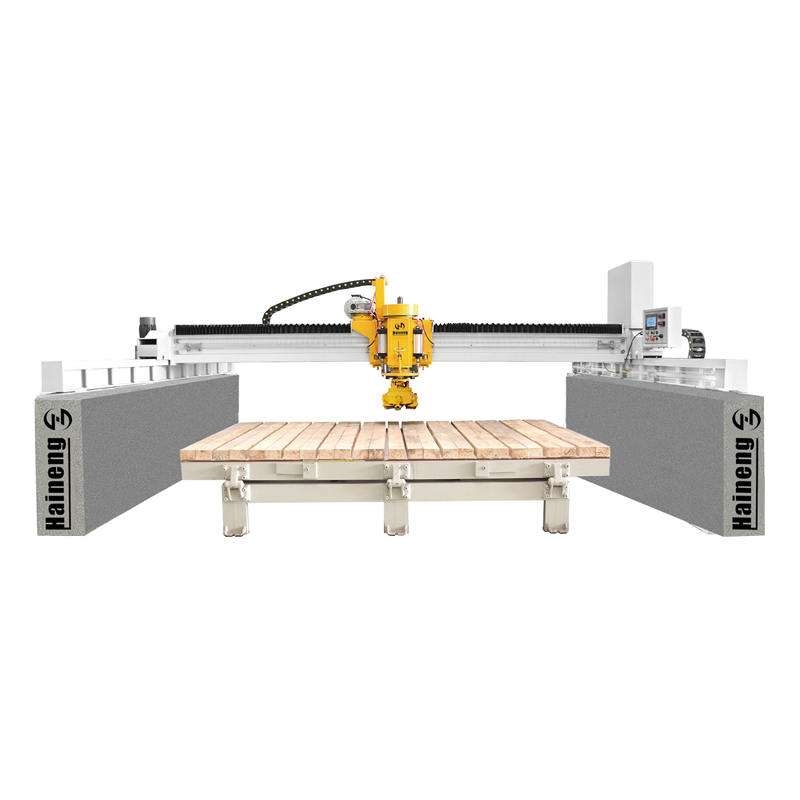

Bridge Single Head Mill
This machine is widely used in tombstone, SLATE and other surface grinding and polishing, with automatic operation function. There are granite machine and marble machine for your choice.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine is widely used in tombstone, SLATE and other surface grinding and polishing, with automatic operation function. There are granite machine and marble machine for your choice.
PLC control, easy to operate, accurate and stable.
Table can be titled 85 degrees, easy to install plate.
Technical Parameters
QDM500 Bridge single head mill |
|
Control System |
China Domestic System |
Control method |
PLC |
Programming Method |
Manual Programming |
Main motor power |
15KW |
Voltage |
380V 50HZ |
Rotation Speed: |
2900 |
Grinding Head Diameter |

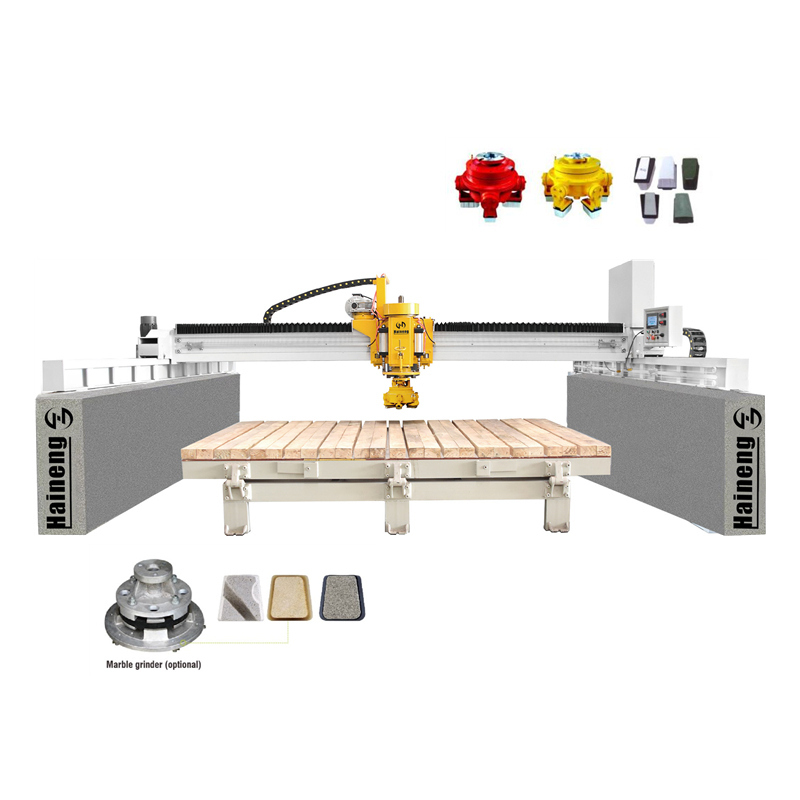

470.(Granite)For marble(Optional) |
X -Axis Stroke: (Front -Back) |
2100mm |
Y -Axis Stroke: (Left- Right) |
3200mm |
Z- Axis Stroke: (UP-Down) |
150mm |
Table Tilting Angle |
0-85(Hydraulic System Control) |
Table Size: |
3200X2000mm |
Gross Power |
21.6KW |
Overall Size: |
5800×3200×2450mm |

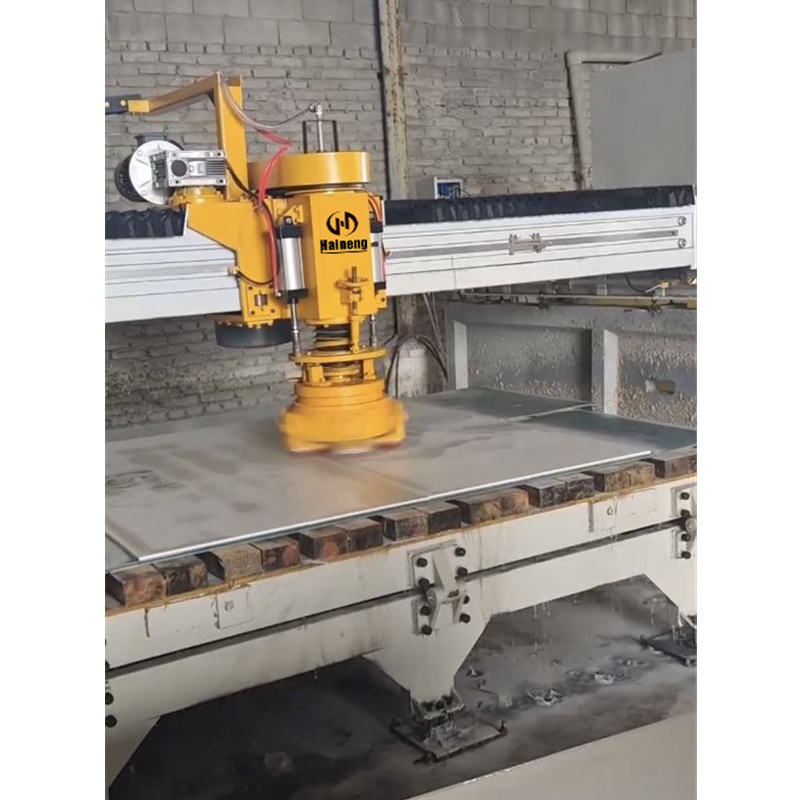

Processing

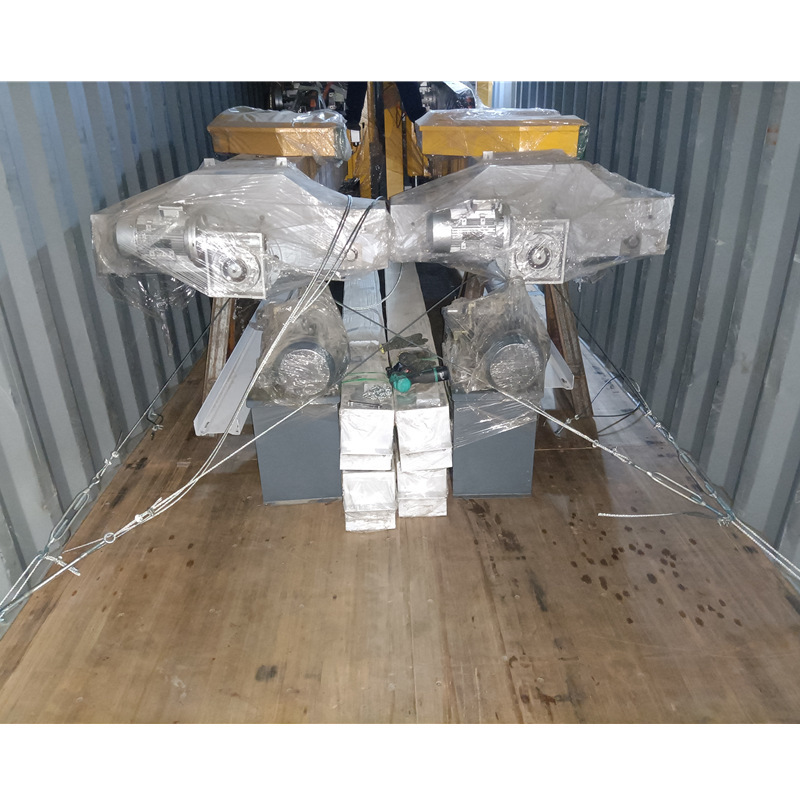

Loading
