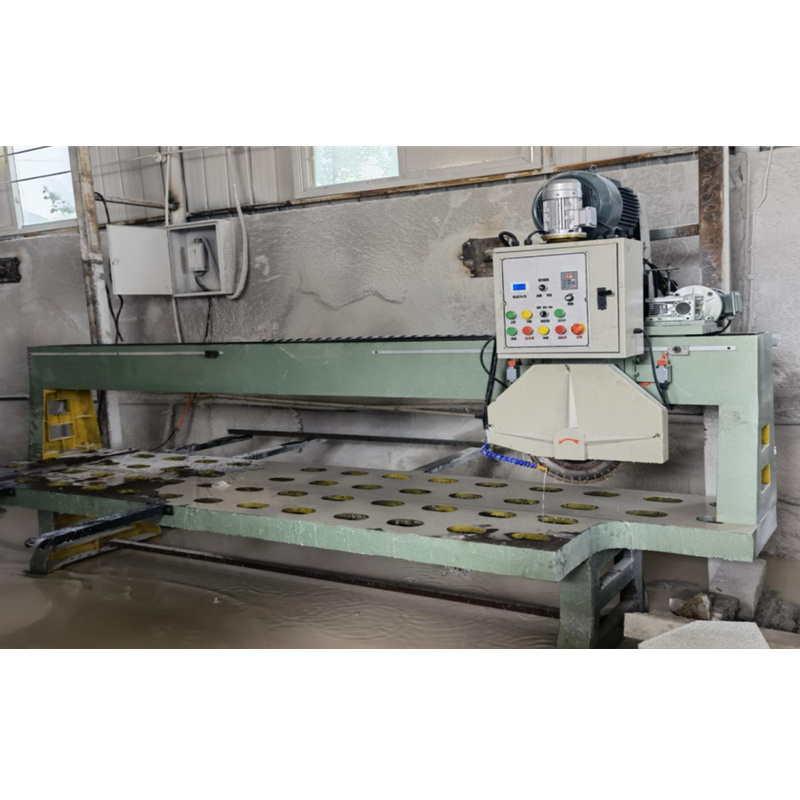

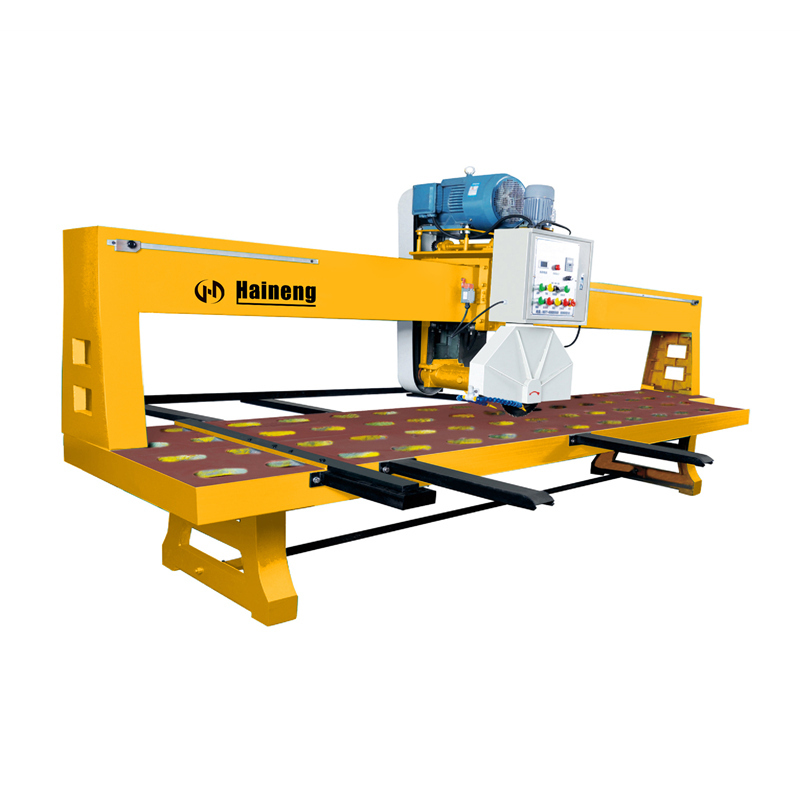

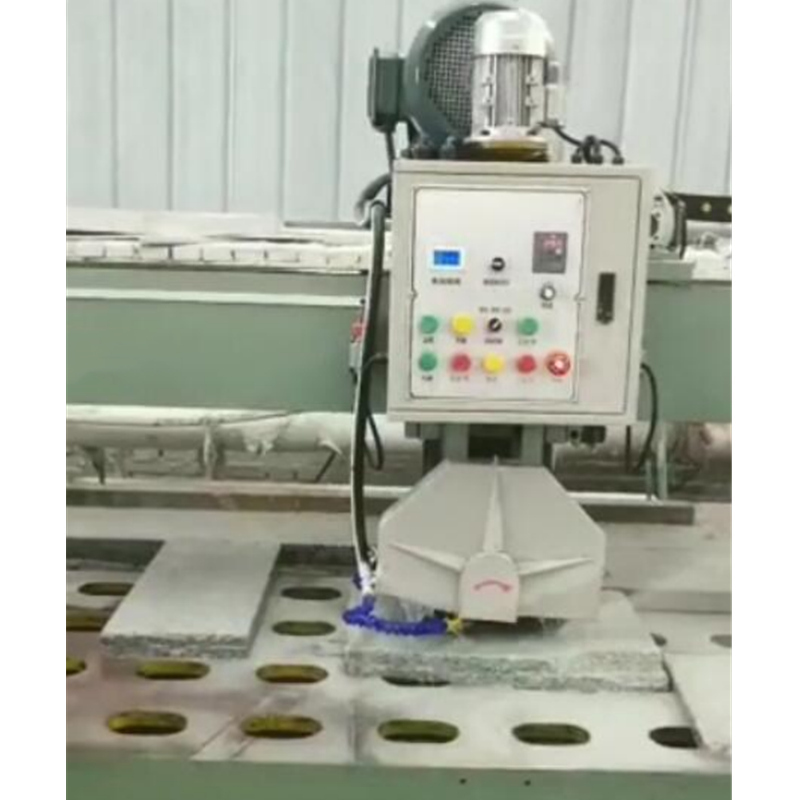

Bridge Type Cutting Machine
This machinery is a technology product specialized by us, welcomed by users. Widely used in cutting the standard version material. Its precision can reach any stone export standards.
Item No.:
QSJQ4000
QSJQ5000
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machinery is a technology product specialized by us, welcomed by users. Widely used in cutting the standard version material. Its precision can reach any stone export standards. Cutter automatically lifting, can also be positioned to move the lift standards, with the longitudinal stepless overcome burst plate side of the phenomenon, processed 5-150 mm thickness slate, simple, easy to use, stable yield and quality, It is an ideal stone cutting machinery.
Technical Parameters
Bridge type cutting machine | ||
Type | unit | QSJQ4000/4500 |
Blade diameter | mm | 350-600/650-800 |
cutting length | mm | 3000/3500 |
cutting width | mm | unlimited |
cutting thickness | mm | Below 180/Below 300 |
Power of main motor | kw | 7.5(11) |
Vertical motor power | kw | 1.5kw (Three-phase variable frequency speed regulation) |
Lifting motor power | kw | 0.75 |
The length of the fuselage | mm | 4000/4500 |
