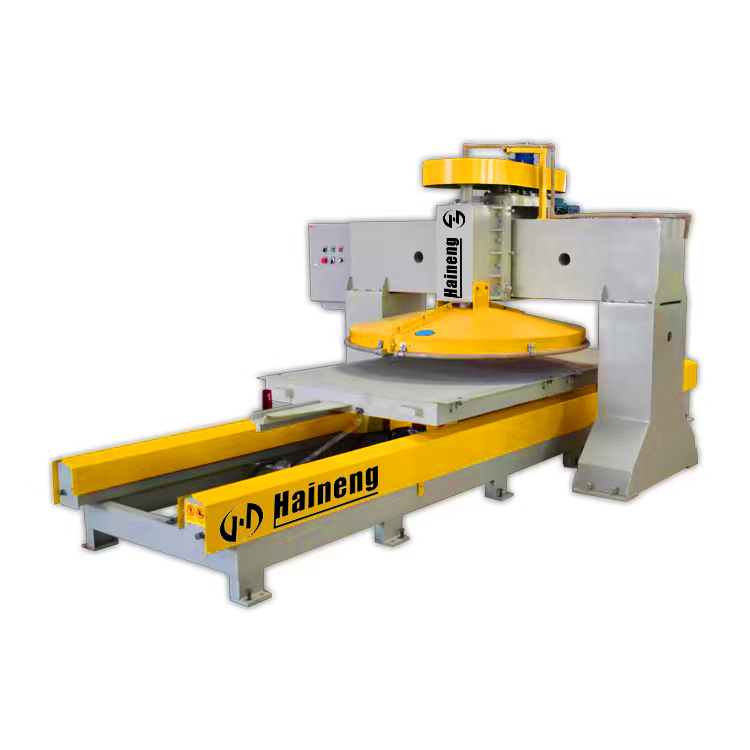

DDH-50 Single-Head Stone Calibrating Machine
This stone calibration machine is only for calibrating for marble, granite , limestone or other stones. It has high machining accuracy.
Item No.:DDH-50
- Information
Product Description

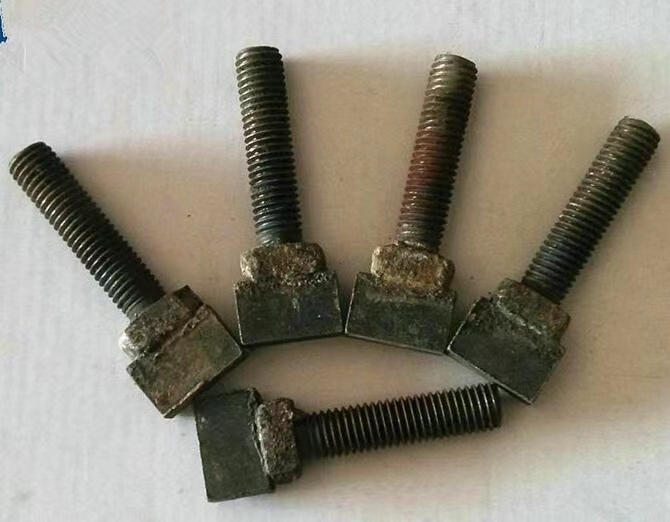

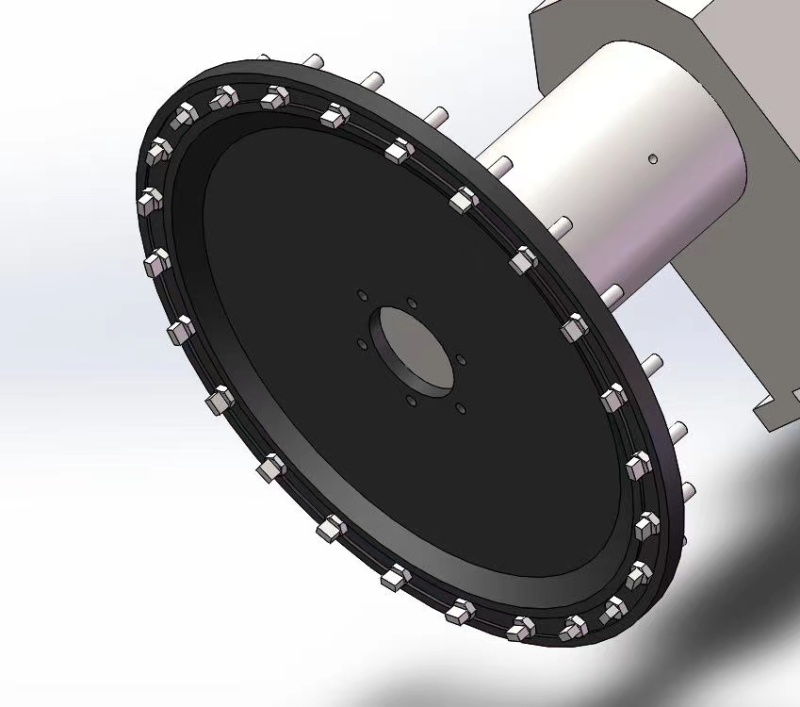

This Stone Calibrating Machine is united by bridge style, the blade are jointed to the blade holder by screws, it can process difference stone material. Its flexible for the blade holder to lift or descend, and with the accessory precision dial and the bolt, the blade holder can be fitted perfectly and firmly. The acceleration speed is controlled by step-less transducers. The operating is simple; the running is stable and the processing is highly accurate.
Technical Parameters
Machine dimension | 2800x5700x2000mm | Water put | 100L/min |
Working table outlook dia. | 2400x1220mm | Weight | 3500kg |
Machine setting area | 40m² | Calibration plate size | Ø1200 |
Power full | 380V 50HZ | Max production dia. | 2500×1250mm |
Total power | 24.8kw | Cutting thickness | 10-50mm |
Main motor power | 22kw | Working speed | 0-150mm/min |
Table motor power | 1.5kw | Rise/down power | 0.55kw |
left/right power | 0.75kw | Machine lubricating oil | CD40 |
