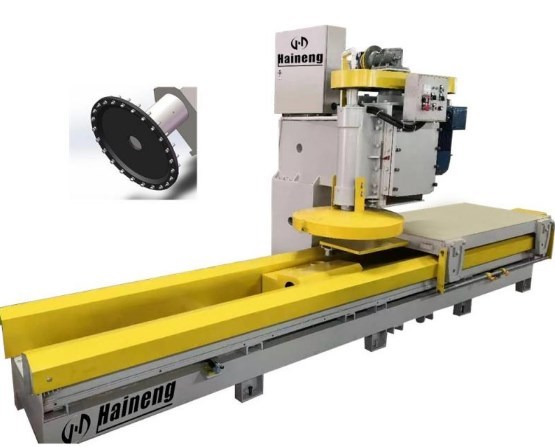

DDJ-400 Single Arm Continuous Calibrating Machine for Stone Processing
The machine is professional for calibrating stone, like marble or granite and limestone etc, it has compact structure, beautiful appearance, stable performance and high working precision.
Item No.:
DDJ-400
- Information
Product Description

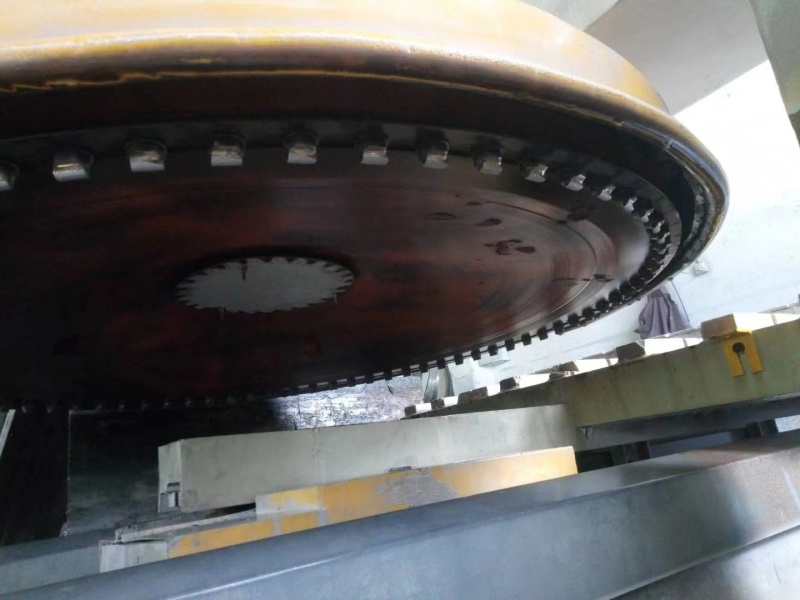

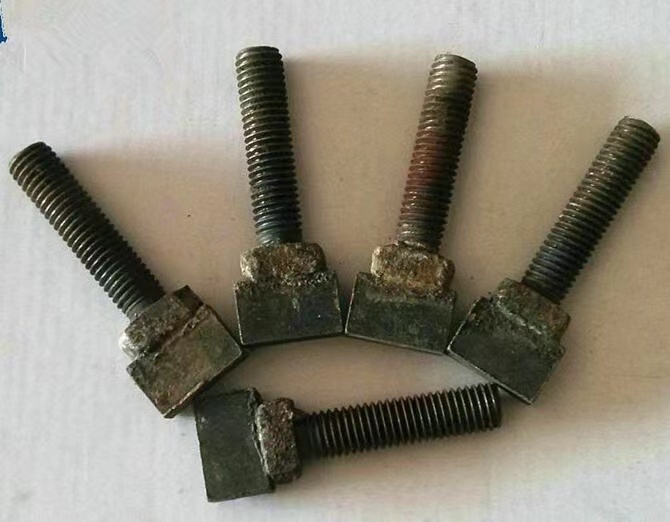

This Single Arm Calibrating Machine is united by single-arm style, the blade are jointed to the blade holder by screws, it can process difference stone material. Its flexible for the blade holder to lift or descend, and with the accessory precision dial and the bolt, the blade holder can be fitted perfectly and firmly. The acceleration speed is controlled by step-less transducers. The operating is simple; the running is stable and the processing is highly accurate.
Technical Parameters
Machine dimension | 1500x4200x1800mm | Water put | 100L/min |
Working table outlook dia. | 1800x500mm | Weight | 1800kg |
Machine setting area | 20m² | Max production L | 1800mm |
Power full | 380V 50HZ | Max production width | 500mm |
Total power | 16kw | Cutting thickness | 10-50mm |
Main motor power | 15kw | Working speed | 0-150mm/min |
Table motor power | 1.5kw | Rise/down power | 0.55kw |
|
| Machine lubricating oil | CD40 |
