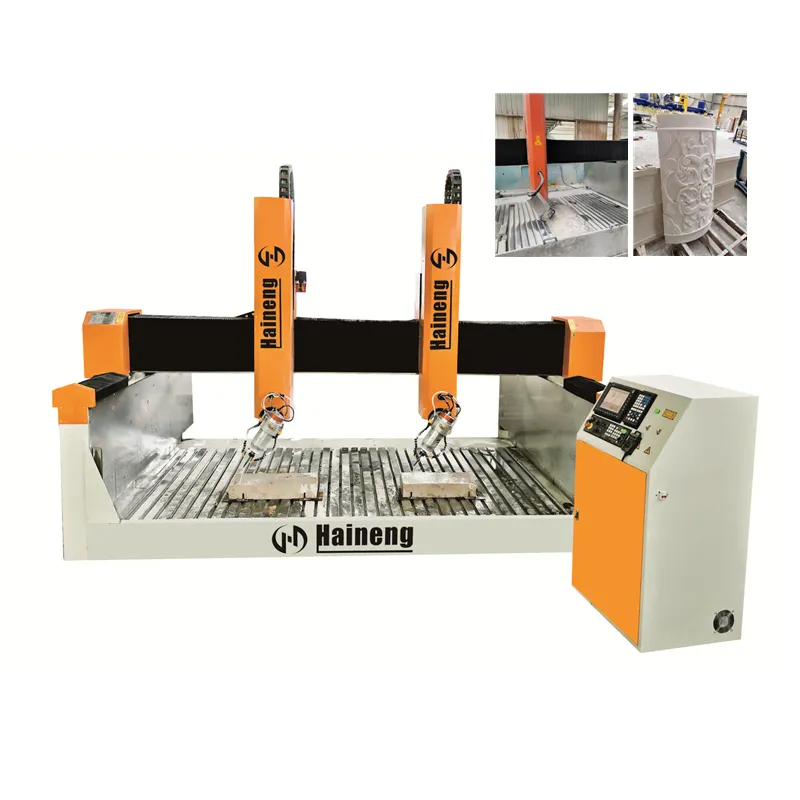

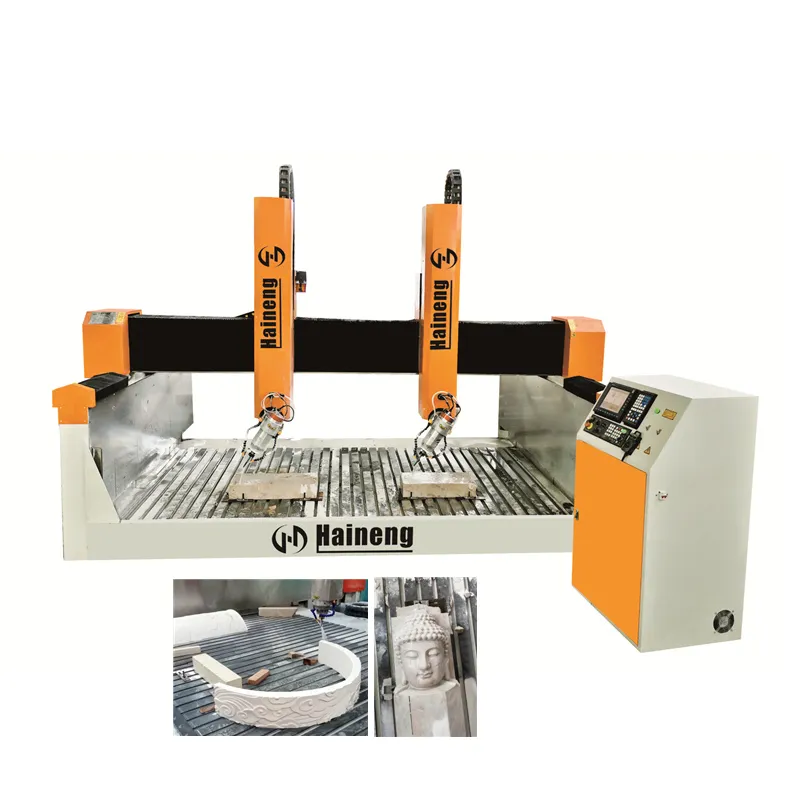

Double Head Swing CNC Stone Engraving Machine
The dual-spindle stone CNC engraving machine can carve on natural stone, marble, artificial stone, granite and other materials. It is suitable for stone background walls, bridge projects, garden projects, tombstone projects and other industries.
Item No.:DKJ-ST2
- Information
Double Head Swing CNC Stone Engraving Machine
Performance characteristics
1. Adopt the latest system, high-strength mechanical structure, and stable bed;
2. X and Y axis 30 rails, Y axis double rails;
3. XY reducer drive, Z-axis with brake function;
4. The gantry height is 1000, suitable for engraving large workpieces;
5. The absolute value servo motor is used to permanently memorize the initial position. There is no need to return to the mechanical origin. The origin of the workpiece is permanently saved and has high precision.
6. The heavy-duty steel frame fuselage beams are seamlessly welded with thickened high-strength steel, with high processing precision, strong, stable, and non-deformation.
Technical Parameters
Technical parameters | |
Equipment model | DKJ-ST2 |
Dimensions | 4500x3500x 3000mm |
Processing size | 3500x 2000mm |
Feed height | ≤800 (Customizable) |
Spindle power | 7.5KW (Customizable) |
Drive system | Servo |
Control system | NC studio/RichAuto (Customizable) |
Processing
