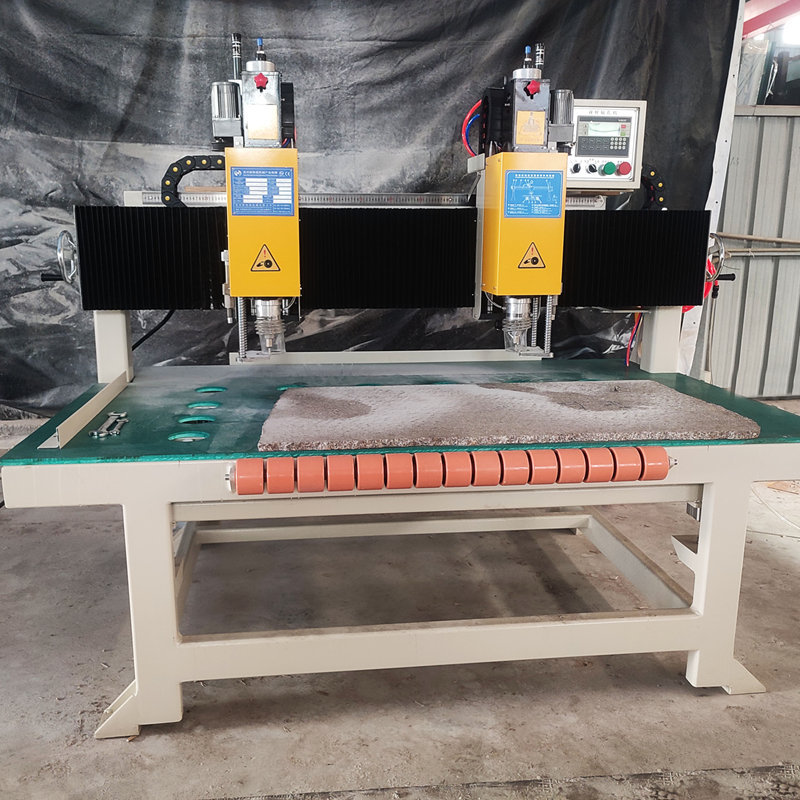

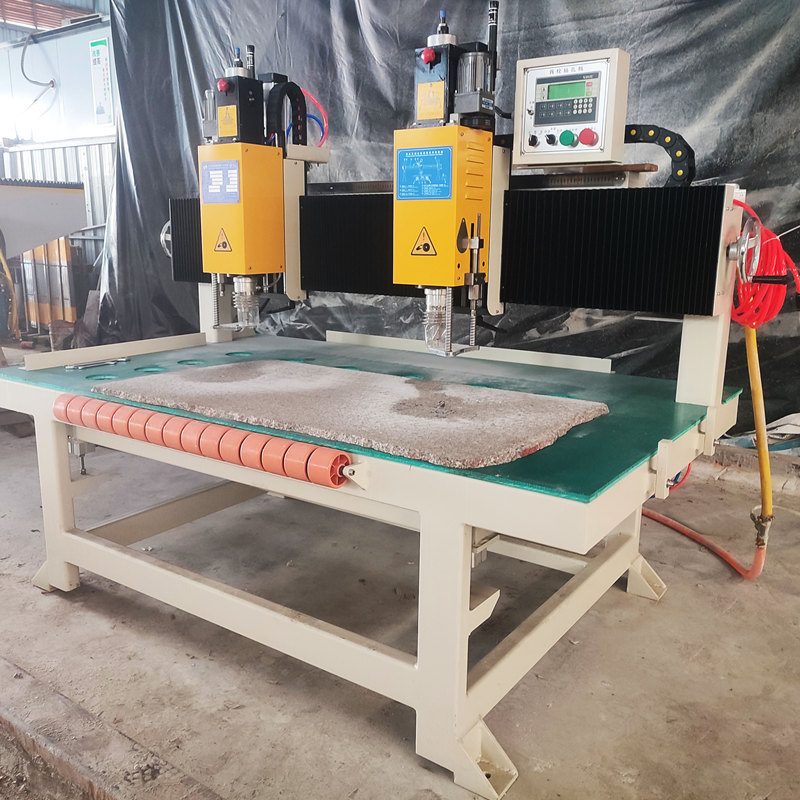

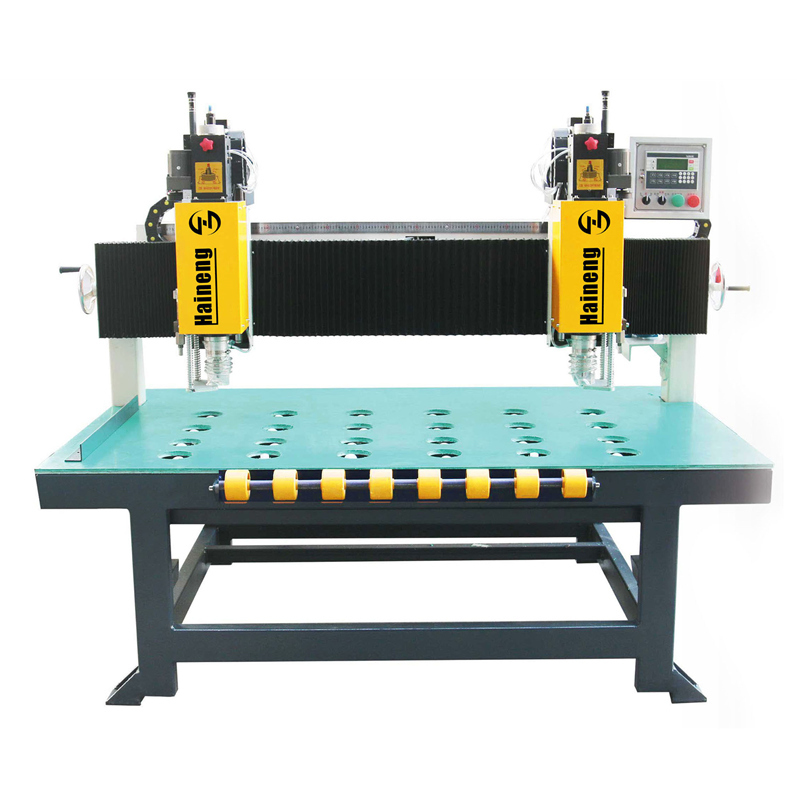

Double Head Automatic Back Bolt Stone Drilling Machine
Automatic Drilling Machine is a stone dry hanging back bolt drilling special equipment.
Item No.: BSJ15
- Haineng
- Fujian
- 25 days
- Information
- Video
Product Introduction

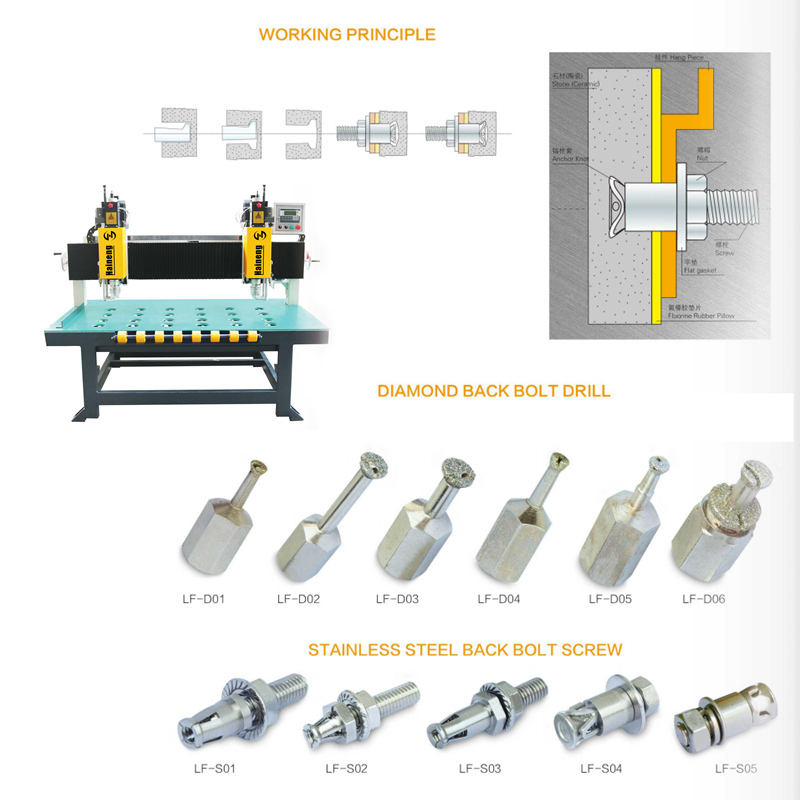

The machine is a stone dry hanging back bolt drilling special equipment, the main accessories are imported from the original composition, pneumatic control of the double drilling unit, pneumatic in and out of the knife, high accuracy, easy to operate, improve work efficiency.
Automatic lifting universal wheel worktable, has reached the advanced level of domestic and foreign technology. The machine is the world's first product, national patent.
Technical Parameters
Name | Unit | BSJ15 |
Drilling Diameter | mm | 20 |
Drilling Depth | mm | 70 |
Double-drillminimum width between centers | mm | 250 |
Double-drillmaximum width between centers | mm | 1650 |
Main Motor Power | Kw | 1.5x2 |
Dimensions(LxWxH) | mm | 2000x1280x1620 |
Total Weight | kg | 580 |
Electric Voltage | V | 380 |
Revolutions | Stage | 2800 |
Processing
