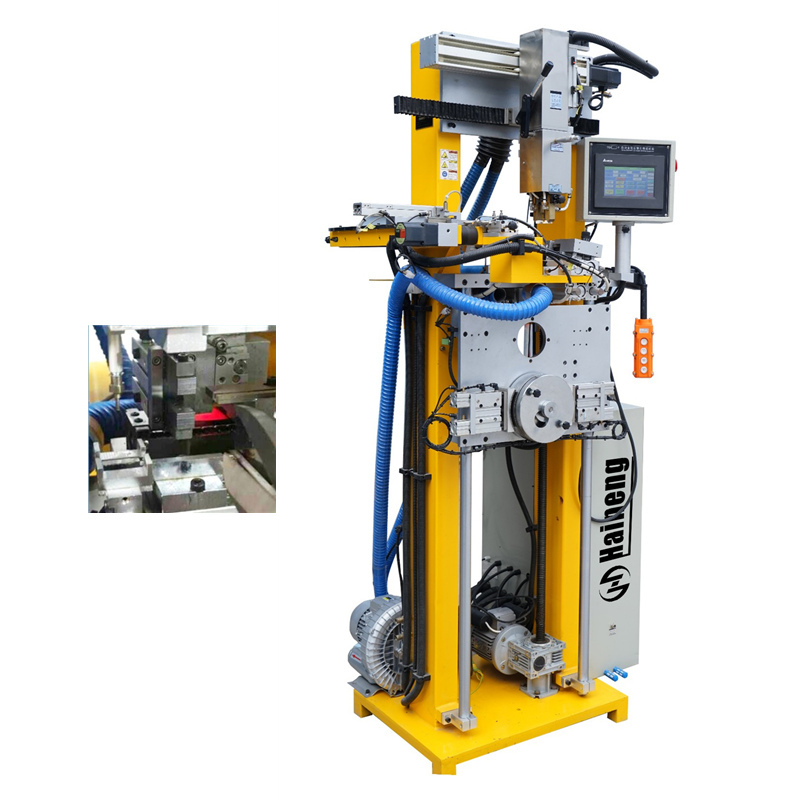

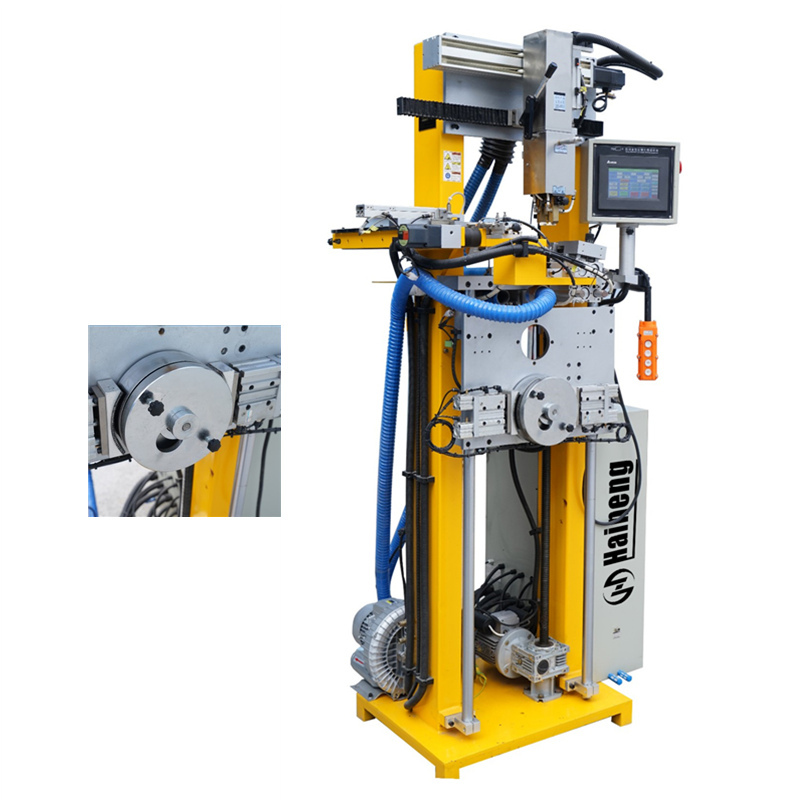

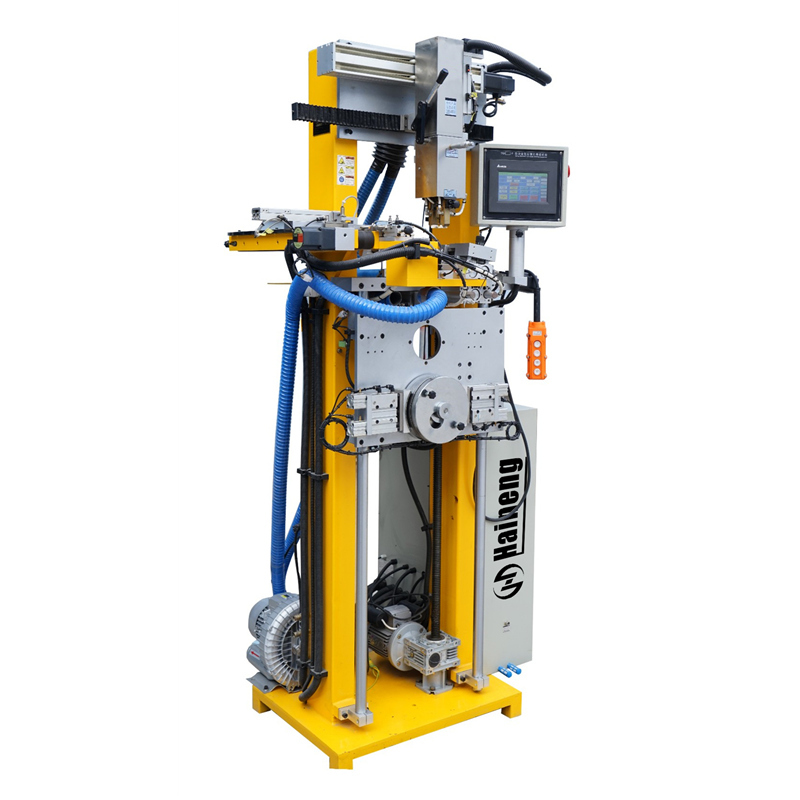

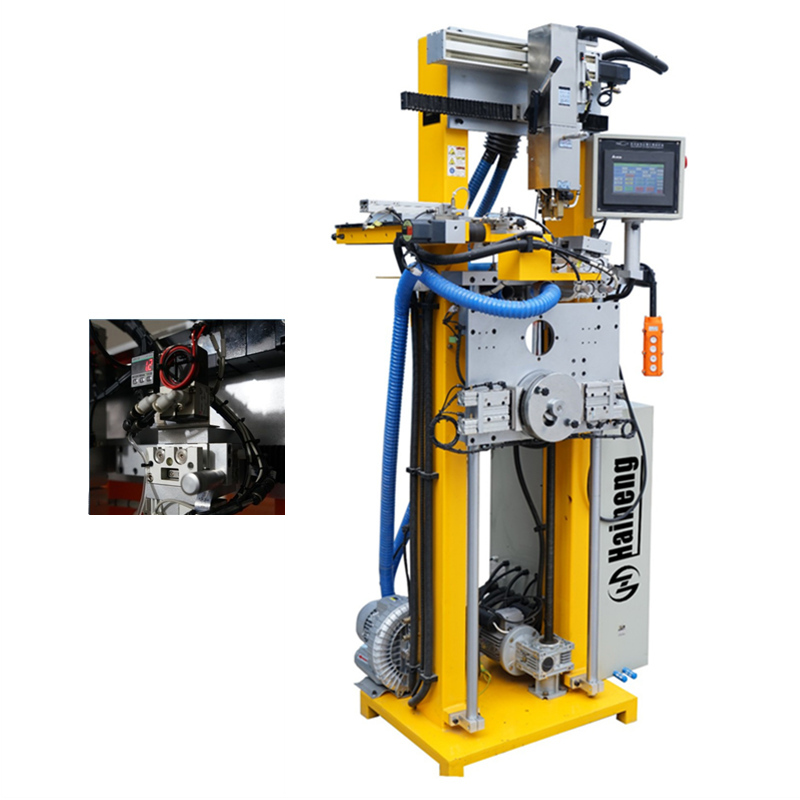

Fully Automatic Brazing Machine For Diamond Saw Blade
Our DQA-EP series is fully automatic brazing machine for big saw blade as diameter big than 500mm.
Item No.:
JHJ-EP2500
JHJ-EP3700
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
Our DQA-EP series is fully automatic brazing machine for big saw blade as diameter big than 500mm. It using our innovative power-driven moving and positioning system for big saw blade, and innovative brazing system, make the machine simple, stable and efficient.
Technical Parameters
Model | JHJ-EP2500 | JHJ-EP3700 |
Brazing Diameter(mm) | φ600~φ2500 | φ1000~φ3700 |
Welding Error(Verticality)(mm) | ≤±0.03 | ≤±0.03 |
Welding Error( Linearize)(mm) | ≤±0.03 | ≤±0.03 |
Segment Positioning Error(mm) | ≤±0.08 | ≤±0.08 |
Brazing Capacity(pc/h) | 180-500 | 180-450 |
Segment Size(L*T*H)(mm) | 0.6 | 0.6 |
Rabbet of the Blade(mm) | ≥0.2 | ≥0.2 |
Power(w) | 2000 | 2200 |
Water consumption(m3/h) | 2 | 2.5 |
Weight(kg) | 240 | 420 |
Size(mm) | 1200×1100×2200 | 1100×1200×2650 |
Processing
Loading
