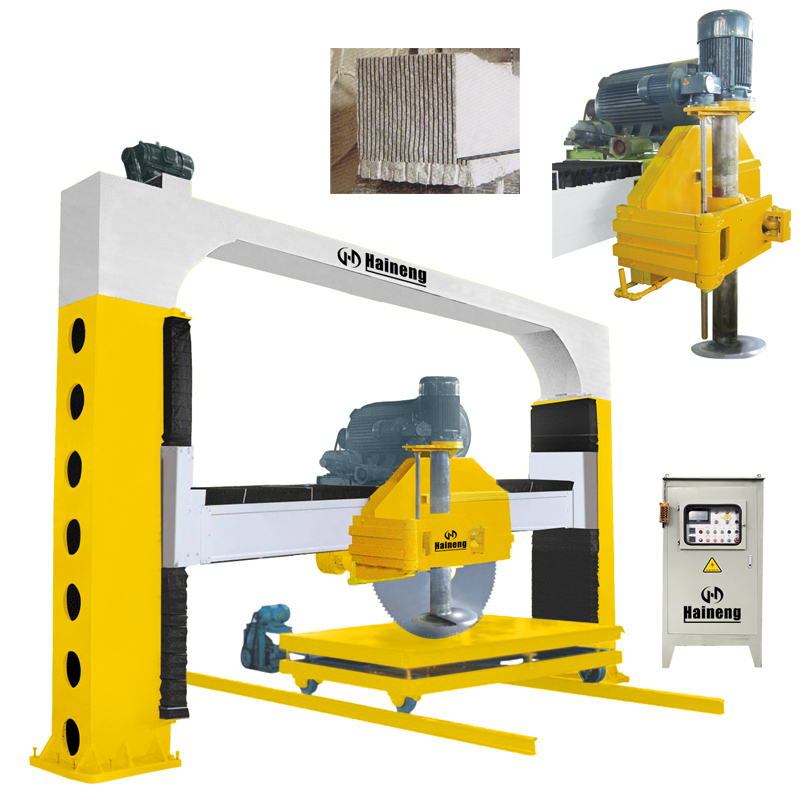

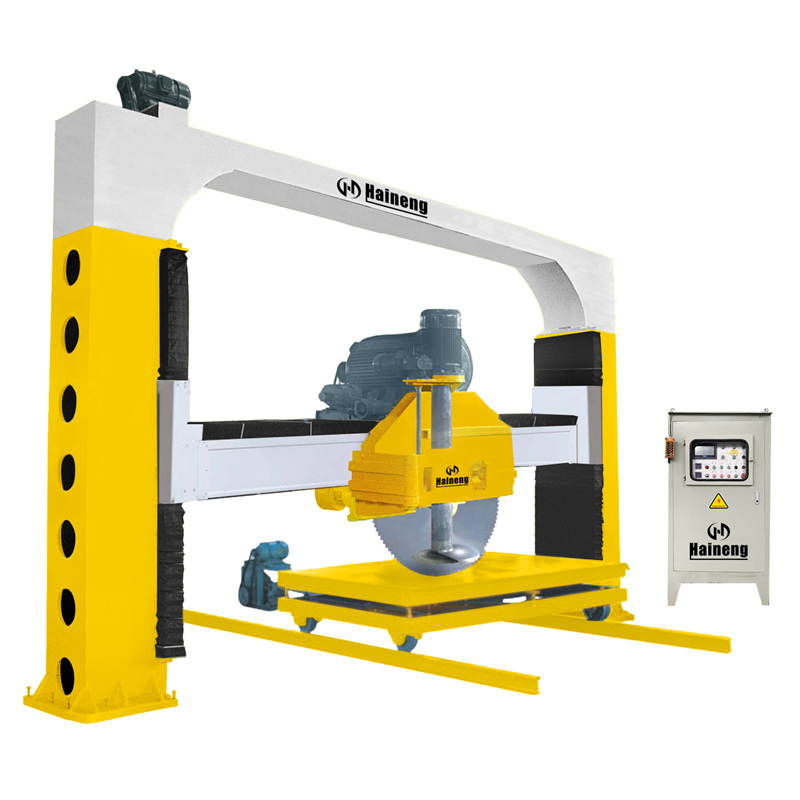

Gantry Two-Way Marble Block Cutting Machine
Marble Block Cutting Machine with full casting beam structure, the horizontal disk adopts hydraulic feeding.
Item No.: LSQ1600
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
Marble Block Cutting Machine with full casting beam structure, the horizontal disk adopts hydraulic feeding, which can directly carry out the cutting of the root of the stone when cutting, eliminating the need for manual unloading of the slab.
Technical Parameters
Model | LSQ1600 | |
Longitudinal disk diameter | mm | 1600 |
Longitudinal lifting stroke | mm | 1400 |
Max.cutting length | mm | 3000 |
Horizontal disk diameter | mm | 600 |
Horizontal lifting stroke | mm | 700 |
Longitudinal main motor power | kw | 75-4 |
Horizontal motor power | kw | 11 |
Gross power | kw | 97 |
Crossbeam size | mm | 450*500*5000 |
Table dimensions(LxH) | mm | 2000x2000 |
Overall dimensions(LxWxH) | mm | 6600x6000x4800 |
Water consumption | M3/h | 6.2 |
Approximate weight | kg | 8500 |
Cutting basalt depth | mm | 200 |
Processing efficiency | M2 | 6-8 |

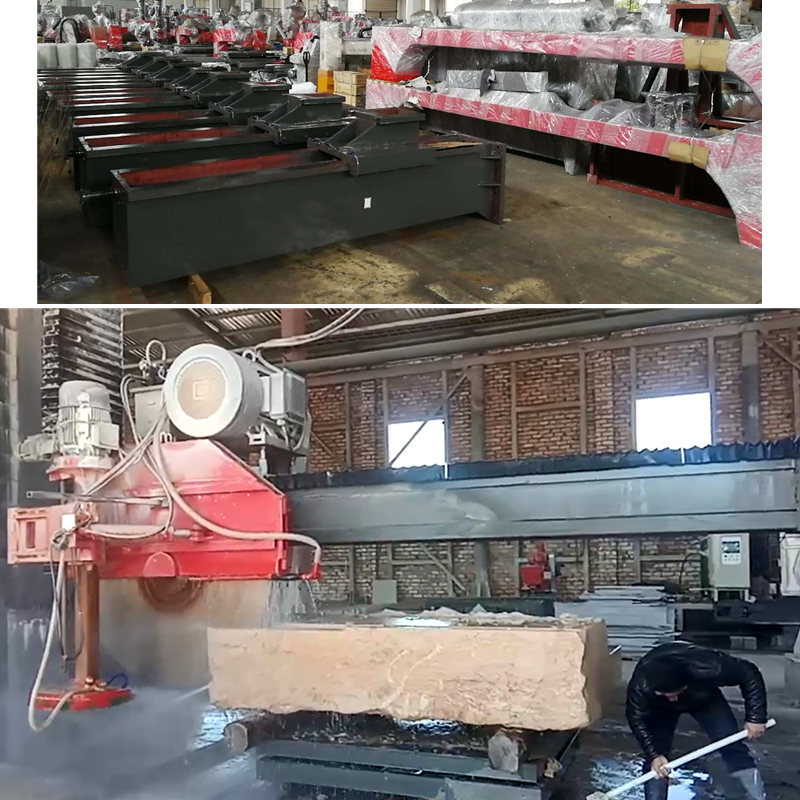

Processing
Loading
