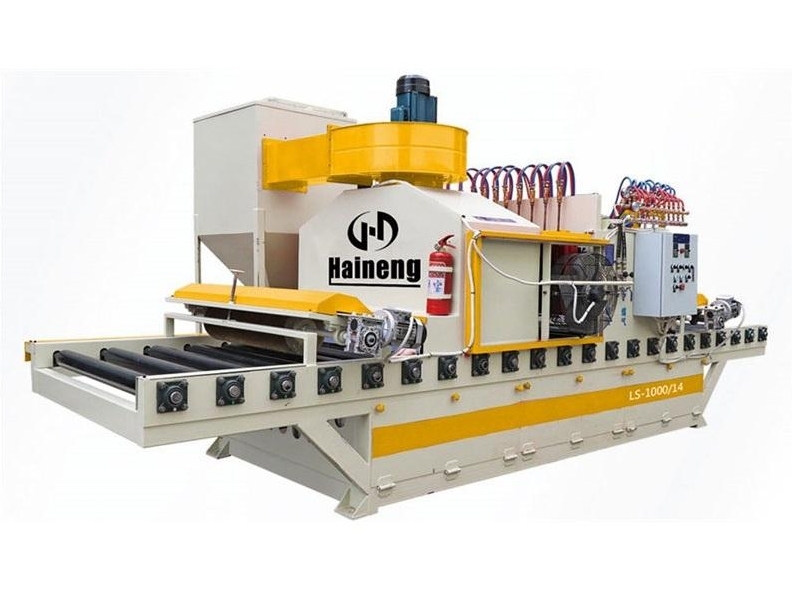

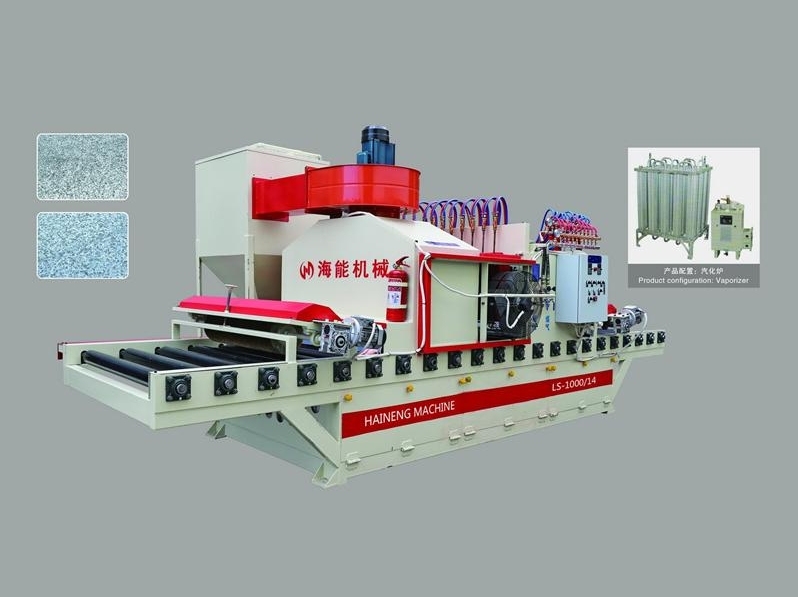

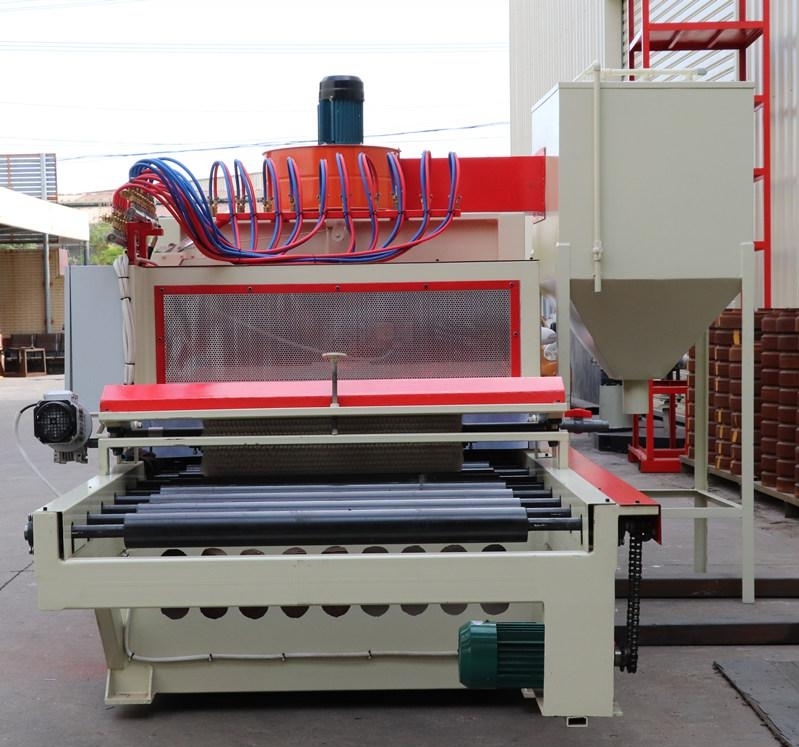

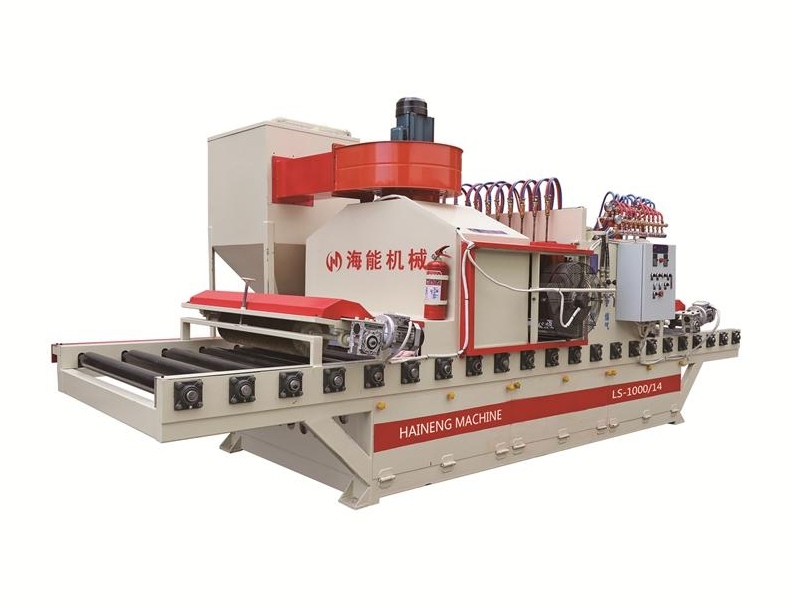

Granite Automatic Flaming Machine
Moved by chain and moving wheel, the stone is conveyed to the flaming area of the high-speed automatic,With characteristic of high automation, easy operation, even flaming surface, low energy cost, and high efficiency, the machine can be used to process 240 sqm/hour, which can save the labor intensity dramatically.
Item No.:
LS600
LS1000
LS1200
- Information
Product Introduction
The Granite Automatic Flaming Machine is mainly aimed at the texturing treatment of the surface of granite slabs. The advent of this series of equipment has completely changed the defects of low efficiency, high cost and uneven surface texture of the previous manual burning slabs, making the stone surface texturing treatment truly high In the new era of efficiency, high quality and low cost, it is the ideal equipment of choice for stone texturing.
Technical Parameters
Granite Automatic Flaming Machine | ||||
Type | unit | LS600 | LS1000 | LS1200 |
No.of heads | pcs | 12 | 16 | 20 |
Max. Board width | rpm | 650 | 850 | 1050 |
Max. Board thickness | mm | 150 | 150 | 150 |
The motor power | kw | 6 | 6 | 6 |
The work efficiency | m2/hour | 120-150 | 120-150 | 120-150 |
Running noise | db(a) | 50 | 50 | 50 |
Dimension (L×W×H) | mm | 8000×2000×2500 | 8000×2200×2500 | 8000×2400×2500 |
Total weight | kg | 2100 | 2300 | 2500 |
