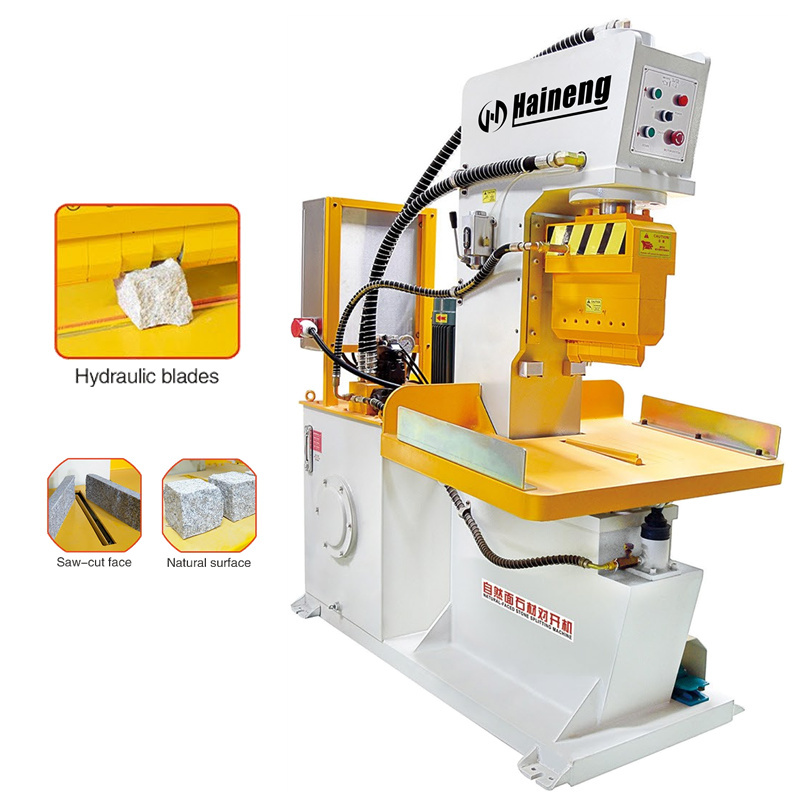

Hydraulic Natural Rock Stone Splitting Machine
This stone splitter with 60 tons of powerful hydraulic power, splits the stone into two cubes or blocks,for paving and wall decoration.
Item No.: SDKJ-60T-Y
- Haineng
- Fujian
- 25 days
- Information
Hydraulic Natural Rock Stone Splitting Machine
Product Introduction
This stone splitter，with 60 tons of powerful hydraulic power, splits the stone into two cubes or blocks,for paving and wall decoration, such as sidewalks, facades and rustic walls. Hydraulic Stone Splitting Machine have adjustable splitting angle and depth to meet the needs of different sizes and shapes of stone to create a personalized architectural style.
Main Features：
Open frame machine model for easy maintenance.
Made of sturdy cast iron and high-quality components to ensure stability while working.
Rapid lifting motion greatly improves work efficiency.
Wedge chisel balance system provides maximum contact with the stone surface for a cleaner edge line.
Heat-treated and hardened high carbon steel sparks produce superior splitting every time.
Technical Parameters
Dimensions(L×W×H) | cm | 170×95×200 |
Weight | T | 1.2 |
Power | kw | 7.5 |
Voltage | V | 380 |
Frequency | HZ | 50 |
Flow Rate | L | 40 |
Pressure | T | 60 |
Blade Feeding Speed | cm/S | 12 |
Max Working Height | cm | 20 |
Max Working Width | cm | 30 |
Output/Hour | m² | 45 |
Hydraulic Oil Grade | # | 46 |
Oil Tank Capacity | KG | 200 |
Packing Size | cm | 180×105×215 |
Gross Weight | T | 1.3 |
