Automatic Stone Splitting Machine Hydraulic Stone Splitter Strips Cubes Blocks Paving Cutting Machine
This automatic stone splitter has an automatic conveyor mechanism, suitable for the process of processing long stone strips. It is an efficient machine for producing cubic paving stone.
Item No.: DKJ-24SLS
- Haineng
- Fujian
- 25 days
- 15 PCS per month
- Information
- Video
Automatic Stone Splitting Machine Hydraulic Stone Splitter Strips Cubes Blocks Paving Cutting Machine
Product Introduction

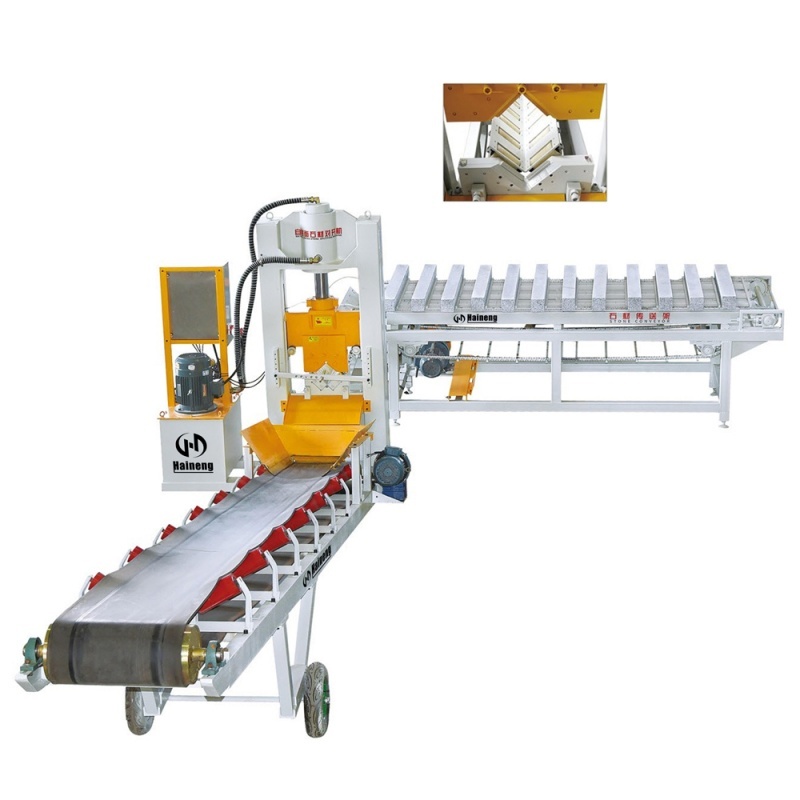

This automatic stone splitter has an automatic conveyor mechanism, suitable for the process of processing long stone strips that have been sawn and need to be fed continuously into square blocks of stone, with an infrared sensor controlling the thickness of the split, which is easy to adjust and highly efficient.
Designed with hydraulic drive, it can split square paving stones into cubes or blocks with antique appearance. Stone splitting machine is an efficient machine for producing cubic paving stone.
Technical Parameters
1.CSJ-935L Conveyor Parameters
Dimensions(L×W×H) | cm | 350×130×100 |
Speed/Minute | m | 7 |
Worktable width | cm | 90 |
Weight | KG | 760 |
Power | kw | 2.2 |
Voltage | V | 380 |
Frequency | HZ | 50 |
Packing Size | cm | 350×130×100 |
Gross Weight | KG | 800 |
2. DKJ-24S Stone splitting machine Parameter
Dimensions(L×W×H) | cm | 160×160×205 |
Weight | T | 1 |
Power | kw | 5.5 |
Voltage | V | 380 |
Frequency | HZ | 50 |
Flow Rate | L/M | 32 |
Pressure | T | 50 |
Blade Feeding Speed | cm/S | 5 |
Max Working Height | cm | 20 |
Standard Processing size | cm | 10×10 |
Max Working Width | cm | 20 |
Output/Hour | m² | 18 |
Hydraulic Oil Grade | # | 46 |
Oil Tank Capacity | KG | 78 |
Packing Size | cm | 170×170×215 80×80×100 |
Gross Weight | T | 1.05 |
3. CSJ-560X Conveyor Parameters
Dimensions(L×W×H) | cm | 570×100×220 |
Speed/Minute | m | 30 |
Belt width | cm | 50 |
Weight | KG | 550 |
Power | kw | 3 |
Voltage | V | 380 |
Frequency | HZ | 50 |
Packing Size | cm | 570×100×70 120×100×100 |
Gross Weight | KG | 600 |
Processing
Loading
