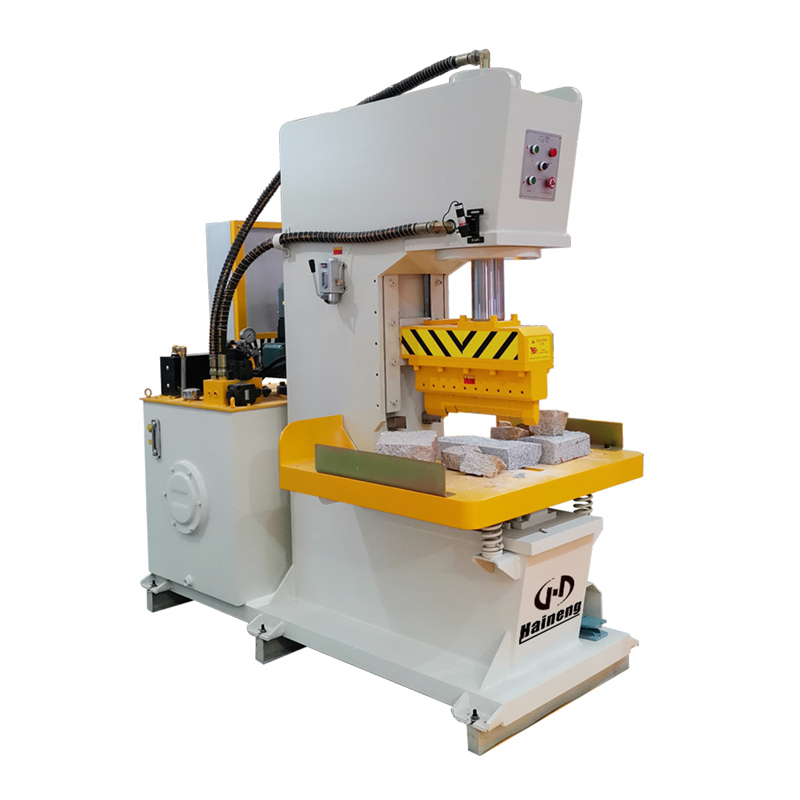

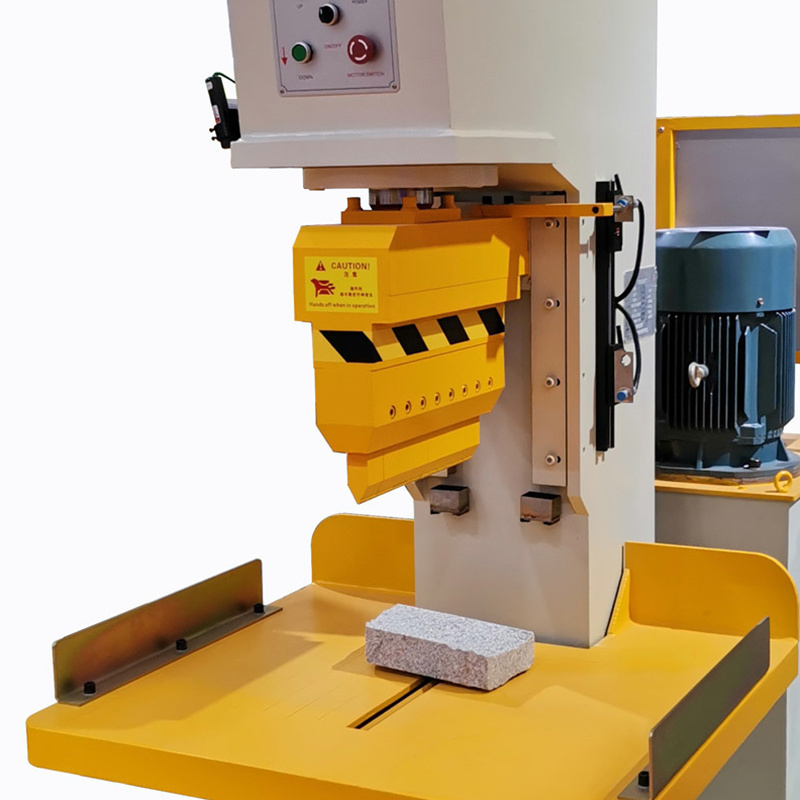

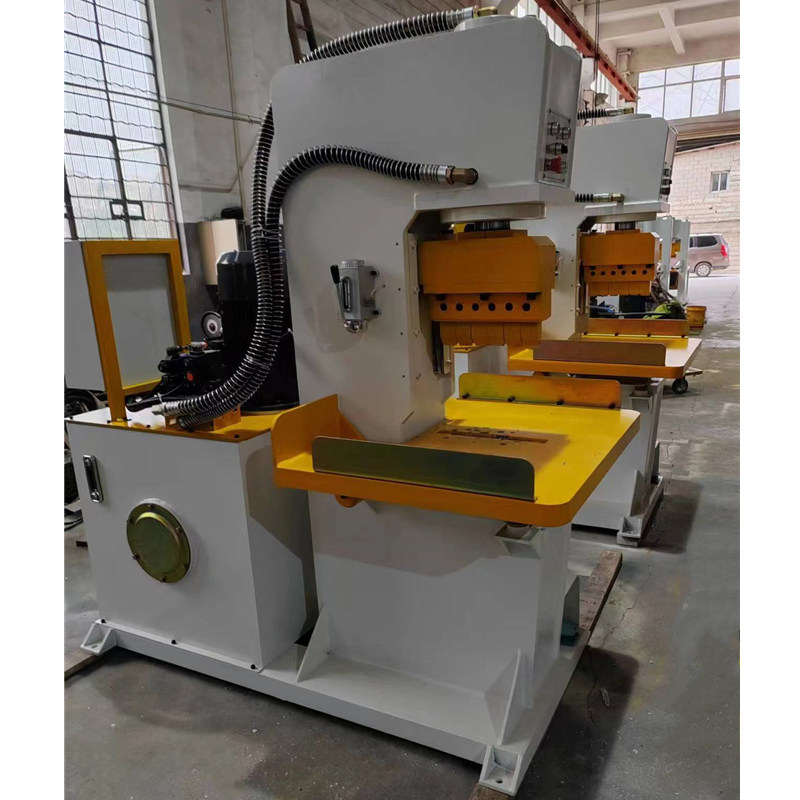

Hydraulicl Automatic Stone Granite Splitter Machine
The machine is small in volume, easy operation, the user can apply different blade to cut the different material. The blade is easy to install and high efficiency. It is well-received from the customers.
Item No.:
SDKJ-40T
SDKJ-60T
SDKJ-80T
SDKJ-120T
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
SMT Stone Splitting Machine is developed according to market’s demand and the stone industry’s standard ,with feature of logical structure, stable function, precise cutting, less abrasion etc. The equipment is widely applied for production the splitting the stone into in-artificial surface. The machine is solid steel whole structure, which shape is not easy to change in long terms running. The machine adopts the hydraulic push force device, the force is even, it can set its journey according to stone’s feature.
The machine is small in volume, easy operation, the user can apply different blade to cut the different material. The blade is easy to install and high efficiency. It is well-received from the customers.
Technical Parameters
Technical Data |
| ||||
Model No. | SDKJ-40T | SDKJ-60T | SDKJ-80T | SDKJ-120T | |
Max.Pressure | ton | 40 | 60 | 120 | 120 |
Blade feeding speed | mm/s | 80 | 80 | 90 | 90 |
Max. working height | mm | 250 | 200 | 300 | 300 |
Max. working length | mm | 200 | 300 | 400 | 500 |
Output per hour | m2/h | 8 | 10 | 18 | 18 |
Power | kw | 7.5 | 11 | 11 | 11 |
Voltage / Frequency | V / Hz | 380 / 50 | 380 / 50 | 380 / 80 | 380 / 80 |
Flow rate | L/M | 41 | 41 | 47 | 47 |
Hydraulic oil grade | # | 46 | 46 | 46 | 46 |
Oil tank capacity | L/kg | 240 / 200 | 350/290 | 350/290 | 350/290 |
Gross weight | kg | 1300 | 1400 | 1900 | 2400 |
Dimensions ( L x W x H ) | mm | 1500x960x2000 | 1800x1050x2050 | 2100x1100x2300 | 2250x1100x2250 |

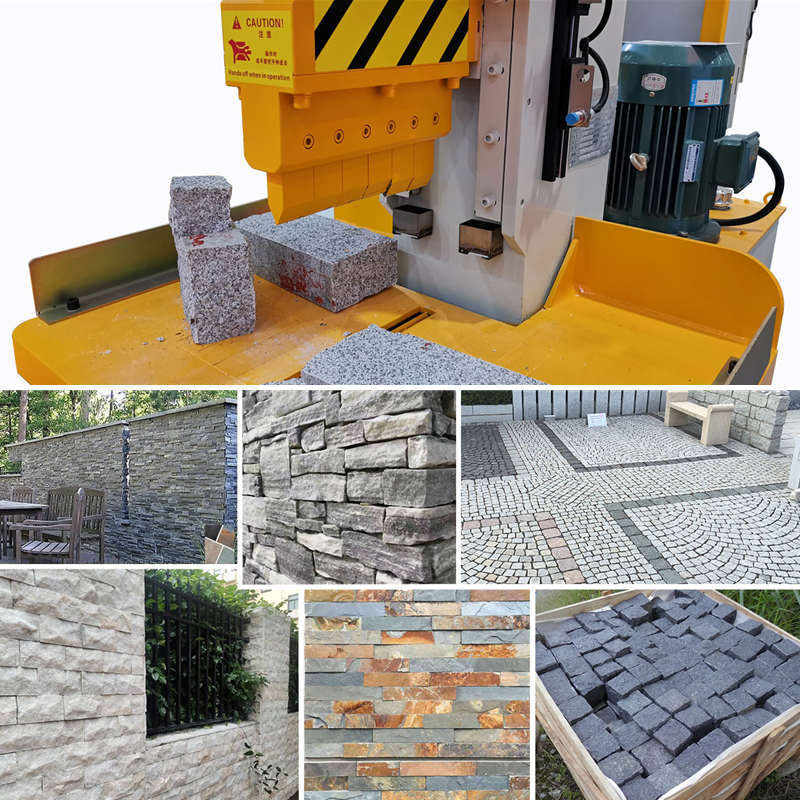

Processing

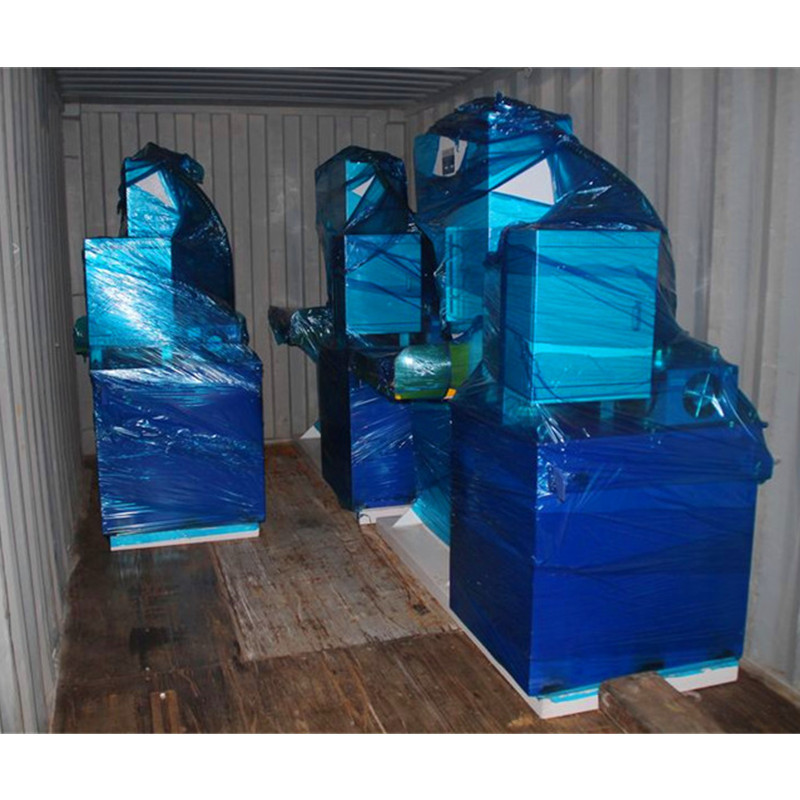

Loading
