CNC Intelligent Granite Marble Cutting Machine Stone Bridge Saw
This Small cyclone intelligent bridge cutter mainly used for marble and other high-end natural stone automation (cutting), with CAD automatic billing, fine grain pre-typesetting and other powerful functions.
Item No.:

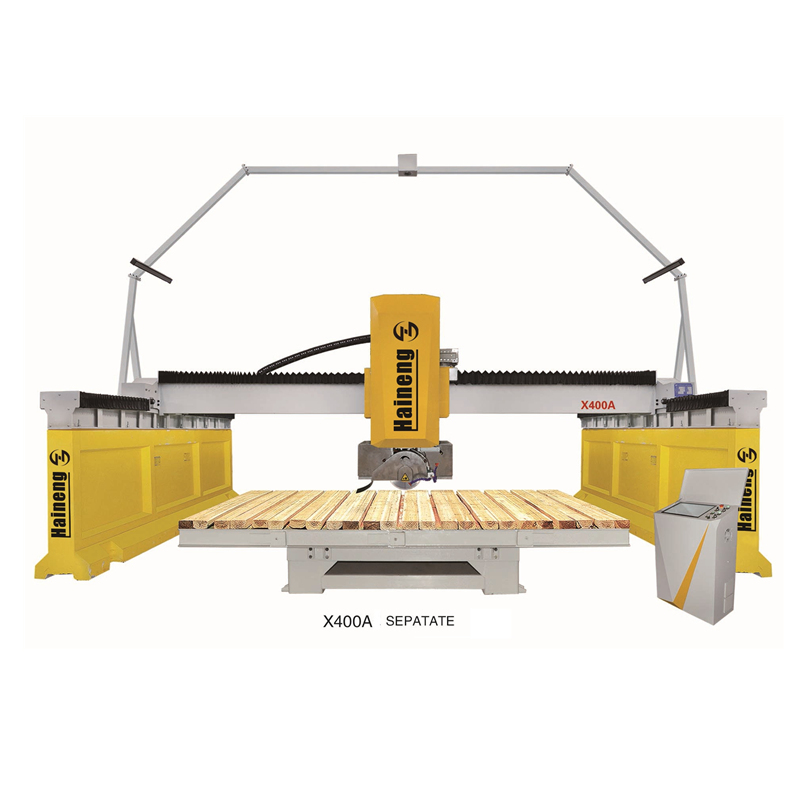

X400A

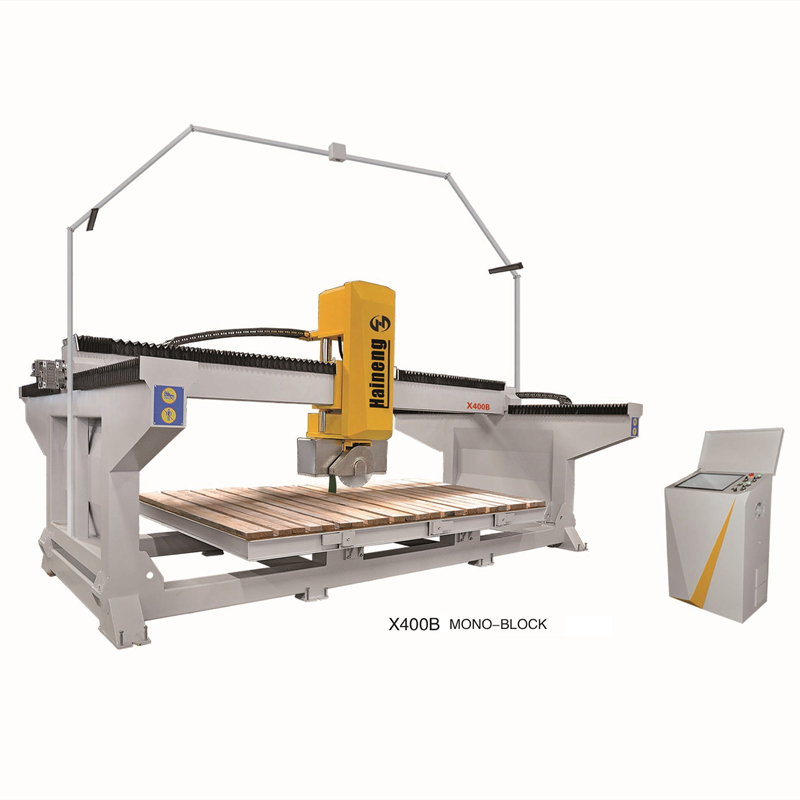

X400B
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
PRODUCT USE
This series of equipment is mainly used for marble and other high-end natural stone automation (cutting), with CAD automatic billing, fine grain pre-typesetting and other powerful functions, automatic cutting, automatic plate, save time, labor, material, intelligent cutting.
MAIN FUNCTION

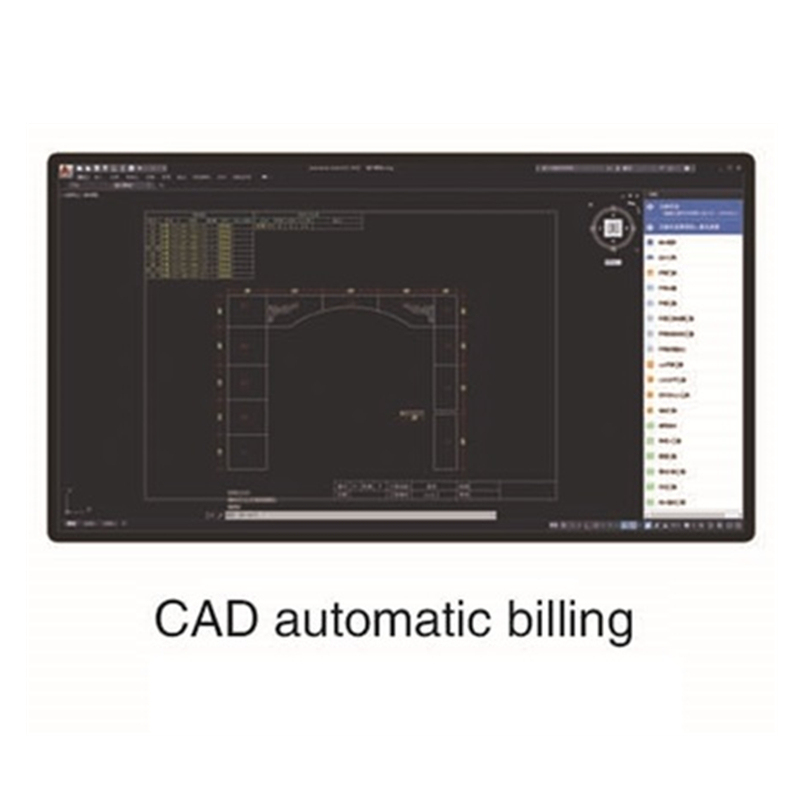

1.Automatic billing (eliminating tedious manual calculation)

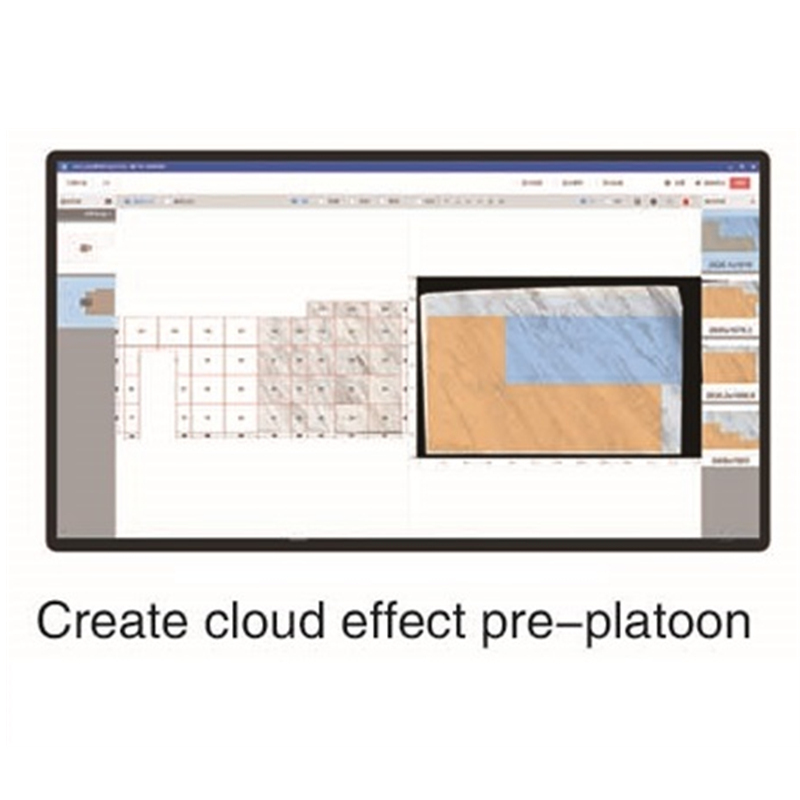

2. Pre-typesetting fine line (the first effect and then processing, the output rate greatly improved)
3. Multi-mode cutting (NC slotting, depth adjustment)
4. automatic intelligent cutting function (operator zero threshold, one person can see several machines)
5. Automatic labeling function (intuitive graphics + identification code)
6. Automatic sucker intelligent transfer board (save transmission man-machine mutual assistance)
7. Supporting special vertical scanner (clearer scanning texture)
TECHICAL PARAMETER
Intelligent bridge saw | |||
TYPE | Unit | X400A | X400B |
Diameter of saw blade | mm | Φ300-400 | Φ300-400 |
Size of work table | mm | 3700×2500 | 3700×2500 |
Maximum cutting size | mm | 3700×2500×80 | 3700×2500×80 |
Horizontal rotation Angle of saw blade | n° | 0-90° | 0-90° |
Table turning Angle | n° | 0-85° | 0-85° |
Table rotation Angle | n° | Default: None (optional) | Default: None (optional) |
Main motor power | kw | 15 | 15 |
Host frequency conversion |
| Optional | Optional |
Total power | kw | 20.2 | 20.2 |
Water consumption | m3 /h
| 3.5 | 3.5 |
Total machine gross weight | kg | 8500 | 4500 |
Overall dimensions | mm | 6500×4700×4500 | 6500×3800×4500 |
Photo taking function |
| Standard configuration: Yes | Standard configuration: Yes |
Sucker transfer plate |
| Standard configuration: Yes | Standard configuration: Yes |
Automatic labeling
|
| Standard configuration: available (optional) | Standard configuration: available (optional) |
Whether the mall can be connected |
| Standard configuration: available (optional) | Standard configuration: available (optional) |
