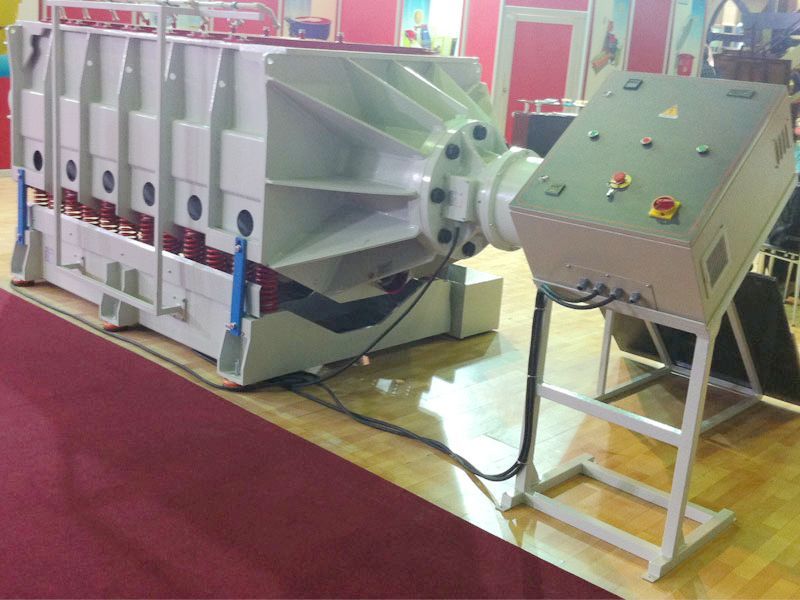

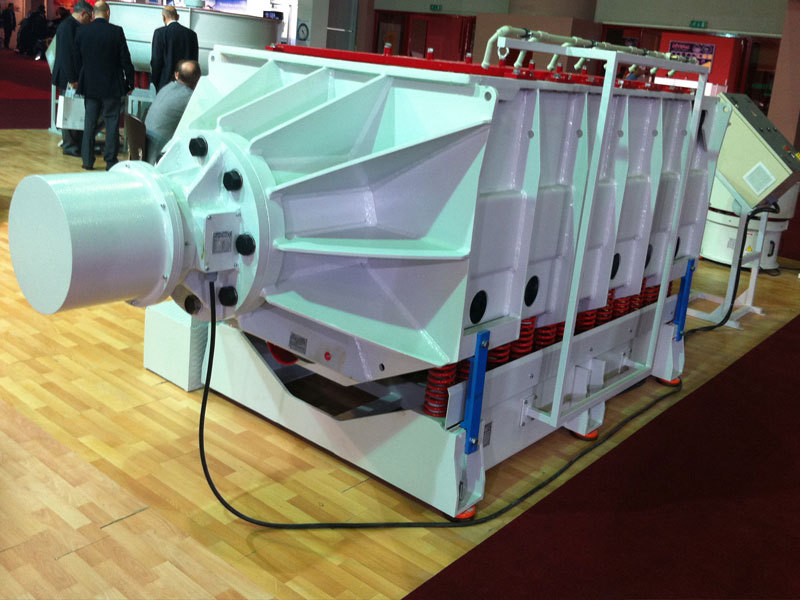

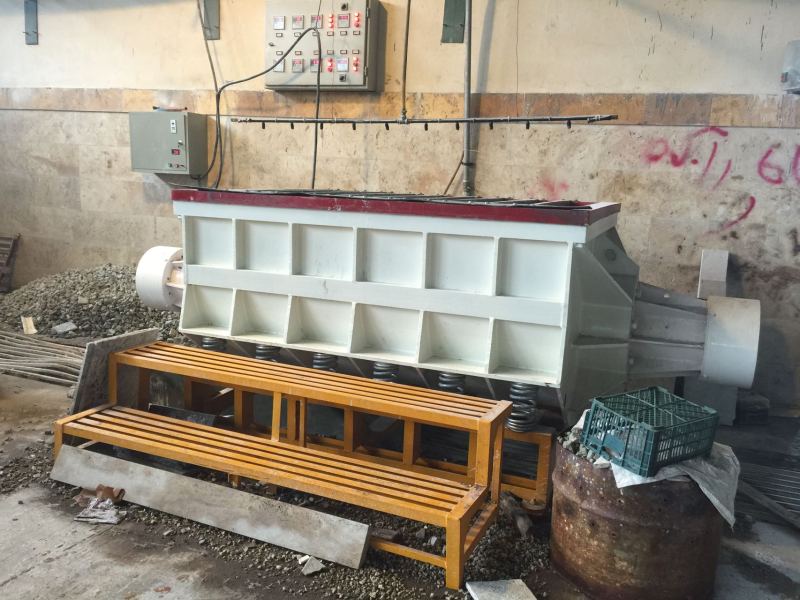

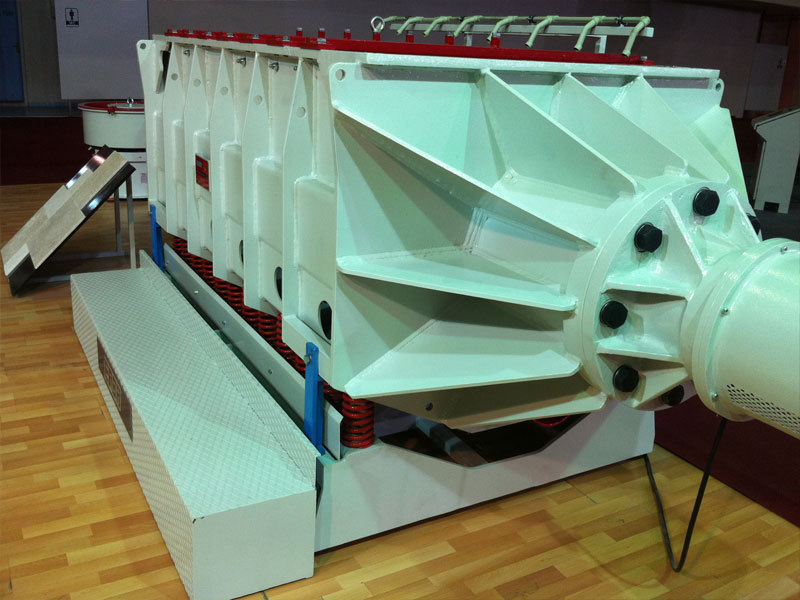

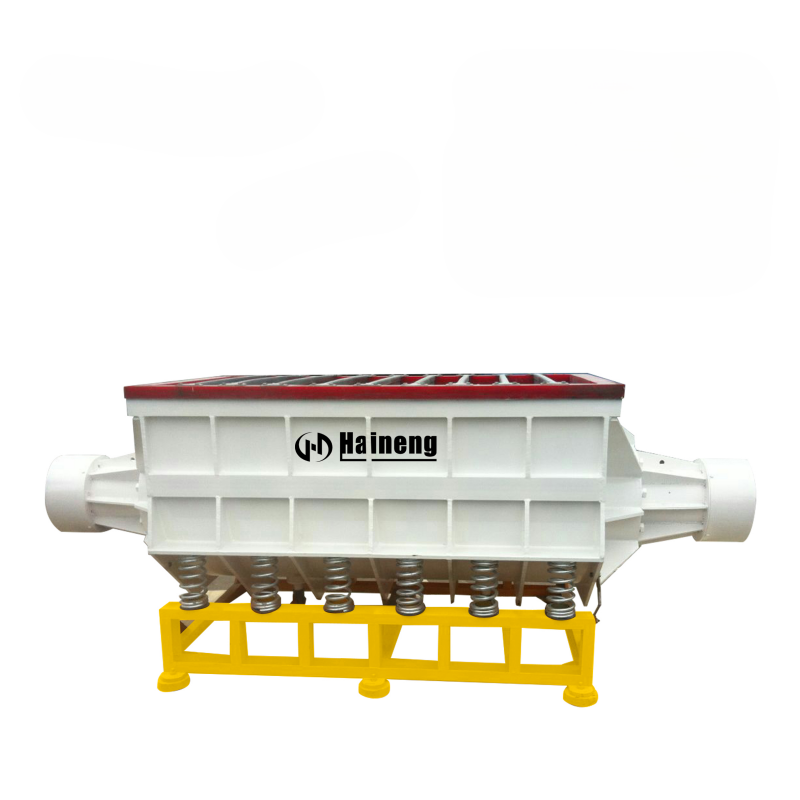

Linear Type Vibratory Finishing Machine
Advantage:
1.Suitable for large size tiles.
2.Polish completely.
3.Vibration speed is controlled by frequency converter.
4.Working time preset.
5. Long working life.
Item No.:
ZMY-F1000
ZMY-F2600
ZMY-F1880
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Linear Type Vibratory Finishing Machine
Product Introduction

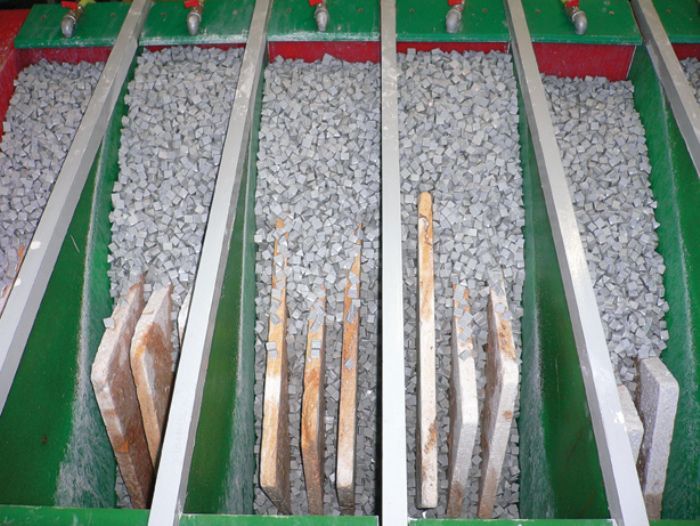

This Linear type vibration machine is used for marble, granite, limestone,mosaic stone and sandstone processing to antique and aged looking stone.
Features:
Ideal for cornering, antiquing and polishing tiles.
Polyurethane ensures a long service life.
Partitions can be removed to match different sizes.
Two vibration motors provide uniform vibration.
Frequency converter controls the tumbling motor.
Technical Parameters
Type | unit | Linear type vibration machine | ||
Model |
| ZMY-F1000 | ZMY-F2600 | ZMY-F1880 |
Inside tank size |
| 1000*40*460 | 2600*600*550 | 1880*1100*960 |
Total motor power | kw | 2*1.1 | 2x5.5 | 2x7.5 |
R.P.M. |
| 1400 | 1400 | 1400 |
Net volume | L | 200 | 900 | 2000 |
Dimension(LxWxH) | mm | 1880*550*860 | 3840*750*950 | 3480*1450*1700 |
Weight | kg | 320 | 865 | 4000 |
Max processing size | cm | 40*40 | 60*60 | 90*60 |
Electric Power Required
|
| 3PHS 380V 50Hz | 3PHS 380V 50Hz | 3PHS 380V 50Hz |
