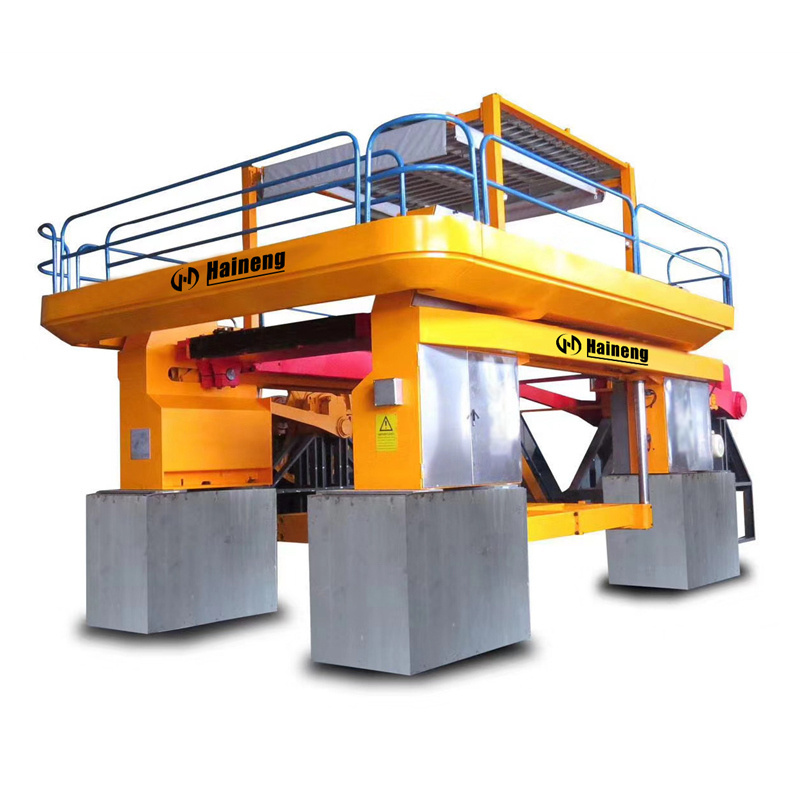

Marble Gangsaw
It is a frame saw with diamond blade translation, block jacking and closed structure. Used for cutting large marble board, suitable for mass produce.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
is a frame saw with diamond blade translation, block jacking and closed structure. Used for cutting large marble board, suitable for mass produce.
Technical Parameters
|
Marble gangsaw |
||
|
Type |
Unit |
AYH-800 |
|
Max block size(LXWXH) |
mm |
3200X2000X2000 |
|
Main motor power |
kw |
110 |
|
Dimensions(LXWXH) |
mm |
11900X5060X4690 |
|
Auxiliary motor power |
kw |
7.5 |
|
Speed |
cm/h |
8-32 |
|
Stroke of the blades |
mm |
800 |
|
Blades length |
L/MIN/BLADE |
10 |
|
Installed No. Of blade |
pcs |
80 |
|
Total weight |
ton |
55 |
|
|
Standard configuration: |
|
|
2 |
pcs |
Motorized block trolley, dimensions:3200X2050mm, 1.5kw, load weight 35 ton |
|
1 |
pcs |
Electrical control board |
|
1 |
sets |
Hydraulic tensioner and oil pump |
|
80 |
sets |
Hydraulic hangers for blades(19mm) |
|
160 |
pcs |
Blades spacers(22mm) |
|
4 |
pcs |
Splint bar in block car |
|
1 |
pcs |
Dynamitic spanner |

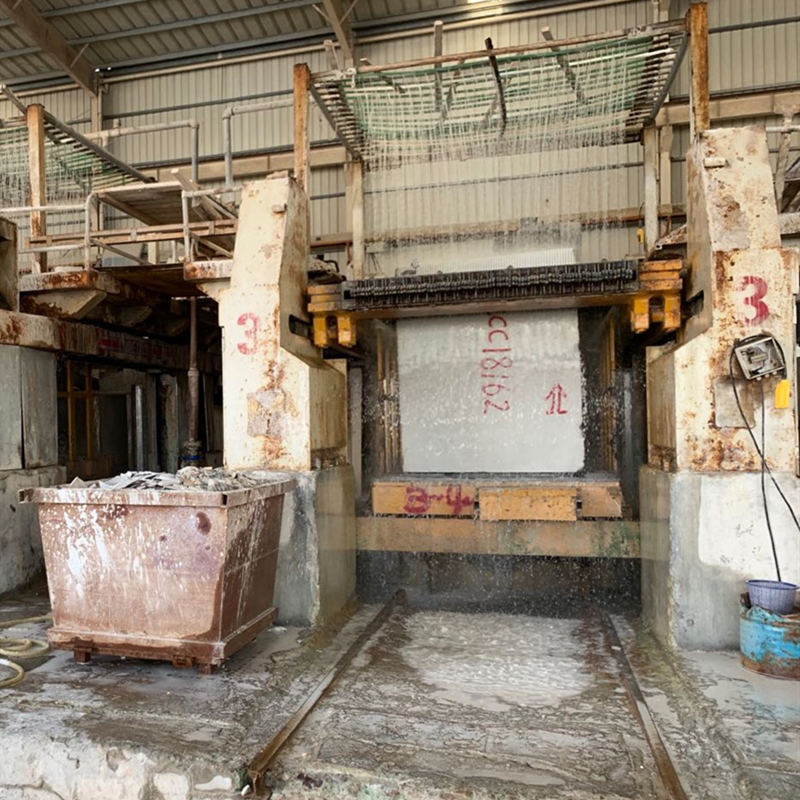

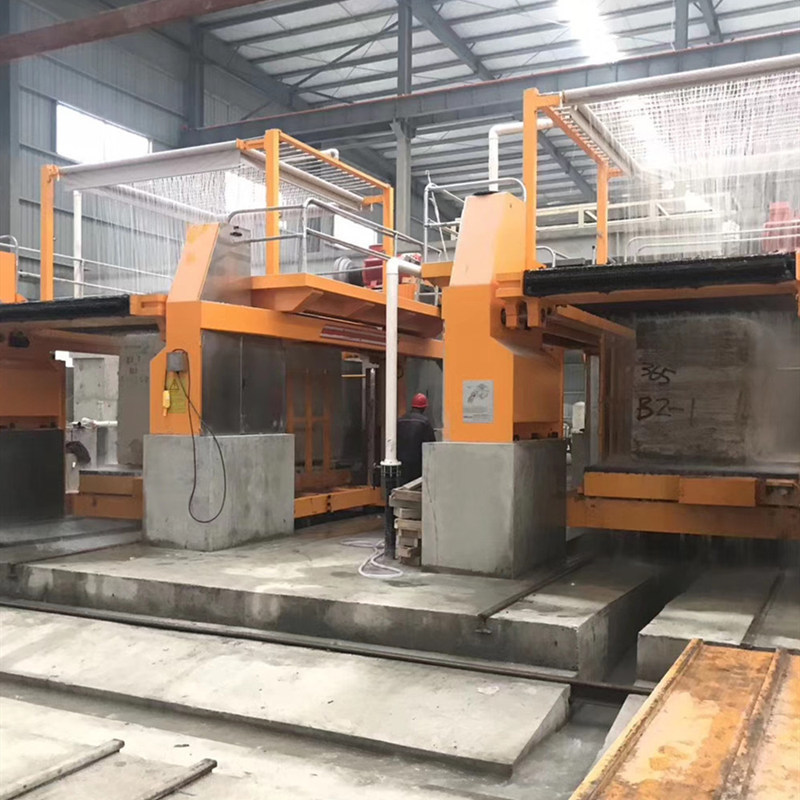

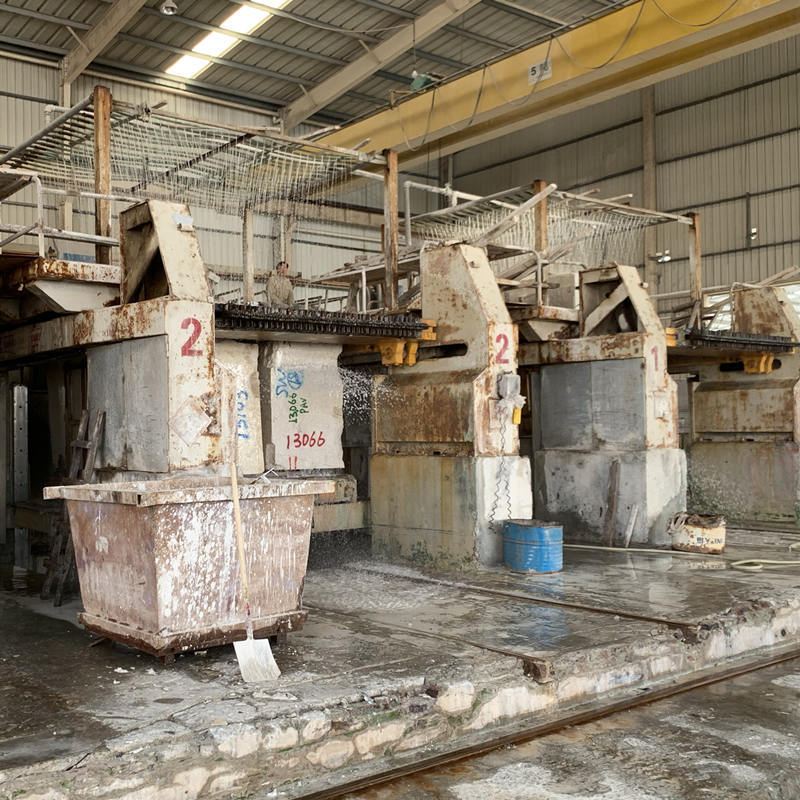

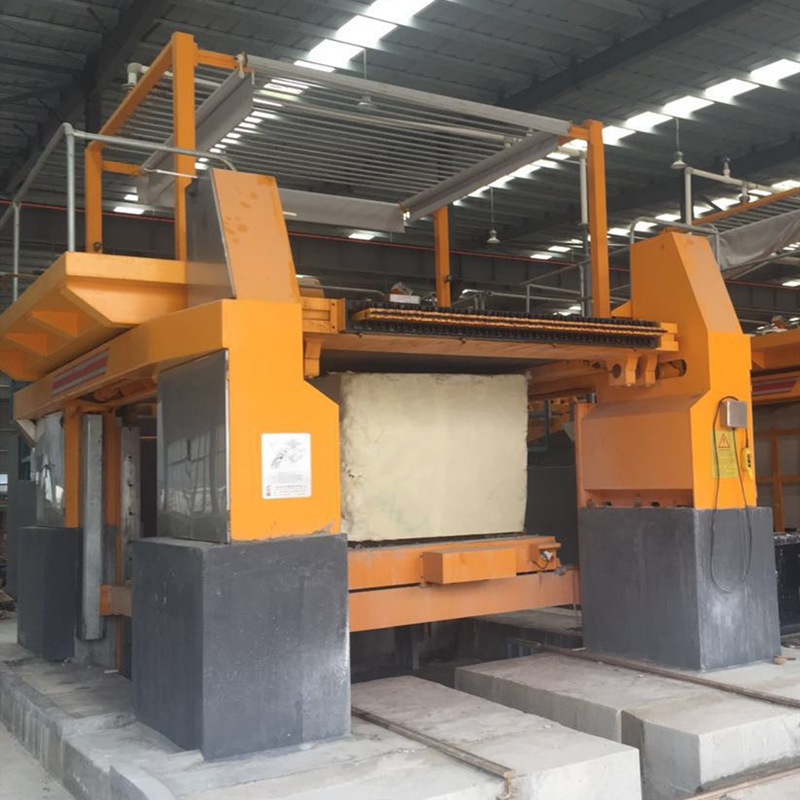

Processing
Loading
