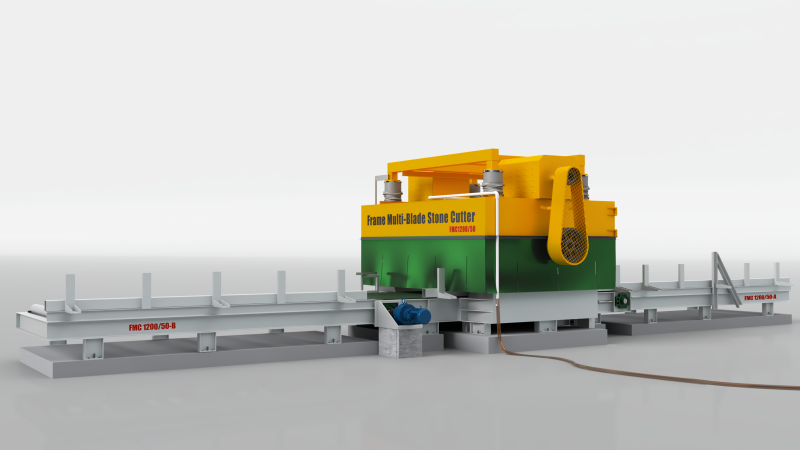

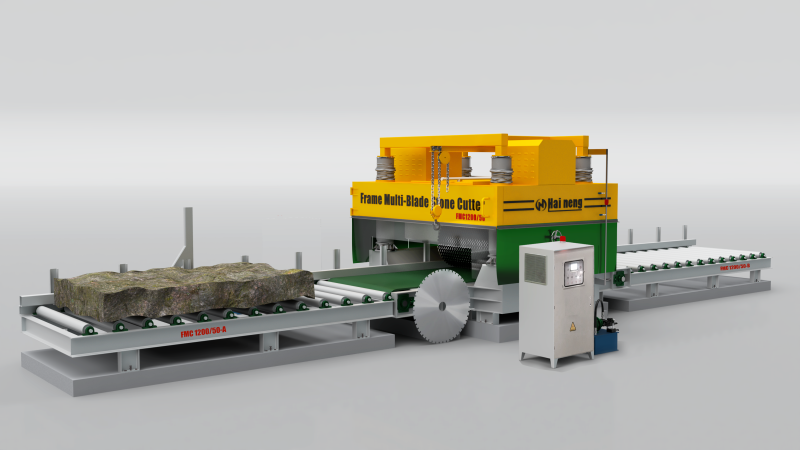

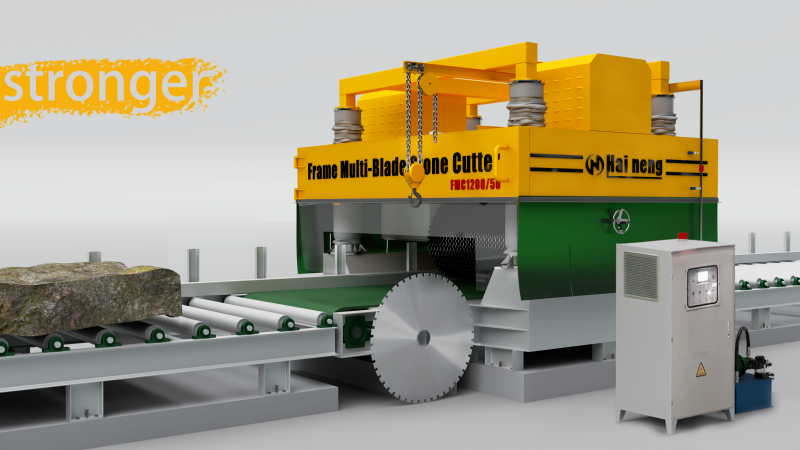

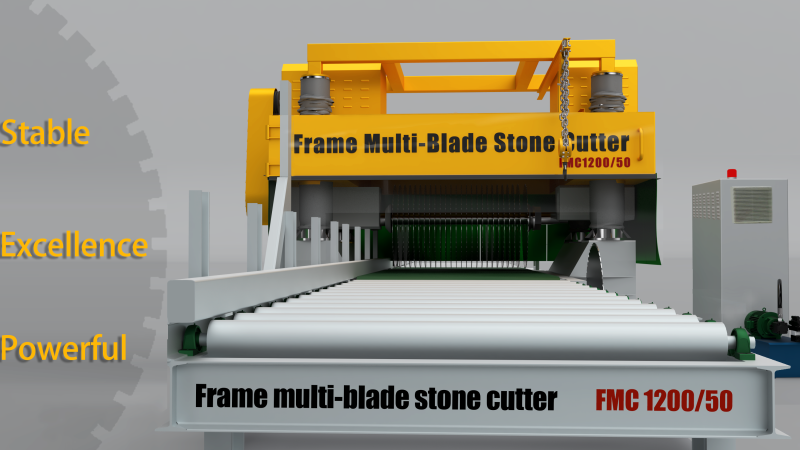

Multi-blades Stone Cutting Machine

Product Features

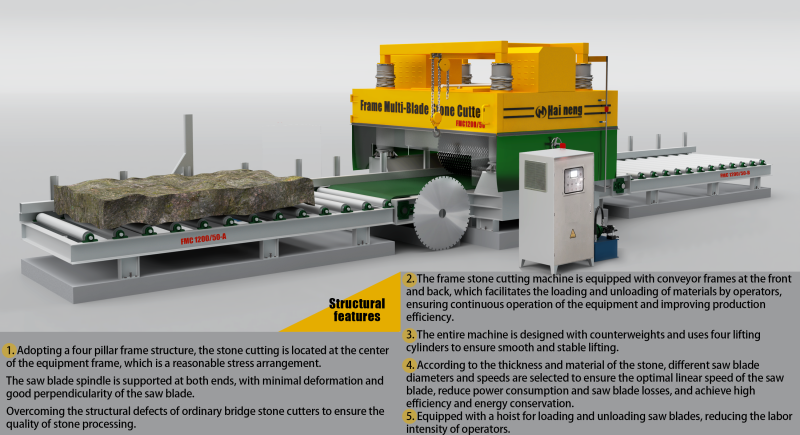

1.Adopting a four pillar frame structure,the stone cutting is located at the center

of the equipment frame, which is a reasonable stress arrangement.

The saw blade spindle is supported at both ends,with minimal deformation and

good perpendicularity of the saw blade.

Overcoming the structural defects of ordinary bridge stone cutters to ensure the

quality of stone processing.

2.The frame stone cutting machine is equipped with conveyor frames at the front

and back,which facilitates the loading and unloading of materials by operators,

ensuring continuous operation of the equipment and improving production

efficiency.

3.The entire machine is designed with counter weights and uses four lifting

cylinders to ensure smooth and stable lifting.

4.According to the thickness and material of the stone,different saw blade

diameters and speeds are selected to ensure the optimal linear speed of the saw

blade,reduce power consumption and saw blade losses,and achieve high

efficiency and energy conservation.

5.Equipped with a hoist for loading and unloading saw blades,reducing the labor

intensity of operators.

Main Technical Parameters

Saw blade	KDQ1200-50

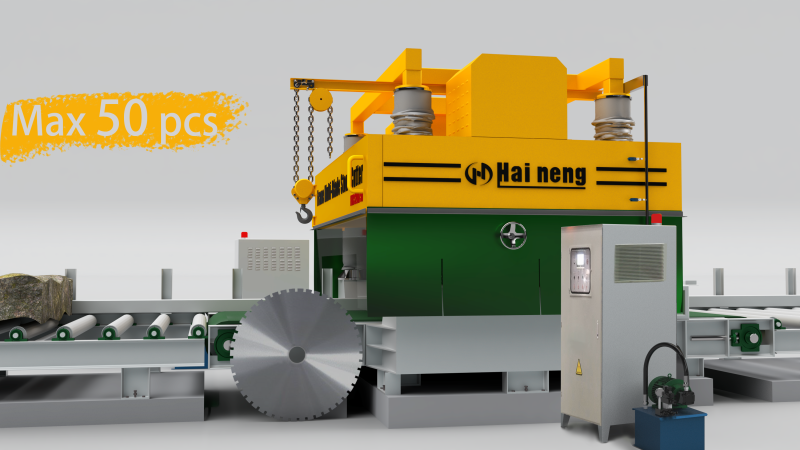

Max.No. of saw blades	50pcs
Max.processing size	4600×1850×300
Main motor power	200kw
Gross power	220kw
Water consumption	500㎡/h
Gross weight	11.5T
Overall dimension	16800×3800×3400
