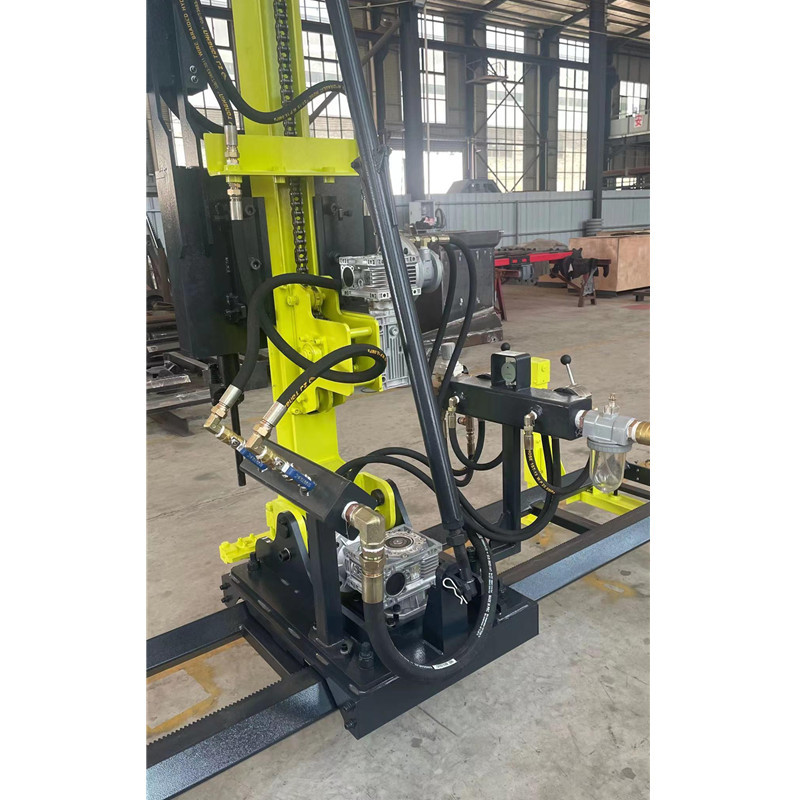

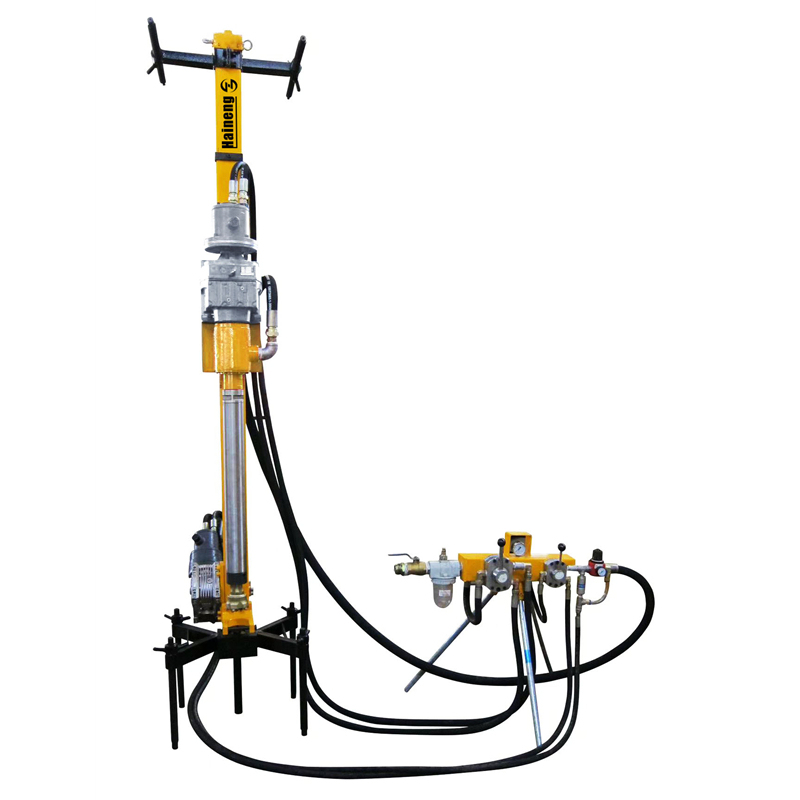

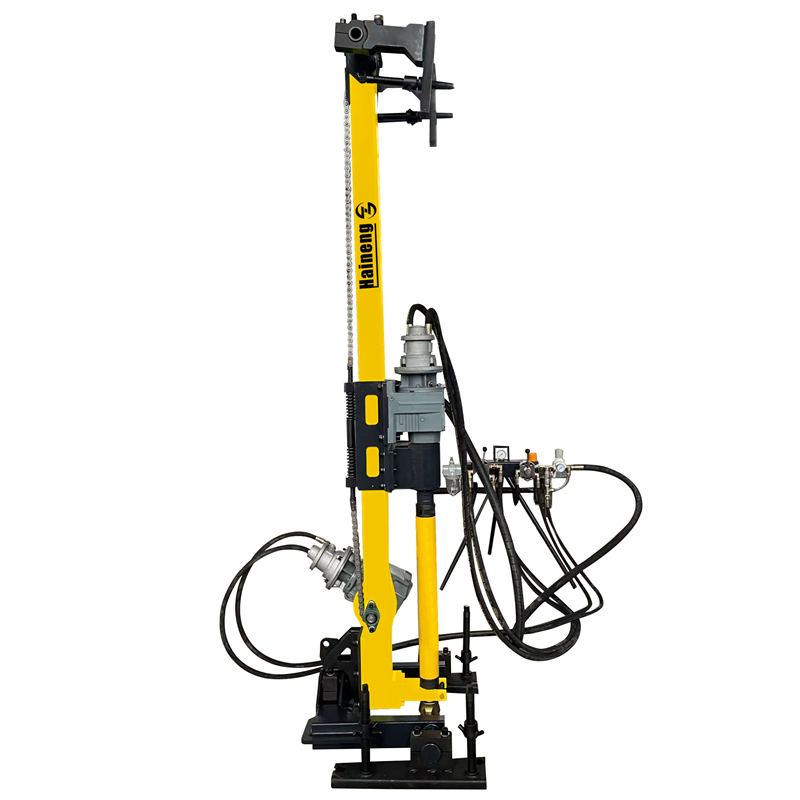

Slim Driller Quarry Pneumatic Drilling Machine
The slim driller machine is to assist diamond wire saw machine working in stone quarries.
Item No.: QDZJ-90
- Haineng
- Fujian
- 25 days
- Information
Product Introduction

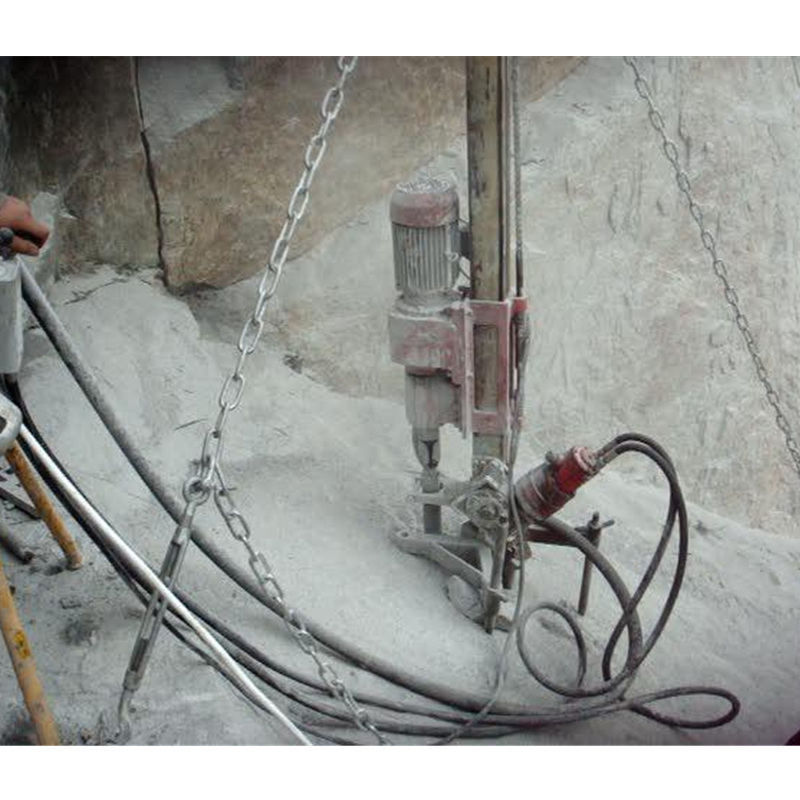

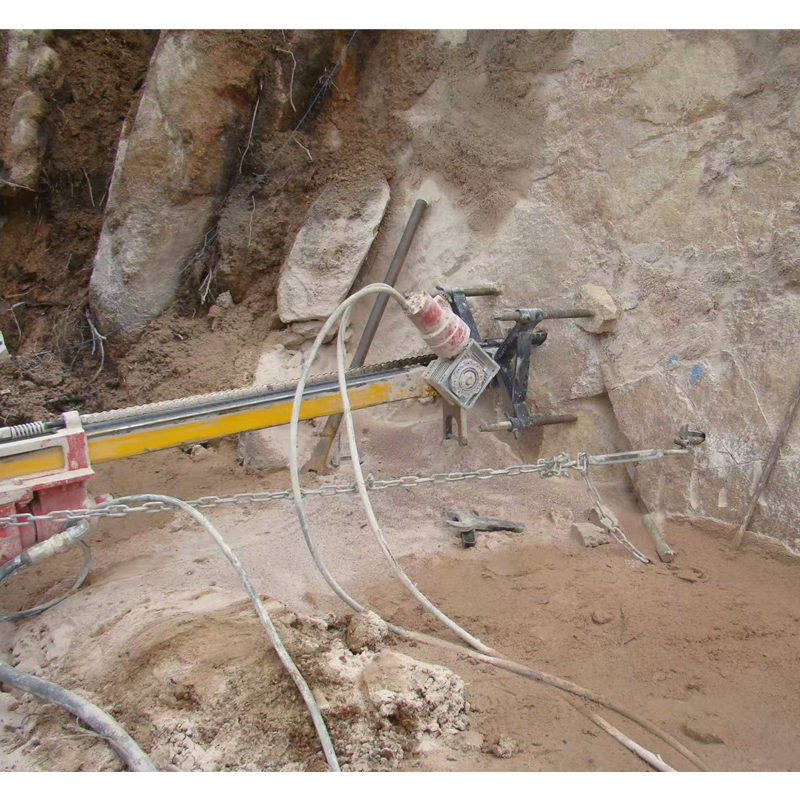

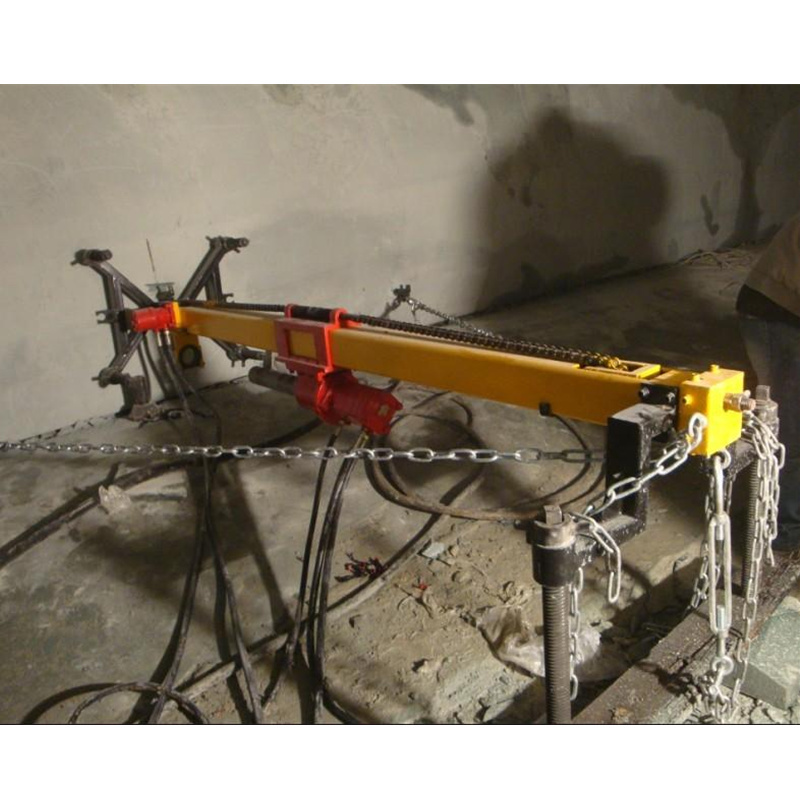

Pneumatic Drilling Machine is driven by compressed air, available for horizontal, vertical and slantwise drilling holes for the passage of diamond wire. Slim Driller Machine is to assist diamond wire saw machine working in stone quarries.
Technical Parameters
Type | Unit | QDZJ-90 |
Max. Depth of Drilling | m | 35-40 |
Diameter of drilling | mm | 65-90 |
Drilling speed | m/h | 6-8 |
Minimum air pressure | Mpa | 0.5-0.7 |
Total compressed air consumption | m³/min | 11-13 |
The hole hammer |
| 65-90 |
Track travel | m | 1 |
Advance device |
| Pneumatic motor, reducer |
The rotation of drilling rod |
| Pneumatic motor, reducer |
Drilling direction |
| Any direction |
Adjust height of the down jack | mm | 220 |
Pneumatic control panel |
| remote control, manual change direction |
Total weight | KG | 380 |
