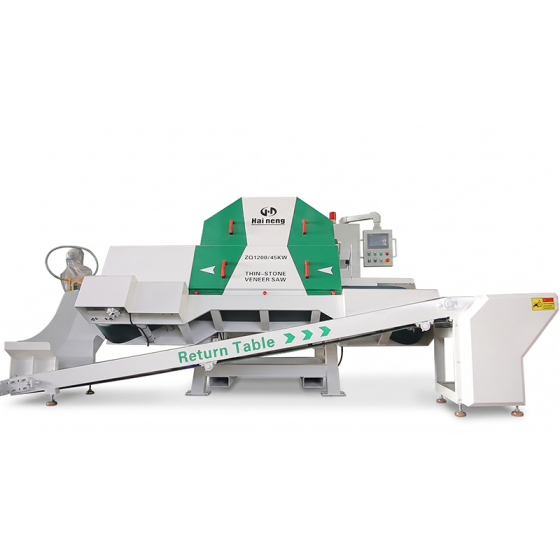

Stone Veneer Thin Saw Cutting Natural Stone
The machine is a monolithic structure with compact structure and conveninet installation and transportation.
Item No.:
ZQ-1000/22
ZQ-1200/45
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
The machine is a monolithic structure with compact structure and conveninet installation and transportation.
The main control components are all international brand components, and the cutting main motor and cutting conveyor belt are all stepless speed regulation.
The working mode of the machine adopts the continuous cutting mode of the pipeline, which is mainly used for cutting the plane of irregular elliptical stones such as cobblestone.
Technical Parameters
| Technical Parameter | ZQ-1000/22 | ZQ-1200/45 |
| Dimensions (L×W×H) | 3300mm×2200mm×2200mm | 2850mm×1950mm×1750mm |
| Machine Weight | 3100kg | 2200kg |
| Main Motor Power | 45kw | 22kw |
| Electricity | 3 Phase, 240V/460V | 3 Phase, 240V/460V |
| Amperage | 172/86A | 86/43A |
| Water Consumption | 3.5m³/h | 3m³/h |
| Blade Size | 1000mm-1200mm | 750mm |
| Blade Speed Standard（Adjustable） | 780rpm | 900rpm |
| Max. Cutting Depth | 480mm | 380mm |
| Conveyor Belt Speed | 600mm/min-2450mm/min | 600mm/min-2450mm/min |
| （Adjustable） |
Processing
Loading
