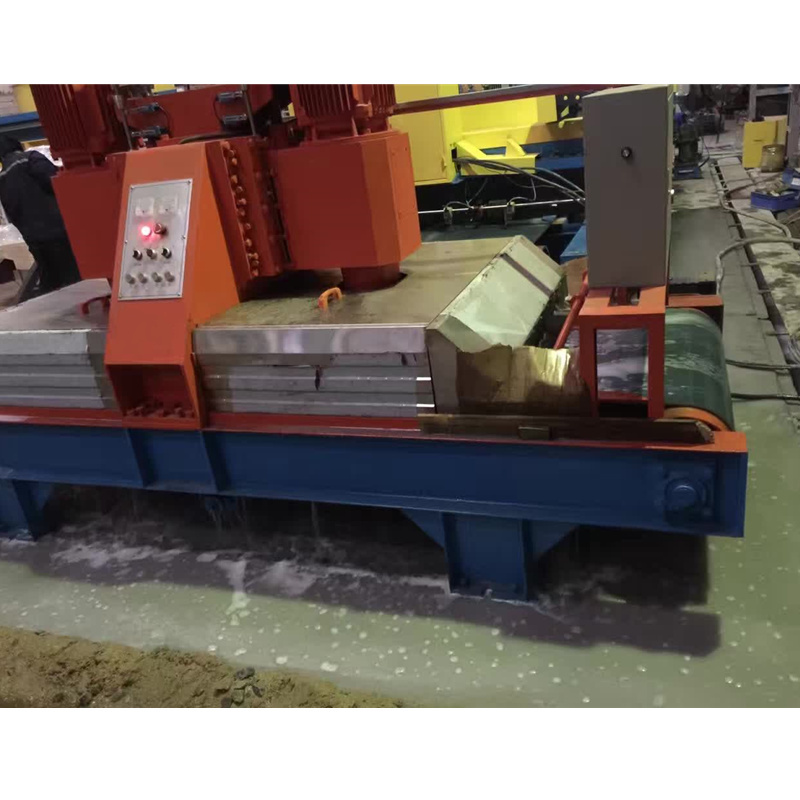

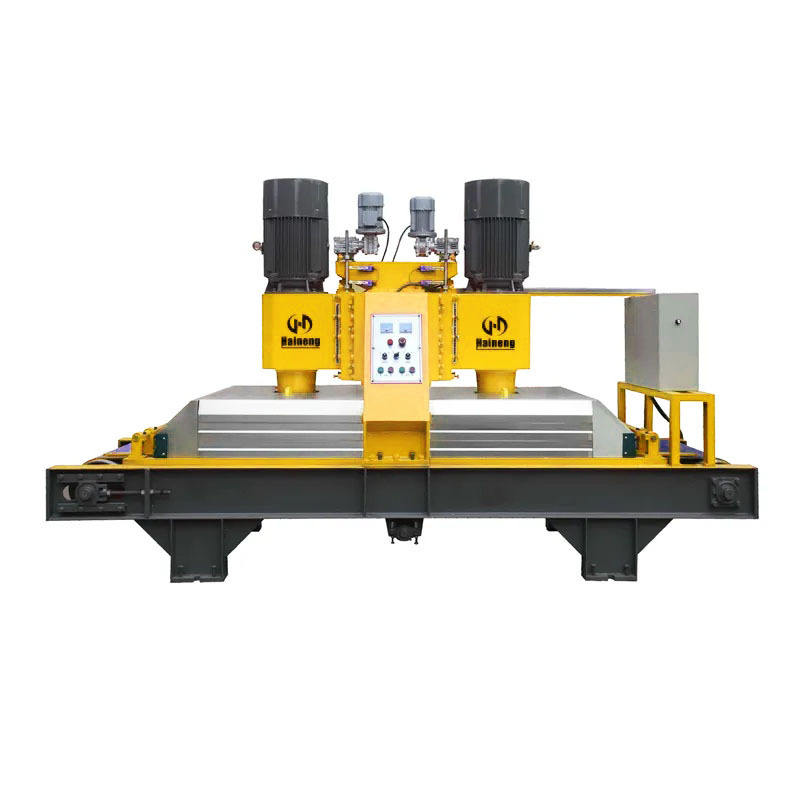

Two Heads Stone Calibrating Cutting Machine For Granite and Marble

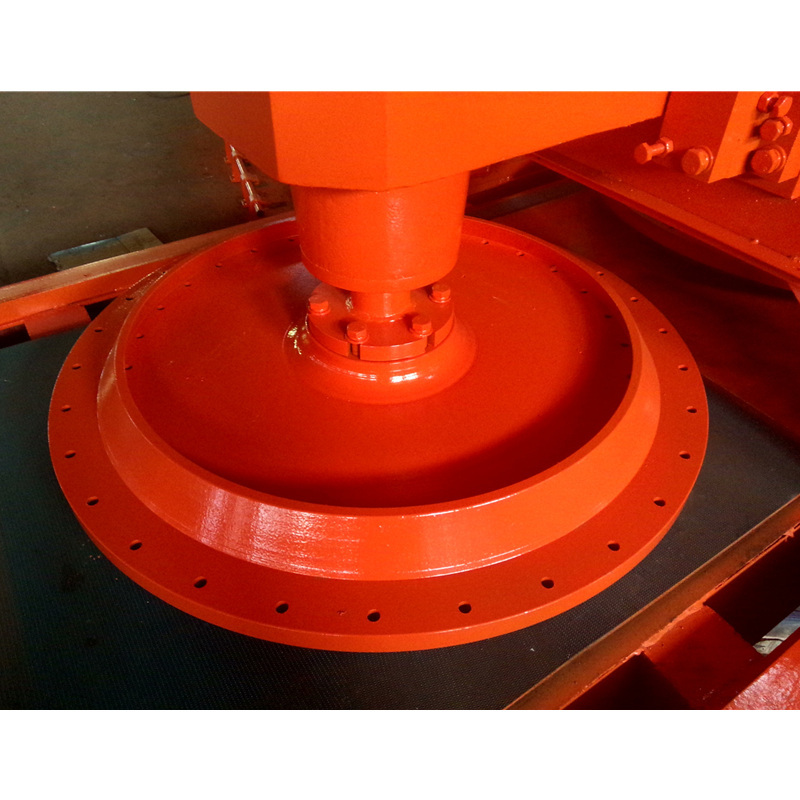

This Stone Calibrating machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent,
Item No.:
DHJ800-2
DHJ1200-2
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
This Stone Calibrating machine adopts the structure of portal n type,good rigidity,conveyor belt continuous feed plate, high efficiency, High speed rotating diamond milling disc milling on the stone surface plate,make the surface of the stone plate to get a flat, ensure the thickness of the plate is consistent, So as to greatly improve the polishing efficiency and quality, reduce the cost of subsequent polishing, It Is the preferred equipment for the slab thickness of stone plate.
Technical Parameters
Two Heads Calibrating Machine | ||||
Type | unit | DHJ800-2（marble） | DHJ800-2（granite） | DHJ1200-2 |
Max. cutting width | mm | 850 | 850 | 1230 |
Max. cutting thickness | mm | 80 | 80 | 80 |
Speed of conveyor belt | mm/min | 0~1600 | 0~1600 | 0~1800 |
Power of main motor | kw | 11~8 | 22~6/18.5~6 | 22~8 |
Total power | kw | 24.24 | 42.74 | 46.24 |
Water consumption | m³/h | 3 | 3 | 3 |
Dimension (L×W×H) | mm | 4100×1600×2200 | 4100×1600×2200 | 5600×2100×2200 |
Total weight | T | 3.8 | 4.3 | 6.3 |

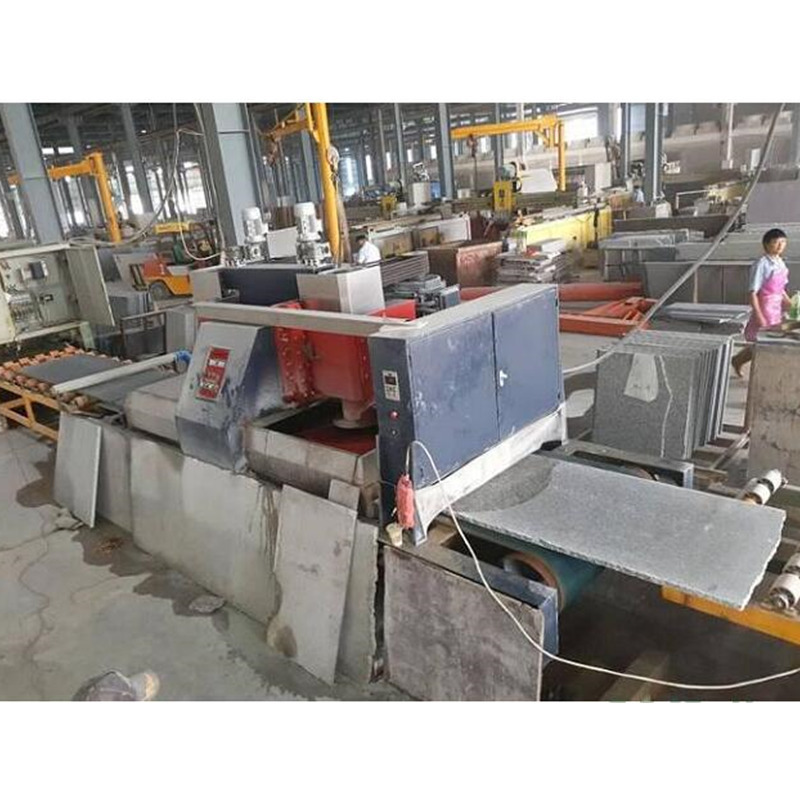

Processing

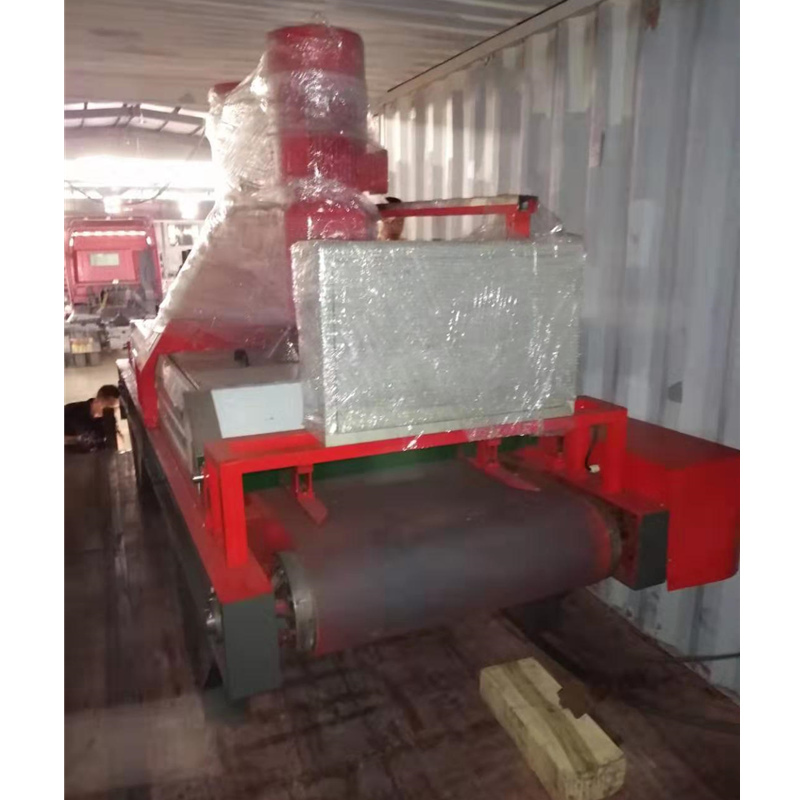

Loading
