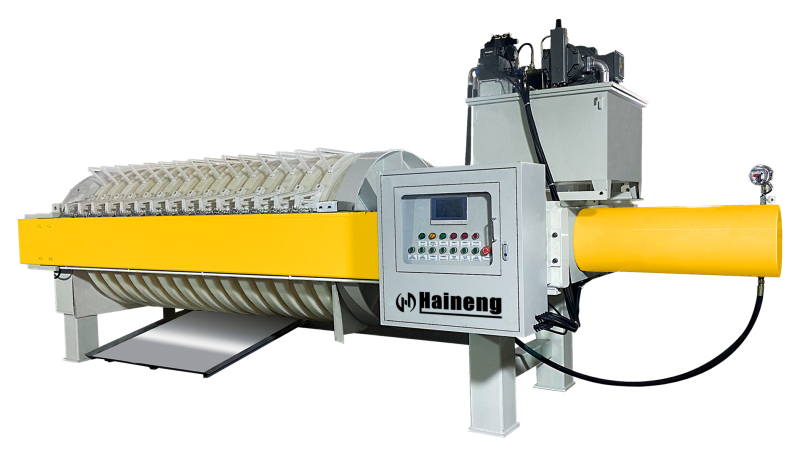

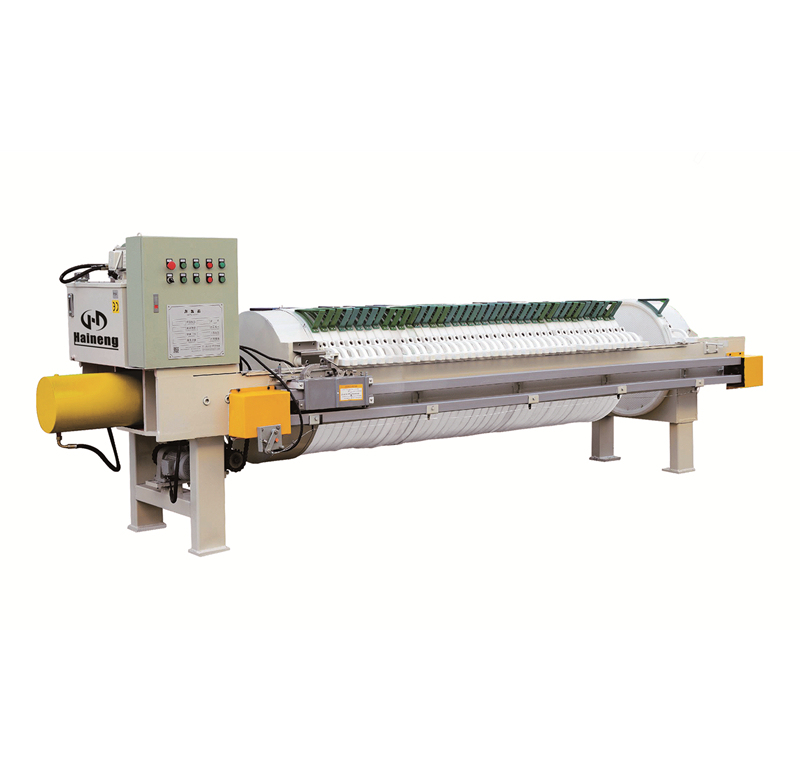

Ultra High Pressure Circular Filter Press
Adopt deformation resistance and high pressure imported polyethylene circular filter plate(PE), high pressure filter does not spray, can not add pharmaceutical high-pressure filter, filtering pressure can be up to more than 25 kg.
Item No.:
GYY500-13
GYY630-25
GYY720-40
GYY820-50
GYY1000-60
GYY1250-30
GYY1500-125
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction

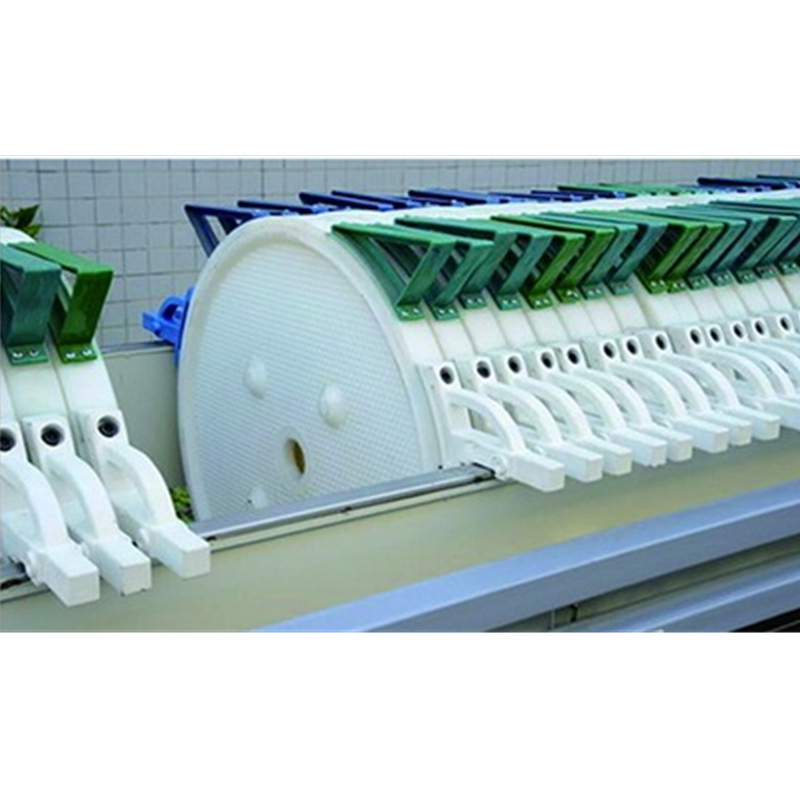

1. Adopt deformation resistance and high pressure imported polyethylene circular filter plate(PE), high pressure filter does not spray, can not add pharmaceutical high-pressure filter, filtering pressure can be up to more than 25 kg. Mud cake with moisture content of 20% (depending on different materials) can be obtained.
2. The new patented hydraulic system is equipped with precision hydraulic cylinder with high pressure, long continuous service life and automatic pressure-keeping function.

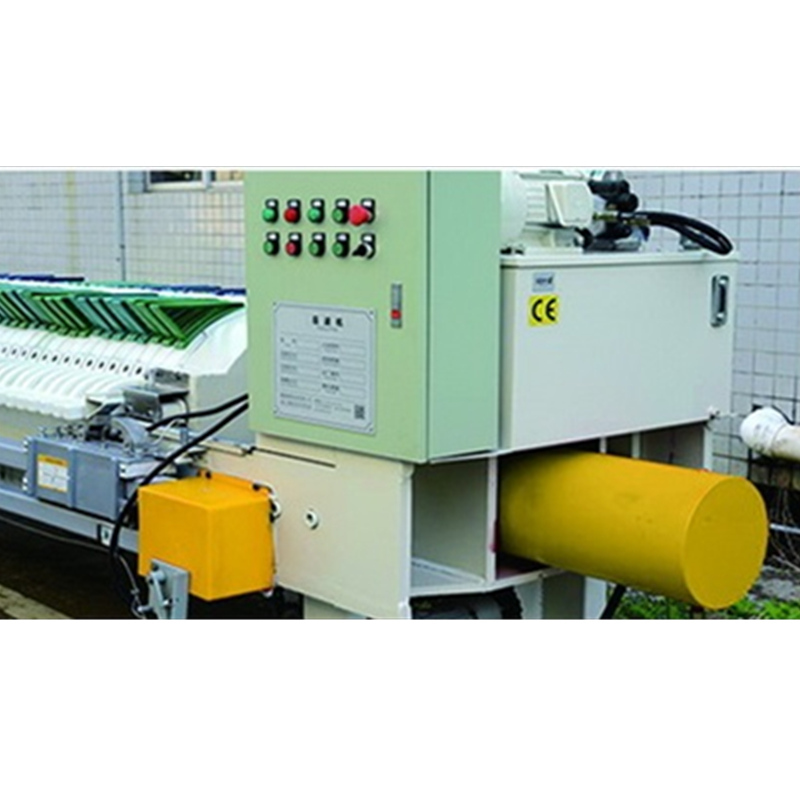

3. Complete with PLC automatic electric control system, the main frame is processed by precision machine tools.

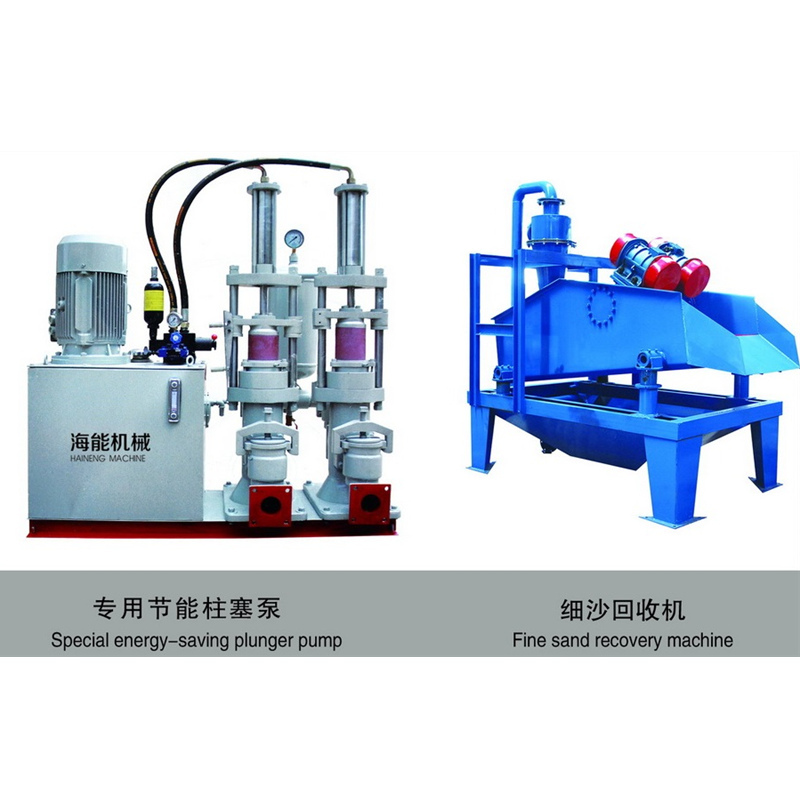

4. Supporting hydraulic high pressure ceramic plunger pump high pressure feed filter, feeding pressure is high, fast, supporting automatic variable system (high speed and low pressure in the early stage, medium speed and medium pressure in the middle stage, late stage low speed and high pressure) fast feed press. The whole process is completed automatically, saving more than 30% of the time.
5. Suitable for sand washing and sewage treatment, stone processing and sewage treatment, ceramic kaolin and porcelain clay pressing, mine tailings treatment, factory sewage treatment and other industries.
Technical Parameters
Type | Unit | 820-40 | 820-60 | 820-80 | 1000-40 | 1000-60 | 1000-80 | 1000-100 |
Diameter of filter plate | mm | 820 | 820 | 820 | 1000 | 1000 | 1000 | 1000 |
Number of filter plates | pcs | 40 | 60 | 80 | 40 | 60 | 80 | 100 |
Filter pressure | mpa | 0-2.5 | 0-2.5 | 0-2.5 | 0-2.5 | 0-2.5 | 0-2.5 | 0-2.5 |
Filter area | m² | 40 | 60 | 80 | 60 | 90 | 120 | 150 |
Feed pump model |
| YNG15 | YNG25 | YNG25 | YNG25 | YNG40 | YNG40 | YNG40 |
Filter pressure | min | 1-10cube | 1-15cube | 1-20cube | 1-20cube | 1-25cube | 1-30cube | 1-35cube |
