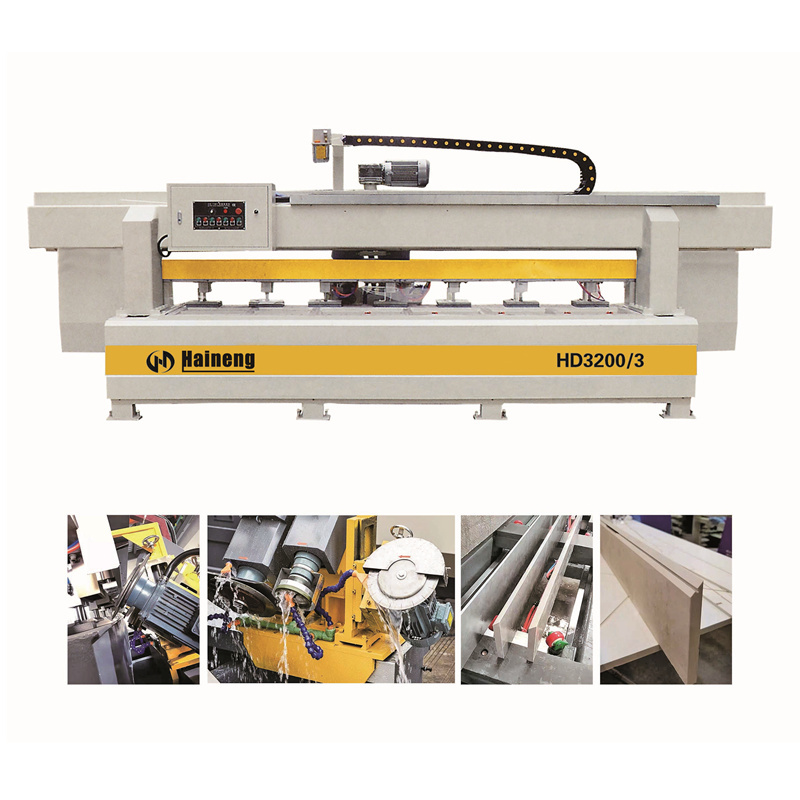

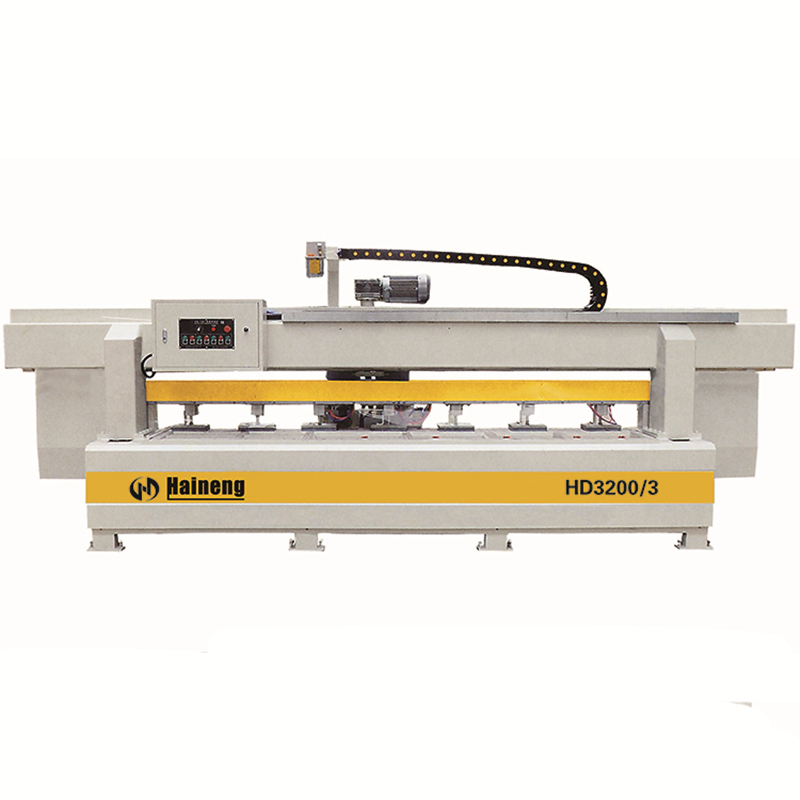

Multi-Function 45 Degree Marble Granite Rock Slab Cutting Chamfering Machine
The granite marble cutting chamfering machine can be configured according to the number and structure of the head, and can realize the functions of chamfering. slotting and edging.
Item No.:
HD3200-2
HD3200-3
- Haineng
- Fujian
- 25 days
- 15 PCS per month
- Information
Multi-Function 45 Degree Marble Granite Rock Slab Cutting Chamfering Machine
Product Introduction

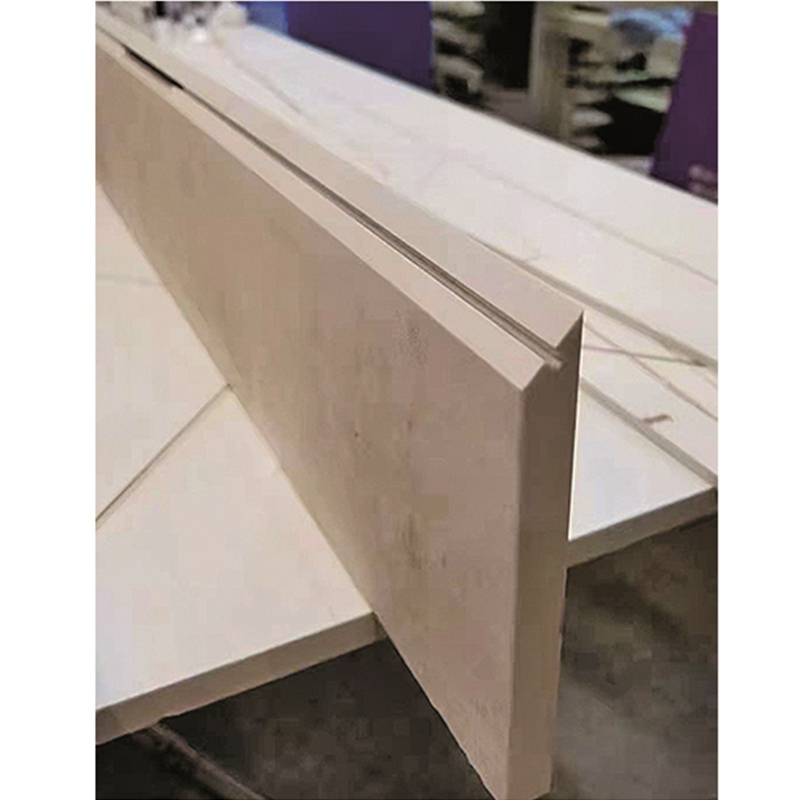

This Stone cutting machine are suitable for 45 degree chamfering of rock slab, ceramic tile, marble, artificial stone, granite, cement products and other building plates. It is the ideal equipment for small and medium-sized home decoration factories and processing stores.
1 Compact structure: integrated structure, easy installation and relocation.
2 Simple operation: touch mode man-machine interface, intuitive operation.
3 High configuration: the main core control components using international line brand components, stable performance, long life.
4 High precision: all motion pairs adopt high precision linear guide rail, smooth work, high precision.
5 Intelligent: all motion pairs adopt automatic grease lubrication, escort for motion pair.
6 Energy saving and consumption reduction: permanent magnet synchronous main motor is optional, saving 30% electricity compared with normal motor
7 Craftsmanship manufacturing: every detail of the design and manufacturing so that you can feel carefully crafted, excellence excellent quality!
Technical Parameters
TYPE | Unit | HD3200-1 | HD3200-2 | HD3200-3 |
Number of chamfering heads |
| 1 | 1 | 1 |
Number of polished heads |
| 1 | 1 | 2 |
Number of slotted machine heads |
| --- | 1 | 1 |
Chamfering saw blade diameter | mm | Φ300-Φ350 | Φ300-Φ350 | Φ300-Φ350 |
Polishing wheel specifications | mm | Inner 40/Outer 150 | Inner 40/Outer 150 | Inner 40/Outer 150 |
Slotted saw blade diameter | mm | --- | --- | Φ300-Φ350 |
Maximum chamfer length | mm | ≤3200 | ≤3200 | ≤3200 |
Maximum chamfer width | mm | ≥35 | ≥35 | ≥35 |
Maximum chamfering thickness | mm | ≤20 | ≤20 | ≤20 |
Chamfer Angle | n° | 45 | 45 | 45 |
Pour the angular velocity | m/s | 0-2 | 0-2 | 0-2 |
The total power | kw | 12 | 15 | 18 |
Gas consumption | m³/h | 3 | 3 | 3 |
Water consumption | m³/h | 3 | 3 | 3 |
Gross weight machine | kg | 2800 | 2800 | 3000 |
Installation dimensions | mm | 5200×1500×2100 | 5200×1500×2100 | 5200×1500×2100 |
