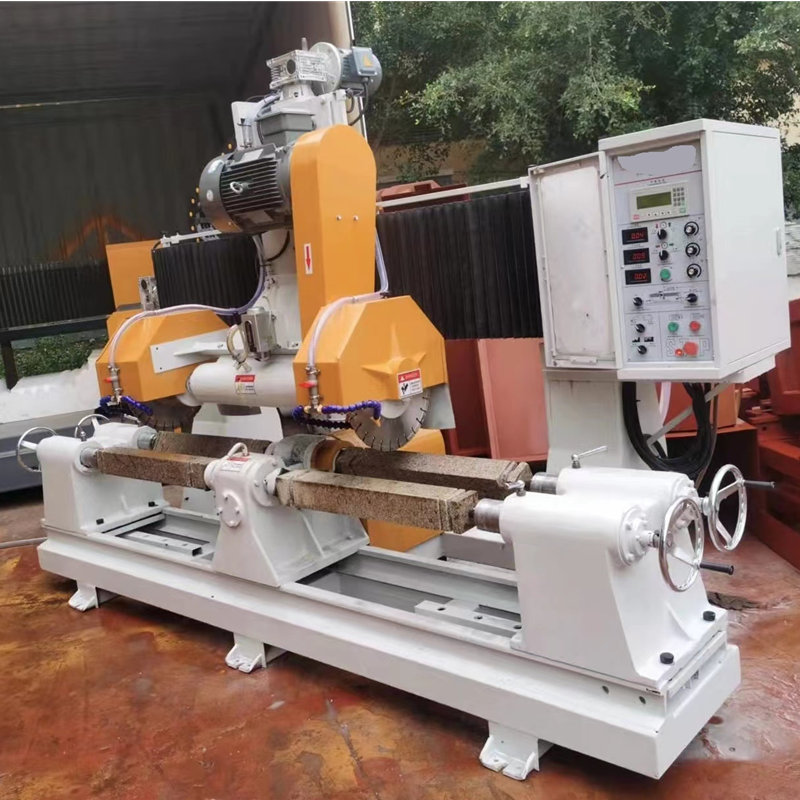

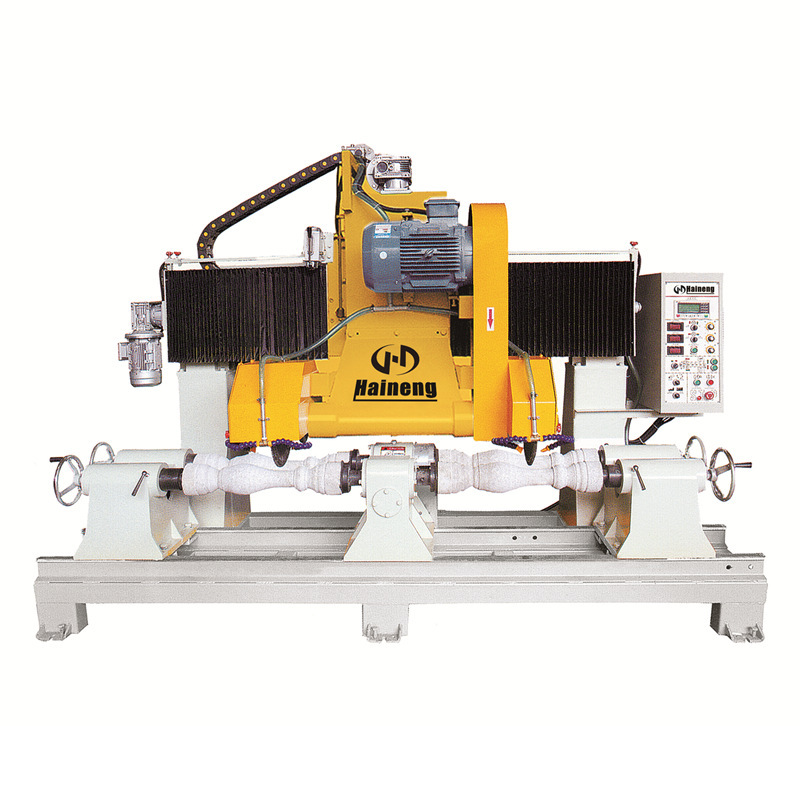

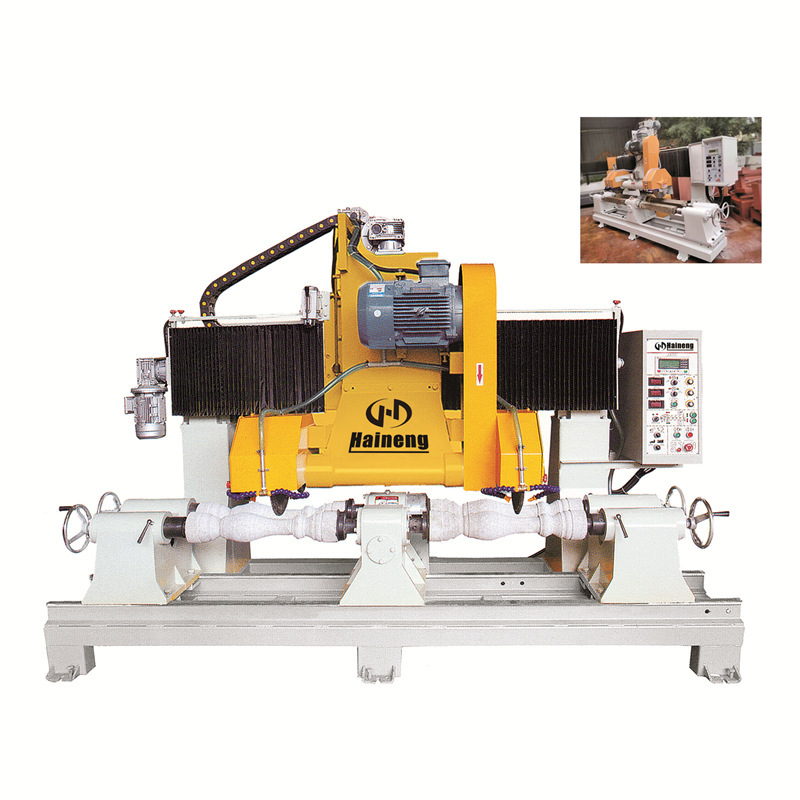

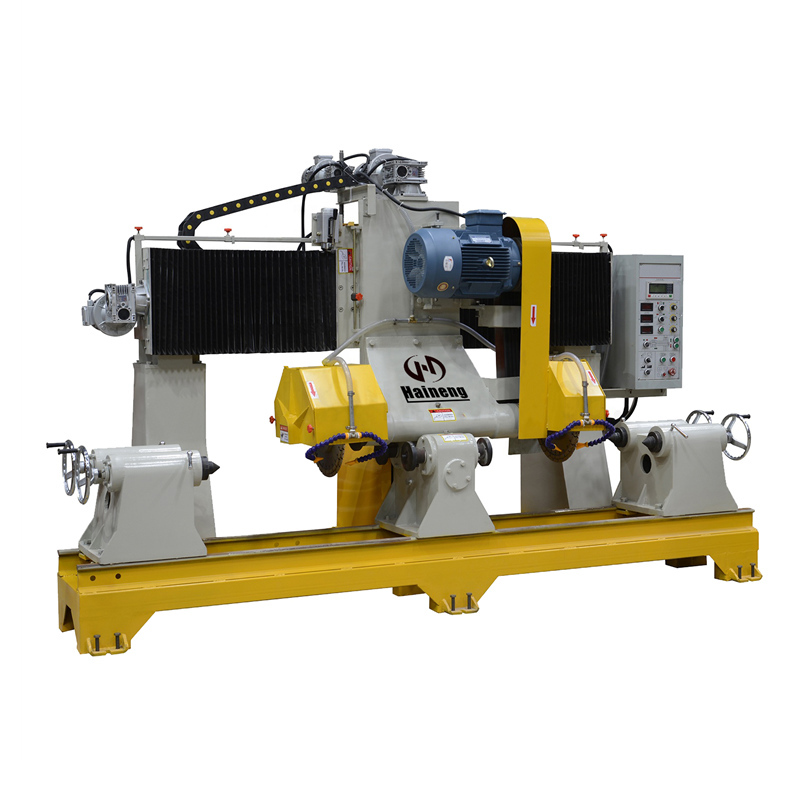

Four Balusters Stone Profiling Cutting Machine

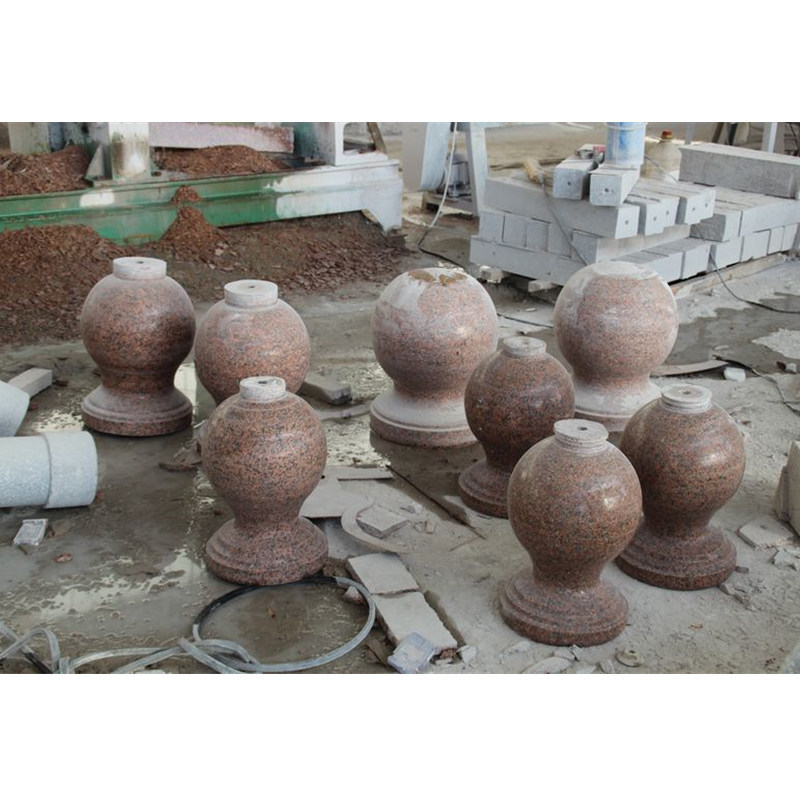

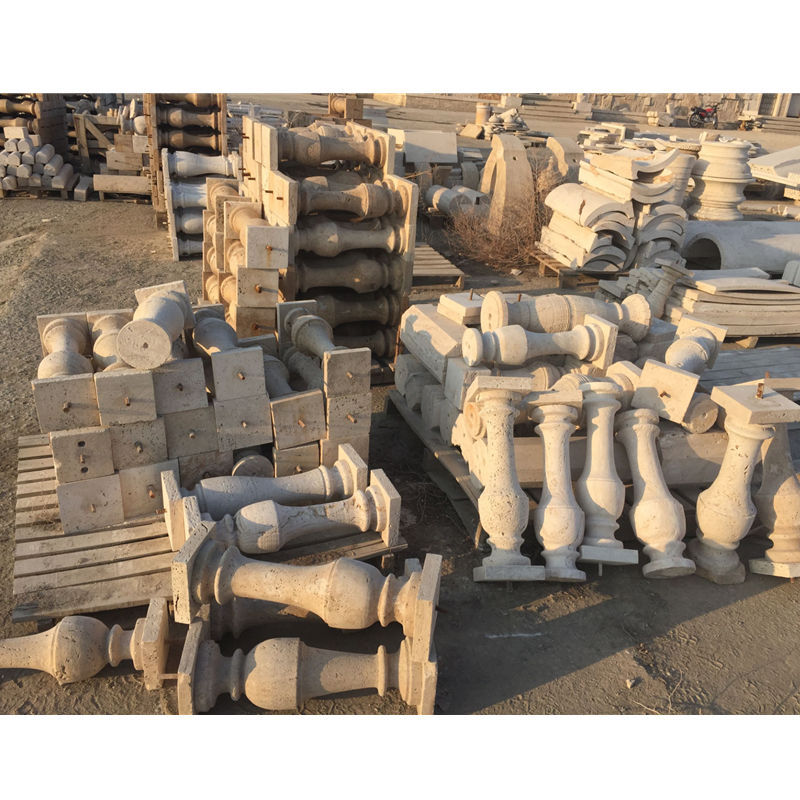

Stone profiling machine can cut a variety of rotating solids, such as: circular railing, sphere, cap and column.
Item No. :
YF200-4
YF200-2
- Haineng
- China
- 30 days
- Information
Product Introduction
The Portal type machine design, the microcomputer control, the optical fiber monitoring.four blocks can be processed at one time.
The circular railing, sphere, column can be cut arbitrary shaped bottom, column cap, cylindrical rotary type stone, changes the manual is not unified. consumption of a large, poor accuracy. automatic control machine. adjustable the size can be achieved after more than one person to operate machine. Machining length can be customized according to customer demand.
Technical Parameters
TYPE | Unit | YF200-4 | YF200-2 |
Max.cutting length | mm | 580-880 | 300-400 |
Max.diameter diameter | mm | Ø300/2pcs Ø210/4pcs | Ø400/1pcs Ø220/2pcs |
Blade diameter | mm | Ø400-Ø450 | Ø400-Ø600 |
Main motor power | kw | 11 | 7.5-11 |
Total power | kw | 16.57 | 12 |
Water consumption | m3/h | 3 | 2.5 |
Approximate weight | kg | 2500 | 3200 |
Overall dimensions(L×W×H) | mm | 3200×1225×2100 | 3200×1200×2000 |
Processing
