5 Axis Stone CNC Router For Granite And Marble
The screw and guide rail are utilized by well-known brands. Unique oildip lubrication is applied for X and Y axis. The special waterproofand dirt-proof structures can ensure better processing accuracy and stability. It can also prolong the life of screw and guide rail furthest.
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction
The screw and guide rail are utilized by well-known brands. Unique oildip lubrication is applied for X and Y axis. The special waterproofand dirt-proof structures can ensure better processing accuracy and stability. It can also prolong the life of screw and guide rail furthest.
Technical Parameters

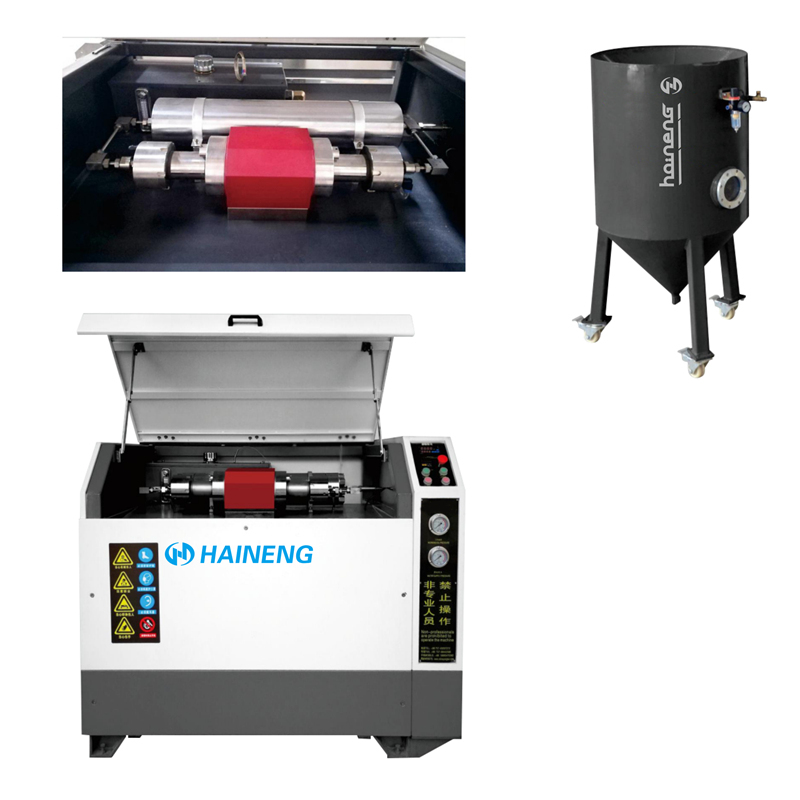

5 Axis water jet cutting machine(Technical parameters of YJ series supercharger) | ||
Model | Unit | YJ-420 |
Max. pressure | Mpa | 420Mpa |
Working pressure | Mpa | 300-380Mpa |
Intensifier rate | / | 1:20 |
Max. flow rate | L/min | 3.7L/min |
Inlet pressure | Mpa | 0.4Mpa |
Max. orifice size | mm | 0.33mm |
Max. Pump pressure flow | L/min | 100L/min |
Max. Pump pressure | Mpa | 31.5Mpa |
Volume of oil tank | L | 100L |
Main motor power | kw | 30kw |
Power supply | V AC,Hz | 220/380/415V AC, 50/60Hz |
Size | m | 1.87*1.22*1.37m |
Weight | kg | 800kg |

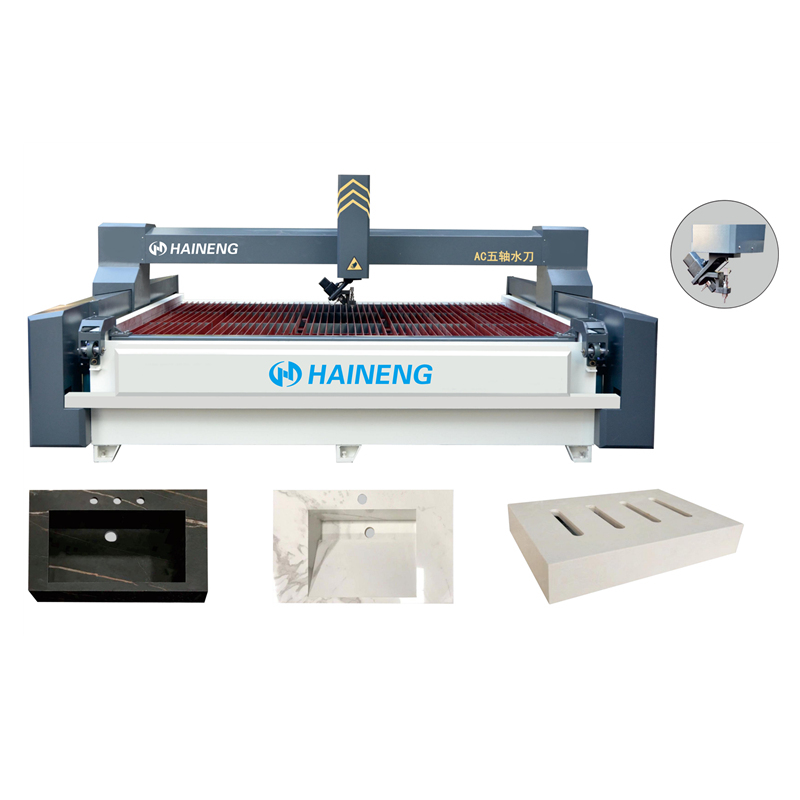

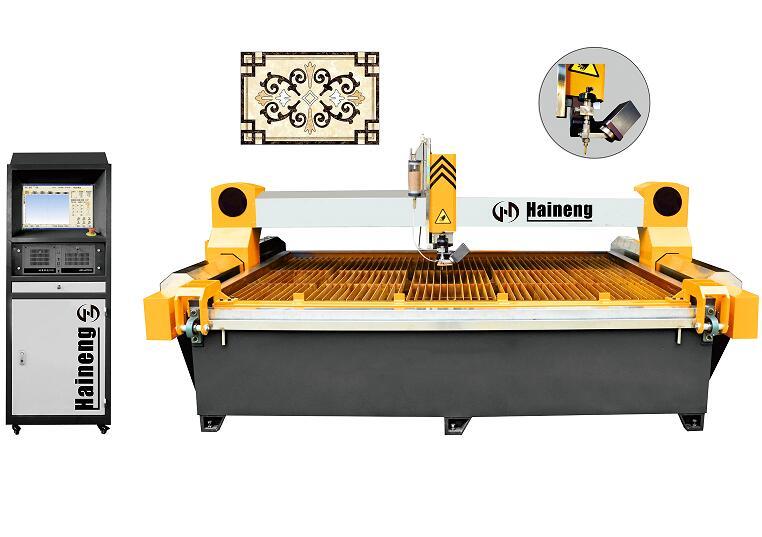

5 Axis water jet cutting machine(Parameters of YJ series numerical control water cutter cutting platform ) | |||||
Model | Unit | YJ-2015 | YJ-2515 | YJ-3020 | YJ-4020 |
Structure |
| Bridge type | Bridge type | Bridge type | Bridge type |
Cutting table size | Mm | 2100*1600mm | 2600*1600mm | 3100*2100mm | 4100*2100mm |
Stroke(X-axis) | Mm | 2000mm | 2500mm | 3000mm | 4000mm |
Stroke(Y-axis) | Mm | 1500mm | 1500mm | 2000mm | 2000mm |
Stroke(Z-axis) | Mm | 130mm | 130mm | 130mm | 130mm |
CNC controller |
| AC servo system | AC servo system | AC servo system | AC servo system |
Accuracy(Cutting) | Mm | ±0.1mm | ±0.1mm | ±0.1mm | ±0.1mm |
Accuracy(Repeatability) | Mm | ±0.05mm | ±0.05mm | ±0.05mm | ±0.05mm |
Traverse speed | Mm/min | 6000/15000mm/min | 6000/15000mm/min | 6000/15000mm/min | 6000/15000mm/min |
Power supply | V,HZ | 220V380V/415V,50/60Hz | 220V380V/415V,50/60Hz | 220V380V/415V,50/60Hz | 220V380V/415V,50/60Hz |
Processing
