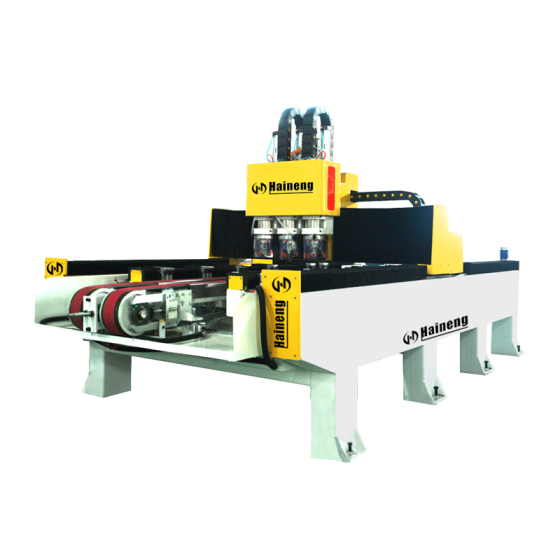

Stone Countertop Processing Center CNC Sink Hole Cutout Cutting Machine For Quartz Marble Granite Cutting Polishing
It is a multi-function stone processing machine which adopts both domestic and foreign technology.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
1. It is a multifunction stone processing machine which adopts both domestic and foreign technology. Combined with the processing methods in current market, it can process artificial stone, stone and ceramic plates in one production line for drilling, milling, profiling, grinding and polishing according to the different models.

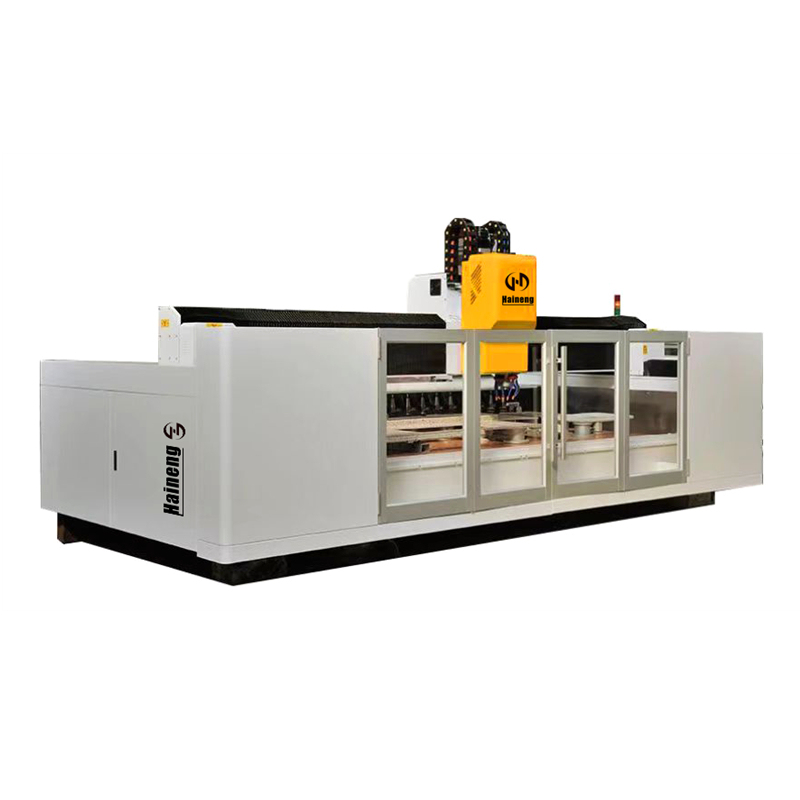

2. It applies Gantry type structure, which is more strong and stable.
3. Main motor adopts high-speed spindle.
4. The movement speed is controlled by frequency converter.

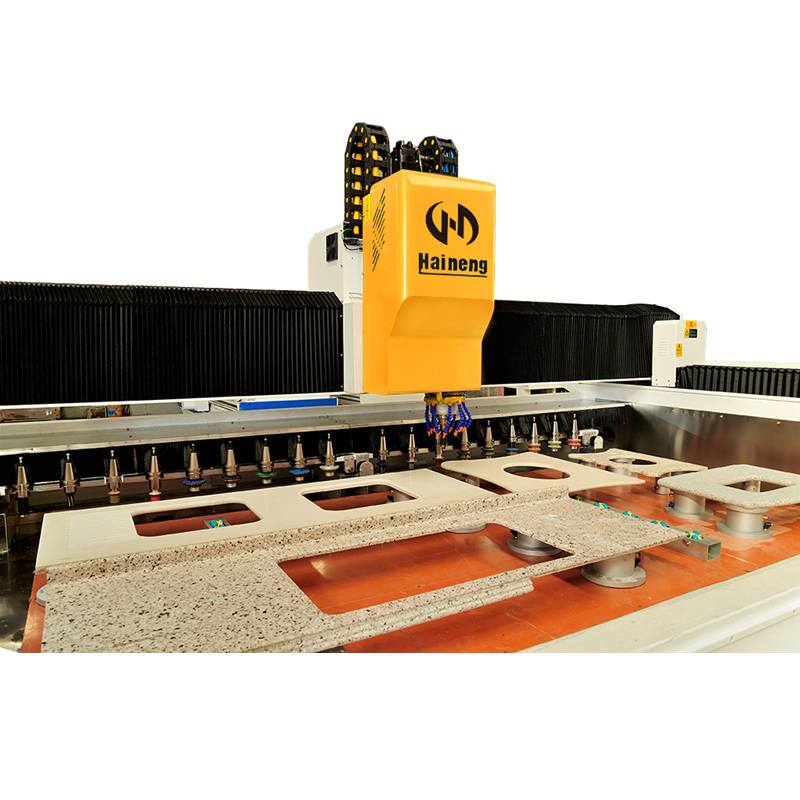

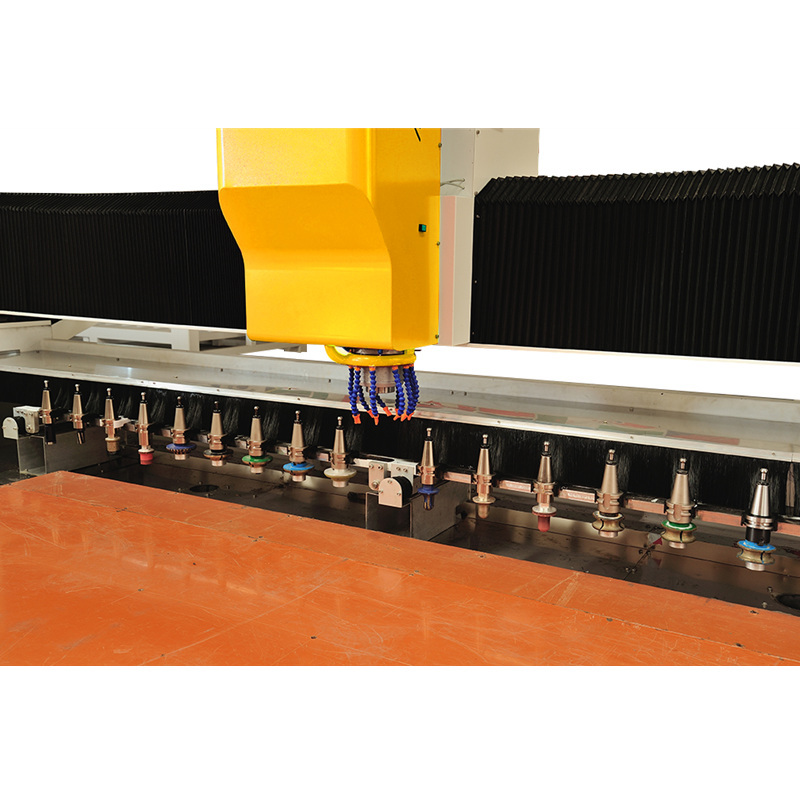

5. It can change the tools automatically according to the processing steps.

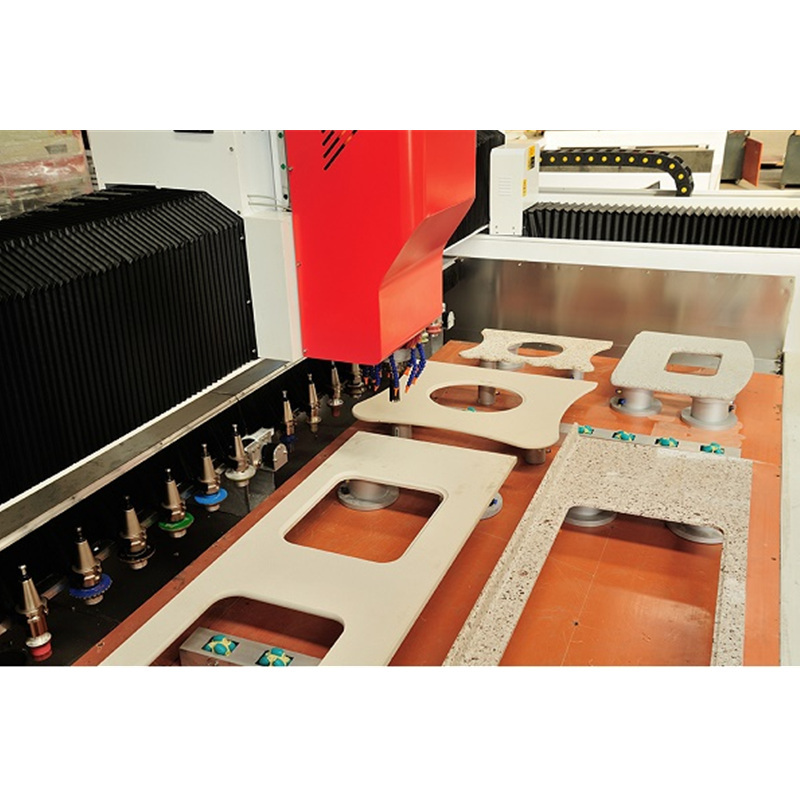

6. The machine is combined with vacuum clamping.
7. It is simple to operate with fast processing speed and high precision.
Technical Parameters
Type |
Unit |
SMT-3017 |
Processing Length |
mm |
3000 |
Processing Width |
mm |
1700 |
Working Thickness |
mm |
<=35 |
Max traverse speed |
mm/min |
25000 |
Max working speed |
mm/min |
15000 |
Spindle |
|
Taiwan mechanical spindle |
Milling Cutter Diameter |
mm |
10-25 |
Drilling wheel Diameter |
mm |
10-50 |
Shaping Wheel Diameter |
mm |
60-80 |
Polishing Wheel Diameter |
mm |
50-100 |
Main Motor Power |
kw |
11 |
Total Power |
kw |
About 10 kw |
Main Electrical Apparatus |
|
Shnaider, OMRON |
Max traverse speed |
mm/min |
25000 |
Max working speed |
mm/min |
15000 |
Spindle |
|
Taiwan Mechanical belt spindle. |
Spindle speed |
rpm |
1500-10000 |
Tool magzine |
pcs |
24 |
Working voltage |
V |
AC380V/220V |
Command |
|
G code |

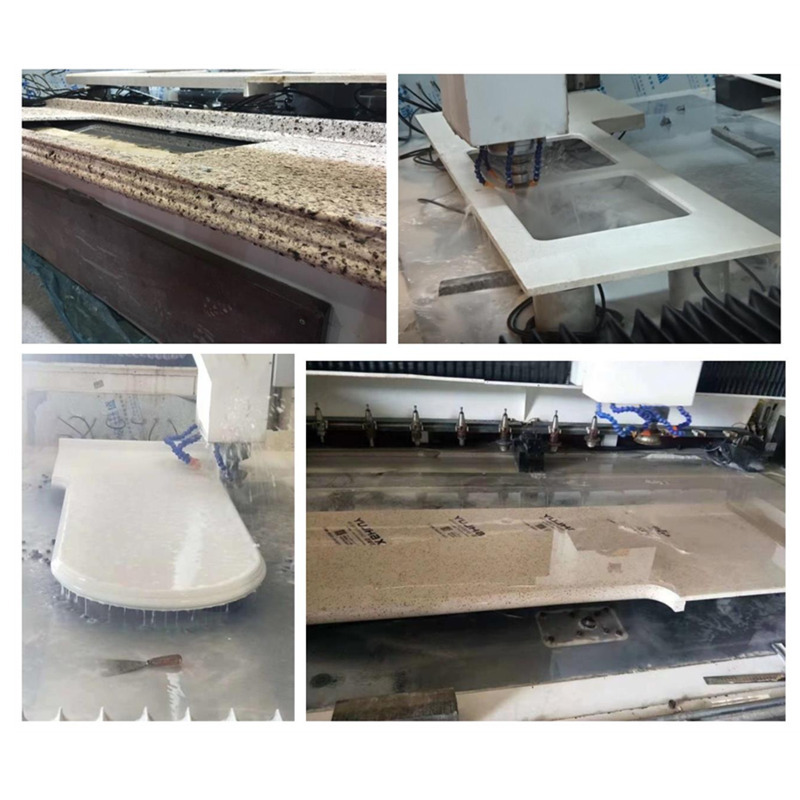

Processing
ADDITOONAL TOOLS WITH DIFFERNETN SHAPES AND SIZE SHOULD BE BUY SEPARATELY
