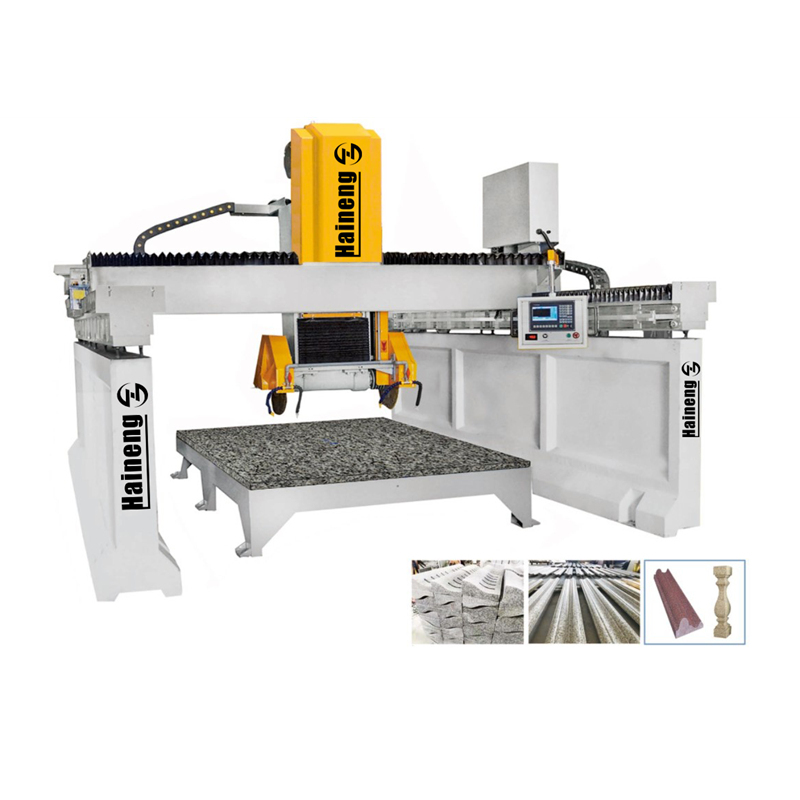

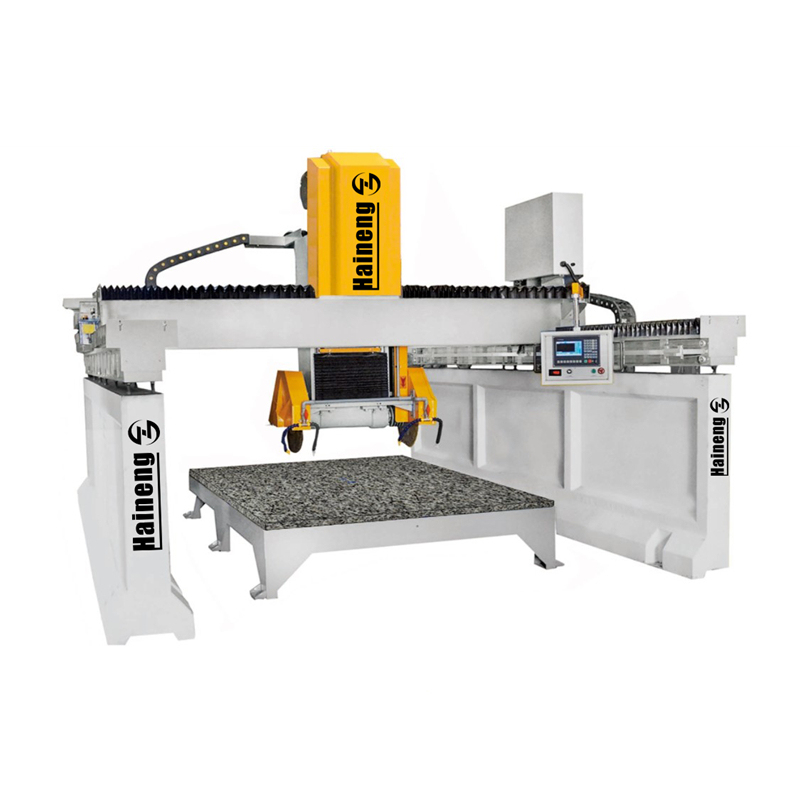

Bridge CNC Granite Marble Profiling Machine
The machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life.
Item No.: HQ600FB-2
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
The machine adopts double beam structure of gantry type. Full servo control, high precision linear track and oil-immersed and dust-proof structure, to ensure equipment accuracy and service life. This machine can realize CNC programming and CAD import, template copying tracking, to meet all kinds of high precision stone (cement products) special-shaped workpiece processing. Adjusting the parameters can realize the operation of one person and multiple machines.
Technical Parameters
| Name | Unit | HQ600FB-2 |
| Saw blade diameter | mm | 350-600 |
| Number of saw blades | pcs | 2 |
| Maximum machining size (L x Wx H) | mm | 2000x1800x400 |
| Maximum machining depth | mm | 180 |
| Maximum cutting height | mm | 400 |
| Size of work table | mm | 2000x1800 |
| Main motor power | kw | 22 |
| Total power | kw | 30.7 |
| Overall dimensions(L xWx H) | mm | 4000x4800x2400 |
| Water consumption | m/h | 4 |
| Weight | kg | 5500 |

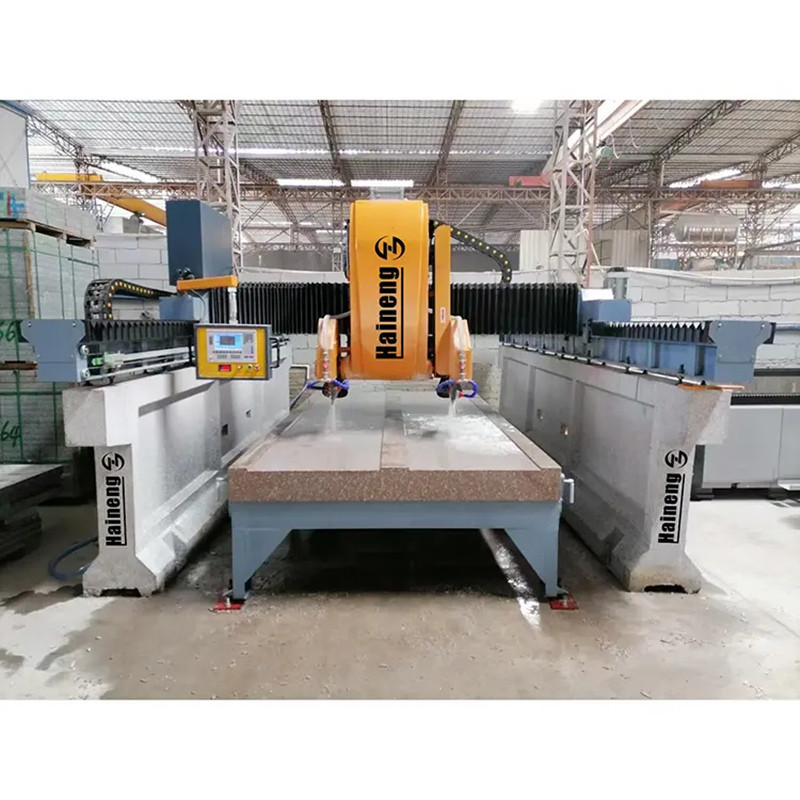

Processing
Loading
