Automatic Granite Edge Chamfering Grinding Special Shaped Profiling Machine

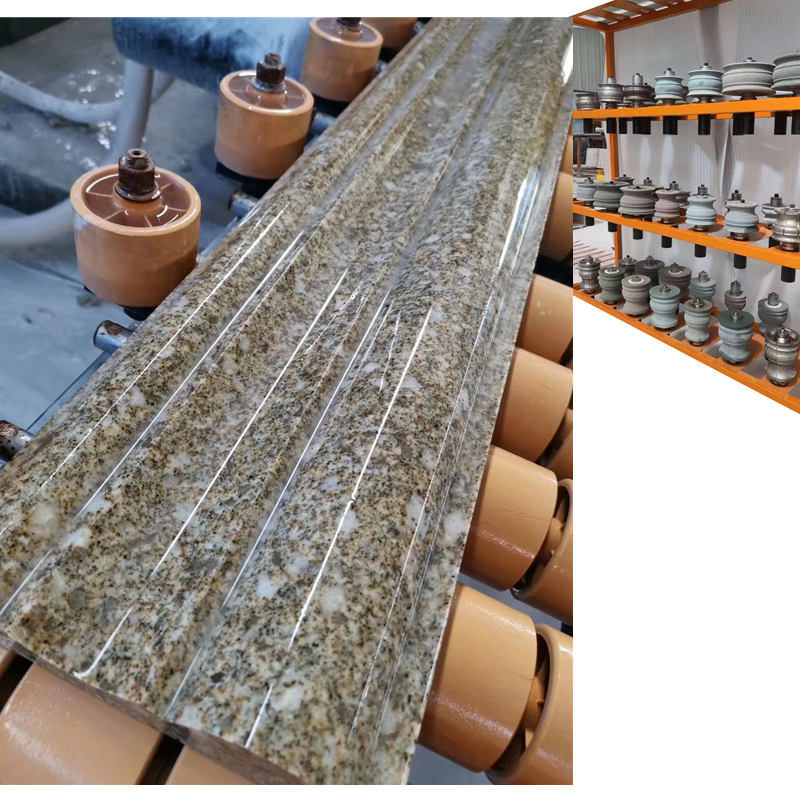

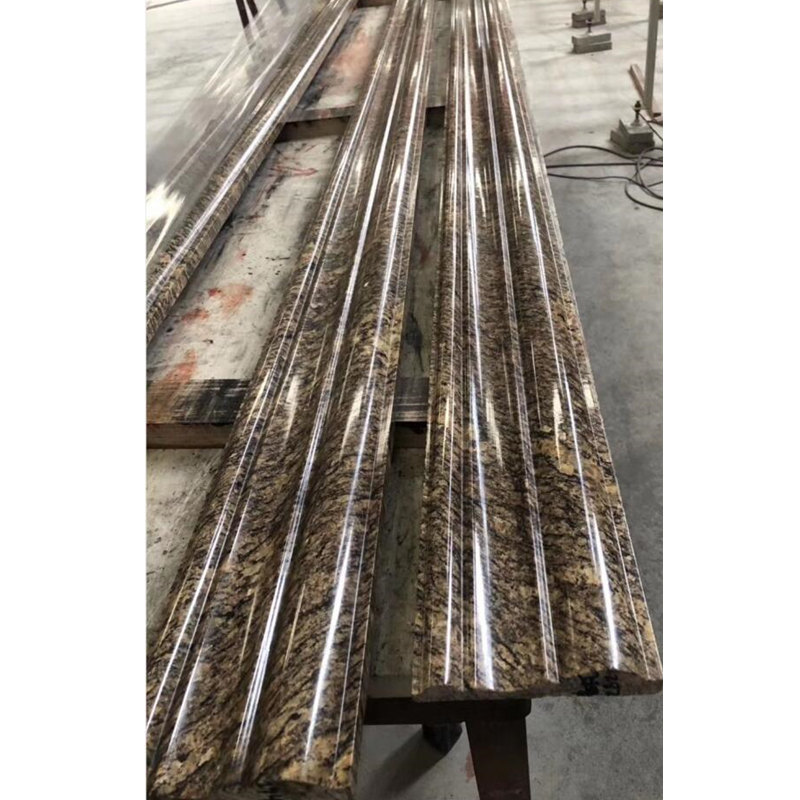

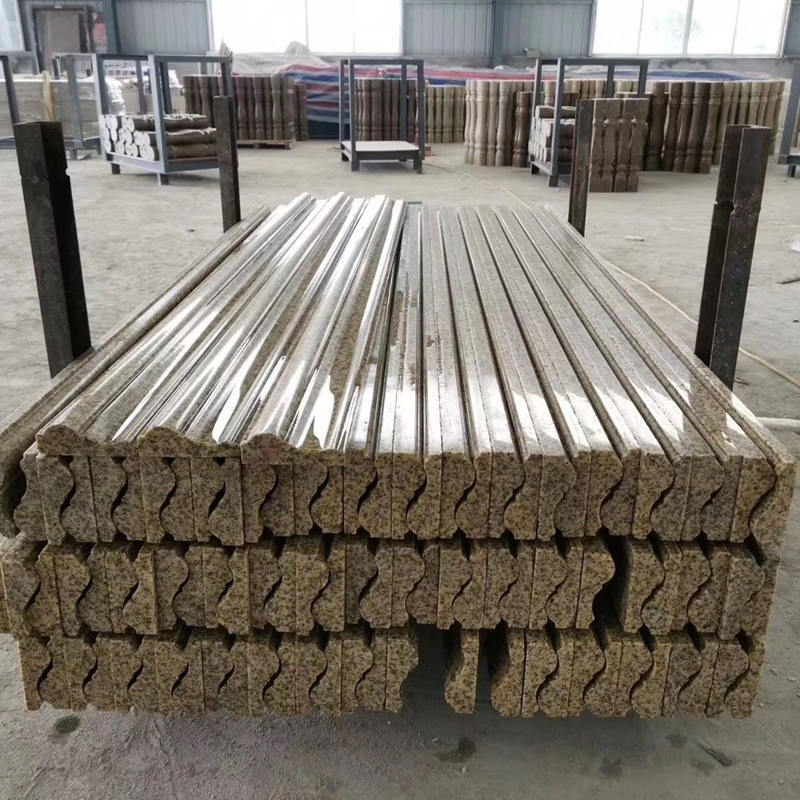

Stone edge grinding machine is a revolutionary innovation models,The edge grinding from semi-automatic production to the whole assembly line production solve the single head edge grinding machine the shortcomings of low efficiency, high cost and poor effect.The machine for stone straight lines of various shapes, a shaping and polishing, such as arc edge, France, the duck mouth, thickening chess .
Item No.:
QZY-8
QZY-10
- Haineng
- Fujian
- 25 days
- 15 PCS per month
- Information

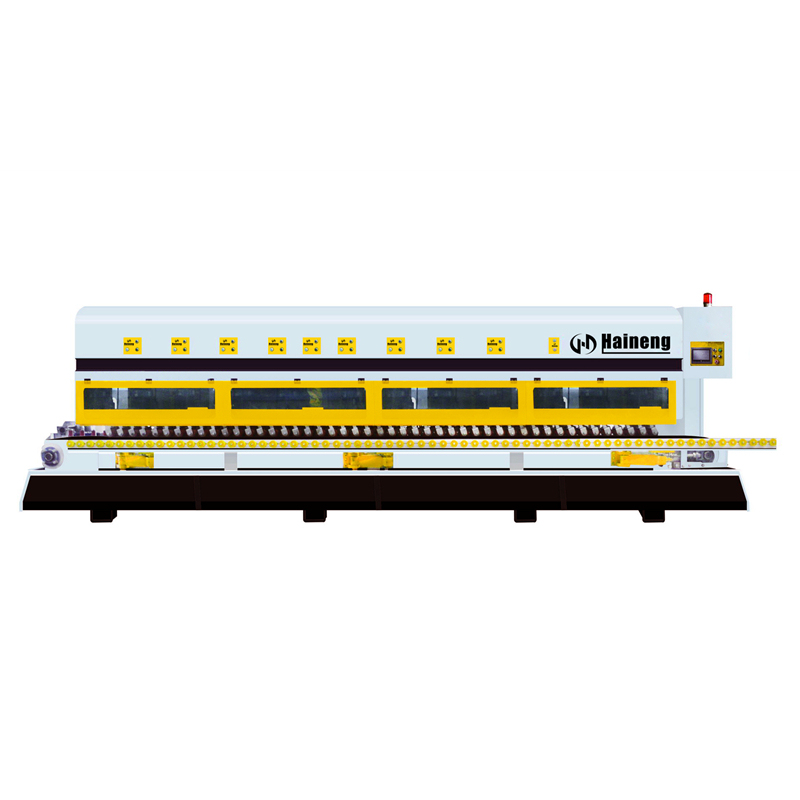

Automatic Granite Edge Chamfering Grinding Marble Profiling Machine
Product Introduction

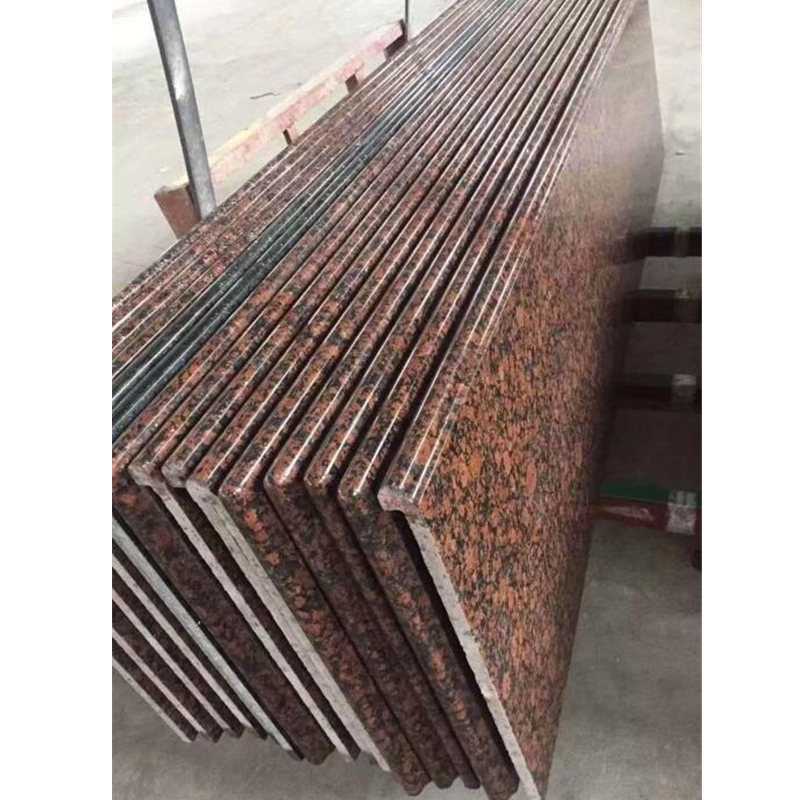

Stone Edge Grinding Machine for stone straight lines of various shapes, a shaping and polishing, such as arc edge, France, the duck mouth, thickening chess .Full automatic Edge Chamfering Cutting Machine with operating system, easy to learn, exclusive quick in wheel, automatic patent for the knife, save your wheel rotation time, save the abrasive, reducing wear and tear, a stair step, stair plate, window sill, washstand manufacturers such as all kinds of stone processing enterprises.
Performance feature
1. Multi functional machine, solves several processing proposal.
2. High automation, automatic induction when feeding stone-pieces, automatic retreat and stop when starved feeding, prevent from destroy grinding heads.
3. Chamfering angle and bevel edge polishing angle can be adjustable 30-45°
4. Intelligent cylinder pressing board device, automatic induction pressing board function. Automatic press when feeding, hover stop when lack of feeding.
5. Intelligent pressure adjustment control, prevent from over-press destroy stone slabs.
6. Automatic induction, automatic compensation feeding function, save time to adjust pressure frequently.
Technical Parameters
Product type | Unit | QZY-8 | QZY-10 |

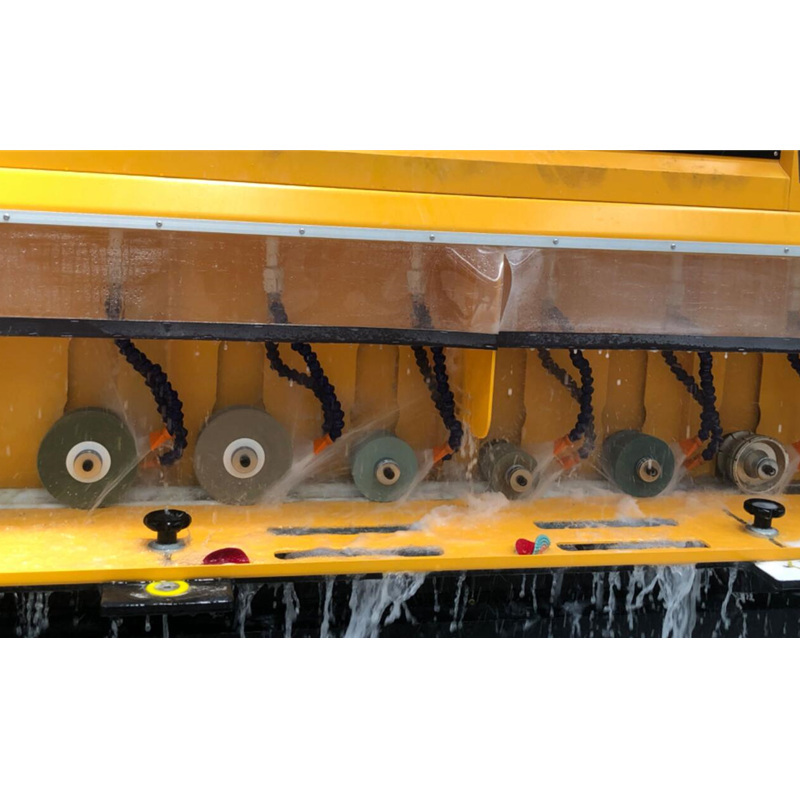

No. of the profiling /polishing wheel number | pcs | 8(2 Profiling wheel +6 Polishing Wheel) | 10(3 Profiling wheel +7 Polishing Wheel) |
Dia of the profiling / polishing wheel | mm | Ø200 | Ø200 |
Conveyor belt width | mm | 250 | 250 |
Bore Profiling/Polishing wheel |
mm |
Ø30 |
Ø30 |
Working width | mm | 120-1200 | 120-1200 |
Working thickness | mm | 15-80 | 15-80 |
Profiling &polishing speed | m/min | 0-2 | 0-2 |
Water consumption | L.min | 100 | 120 |
Total power | kw/h | 39 | 48.5 |
Rolling table *2 PCS | mm | 1500×500 | |
Gross weight | kg | 5000 | 5500 |
Dimensions(L×W×H) | Mm | 6100×2300×2000 | 7100×2300×2000 |
