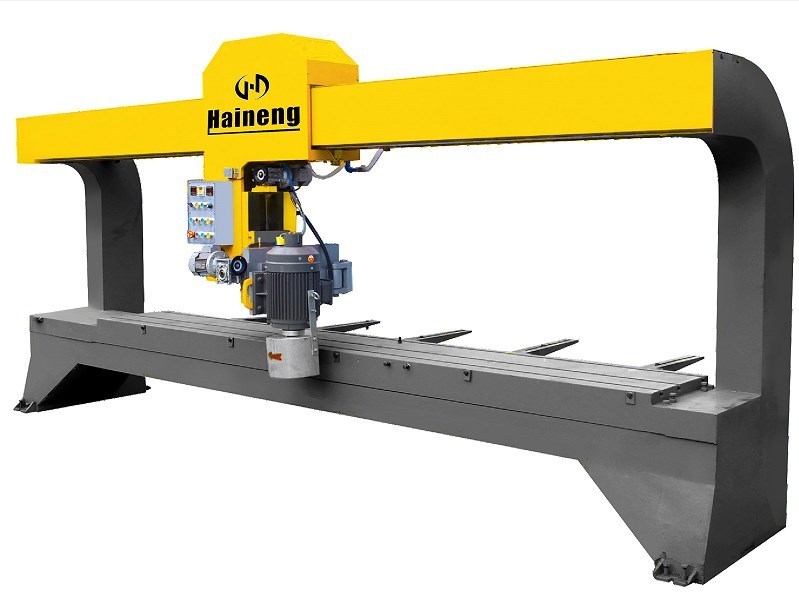

LMM3500 Portal Edge Grinder
This machine has the function of processing various linear edges and curved edges.
Item No.:LMM3500
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This machine has the function of processing various linear edges and curved edges. The φ250 saw blade can be used for slotting. The machine adopts the immersion oil fully enclosed upper horizontal running track frequency conversion stepless speed regulation, the carriage lifting, the electric and the manual functions. It has strong load capacity and stability. Good character, long service life and low cost. The machining feed speed can be set arbitrarily to meet various processing needs. The machine is also designed with automatic and manual double action lifting, which greatly reduces labor intensity and improves production efficiency.
Technical Parameters
Portal Edge Grinder | ||
Type | unit | LMM3500 |
Blade diameter | mm | Φ250 |
Grinding wheel diameter | mm | Φ140-Φ160 |
Max. cutting length | mm | 3500 |
Max. cutting thickness | mm | 150 |
Power of main motor | kw | 7.5 |
Gross power | kw | 9.18 |
Exhausted water | m3/h | 1.8 |
Total weight | kg | 2600 |
Dimension (L×W×H) | mm | 4350X2300X960 |
