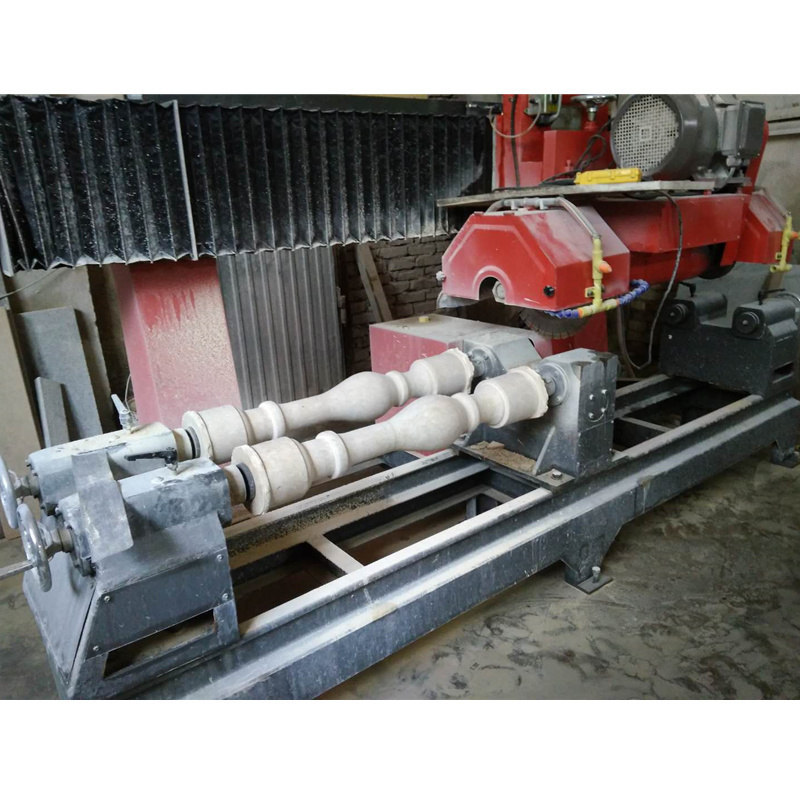

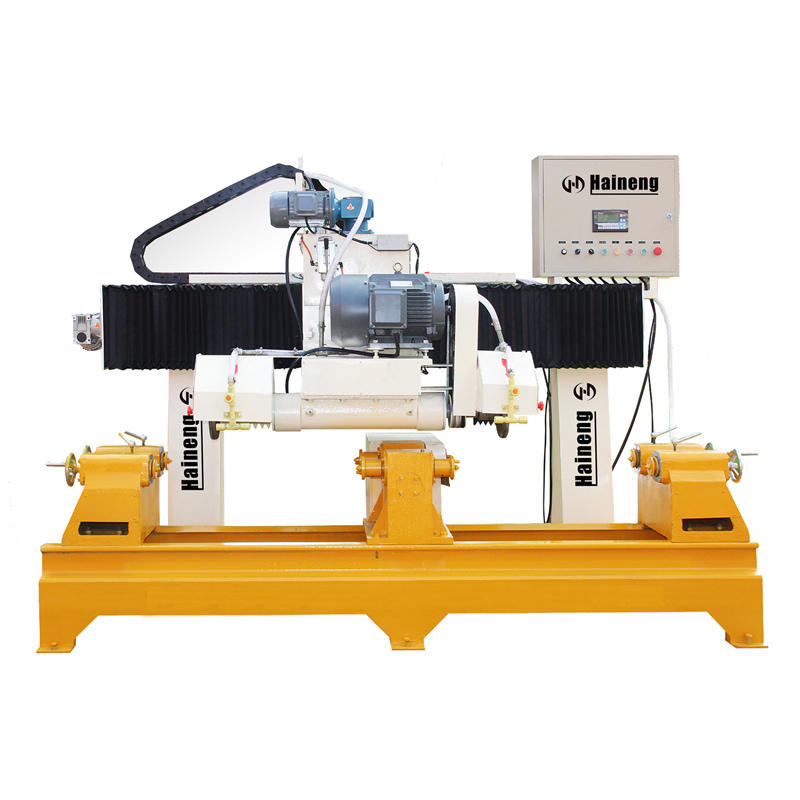

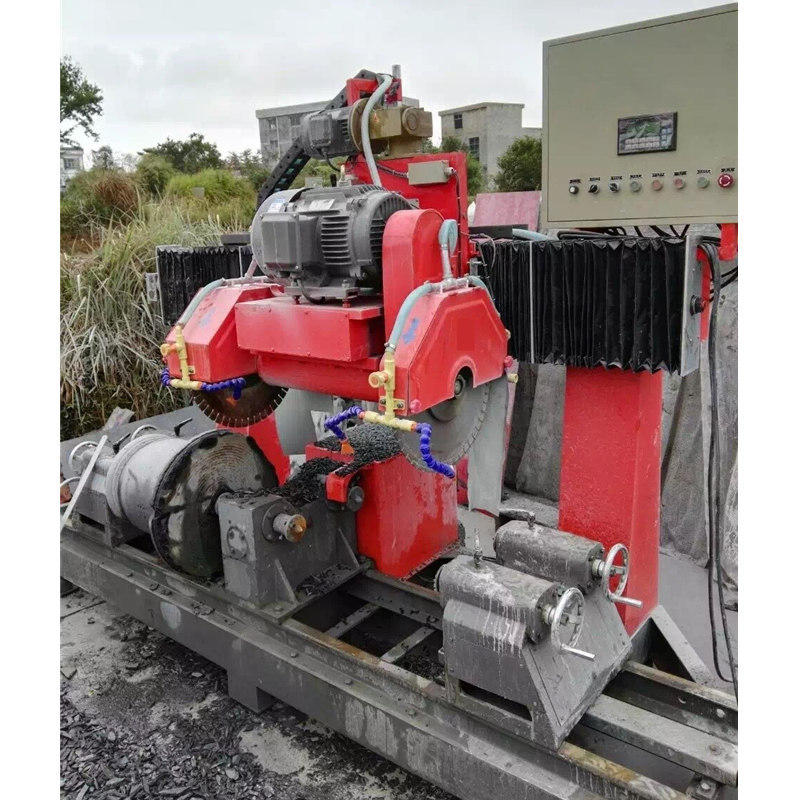

Marble Baluster Profiling Cutting Machine
Stone Baluster Profiling Machine is an ideal stone processing equipment specially used for processing cylinders such as Roman columns and railings.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction

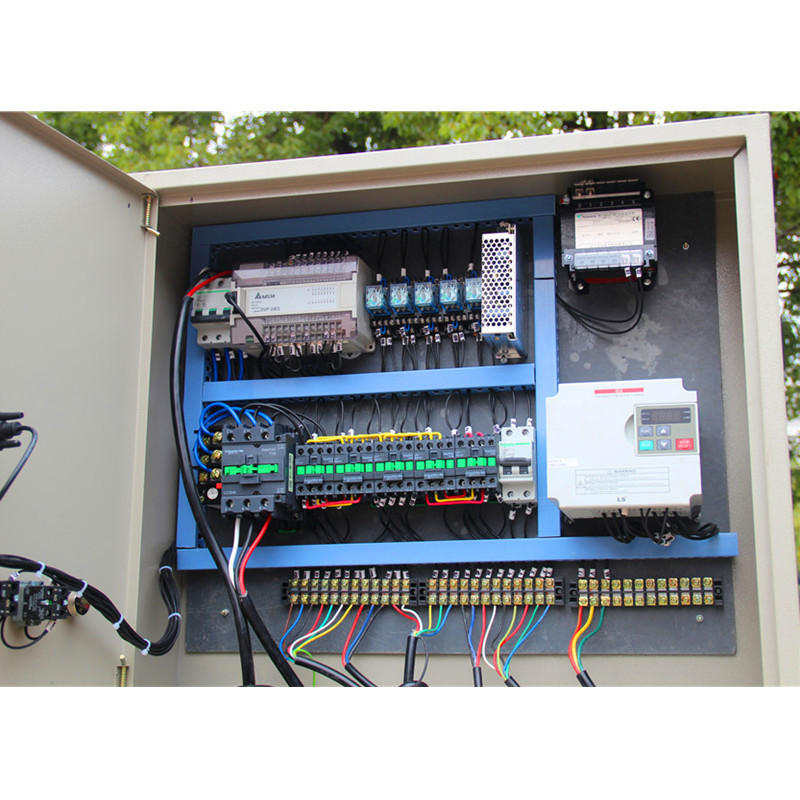

Stone Baluster Profiling Machine adopts PLC control, the use of profiling probe devices, the probe automatically track curved (straight) line template, template profiling, both of blade holder in a whole block, moving in the oil-immersed cross beam, and adopt screw drive lifting, screw have a long life, horizontal, vertical moving steady, smooth cutting, high efficiency, while the use of oilimmersed gearbox gear structure, better gear and turbine housing to protect the process ideal for different specifications of cylinder, railings, flower pots and other special-shaped ball and stone products.
Technical Parameters
Stone Baluster Profiling Machine | ||
Type | unit | SMT-4 |
Max. cutting qty. | n | 4 |
Blade diameter | mm | Φ350-Φ400 |
Max. cutting length | mm | 800 |
Max. cutting diameter | mm | Φ200 |
Power of main motor | kw | 11 |
Total power | kw | 14.5 |
Water consumption | m³/h | 2.8 |
Dimension (L×W×H) | mm | 3010×1020×1500 |
Total weight | kg | 2000 |
