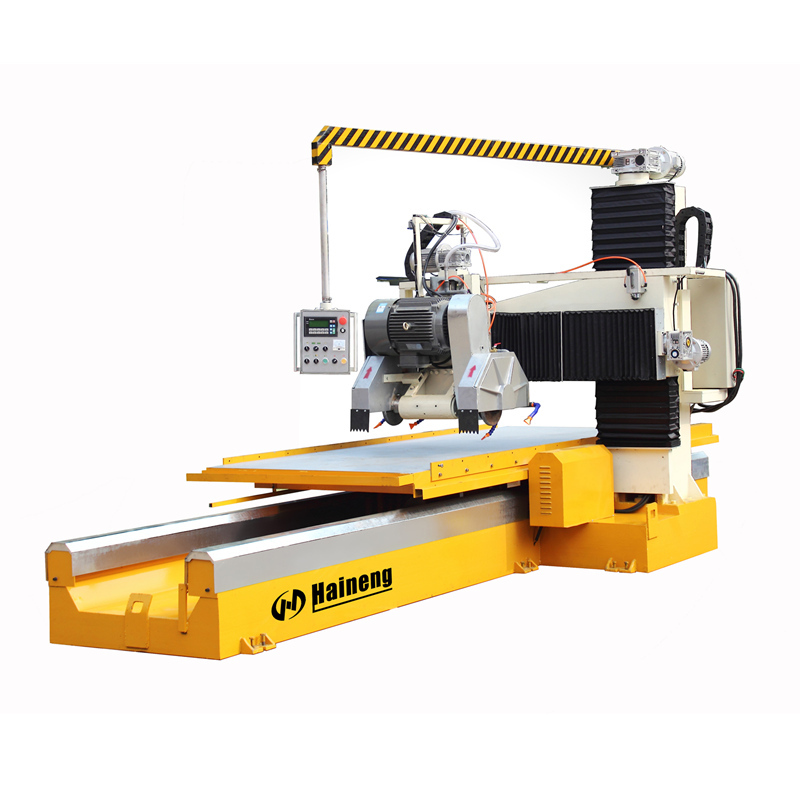

Multifunctional Automatic Stone Profiling Cutting Machine
Automatic Special Shapes Profiling Cutting Machine automatically tracks the model of the curved (straight) line model through the optical soldering probe, and automatically cuts the stone crafts such as stone lines in the shape of a curved (straight) line with a diamond circular saw blade.
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Product Introduction

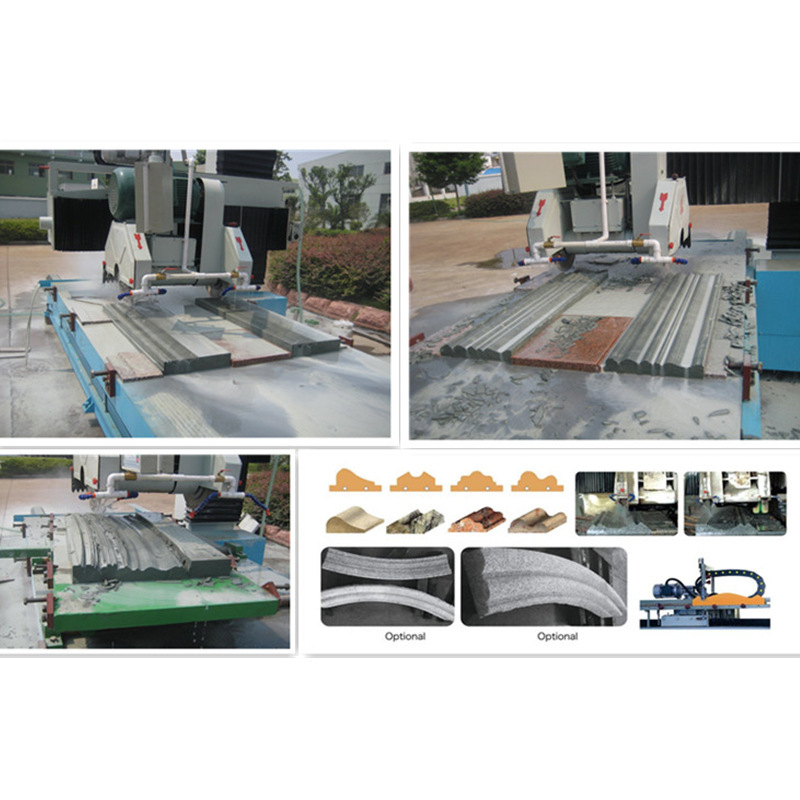

Automatic Special Shapes Profiling Cutting Machine automatically tracks the model of the curved (straight) line model through the optical soldering probe, and automatically cuts the stone crafts such as stone lines in the shape of a curved (straight) line with a diamond circular saw blade. The upper and lower lifting and the left and right passes are all frequency-converted. Speed regulation can be adjusted according to the material of the stone. For example, the rotary table can be selected, and the arc-shaped line can be processed. The Automatic Special Shapes Profiling Cutting Machine adopts PLC programmable control, high degree of automation and high cutting precision. Double-knife design and cutting efficiency High, stable and easy to operate, it is especially suitable for the processing of shaped stones such as lines, arc-shaped lines, Roman columns and large circular arc plates.
Remarks: The CNC system can be modified to eliminate the trouble of making templates, and the degree of automation and cutting accuracy is higher.
Products Recommended
Technical Parameters
Type |
Unit |
For 2 blades |
For 4 blades |
Max.cutting length |
mm |
3200 |
3200 |
Max.cuting width |
mm |
600X2 |
200X4 |
Max.cuting thickness |
mm |
300 |
300 |
Blade diameter |
mm |
Ø350-Ø600 |
Ø350-Ø600 |
Main motor power |
kw |
15 |
18.5 |
Gross power |
kw |
19.5 |
22.8 |
Exhausted water |
m³/h |
3 |
4.5 |
Gross weight |
kg |
3500 |
3600 |
Overall dimensions (L×W×H) |
mm |
5400×1900×2300 |
5400×2150×2500 |

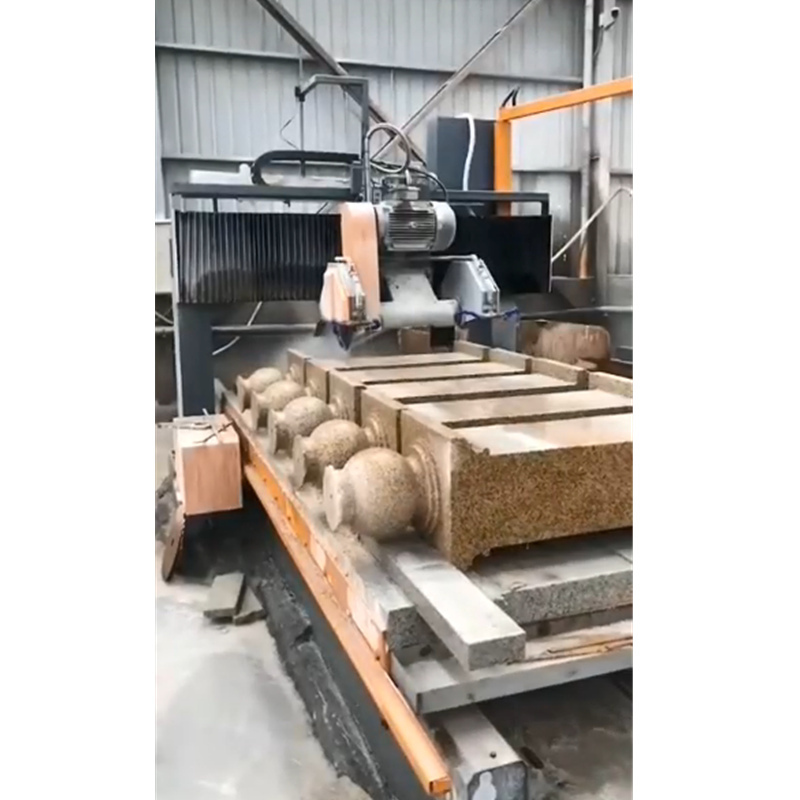

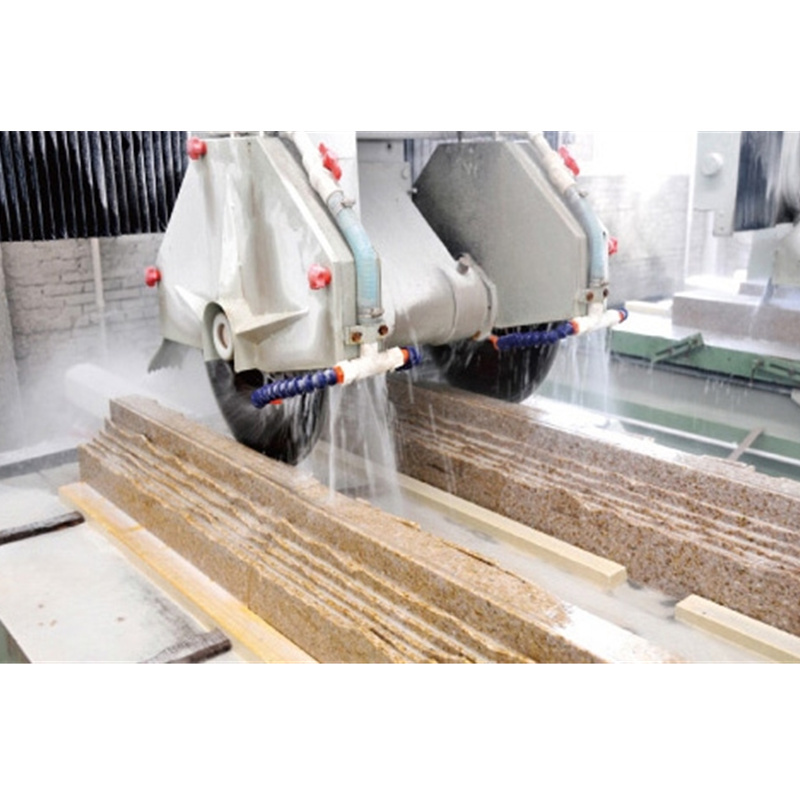

Processing
