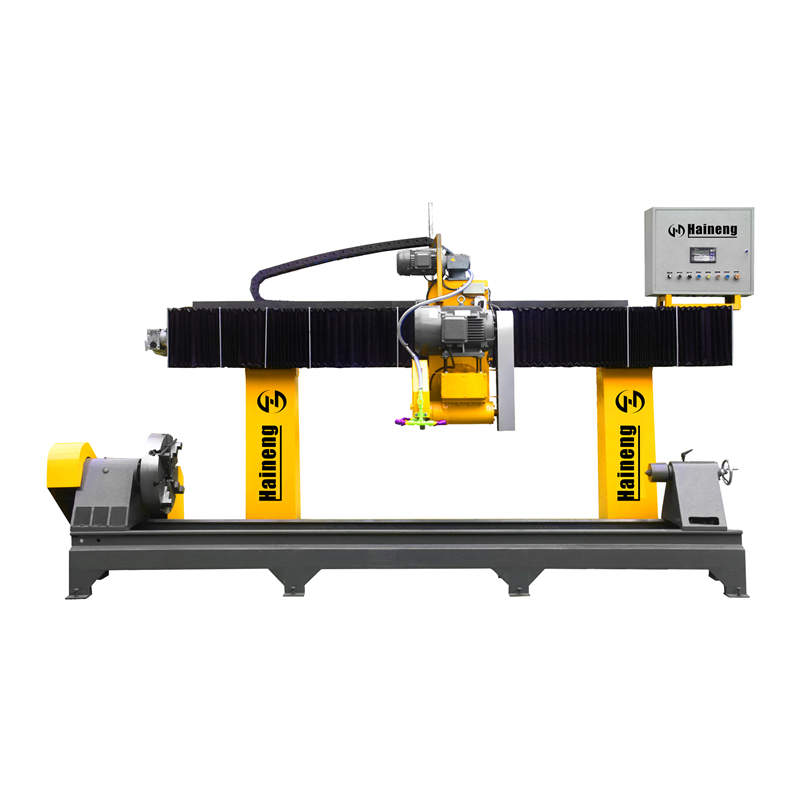

One Type Stone Baluster Profiling Machine
Stone Baluster Profiling Machine is an ideal stone processing equipment specially used for processing cylinders such as Roman columns and railings.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
Stone Baluster Profiling Machine adopts gantry machine design, microprocessor control and fiber optic probe. It can process all kind of solid stone of revolution,such as baluster, pellet, stylobate,cap and column and so on. It have already overcame the defects of manual process. This machine is automatic, after adjust the size of all direction, one worker can operate many machines. Processing length can be adjusted according to customer demand.
Technical Parameters
Stone Baluster Profiling Machine |
||
Type |
unit |
STT3000-1-1 |
Max. cutting qty. |
n |
1 |
Blade diameter |
mm |
Φ350-Φ500 |
Max. cutting length |
mm |
3000 |
Max. cutting diameter |
mm |
Φ500 |
Power of main motor |
kw |
11 |
Total power |
kw |
16.3 |
Water consumption |
m³/h |
3 |
Dimension (L×W×H) |
mm |
4500×1150×2200 |
Total weight |
kg |
2200 |

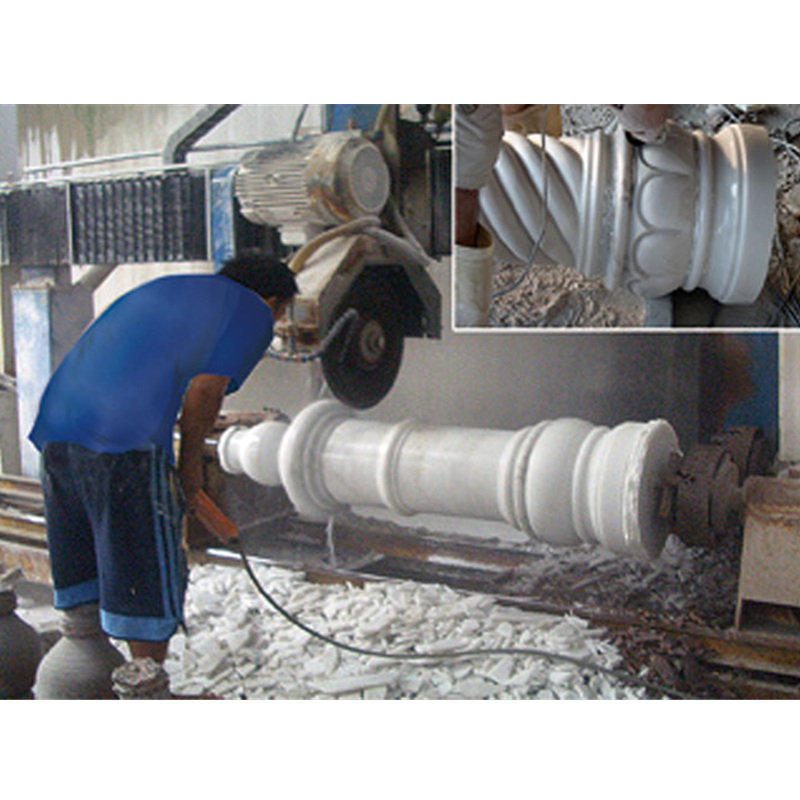

Processing
Loading
