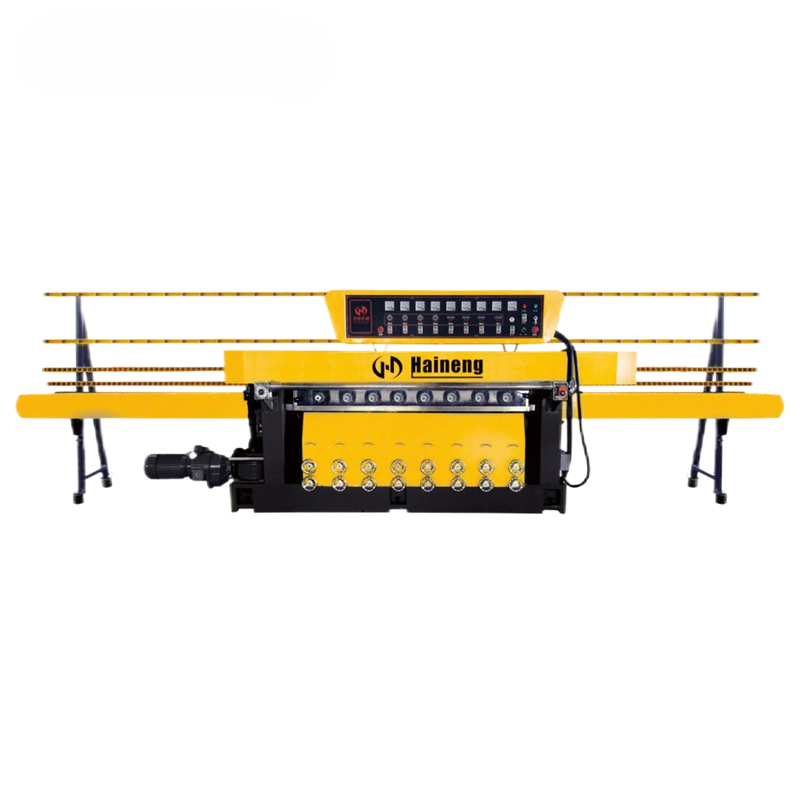

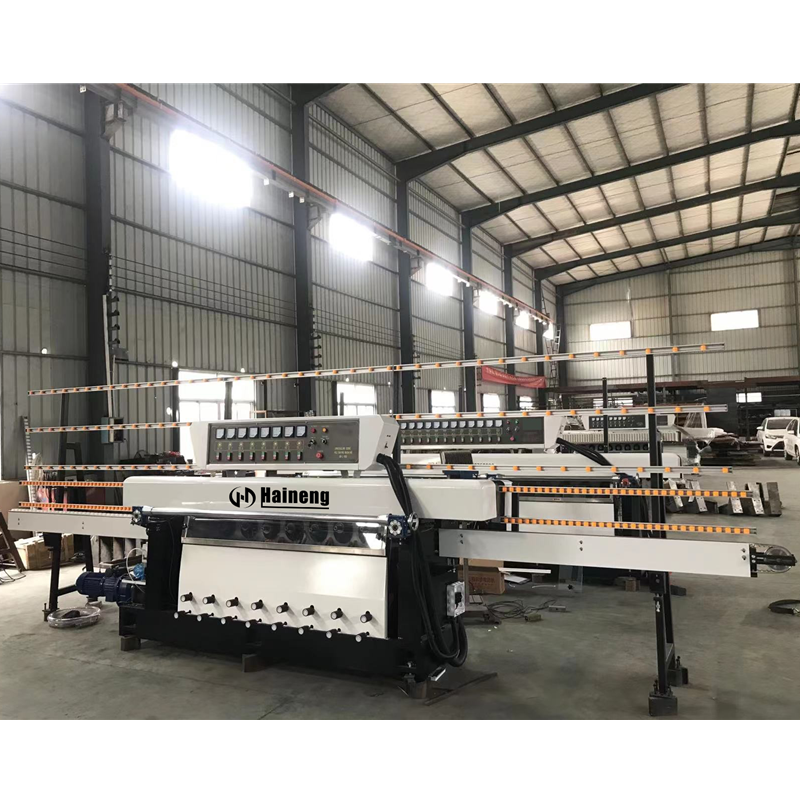

Straight Irregular Stone Edge Profiling And Polishing Machine

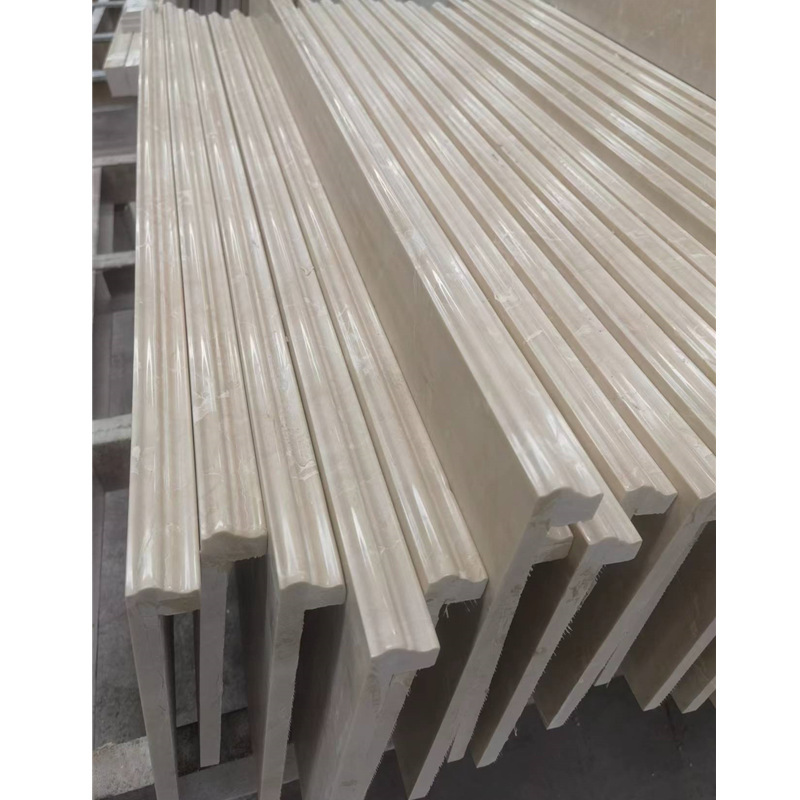

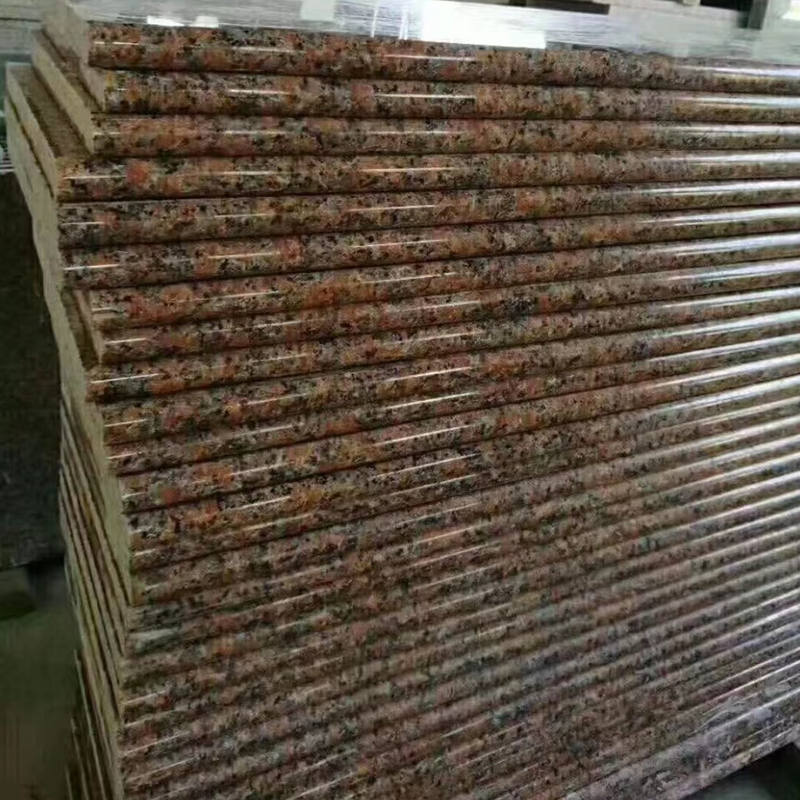

Stone Profiling Machine is the model specially for polishing various irregular edges such as chicken mouth edge, French edges, duck mouth edge, thickening chess pieces edge, etc.
Item No.:
ZBP-6
ZBP-8
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
Straight & Irregular Stone Edge Profiling &Polishing Machine
Product Introduction
Stone Profiling Machine is the model specially for polishing various irregular edges such as chicken mouth edge, French edges, duck mouth edge, big/small round edge, chess pieces edge, thickening chess pieces edge, etc. Straight Irregular Stone Edge Polishing machine has a fully automatic NC control system that detects wear and tear on the polishing wheel intelligently and self-compensates in time, preventing missing polishes and damaging the polishing quality.The wheels are stick to the market specification, they are easy to purchase and convenient to assemble/disassemble.profiling and polishing can be proceed at the same time, which replaces the former models' repeatedly wheel exchanges and polishes. t has a fast processing speed (the same working efficiency of a dozen worker working together) and a low cot.The processed products have a high glossiness (lighter than the board face), consistent lines and shapes, and a low rate of waste, making it the necessary type of model for stone deep processing factory.
Technical Parameters
Type | Unit | ZBP-6 | ZBP-8 |
Working width | mm | 800-2000 | 80-2000 |
No.of polishing wheel | pcs | 6 | 8 |
Working speed | m/min | 0.8-5 | 0.8-5 |
Gross power | kw | 21.7 | 27.7 |
Gross weight | kg | 3000 | 3300 |
Overall size (L×W×H) | mm | 6500×1300×2000 | 7000×1300×2000 |
