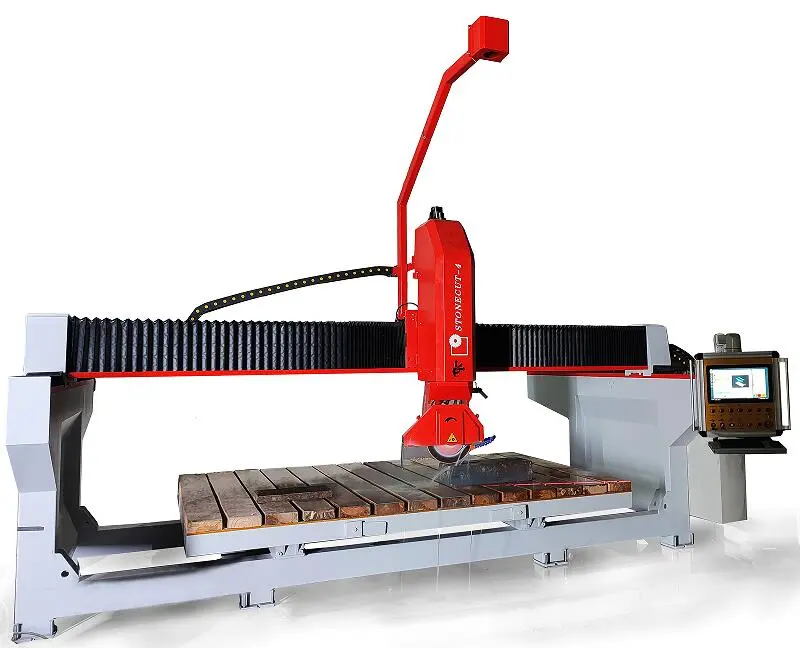

Five Axis CNC Mono-Block Stone Bridge Saw With Italian System
5 axis lnterpolation control with Italian CNC Esa system.

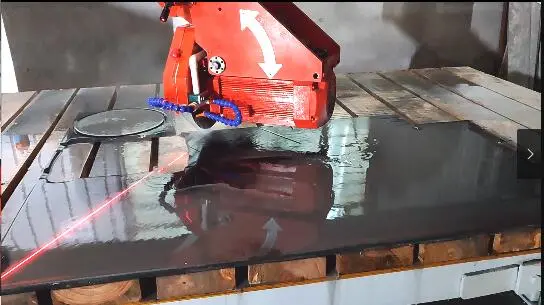

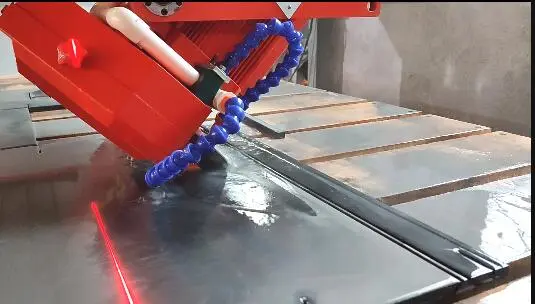

The blade can rotate 0°-360° and tilt 90°, enabling chamfering cutting in any direction and angle.
Item No.: WYQ450
- Haineng
- Fujina
- 25 days
- Information
- Video
Product Usage

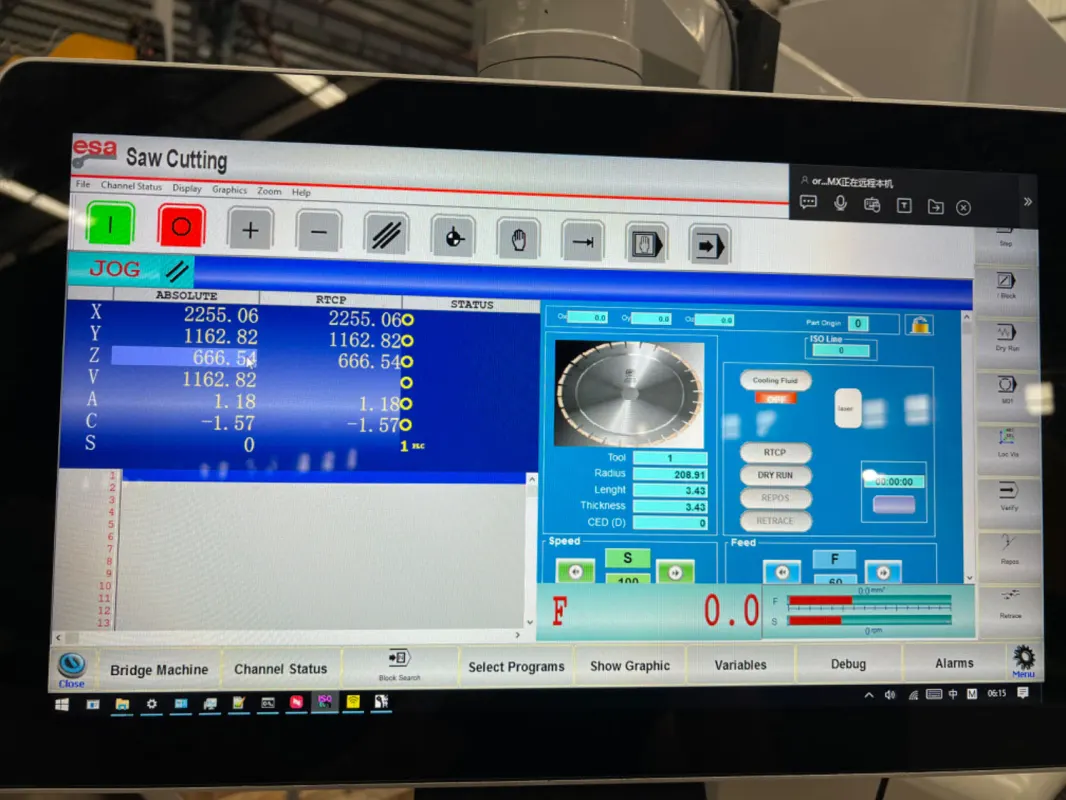

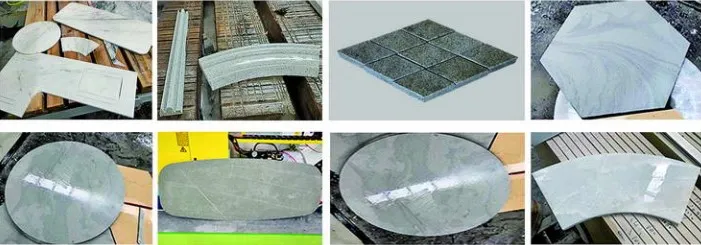

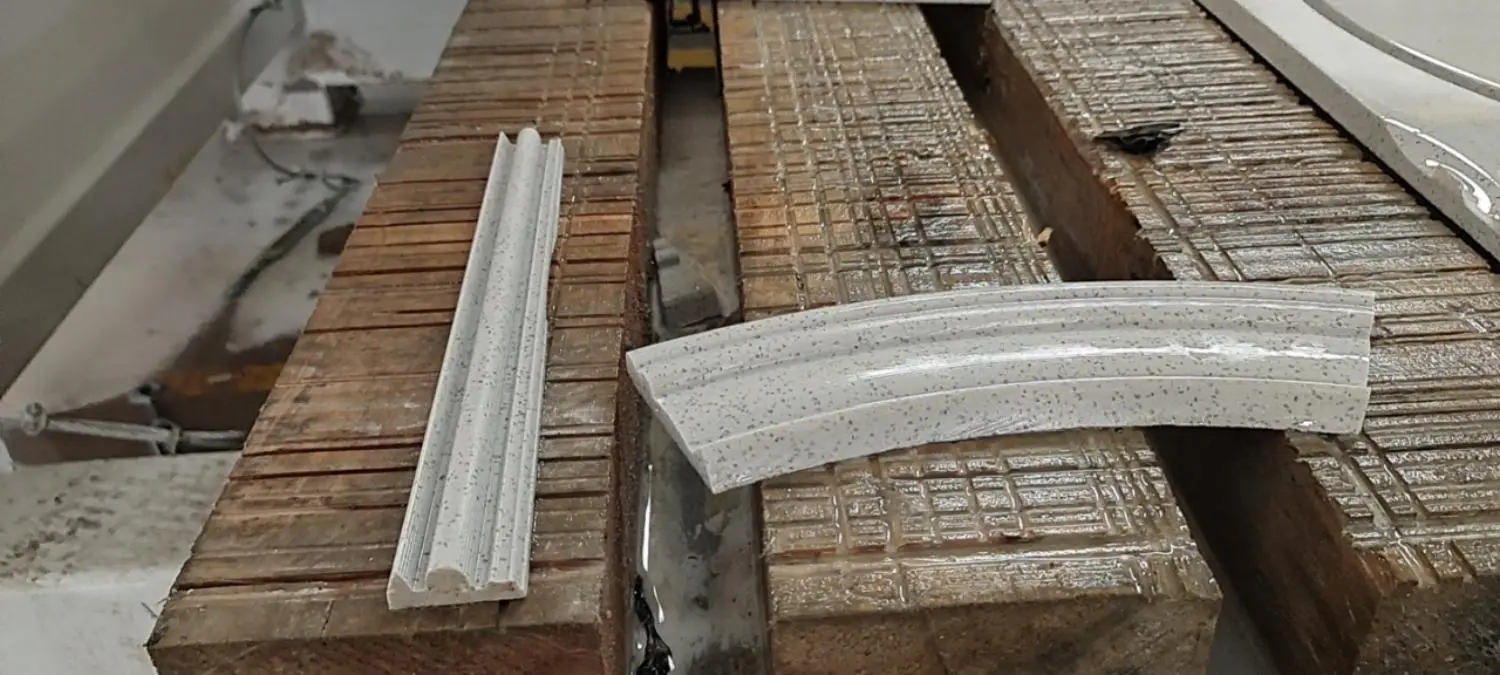

The whole machine adopts the Italian ESA well -known system, computerized control, under the touch operation interface, and is equipped with wireless remote control. The human -machine dialogue is flexible. The main control components are all internationally renowned brand components, and the beams of oil immersion dual V -type tracks. The saw blade uses a variable frequency conversion speed adjustment. The vertical distributor uses a linear guide rail and high -precision magnetic ruler to ensure that the machine work is stable and accurate. The integration of the body and the workbench not only facilitates the installation and transportation of users, but also ensures the stability of the machine. This machine is mainly used for cutting special-shaped edges or multi-functional cutting of building materials such as rock slabs, ceramic tiles, marble, artificial stone, granite, cement products, etc. It is the most suitable deep processing equipment for special-shaped factories such as home improvement or municipal engineering.
Technical Parameter:
Product type | Unit | WYQ450 |
Blade diameter | mm | Ø450 |
Worktable size | mm | 3200×2000 |
Max. cutting size | mm | 3200×2000×80 |
Max. chamfer size | mm | 3000×1800×580 |
Saw blade horizontal rotation angle | ° | 0-360° |
Chamfer orientation | ° | 0-90-180-270° |
Saw blade inclination angle | ° | 0-45° |
Turnover angle of worktable | ° | 0-85° |
Rotation angle of worktable | ° | Default: None（Optional） |
Main motor power | kw | 15 |
Host frequency conversion |
| Optional |
Total power | kw | 24.5 |
Water Consumption | m³/h | 3.5 |
Gross weight | kg | 3900 |
Overall dimensions | mm | 5000×3000×2750 |
product description
Features
u Small area: only 15 square meters (length 5 meters × width 3 meters).
u Simple operation: touch-type man-machine interface, module parameterized input, no programming required, intuitive operation and handy.

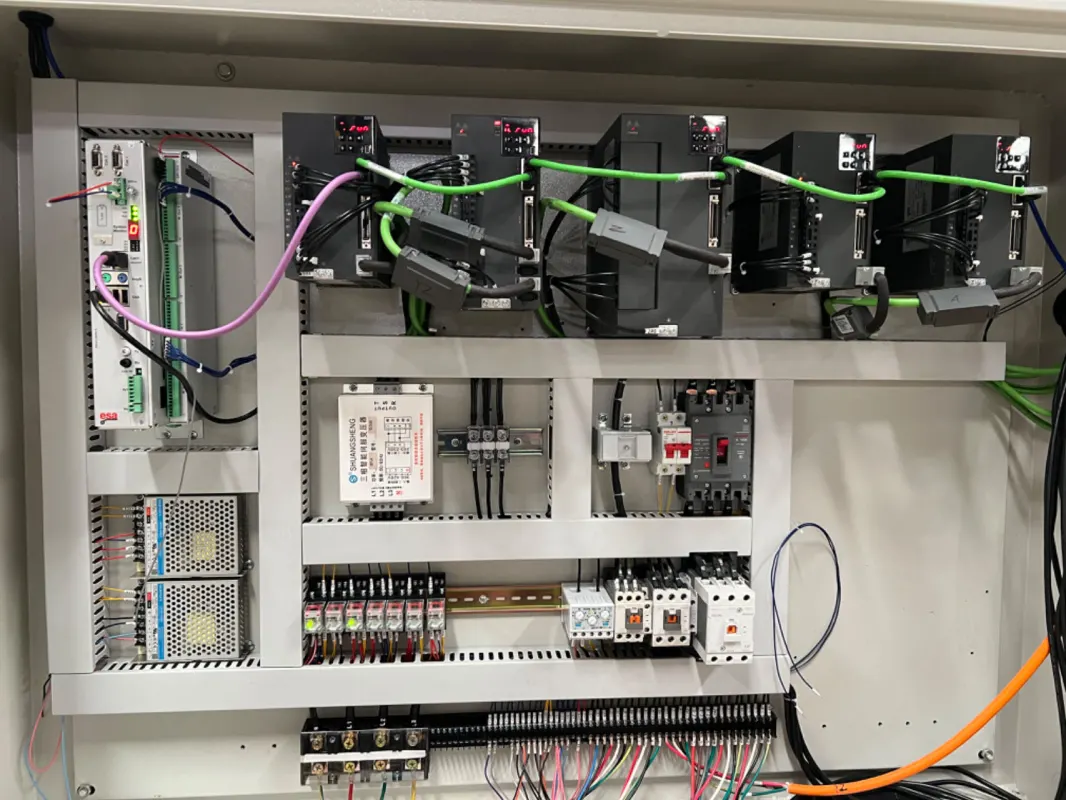

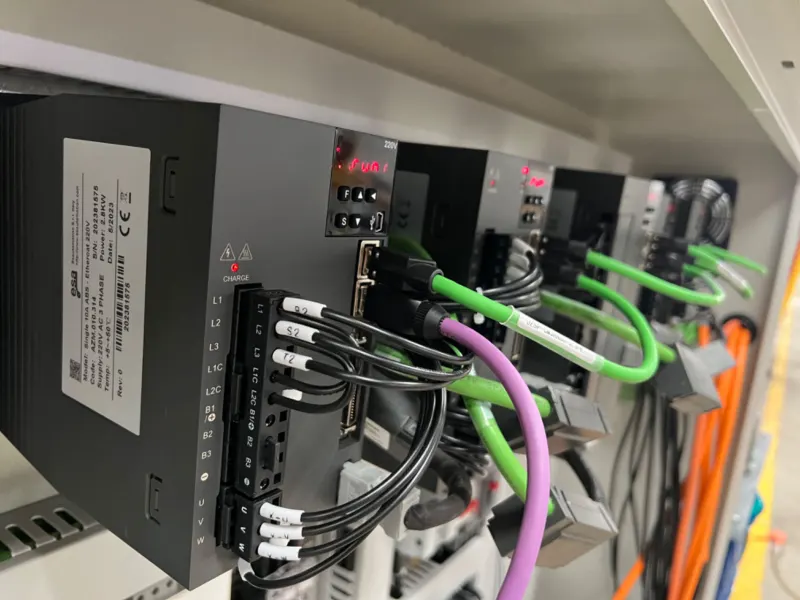

u High configuration: The main core control components adopt international first-line brand components, with stable performance and long life.
u High precision: All motion pairs adopt high-precision linear guides, with high-precision helical gear transmission, and high precision.
u Intelligent: All sports pairs are automatically greased and lubricated to escort the sports pairs.
u Energy saving and consumption reduction: Permanent magnet synchronous main motor can be selected, which can save 30% electricity compared with three-phase asynchronous motor.
u Ingenuity manufacturing: every detail of the design and manufacturing allows you to feel the excellent quality of meticulous craftsmanship and excellence!
