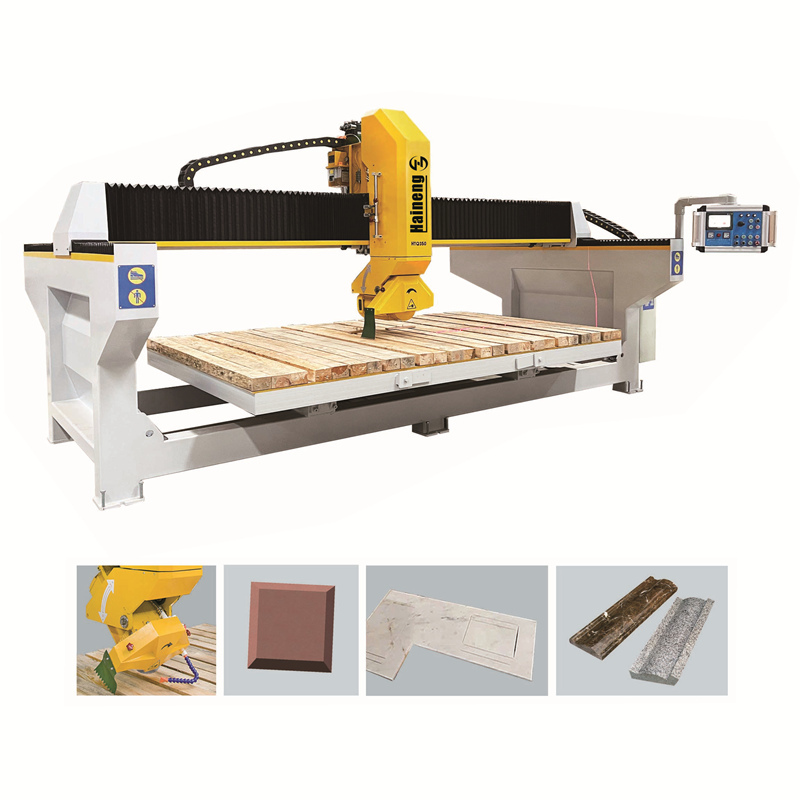

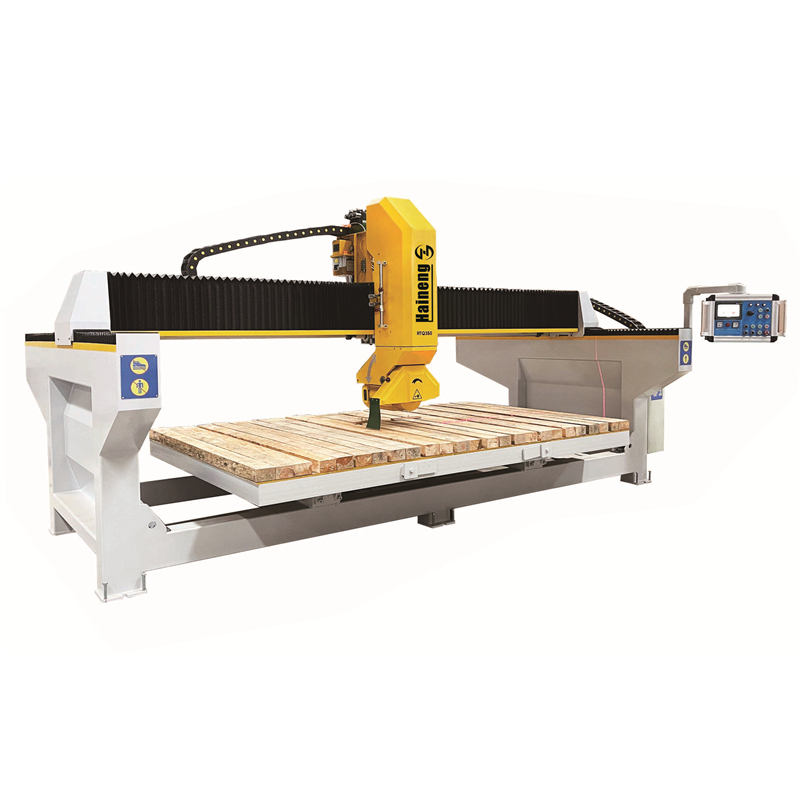

3 Axis Sintered Stone Slab Bridge Saw
This series of models are suitable for cutting rock slab, tile, marble, artificial stone, granite, cement products and other building materials, is the ideal equipment for small and medium-sized factories, processing stores.
Item No.:
HTQ350A
HTQ350B
HTQ350C
HTQ350D
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
This series of models are suitable for cutting rock slab, tile, marble, artificial stone, granite, cement products and other building materials, is the ideal equipment for small and medium-sized factories, processing stores.
1 Small floor area: only 15 square meters (length 5 meters x width 3 meters).
2 Simple operation; touch mode man-machine interface, intuitive operation.
3 High configuration: the main core control components using international line brand components,stable performance. long life.
4 High precision: all motion pairs adopt high precision linear guide rail, with high precision helical gear transmission, high precision.
5 Intelligent all motion pairs adopt automatic grease lubrication, escort tor motion pair.
6 Energy saving and consumption reduction: permanent magnet synchronous main motor is optional, which usually saves 30% electricity than three-phase asynchronous motor
7 Craftsmanship manufacturing: every detail of the design and manufacturing so that you can feel carefully crafted, excellence excellent quality!
Technical Parameters
Product type | Unit | HTQ350A Basic type | HTQ350B Chamfer type | HTQ350C Basin type | HTQ350D Four-sided chamfer |
Blade diameter | mm | 350 | 350 | 350 | 350 |
Worktable size | mm | 3200×2000 | 3200×2000 | 3200×2000 | 3200×2000 |
Max. cutting size | mm | 3200×2000×50 | 3200×2000×50 | 3200×2000×50 | 3200×2000×50 |
Max. chamfer size | mm | 3000×1800×50 | 3000×1800×50 | 3000×1800×50 | 3000×1800×50 |
Saw blade horizontal rotation angle | ° | 0-90° | 0-90° | 0-90° | 0-90°-180°-270° |
Chamfer orientation | ° | None | 0-90° | 0-90° | 0-90°-180°-270° |
Saw blade inclination angle | ° | None | 0-45° | 0-45° | 0-45° |
Turnover angle of worktable | ° | 0-85° | 0-85° | 0-85° | 0-85° |
Rotation angle of worktable | ° | Default: None（Optional） | Default: None（Optional） | Default: None（Optional） | Default: None （Optional） |
Main motor power | kw | 15 | 15 | 15 | 15 |
Host frequency conversion |
| Optional | Optional | Optional | Optional |
Total power | kw | 20.2 | 20.2 | 20.2 | 21 |
Water Consumption | m³/h | 3.5 | 3.5 | 3.5 | 3.5 |
Gross weight | kg | 3500 | 3500 | 3500 | 3500 |
Overall dimensions | mm | 5000×3000×2400 | 5000×3000×2400 | 5000×3000×2400 | 5000×3000×2400 |
Processing
HTQ350A: Automatic cutting specification plate + Plane slotting (wire drawing) … …
HTQ350B: Automatic cutting specification board + semi-automatic chamfering on both sides + Plane slotting (wire drawing) … … …
HTQ350C: Automatic cutting specification plate + automatic chamfering on both sides + Plane slotting (wire drawing)+ stove+(square) basin hole + line imitation (optional) … … …
Loading
