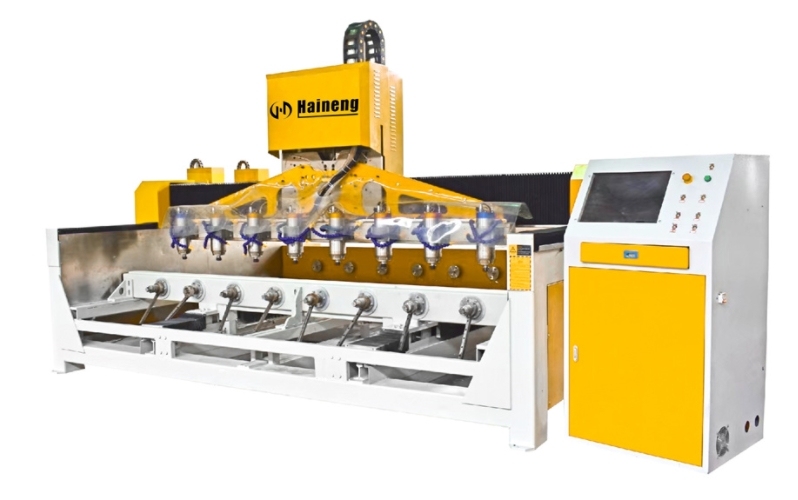

4 Axis 8 Heads Cnc Column Engraving Machine
The eight-head column engraving machine has multiple working heads and can perform multiple engraving tasks at the same time, so it can greatly improve production efficiency. This is especially beneficial for tasks that require a lot of carving or cutting.
Item No.:DKJ-YZ8
- Information
4 Axis 8 Heads Cnc Column Engraving Machine
Performance characteristics
1.The latest system, efficient and stable
2.X, Y axis 30 rails, Y axis double rails
3.XY reducer drive, Z-axis with brake function
4.All three axes of XYZ are driven by screw rods, and the accuracy is guaranteed
5.Electric entry and exit before and after the thimble, convenient and fast

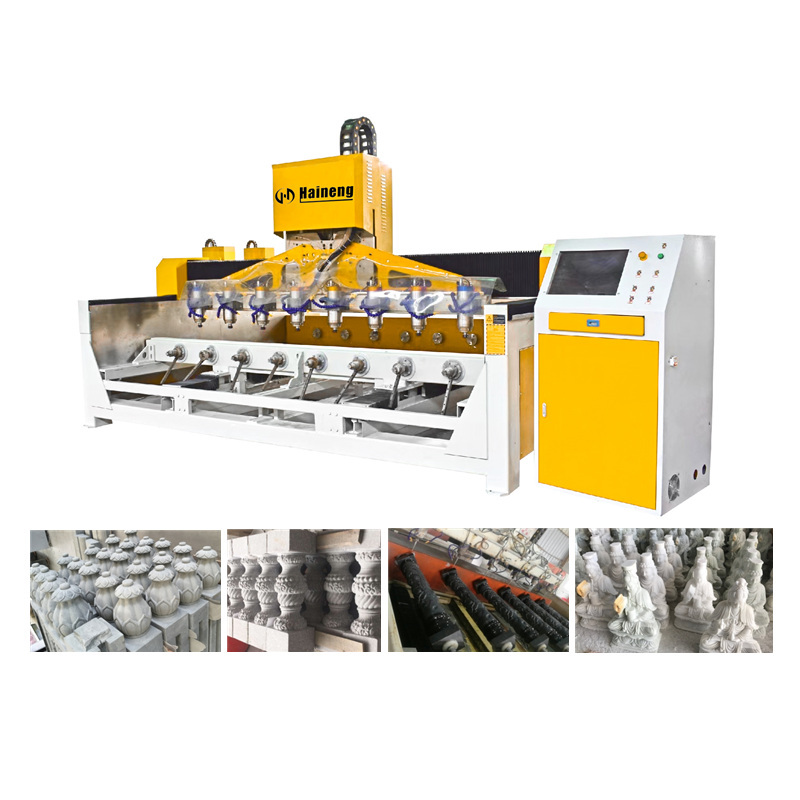

6.Suitable for the processing of small and medium-sized products such as building materials, ancient building, tombstones, gardens, etc.
Technical Parameters
Technical parameters | |
Equipment model | DKJ-YZ8 |
Dimensions | 4500x 3000x 3000mm |
Processing size | φ300x 1500mm (Diagonal 350) |
Spindle power | 5 . 5KW |
Drive system | Servo |
Control system | NC studio/ RichAuto(Customizable) |
