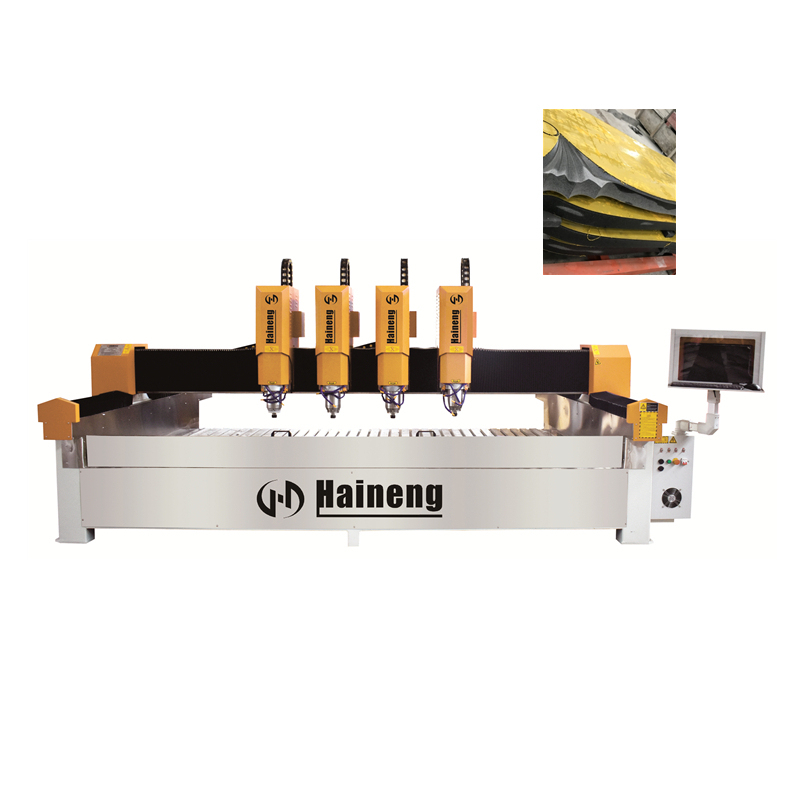

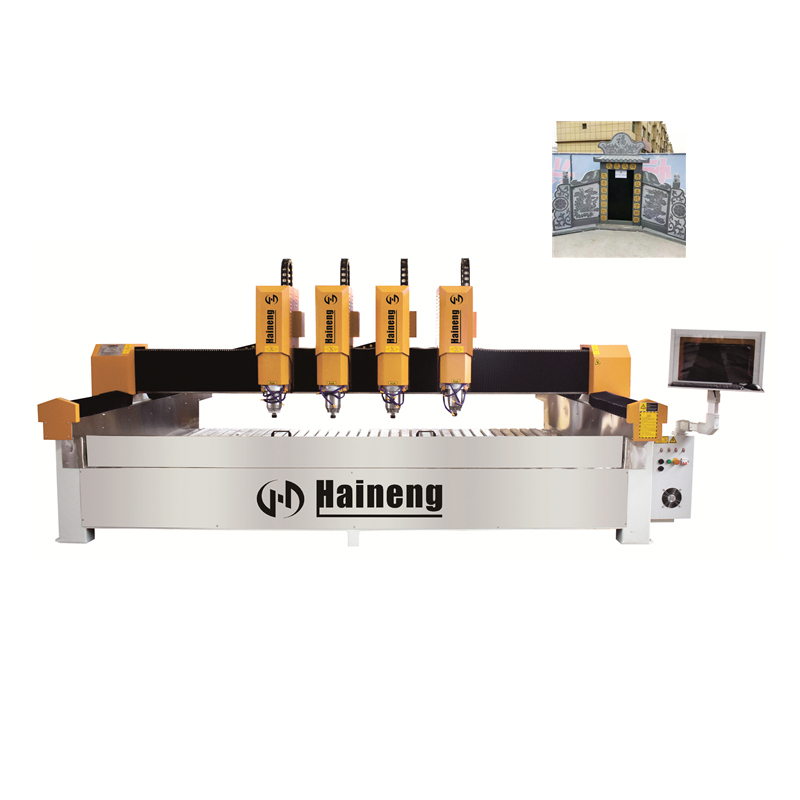

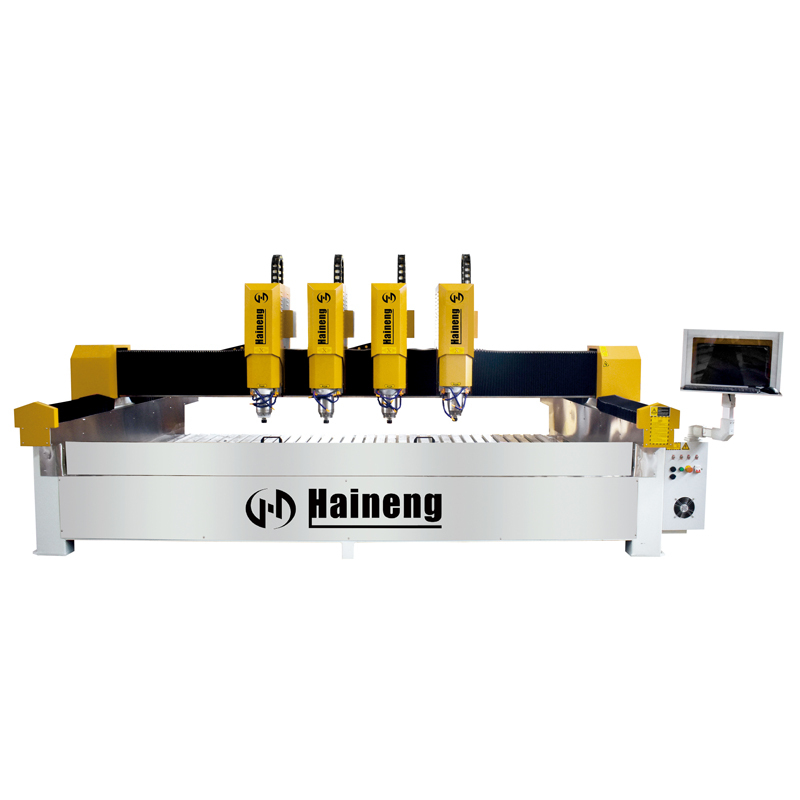

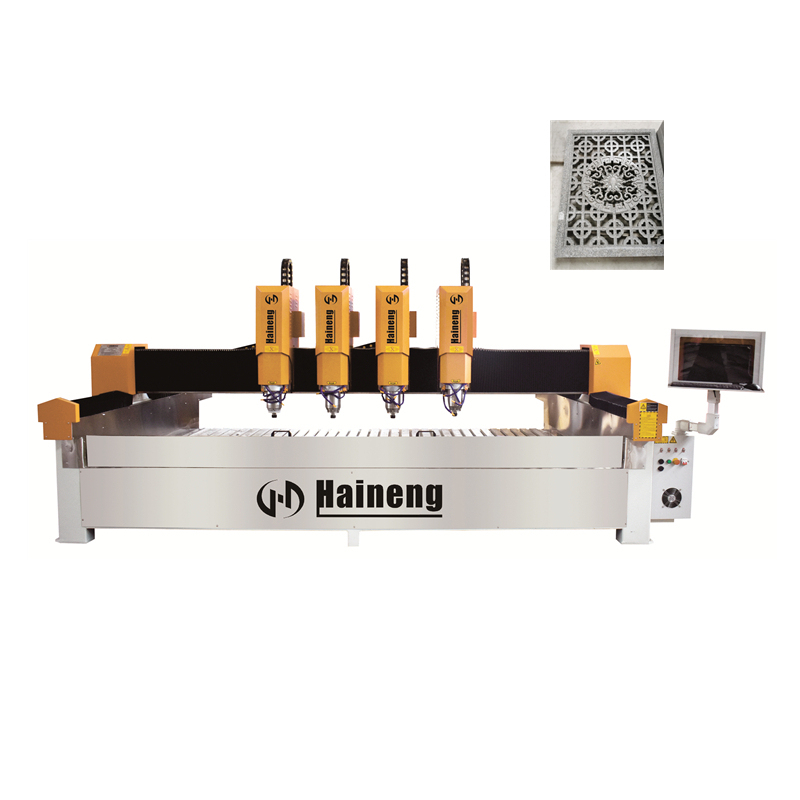

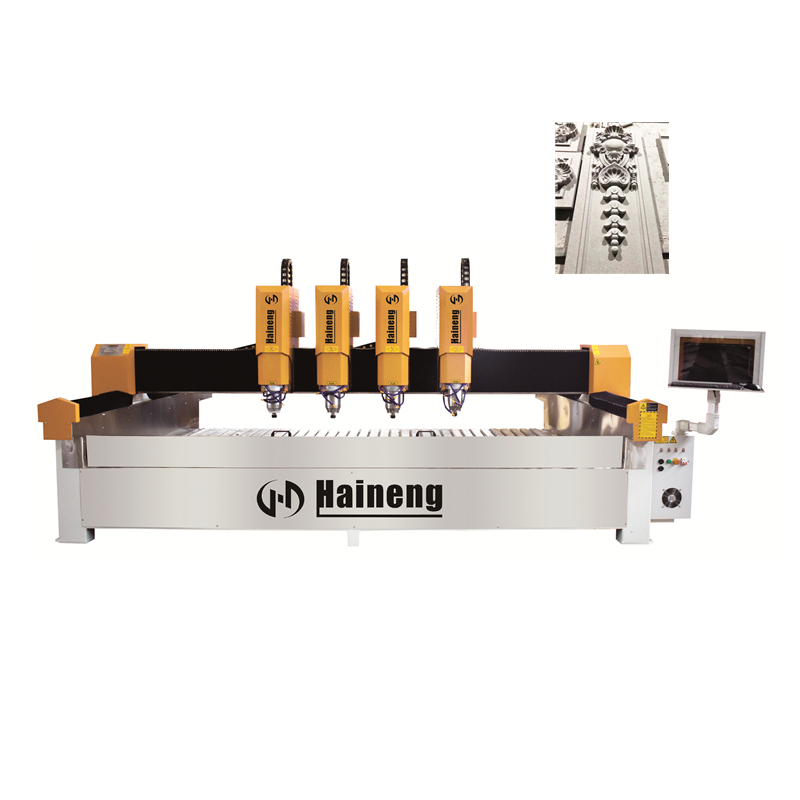

Stone Engraving Machine With Rotarytable Heavy Frame
The whole machine adopts heavy-duty all-steel frame structure, which has stable structure, good rigidity and strong deformation.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction
The whole machine adopts heavy-duty all-steel frame structure, which has stable structure, good rigidity and strong deformation.
◆Excellent components: Taiwan linear guide rail, stable operation and high precision; X/Y axis adopts high-precision and high-hardness helical gear drive, Y is double Y drive, fast speed, high horsepower and long service life; Z-direction imported lead screw Transmission, accurate cutting;
◆Stainless steel sink can adapt to the harsh environment of machine tool processing, improve the quality of machine tools and increase the service life;
◆With tool cooling system, it can effectively improve the service life of the tool and the processing effect is better;
◆Special integrated machine numerical control system, stable performance, power-off memory function, can ensure continuous engraving in case of accidental power failure and broken knife;
◆The CNC system can be compatible with any advanced CAM software in the world: Type3/Artcam/CAXA/UG/Pro-E/Mastercam/JD/, etc.;
◆ This series of machines comes with hydraulic reversing platform device, which is convenient for customers to load and unload; make processing easier;
Scope of application:
◆Marble,Sandstone , Granite, , Jade, Jade, Crystal, Stone, Agate, Platform, Copper, Aluminum, etc.
◆Quartz stone countertop processing
Technical Parameters
|
TYPE |
ANYTH-3020E |
||
|
No. |
Performance |
Data |
|
|
1 |
Working area |
X |
3000mm |
|
Y |
2000mm |
||
|
Z (Feeding height) |
250 (330) mm |
||
|
2 |
Precision |
Machining |
0.05mm |
|
Repeatability |
0.02mm |
||
|
3 |
Structure |
Table |
Sink+ H Steel |
|
X、Y、Z Transmission |
X、Y: H Helical Tack，Z:Screw |
||
|
4 |
Speed |
Max. Idle speed |
30000mm/min |
|
Max. Working speed |
X/Y：15000mm/min ；Z：5000mm/min |
||
|
5 |
Spindle |
Power |
HD water cooled :380V 5.5KW |
|
Rotation speed |
6000~24000r/min |
||
|
6 |
Diver motor |
Doling servo1.2KW |
|
|
7 |
Working voltage |
AC380V/50Hz |
|
|
8 |
Command |
NC Code |
|
|
9 |
Control system |
Weihong NK260 |
|
|
10 |
Vacuum system |
No |
|
|
11 |
Dust collection |
No |
|
|
12 |
Dimensions |
3500mm×4500mm×2200mm |
|
|
13 |
N. W |
≈4500kg |
|
|
14 |
G.W |
≈5000kg |
|
