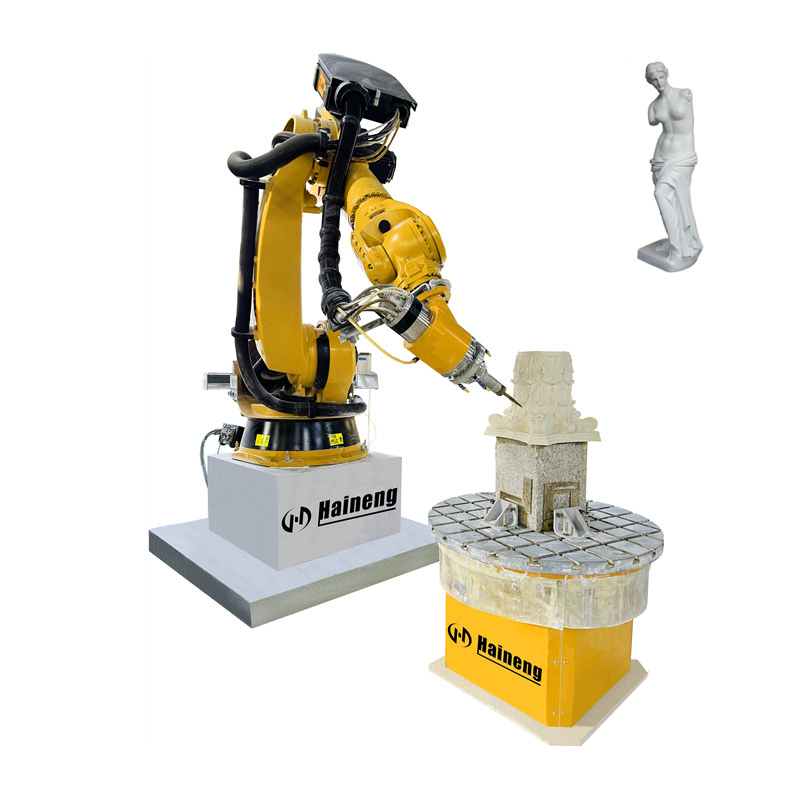

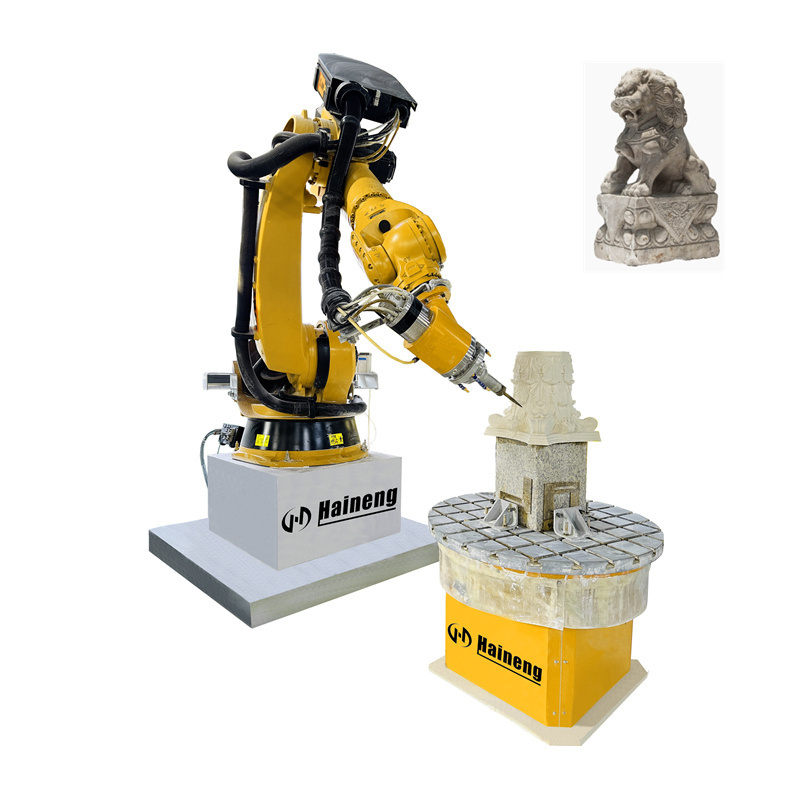

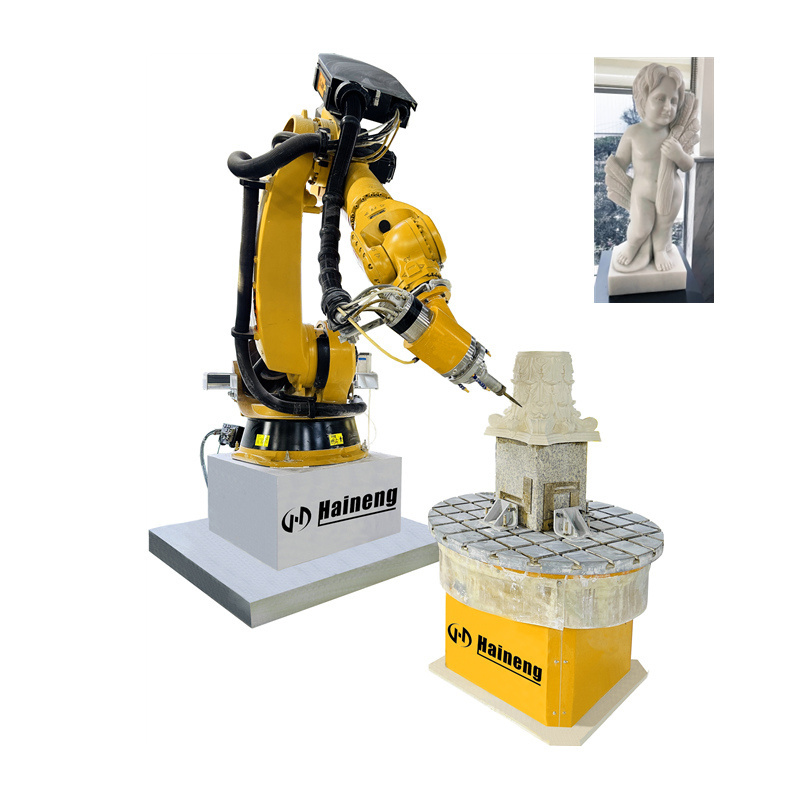

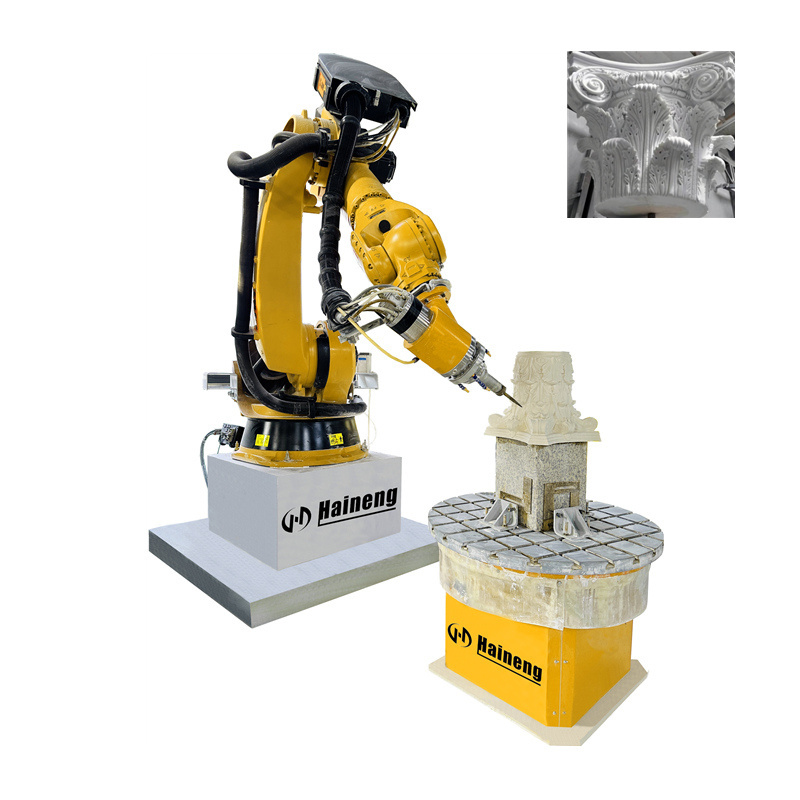

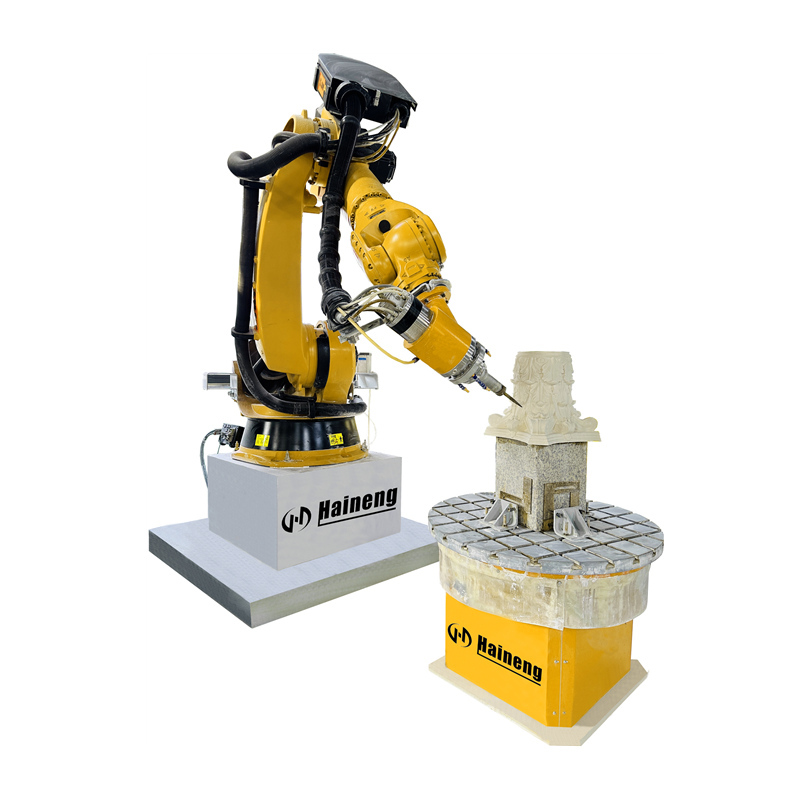

Automatic 3D 7 Axis CNC Kuka Robot Arm Sculpture Stone Engraving Machine
3D Sculpture 7 Axis Kuka Robot Arm Stone Engraving Machine with high-speed shaft integrated in the arm, verstile and easy to operate.
Item No.: JXS-2700
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
- Video
3D 7 AXIS ROBOT Stone Engraving Machine
Product Introduction
Automatic 3D 7 Axis Kuka Robot Arm is an automation integrated and secondary developed product on the base of KUKA robot, specially designed for 3D stone carving process, very strong, high- precision (high-speed shaft integrated in the arm), verstile and easy to operate.
7 Axis Kuka Robot Arm uses the offline programming system Sprut CAM to perform complex workpiece processing. The configuration can be changed at will. The robot can work normally even in harsh environments, with a service life of up to 15 years and an average time between accidents as long as 70,000 hours.
Technical Parameters
Technical parameters | |
Equipment model | JXS-2700 |
Payloads | 210 Kg Payload at maximum reach |
Maximum arm span | 2700mm |
Maximum processing size | φ2000mmx2500mm stone |
Rotary table | 1000mm diameter Infinite rotation |
Spindle power | 15KW Special positioning stone spindle |
Maximum spindle speed | 18500 RPM |
Number of axis | 7 axis Fully automatic |
Axis 1 speed | ±185° 86°/s |
Axis 2 speed | 0°~ - 146° 84°/s |
Axis 3 speed | 1 55°~ - 1 19° 84°/s |
Axis 4 speed | ±350° 100°/s |
Axis 5 speed | ±1 25° 1 10°/s |
Axis 6 speed | ±350° 184°/s |
Axis 7 speed | Infinite rotation 84°/s |
Repeat position deviation | ＜ ±0 .06m m |
Support blades | Saw blade rough/fine engraving carving knife/end milling cutter disc/grinding disc (special needs to be customized) |
Automatic blades | Can support (optional) |
Protection type | High waterproof and dustproof (standard protective raincoat for manipulator) |
Offline software | S prut CAM latest version |
Machine Details
Processing
