5 Axis CNC Bridge Saw Machine for Kitchen Countertops
5 Axis CNC Bridge Saw Machine can realize multiple advanced functions such as straight cutting, arc chamfering, drilling, milling, 3D profiling, edge shaping, etc. It is widely evaluated in small processing plants, kitchen countertops, home improvement stores, etc.
Item No.:
WSQ500
WSQ650
- Haineng
- Fujian
- 25 days
- 15 PCS Per Month
- Information
- Video

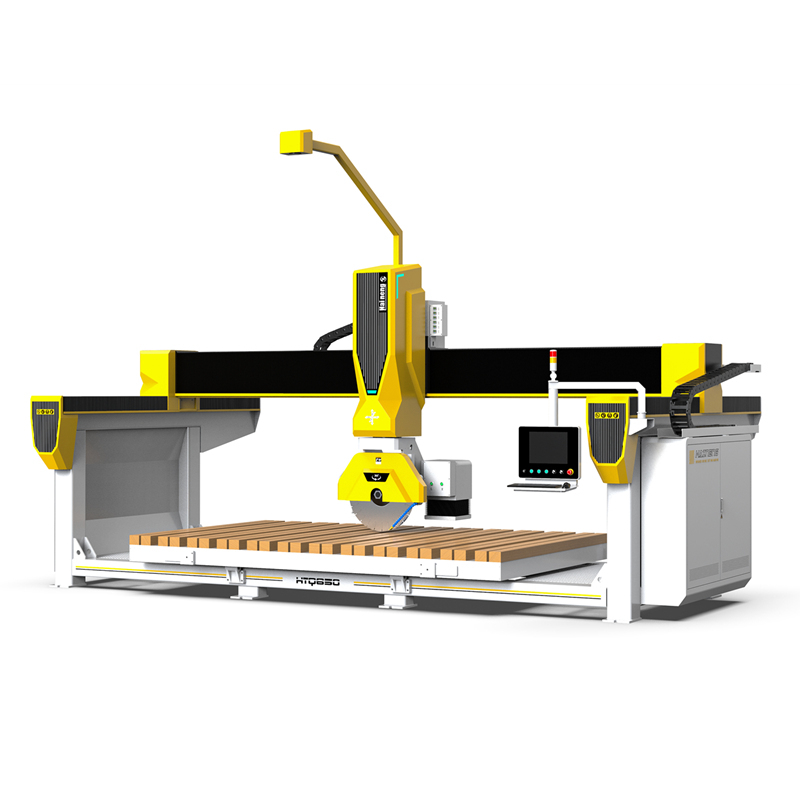

5 Axis CNC Bridge Saw
Product Introduction
This is a new generation of purpose-built five-axis bridge saw that developed jointly with our software supplier. The CNC control system is synchronized with the Italian technical system, and the pure graphic touch screen operation makes it easy to operate with complex CNC knowledge. 5 Axis Bridge Saw machine can realize multiple advanced functions such as straight cutting, arc chamfering, drilling, milling, 3D profiling, edge shaping, etc. It is widely evaluated in small processing plants, kitchen countertops, home improvement stores, etc. This CNC five-axis bridge saw is designed to achieve X-Y-Z-A-B five-axis linkage and has a wider range of uses. It adopts high-quality servo motors and other electrical components, axial linear bearings, and has a compact structure.
Technical Parameters
Name | Unit | WSQ500/650 |
Diameter of disk | mm | Ø500-650 |
Workbench size | mm | 3500*2100 |
Max.cutting length | mm | 3500 |
Max.cutting thickness | mm | 200 |
Max.lifting stroke | mm | 500 |
Main motor power | kw | 15 |
Power of cutter frame reciprocating motor | kw | 1.15 |
Power of crossbeam shifting motor | kw | 1.15 |
Power of hydraulic station motor | kw | 2.2 |
Lifting motor power | kw | 0.85 |
Gross power | kw | 22 |
Water consumption | m³/h | 2 |
Dimensions(Lx W x H) | mm | 6300x3600x3000 |
Gross weight | kg | ≈5800 |
Processing
Loading
