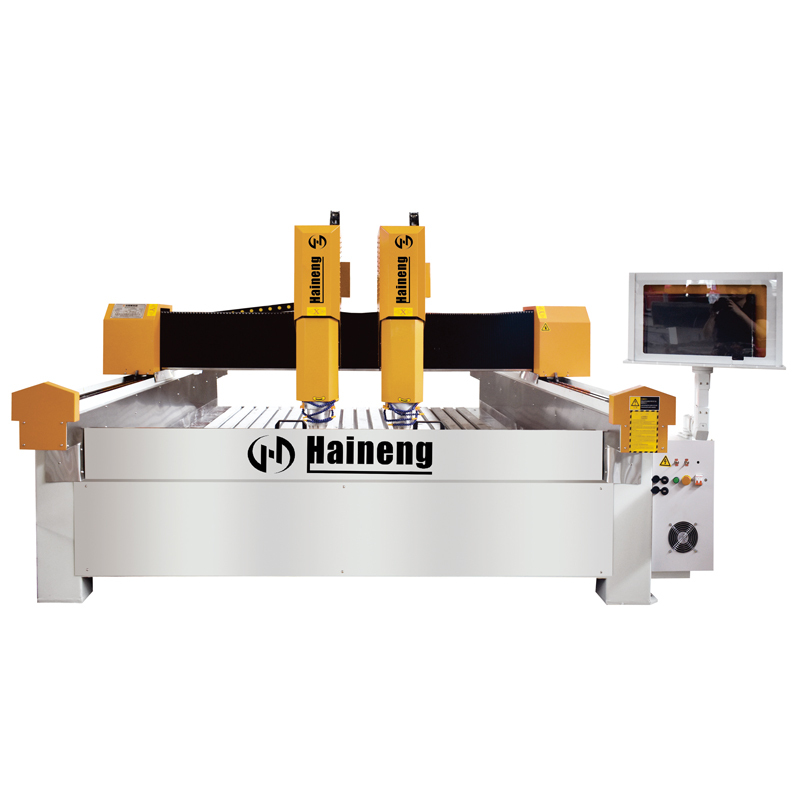

CNC Stone Engraving Machine For Marble Granite

It adopts imported linear guide rails, double row and four rows of sliders, large bearing capacity, stable operation, high precision, long service life and accurate undercutting.
Item No.: JDK2030-2

  • Haineng
  • Fujian
  • 10 PCS Per Month
  • Information

Product Introduction

Functional characteristics

1. It adopts imported linear guide rails, double row and four rows of sliders, large bearing capacity, stable operation, high precision, long service life and accurate undercutting.

2. The whole machine adopts steel structure, the rigidity is good and it is not easy to be deformed, and the machine bearing capacity can reach more than one ton.

3. The stainless steel sink is more suitable for the harsh environment of machine tool processing, improving the quality of the machine tool and increasing the service life.

4. The Y-axis adopts the imported 30 guide rail, and the machine runs more smoothly during the processing.

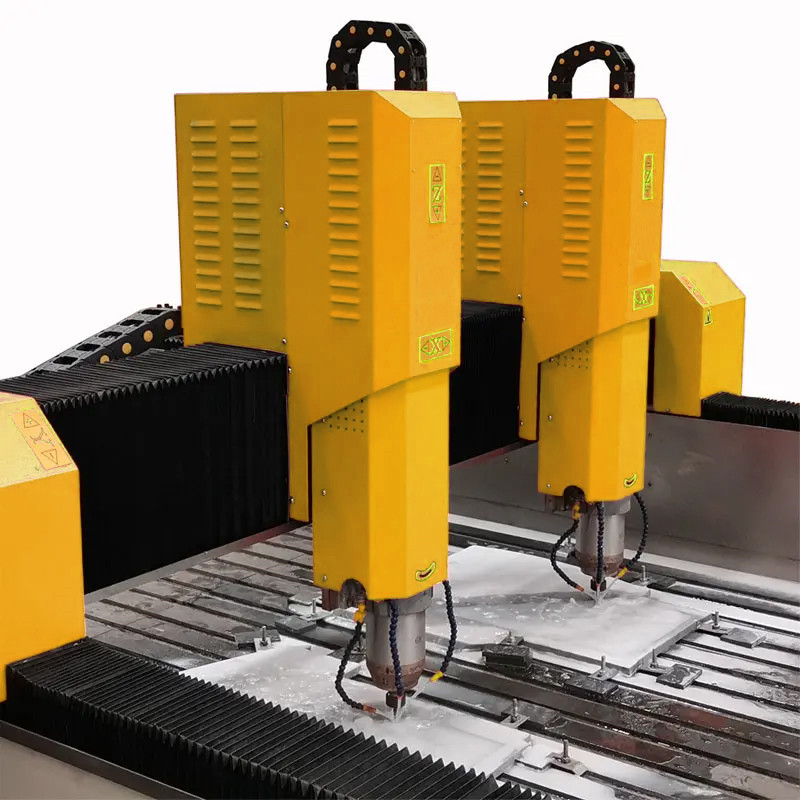

5. Constant power spindle motor with high cutting force and high efficiency.

6. Two-way tool cooling system for efficient tool life.

7. CNC digital control, with power-off memory function, with power-off, broken knife continuous carving function.

8. Compatible with any of the world's most advanced CAM software: Type3/Artcam/ CAXA/ UG/ Pro-E/ Mastercam/ JD/ Wentai.

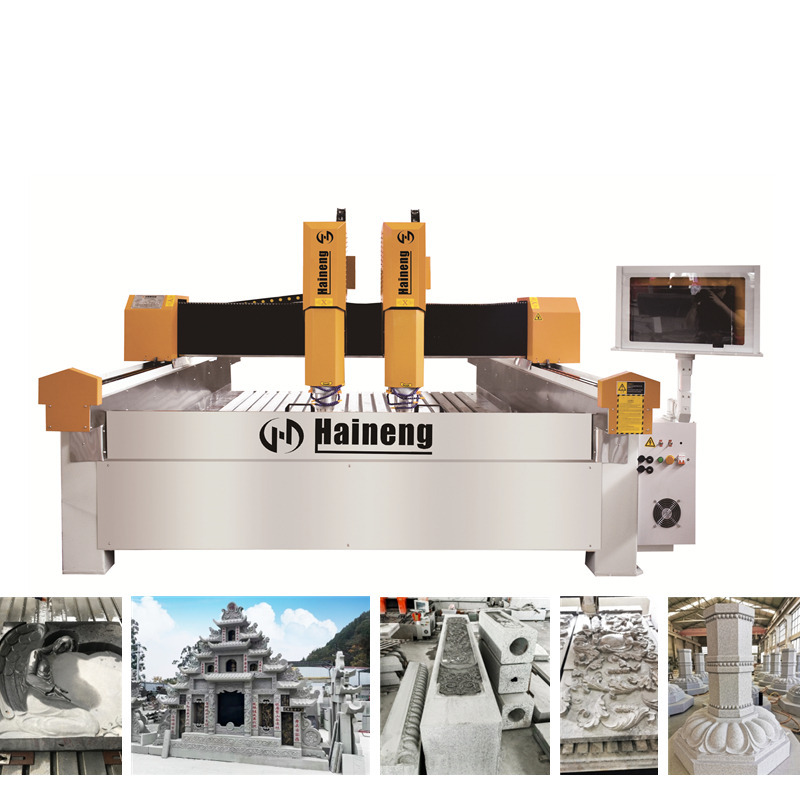

Scope of application

Marble, Shoushan Stone, granite, bluestone, jade, jade, crystal, stone, agate, gongtai, copper plate, aluminum plate, etc.



Standard configuration

uWeihong Control System

uX/Y shaft rack drive

uZ axis screw drive

u domestic AC servo motor and supporting drive

u domestic inverter

u Feed height 430mm / Z stroke 330mm

u Patented box gantry structure

uAutomatic refueling

u dustproof

Stone engraver


Technical Parameters


Engraving machine

Type

unit

JDK1325-1

JDK1825

JDK2030-2

Table size

mm

1300×2500

1800×2500

2000×3000

Feed height

mm

430

Free speed

m/min

15

Processing speed

m/min

10

Spindle power

Kw

3KW-5.5KW Frequency conversion water cooled spindle

Spindle speed

rpm/min

6000-24000

Operating Voltage

V/HZ

AC220V/50HZ or AC380V/50HZ

Carving tool

mm

Φ3.175/4/6/8/10/12.7

File format



G Code/HPGL

positioning accuracy

mm

±0.03

Repeatability

mm

±0.02

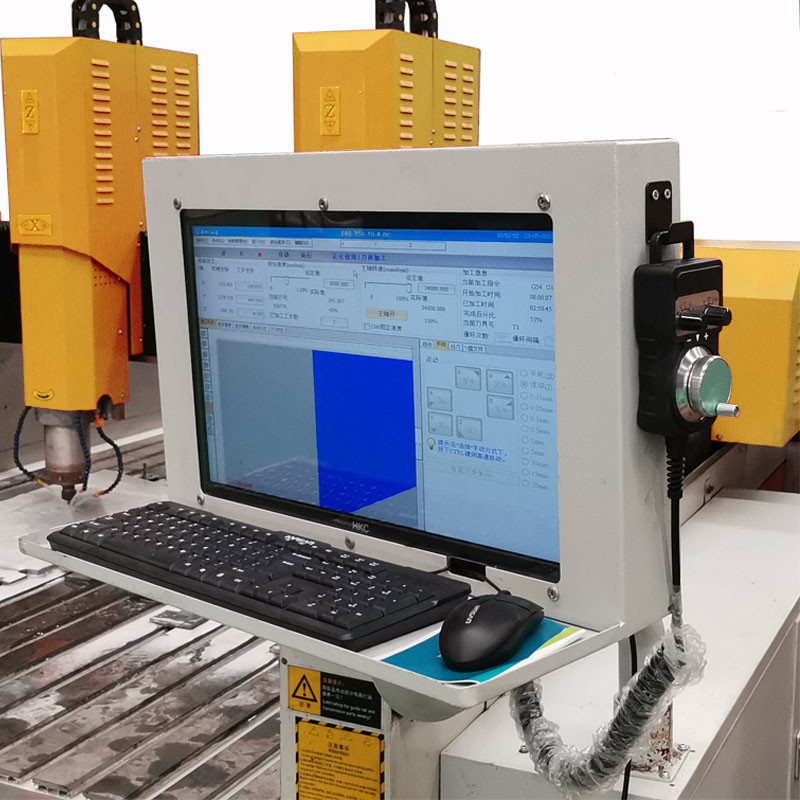

Control System



Nc studio System

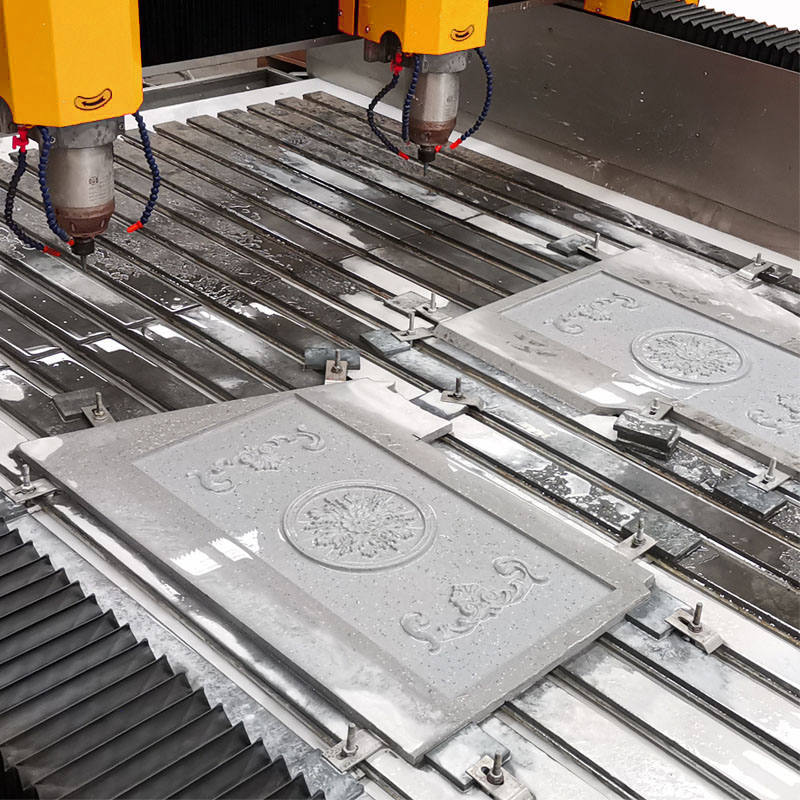

Processing

Granite engraving machine

Loading

CNC stone Router
