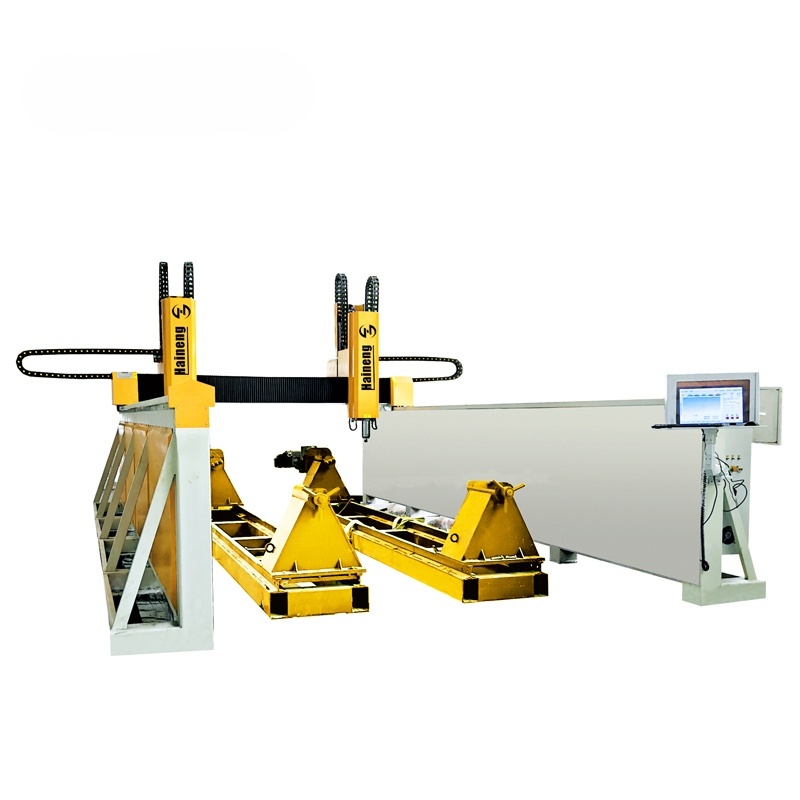

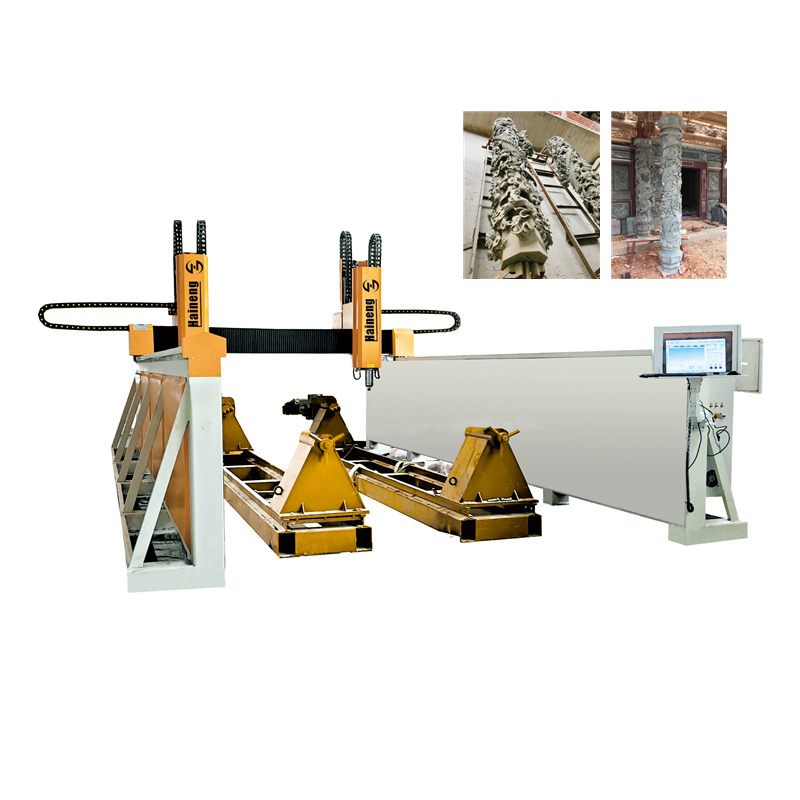

Double Head Dragon Column CNC Stone Engraving Machine
Column Engraving Machine can process round carving, plane carving, flexible and changeable, round carvings can carry large workpieces of more than 5 tons .
Item No.: LZDK1230-2
- Haineng
- Fujian
- 25 days
- 10 PCS Per Month
- Information
- Video
Product Introduction
Performance characteristics
1. The latest system, efficient and stable
2. X, Y axis 30 rails, Y axis double rails
3. XY reducer drive, Z-axis with brake function

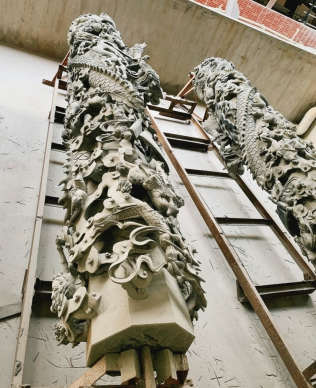

4. Can process round carving, plane carving, flexible and changeable, round carvings can carry large workpieces of more than 5 tons
5. The saw blade is roughened first, and then the engraving process is carried out, which is efficient and energy-saving

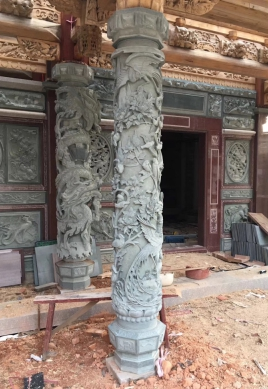

6. Suitable for large-scale pillar processing such as building materials, ancient building, gardens, etc
Technical Parameters
Technical parameters | |
Equipment model | LZDK1230-2 |
Dimensions | 4000x 5500x 3000mm |
Processing size | φ1 200x 3000mm |
Saw power | 1 1 KW |
Spindle power | 7 . 5KW |
Drive system | Servo |
Control system | NC studio / RichAuto (Customizable) |
Processing
