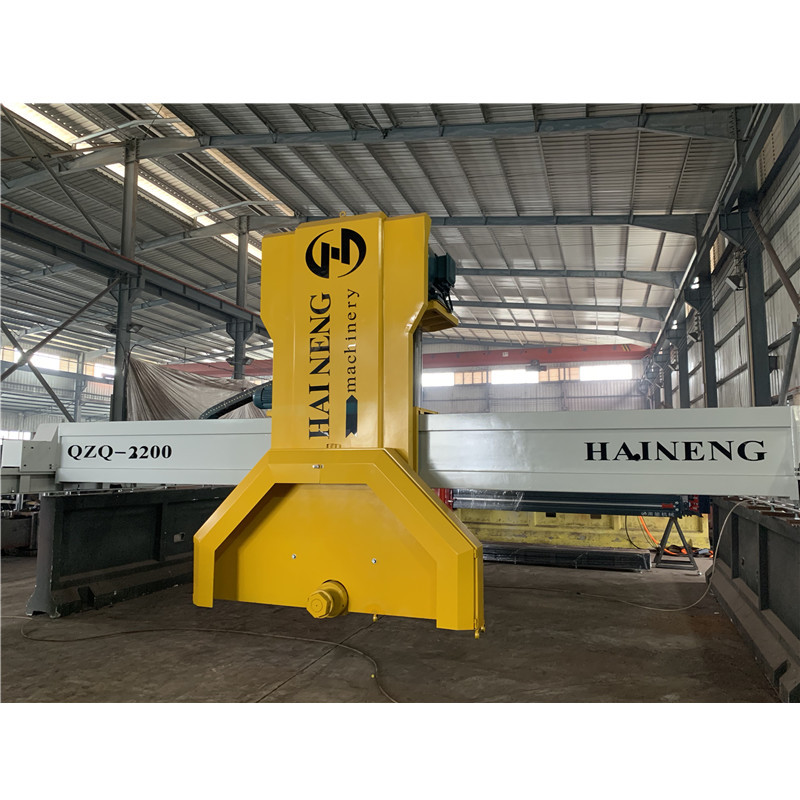

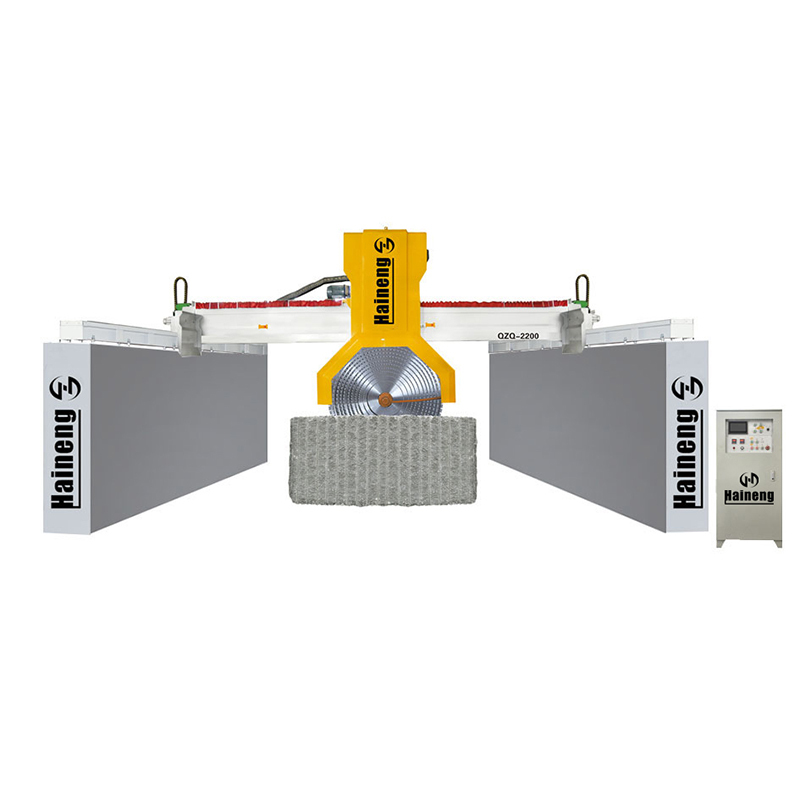

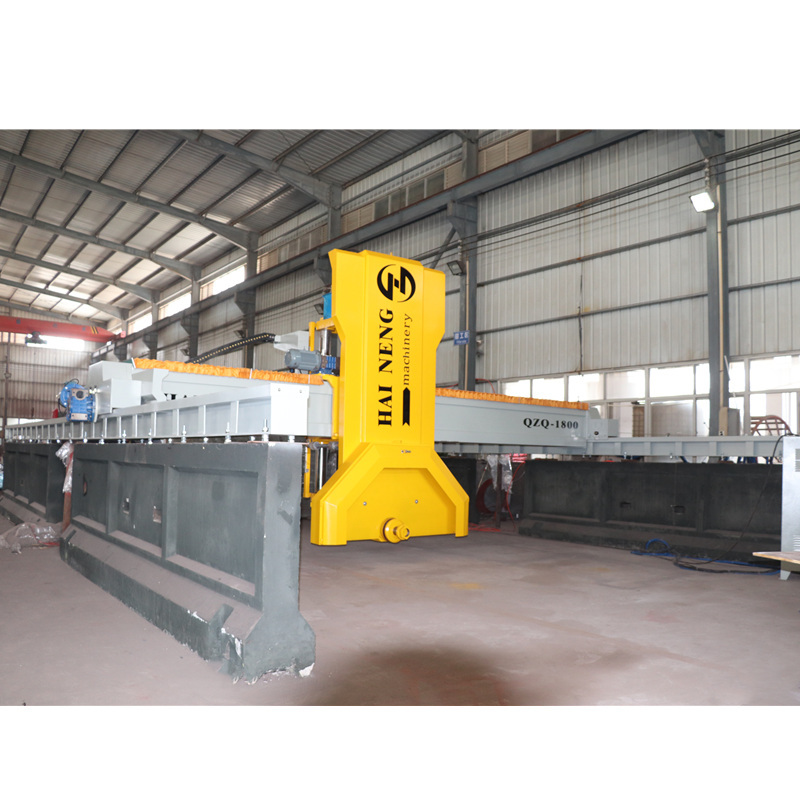

Guide Combined Block Cutting Machine Guide Column Type
This machine uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding, adjusts speed according to the stone material. It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush,with small gap,wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof,dustproof, anti-spill,improving the service life.
- Haineng
- Fujian
- 10 PCS Per Month
- Information
Product Introduction

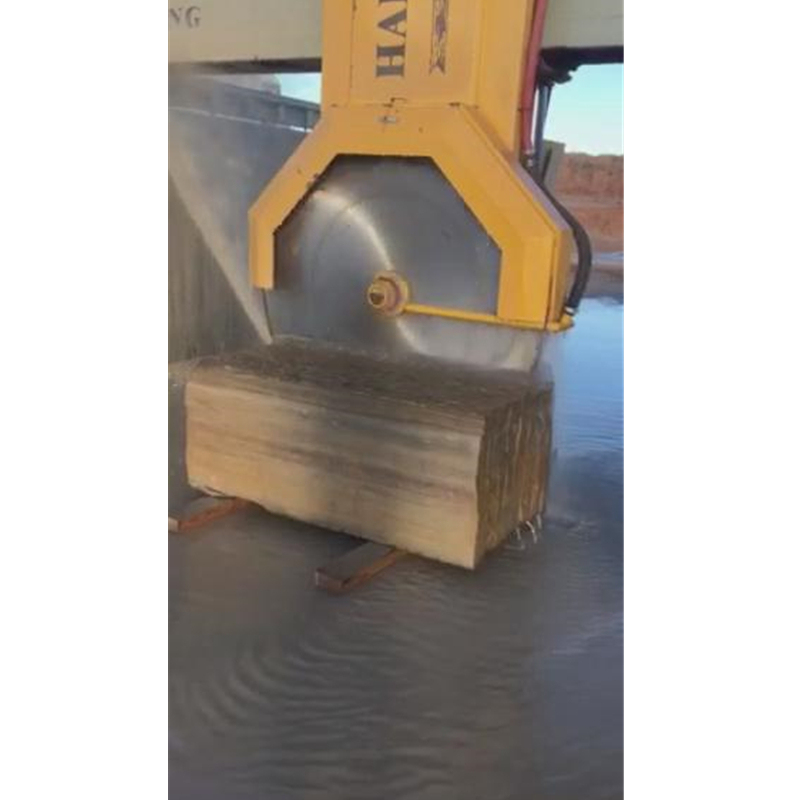

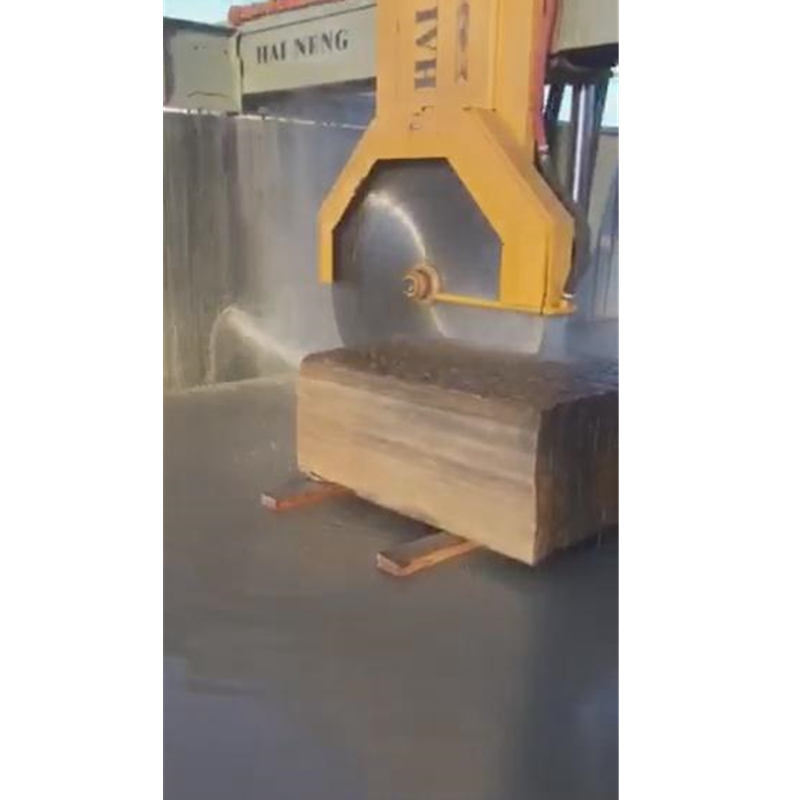

This machine uses PLC system and Human-machine Interface, combined with Ultra-high precision rotary encoder to slice, uses inverter to control left-right feeding, adjusts speed according to the stone material. It uses hydraulic lifting system, combination of Chrome-plated guide pin and wear guide bush,with small gap,wearable, beautiful structure, and Guide Sleeve with multi-layer seals, with waterproof,dustproof, anti-spill,improving the service life. Forward-backward slicing uses high-precision screw nut driving, automatic slicing, main spare parts adopt imported good-quality materials; the block can be placed on the ground directly to economize the worktable and its maintenance costs; thus the whole machine is featured with high cutting efficiency, high slicing precision, flatness of plate after cutting, high stability, easy-operating to suit granite and marble block with high value.
Note:360° rotating worktable can be selected if customer requires.
Technical Parameters
|
Guide Combined Block Cutting Machine(Guide Column Type) |
|||
|
Type |
unit |
AYH2200-1 |
AYH2200-2 |
|
Max.saw disc diameter |
mm |
Φ2200 |
Φ2200 |
|
Max.processing length |
mm |
2800 |
3600 |
|
Max.processing width |
mm |
2200 |
2200 |
|
Max.lifting stroke |
mm |
1350 |
1350 |
|
Power of main motor |
kw |
37/45 |
37/45 |
|
Total power |
kw |
47/55 |
47/55 |
|
Water consumption |
m³/h |
15 |
15 |
|
Dimension (L×W×H) |
mm |
6900×4300×3700 |
7800×4300×3700 |
|
Total weight |
kg |
11000 |
11500 |
