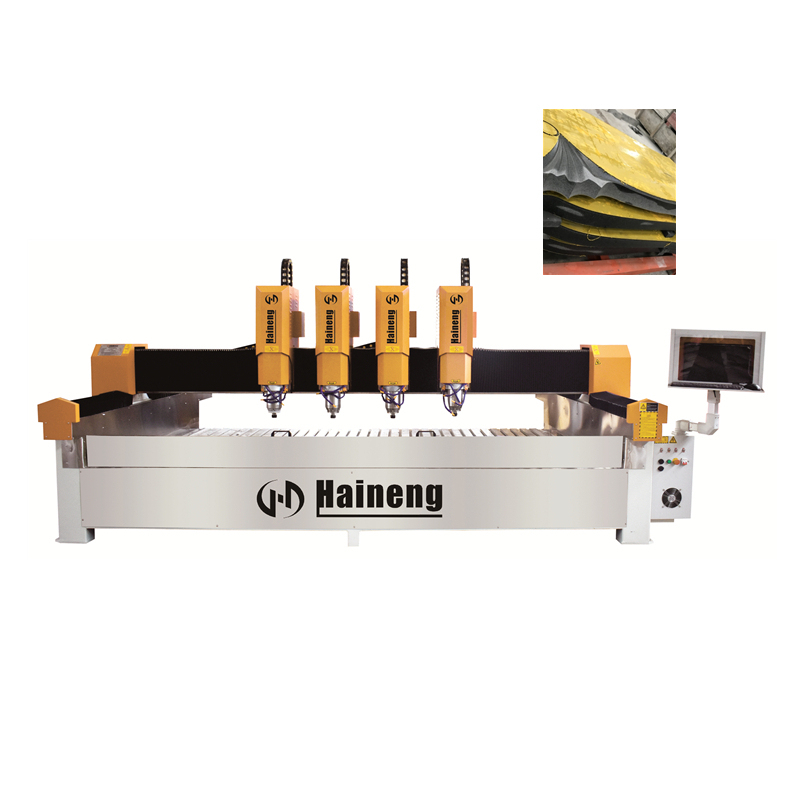

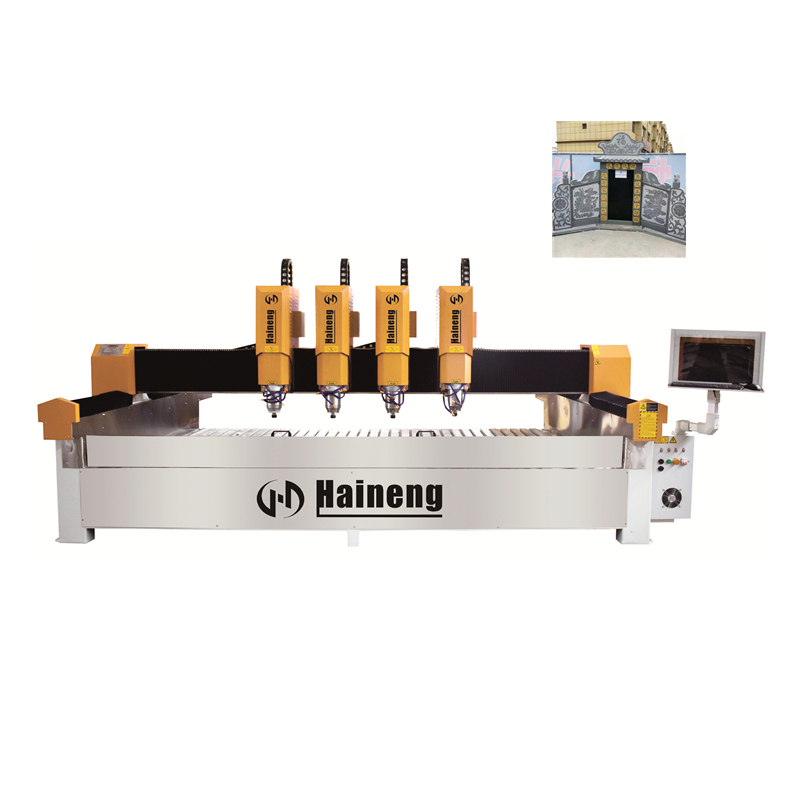

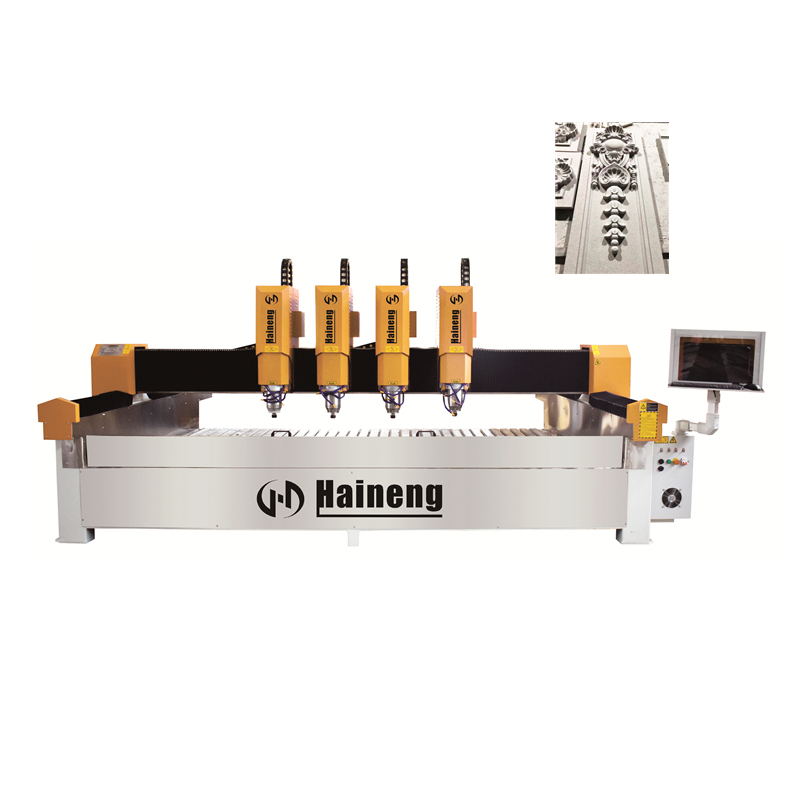

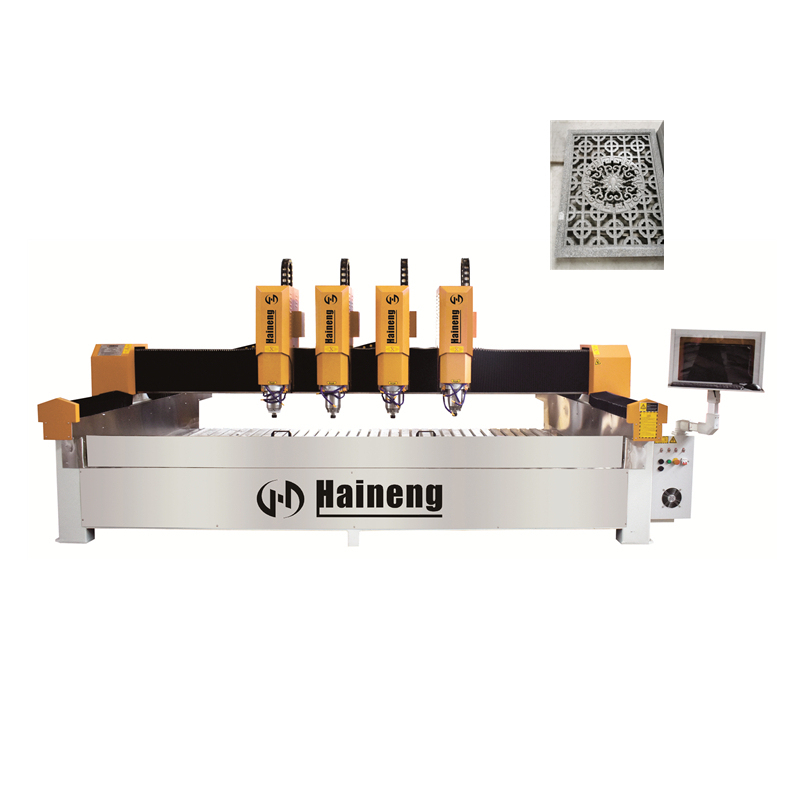

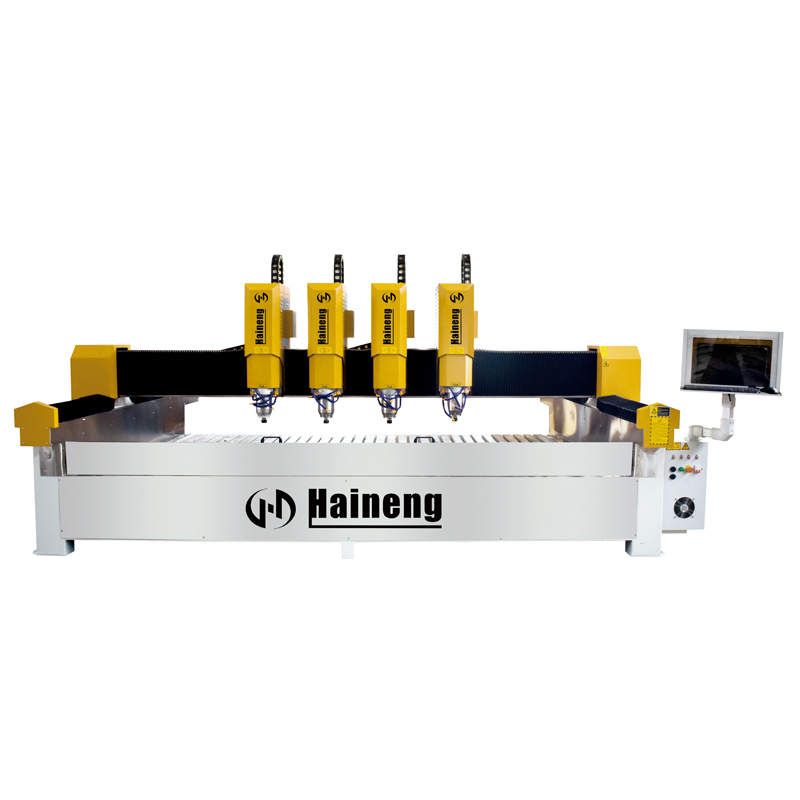

High Efficient Classic Four-Head Engraving Machine
The latest stone cutting system, all three axes are driven by AC servo motors, suitable for building materials, ancient buildings, tombstones, tea trays, etc.
Item No.: JDK3520-4
- Information
High Efficient Classic Four-Head Engraving Machine
Performance characteristics
1. The latest system, efficient, stable, economical and durable
2. X, Y axis 30 guide rail, Y axis can be equipped with double guide rails
3. All three axes are driven by AC servo motors
4. Suitable for building materials, ancient buildings,tombstones,tea trays, etc.
Main Features
1) Adopt NcStudio CNC control system large color screen display, easy and simple to operate.
2) Break to rusume function. Continue carving from break point after power resuming from failure.
3) Compatible with Artcam JD Paint CAM software and other software programs.
4) High-performance new material motors and drivers can resist heat, shock and bad environment, ensure the working high speed and accuracy..
5) Professional vector control Inverter guarantee the variety working speed, smooth operation and make lower power consumption.
6) Aircraft-quality surface oxidized aluminum profile table which adding thicken PVC board, Enhancing the loading capacity of the platform.
7) Steel tube lathe bed, low center of gravity, strong bearing capacity, stable and long working life.
Technical Parameters
Technical parameters | |
Equipment model | JDK3520-4 |
Dimensions | 4500x 3000x 1800mm |
Processing size | 3500x 2000mm |
Feed height | ≤ 400/700mm (Customizable) |
Spindle power | 5 . 5KW/7 . 5KW/9KW (Customizable) |
Drive system | Servo |
Control system | Shanlong |
Application:
* Bas-reliefs,
* Line engraving Cutting, Edge inversing
* Funeral tablets/gravestones, Milestones
* commemorative plates
* Furniture, Fireplace.
* Countertops, Sink hole, grooving, shower trays
Machine details
Control system -- CNC
Brand: NcStudio
Original: China
NCstudio CNC system, keyboard operation, large screen display, easier to operate and maintain, more humanized design
Water-cooling Spindle
Power: 3.5/4.5/5.5 kw (customizable)
Rotating Speed: 6000-24000 rpm/min
Frequency changing water cooled spindle with high-speed bearing technology, make low noise, fast response, high rotational speed and safeguard stability for longtime work.
Guide Rail, Ball screw
Origin: Taiwan, China
High quality guide rail, ballscrew, rack used on X, Y and Z axises provide smooth motion and tight control for precise and quality engraving.
Auto Lubricating System
Automatic oil feedingand lubrication system makes the regular maintenance very easy and reduce waste.
Hand Wheel
Remote or close to control the movement of working heads, especially convenient for positioning the original processing point.
